Whitney punch press machines are widely recognized for their durability and precision in metal fabrication tasks such as punching holes in various materials. However, like any industrial equipment, they are susceptible to certain common problems that can affect performance, safety, and productivity. This comprehensive article explores the typical issues encountered with Whitney punch press machines, their causes, and effective solutions, complemented by practical tips and maintenance advice to keep your machine running smoothly.

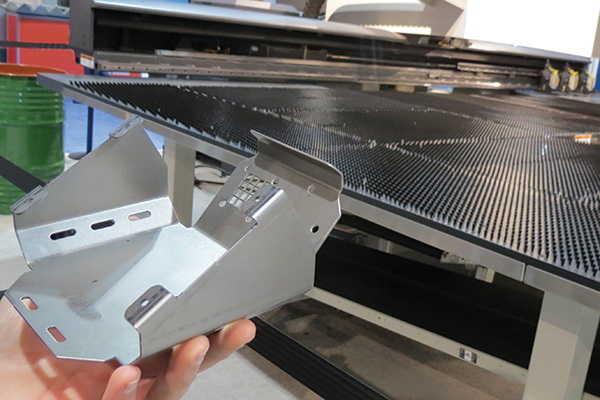

Whitney punch presses are mechanical or hydraulic machines designed to punch holes or shapes in metal sheets, bars, beams, and other structural materials. They are favored for their robust construction and ability to deliver precise, clean holes with minimal burrs. These machines come in various models and sizes, including portable hydraulic presses and larger bench-mounted units, each tailored for specific industrial applications.
One frequent problem is the emergency stop button not resetting properly or having poor electrical contact. This can cause the machine to remain in a stopped state, halting production unexpectedly. The solution is to rotate the button back to its original position or replace it if damaged to ensure reliable operation.
After an emergency stop, the slide block or ram may fail to return to the top dead center position, preventing the next punching cycle. Operators can use the inching function to manually return the slider to the correct position, which restores normal operation.
Whitney punch presses often rely on pneumatic systems for clutch operation or other functions. If the air pressure indicator light does not illuminate when pressure is low, it can lead to unnoticed air supply issues. Detecting and adjusting the air pressure supply is essential to maintain machine performance.
The micro switch in the overload protection device may be improperly adjusted, causing false trips or failure to protect the machine from excessive loads. Regular testing and readjustment of this switch ensure the press operates safely within its limits.
Power interruptions or circuit faults can cause the machine to stop working or behave erratically. Checking the power supply, wiring, and control circuits regularly helps prevent downtime.
An increased stroke length of the clutch cylinder can affect the engagement and disengagement timing, leading to operational problems. Adjusting the stroke length with appropriate tools restores normal clutch function.
A stuck or leaking clutch piston reduces the clutch's effectiveness, causing slipping or incomplete engagement. Repairing or replacing the clutch components is necessary to maintain proper machine operation.
Excessive single-stroke operations can cause the clutch to overheat, risking damage. Reducing the frequency of single strokes and allowing cooling periods can prevent this issue.
Leakage in the solenoid valve or a short-circuited coil affects clutch operation and can lead to machine failure. Repair or replacement of these parts is required for reliable functioning.
Misalignment causes uneven clearance, resulting in poor hole quality, chipping, or premature wear of tooling. Proper alignment checks and adjustments are critical.
Loose coupling nuts allow the punch to shift during operation, leading to chipping or breaking. Regular tightening and inspection prevent these failures.
Excessive clearance in the stripper causes the material to move during punching, leading to angular fractures. Adjusting stripper clearance closer to the material stabilizes the workpiece.
Poor alignment or worn tooling causes face chipping and galling on punches. Maintaining equal clearance and replacing worn punches reduces these problems.
Attempting to punch materials beyond the tooling's capacity or misalignment can cause catastrophic failure of punches and dies. Selecting appropriate tooling and materials is essential.
Loose coupling nuts or worn punch systems cause the punch head to fracture. Tightening nuts and maintaining tooling integrity is necessary.
Occurs when the punch enters the die too far or the material is thicker than the punch's working length, deforming the material. Adjusting the stroke to limit punch penetration to about 1/16 inch prevents this.
Keep the machine clean and free from debris, especially in the punch and die areas. Regularly lubricate guide rails, crankshafts, and other moving parts to reduce wear.
Use punches and dies that match the material thickness and type. For example, the punch should be heavier and stronger than the material to avoid punch failure.
Before operation, ensure the punch and die are properly aligned with equal clearance all around. Adjust the die shoe and punch holder as necessary.
Set the ram stroke so the punch enters the die between 1/16 and 1/32 of an inch to avoid excessive wear and material damage.
Ensure operators are trained on machine operation, safety protocols, and maintenance procedures to minimize misuse and accidents.
Test and reset the emergency stop button regularly to ensure it functions correctly.
Inspect clutch components and solenoid valves for leaks or damage and repair or replace them as needed.
Check air pressure systems and electrical circuits frequently to prevent failures.
For more complex issues, such as intermittent electrical faults or hydraulic system irregularities, it is advisable to consult the machine's technical manual or contact a certified technician. Using diagnostic tools like multimeters for electrical checks or pressure gauges for hydraulic systems can help pinpoint problems more accurately.
A manufacturing plant reported frequent downtime due to clutch overheating and punch misalignment. After implementing a strict maintenance schedule including daily lubrication, weekly alignment checks, and operator training, the plant saw a 30% increase in productivity and a significant reduction in repair costs. This example underscores the importance of proactive maintenance in extending the life of Whitney punch press machines and optimizing production efficiency.
Proper disposal of used lubricants and worn tooling is important to minimize environmental impact. Using eco-friendly lubricants and recycling metal scraps can contribute to sustainable manufacturing practices. Additionally, maintaining machines to prevent leaks and spills helps protect the workplace and surrounding environment.
Whitney punch press machines are powerful tools essential for precise metal punching tasks. However, they are prone to several common problems such as emergency stop malfunctions, clutch issues, misalignment, and tooling wear. Addressing these problems through regular maintenance, proper tooling selection, alignment checks, and operator training ensures optimal performance and longevity of the machine. By understanding these common issues and their solutions, users can minimize downtime, enhance safety, and maintain high-quality production standards.
Punch jams often result from material misalignment, worn or damaged punches and dies, or foreign objects obstructing the punching mechanism. Regular cleaning, proper material inspection, and timely tooling replacement can prevent jams.
Proper alignment is indicated by equal clearance around the punch when it enters the die. You can adjust the die shoe and punch holder to achieve this. Misalignment typically causes uneven hole quality and tooling wear.
Regular lubrication of moving parts, inspection of clutch components, checking air pressure and electrical circuits, cleaning debris, and ensuring proper punch and die alignment are key maintenance tasks.
Avoid excessive single-stroke operations and allow cooling periods between cycles. Regularly inspect the clutch for wear and maintain proper lubrication.
Whitney punch presses can punch high tensile materials, but this may void warranties and cause premature tooling wear. It is advisable to consult the manufacturer for specific applications and consider larger models or specialized tooling for such materials.
