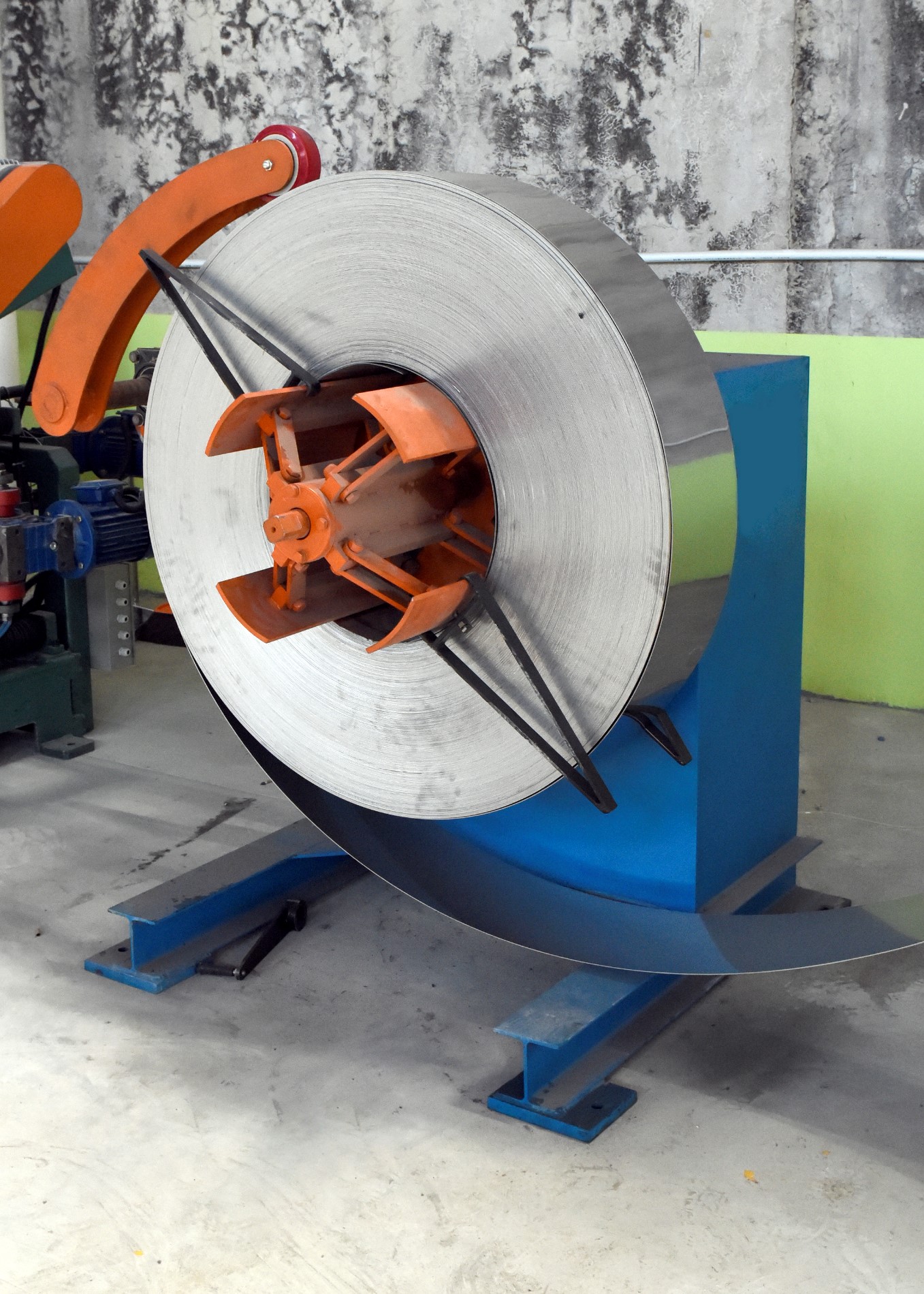

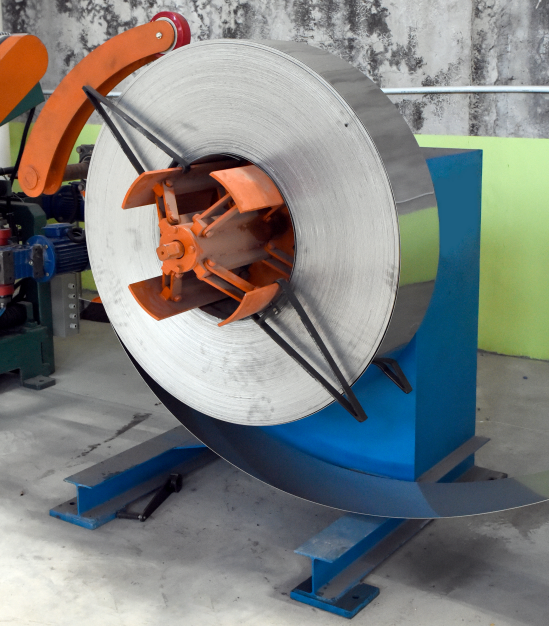

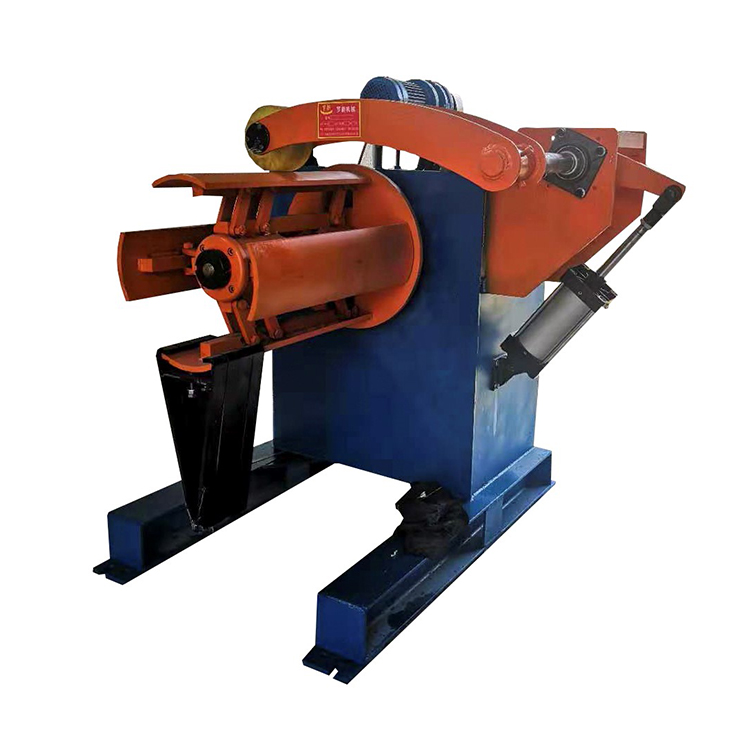

Uncoiler Machine

Brand Huizhi Haoda
Product origin China
Delivery time 15~30 Days
Supply capacity 1000 sets per month
Use the uncoiler for blanking machine could help you to save labor cost, improve production output.
This uncoiler suitable for all kinds of coiling material uncoil or recoil, no matter thin or thick, metal or nonmetal Sheet.

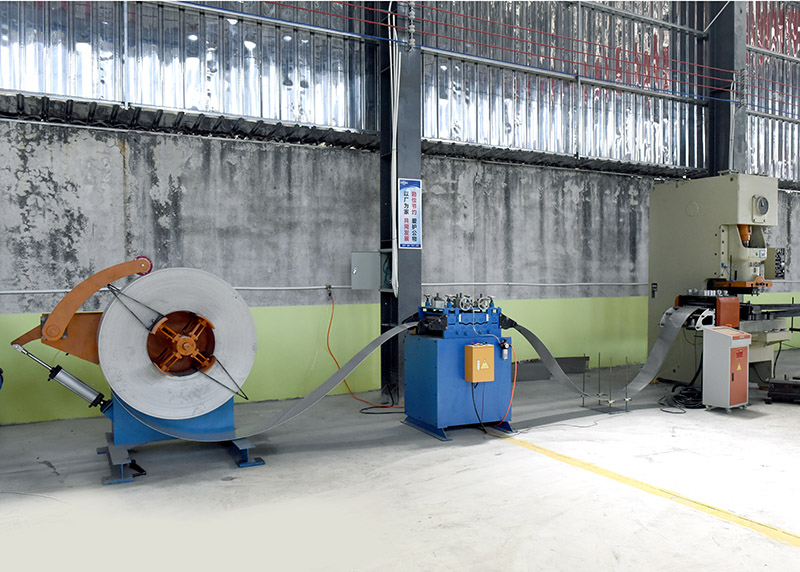

This decoiler could match with the straightener and RNC feeder to feeding the material automatically for press/blanking machine.

Availability:



Inquire Add to Basket

Uncoiler Machine NC Servo Feeder NC Feeder Machine Servo Feeder Machine Servo Feeder For Press

Product Description

Decoiler Uncoiler Machine for Metal Sheet Nonmatal Sheet Steel

1. This uncoiler is suitable for all kinds of coiling material uncoil or recoil, no matter thin or thick, metal or nonmetal sheets.

2. This decoiler could integrate with the straightener and RNC/NC feeder to feeding the material automaticly to the blanking machine.

3. According to Customer needs: Max material weight - 2000 ton. Max material width - 800mm.

Technical Parameters:

	Unit	MT-300	MT-400	MT-500	MT-700
Stock Width	mm	500	500	600	700
Coil Weight	kgs	3000	4000	5000	7000
Coil Thickness	mm	0.5~3.0	1.0~4.0	0.5~3.0	1.0~4.0
Mandrel Expansion:	/	Manual	Manual	Hydraulic	Hydraulic
Coil I.D.:	mm	500	500	500	500
Coil O.D.:	mm	1200	1200	1200	1200

Uncoiler Machine
