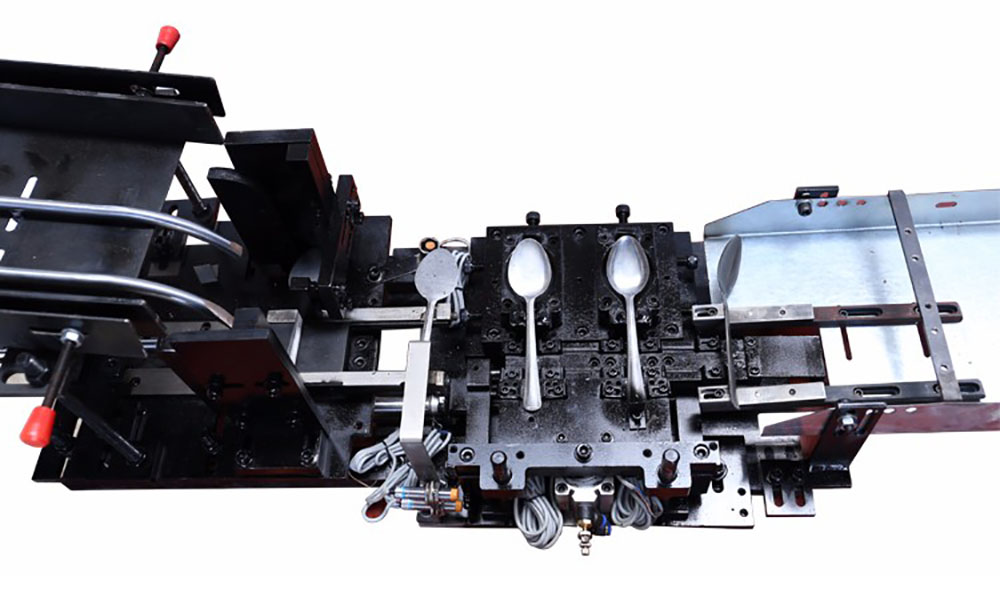

DGW-004 Automatic Feeder For Cutlery Manufacturing
Features:
1. High output and efficient production, with this automatic feeder, two pieces of spoon could be punched at one one time, save power and labor cost.
2. Replace manual production, one worker could operate 2~6 sets of machine at the same time, one machine could process 40~45 pieces spoon per minute.
3. Improve competitiveness, high-precision production, up to 99% succeed produce.
4. Easy operation and maintenance, only need the worker switch on/off the machine and loading/unloading the materials from the automatic feeder.
5. Safety production, no need the worker put hands into the frame of the hydraulic press or punch press machine, avoid production accident.
6. Low power consumption, 0.02kw/h.
Image show:

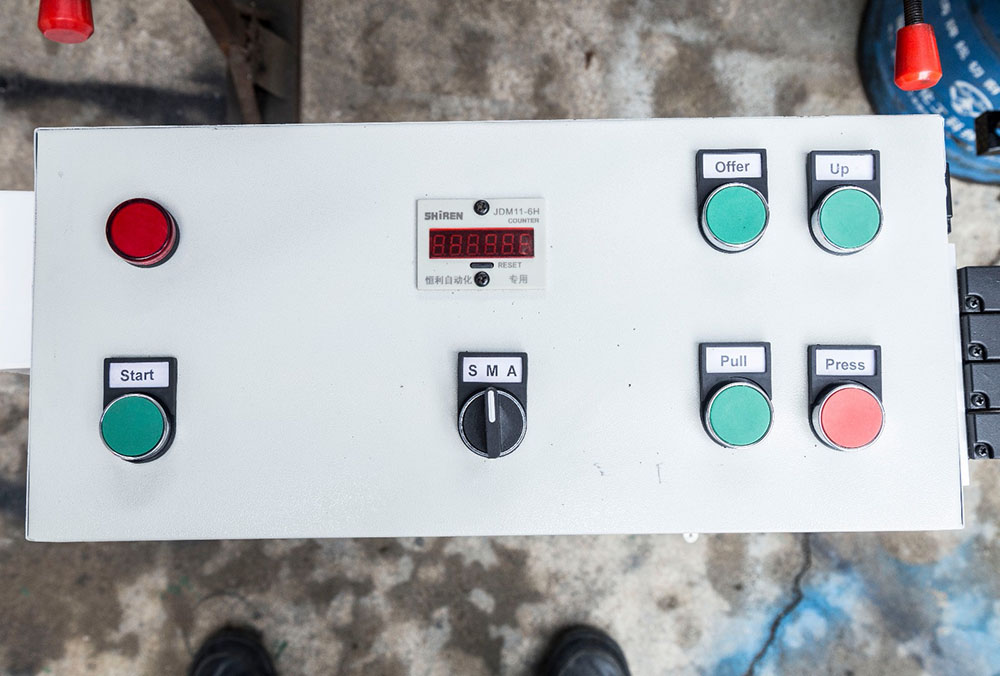

operation panel

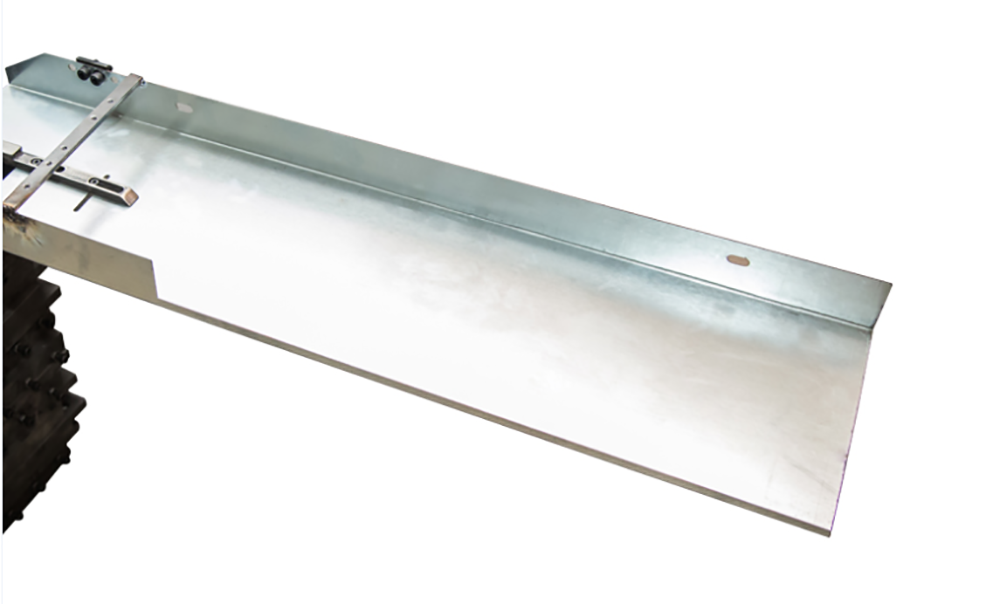

Material inlet: Length 900mm, could place around 300pcs of 3mm stainless steel sheet.
Material outlet: Length 900mm, could place around 300pcs of 3mm processed cutlery.

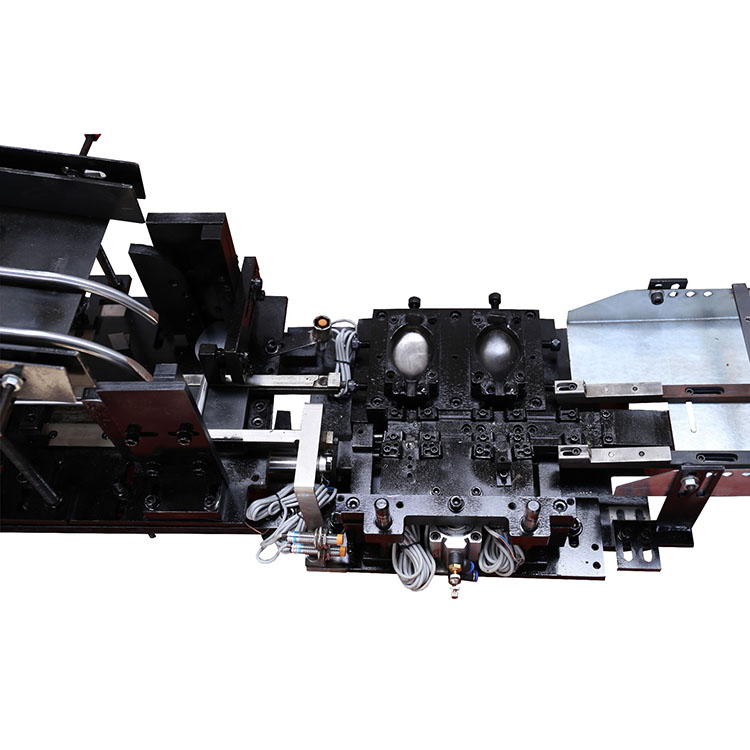

Work station:
Specifications:
Thickness of the product | ≤2 | mm |
Length of the product | 100~220 | mm |
Process speed | 35~40 | pcs/min |
Dimension of worktable | L480W320 | mm |
Dimension of material inlet/outlet | L900*W240 | mm |
Power | 220V | 20W |
FAQ:
Q: How to select the suitable machines?
A: Please send an inquiry with below information:
1. Photo of the sample.
2. What's material, length, weight and thickness (min&max ) of the sample.
3. Production capacity, and your factory production situation.
With these information, our engineers could help you to do the process analysis and find a good production program for you.
Q: If I want to set up a factory, could you help?
A: Yes, our engineers could go to your factory to help you make a plan list for product positioning, product capacity, equipment purchase schedule, equipment layout design etc.
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
