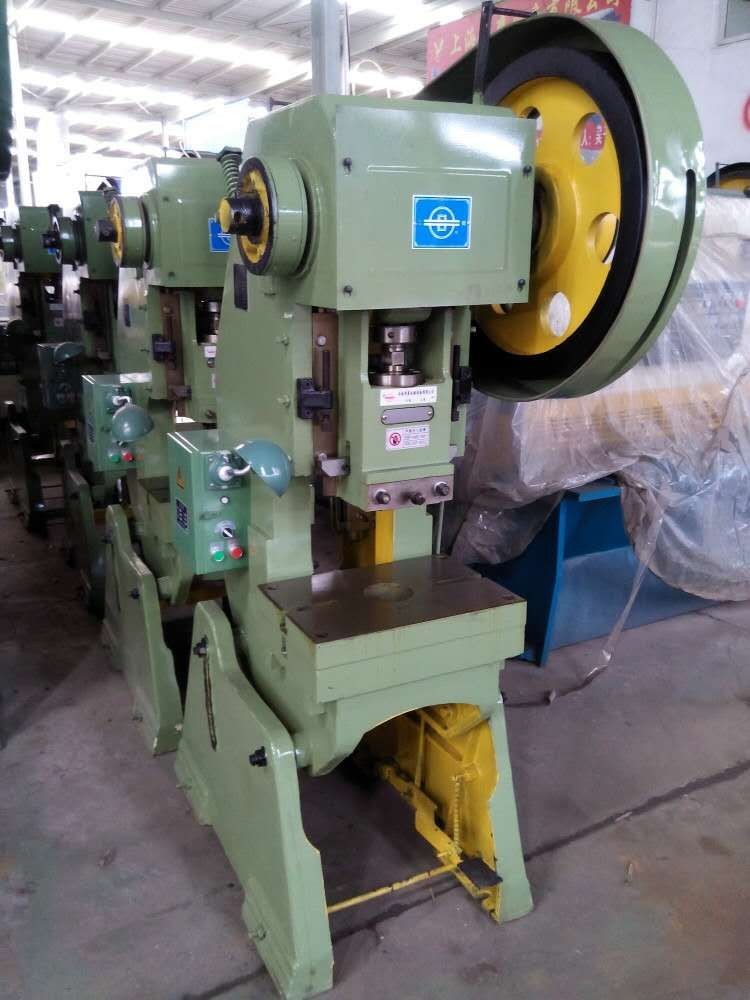

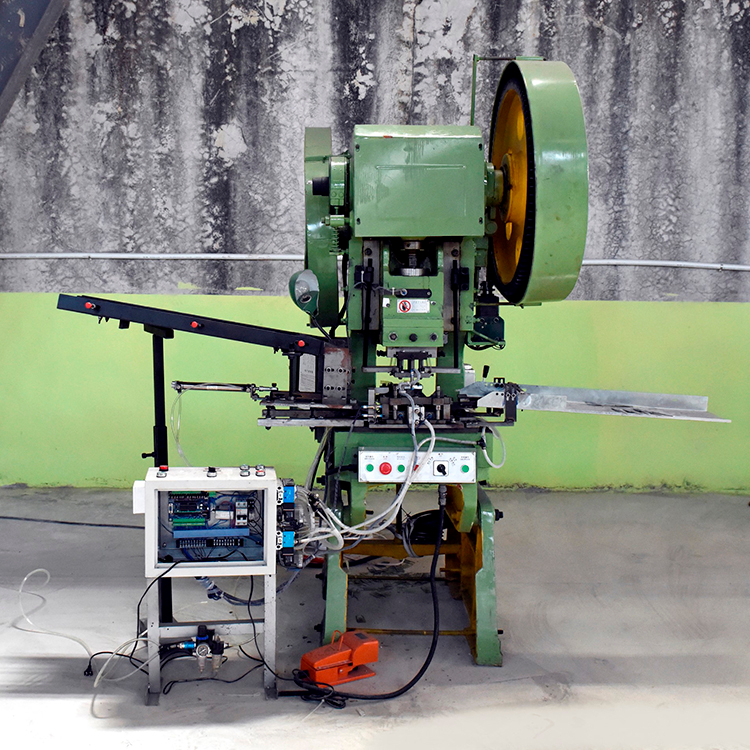

JB23-25 Ton Punch Press Machine
Features:
1. Wide body frame with gentle vibration could protect the die and machine, increase the using life.
2. Casting equipment, great rigidity, more stable accuracy.
3. Compact C frame structure ensure the convenient use and safe operation.
4. With three sides open working table, the operator could loading/unloading the die and operate the machine conveniently.
Technical Parameters:
Specification | Unit | JB23-25 | |
Nominal Pressure | kN | 260 | |
Slide Stroke | mm | 80 | |
Stroke(S.P.M) | Times/min | 55 | |
Maximum Shut Height | mm | 290 | |
Shut Height Adjustment | mm | 55 | |
Distance from Slider Center to Frame | mm | 200 | |
Worktable Dimension | F-B | mm | 370 |
L-R | mm | 560 | |
Dimension of worktable hole | F-B | mm | 160 |
L-R | mm | 240 | |
Diameter | mm | 190 | |
Slide Underside Dimension | F-B | mm | 180 |
L-R | mm | 230 | |
Die Shank Hole Dimension | Diameter | mm | 40 |
Depth | mm | 60 | |
Verticcal Columns Distance | mm | 235 | |
Distance from Worktable to Rail | mm | 350 | |
Thickness of Worktable Plate | mm | 55 | |
Maximum Tilting Angle | ° | 20 | |
Motor Power | KW | 2.2-4 | |
Machine's Dimension | F-B | mm | 1345 |
L-R | mm | 950 | |
H | mm | 2130 | |
Weight | KG | 1780 |
