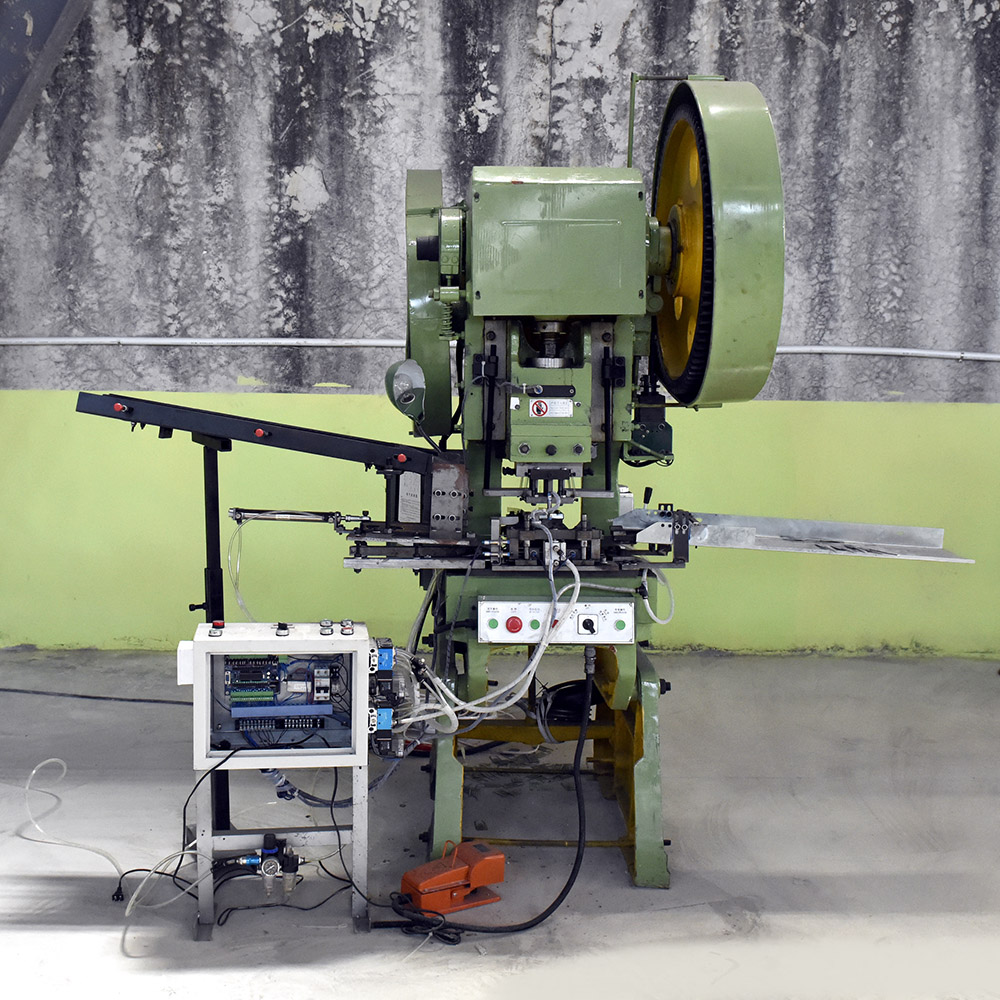

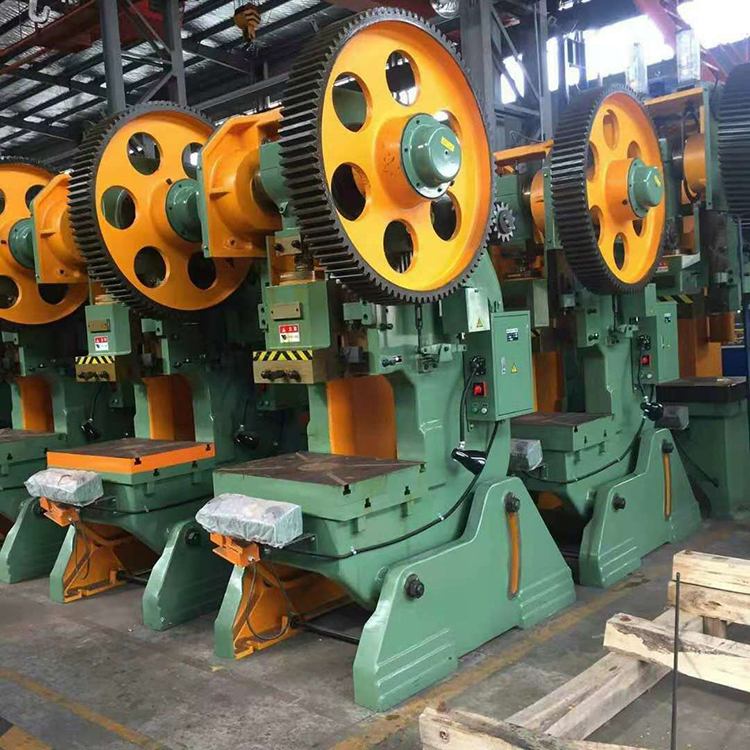

JB23-63 Ton Punch Press Machine
Features:
1. Wide body frame with gentle vibration could protect the die and machine, increase the using life.
2. Adopted cast-iron body and could be inclined. Great rigidity, more stable accuracy.
3. Compact C frame structure ensure the convenient use and safe operation.
4. With three sides open working table, the operator could loading/unloading the die and operate the machine conveniently.
5. OEM/ODM customer's design, size, color & logo are acceptable.
Technical Specification:
Specification | Unit | JB23-63 | |
Nominal Pressure | kN | 630 | |
Slide Stroke | mm | 110 | |
Stroke(S.P.M) | Times/min | 40 | |
Maximum Shut Height | mm | 400 | |
Shut Height Adjustment | mm | 80 | |
Distance from Slider Center to Frame | mm | 310 | |
Worktable Dimension | F-B | mm | 570 |
L-R | mm | 860 | |
Dimension of worktable hole | F-B | mm | 310 |
L-R | mm | 450 | |
Diameter | mm | 400 | |
Slide Underside Dimension | F-B | mm | 360 |
L-R | mm | 400 | |
Die Shank Hole Dimension | Diameter | mm | 50 |
Depth | mm | 80 | |
Verticcal Columns Distance | mm | 420 | |
Distance from Worktable to Rail | mm | 480 | |
Thickness of Worktable Plate | mm | 80 | |
Maximum Tilting Angle | ° | 20 | |
Motor Power | KW | 7.5-4 | |
Machine's Dimension | F-B | mm | 1940 |
L-R | mm | 1510 | |
H | mm | 2850 | |
Weight | KG | 4820 |
FAQ:
Q: How to select the suitable machines?
A: Please send an inquiry with below information:
1. Drawing of the sample.
2. What's material, length, weight and thickness (min&max ) of the sample.
3. Production capacity, and your factory production situation.
With these information, our engineers could help you to do the process analysis and find a good production program for you.
Q: Are you factory or trading company?
A: We are factory+trading company, we have own factory to manufacturing machinery in Jieyang City for more than 10 years, and we also could help you to purchase the raw materials for tableware & kitchenware.etc.
Q: If I want to set up a factory, could you help?
A: Yes, our engineers could go to your factory to help you make a plan list for product positioning, product capacity, equipment purchase schedule, equipment layout design...etc.
Q: Trade terms?
A: EXW or FOB are acceptable.
Q: Terms of payment?
A: 30% T/T deposit, 70% balance payment before shipment.
Q: Delivery time?
A: 20~45 days depend on the order quantity.
Q: Warranty?
A:One year guarantee and lifelong online technical support.
