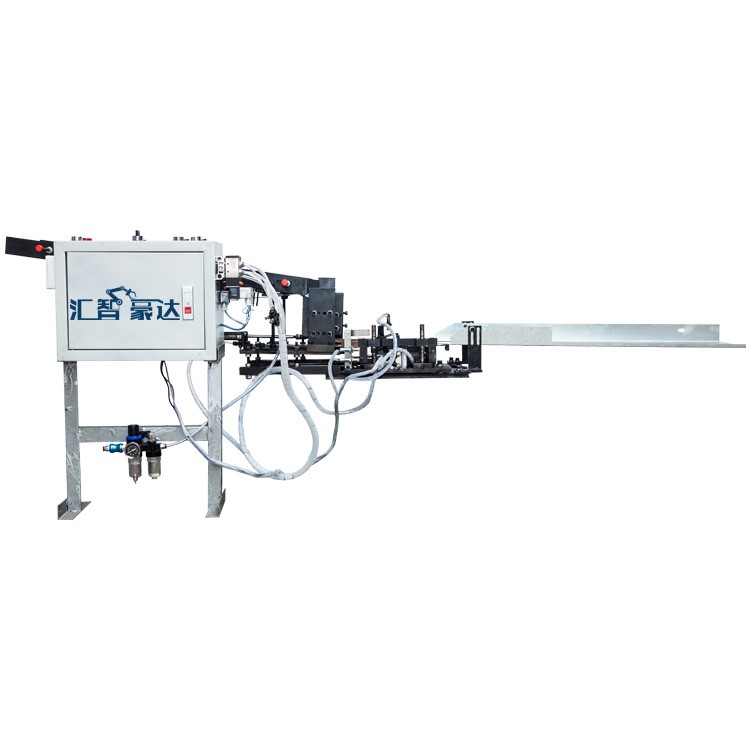

CC-101 Automatic Feeder for Fork Tine Cutting
Features:
1. High efficient production, differ from the manual production, the feeder no need stop to catch the workpiece and put down the processed workpiece, with this feeder, the press machine could working continuously.
2. High output, with this automatic feeder, one press machine could process 38~42 pieces of fork per minute.
3. Save labor cost, one operator could operate 2~5 sets of machines at the same time.
4. Improve market competitiveness, high-precision production, up to 99% successful production, hep you have a commanding lead in the market.
5. Operator friendly, only need the operator switch on/off the machine, loading and unloading the materials from feeder's inlet/outlet.
6. Safety production, no need the operator put hands into the framework of the hydraulic press or punch press machine, avoid production accident.
7. Low power consumption, 0.02kw/h.
Technical Specifications:
| Thickness of the product | ＜3 | mm |
| Length of the product | 100~220 | mm |
| Process speed | 38~42 | pcs/min |
| Dimension of worktable | L285*W420 | mm |
| Dimension of material inlet/outlet | L900*W240 | mm |
| Power | 220V | 20W |

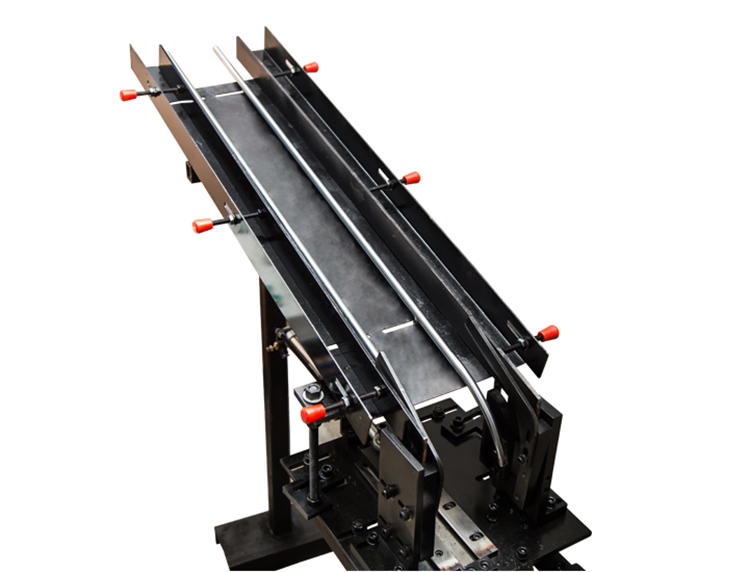

Inlet: Length -900mm, could place around 400 pieces of work piece.

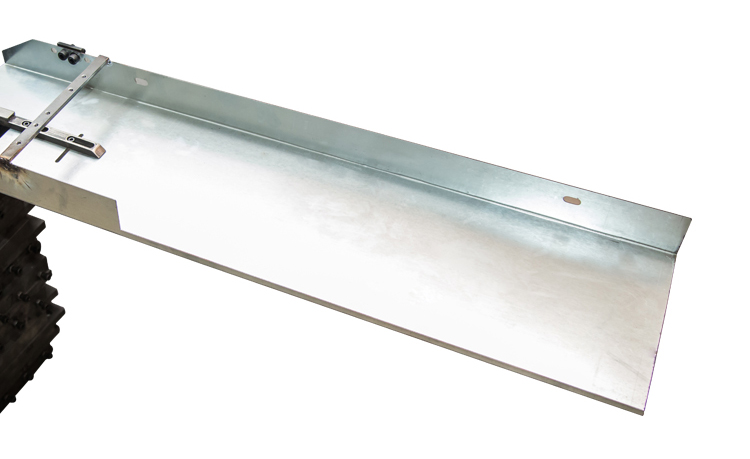

Outlet: Length - 900mm, could place around 400 pieces of work piece.
For more information, please inquiry us with following information:
1. Photo of the sample.
2. What's material, length, weight and thickness (min&max ) of the sample.
3. Production capacity, and your factory production situation.
With these information, our engineers could help you to do the process analysis and find a good production program for you.
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
