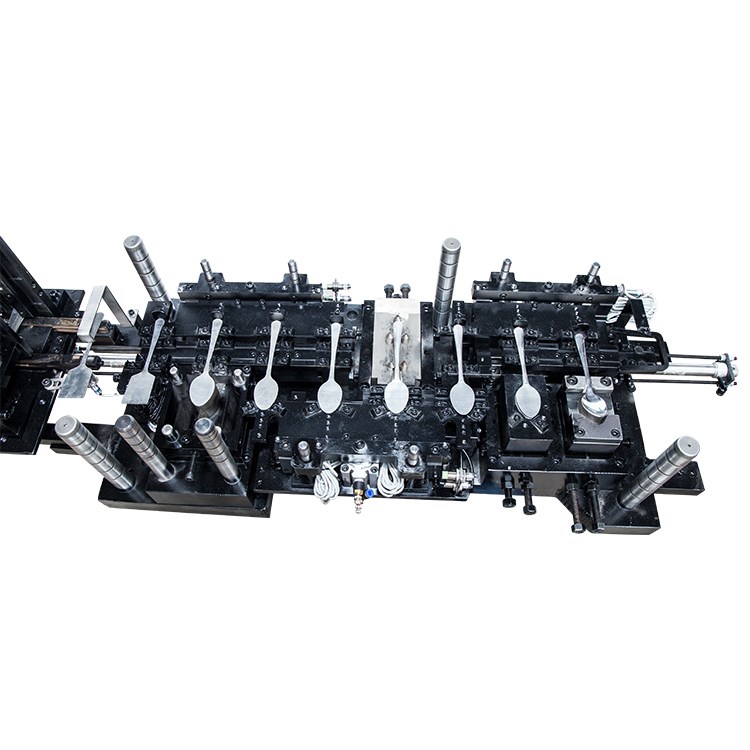

DGW-005 Automatic Feeder For Cutlery Spoon Making 4 In 1
Description:
The feeder's work process is use the high magnetic rod to hold the blank sheet from the automatic feeder's inlet and convey the stainless stainless steel sheet to do spoon cup edge cutting, next handle embossing, next spoon cup forming, finally spoon cup forming, then the rod convey the finished spoon to the feeder's outlet. Cycling work in this mode, the stainless steel spoon could be produced automatically.
Not only be used in cutlery, tableware & kitchenware, but also could be used in other hardware parts production.
Features:
1. High efficient production, one automatic feeder could finished all process of the stainless steel spoon manufacturing, stainless steel sheet in, spoon out.
2. High output, with this cutlery automatic feeder, one hydraulic press machine could process 27~33 pieces of spoon per minute.
3. Replace manual production, save labor cost, one worker could operate 2~4 sets of machine at the same time.
4. Improve competitiveness, high-precision production, up to 99% succeed produce.
5. Easy operation and maintenance, only need the worker to switch on/off the machine and loading/unloading the materials from the automatic feeder.
6. Safety production, no need the worker put hands into the framework of the hydraulic press or punch press machine, avoid production accident.
7. Low power consumption, 0.02kw/h.
Details show:

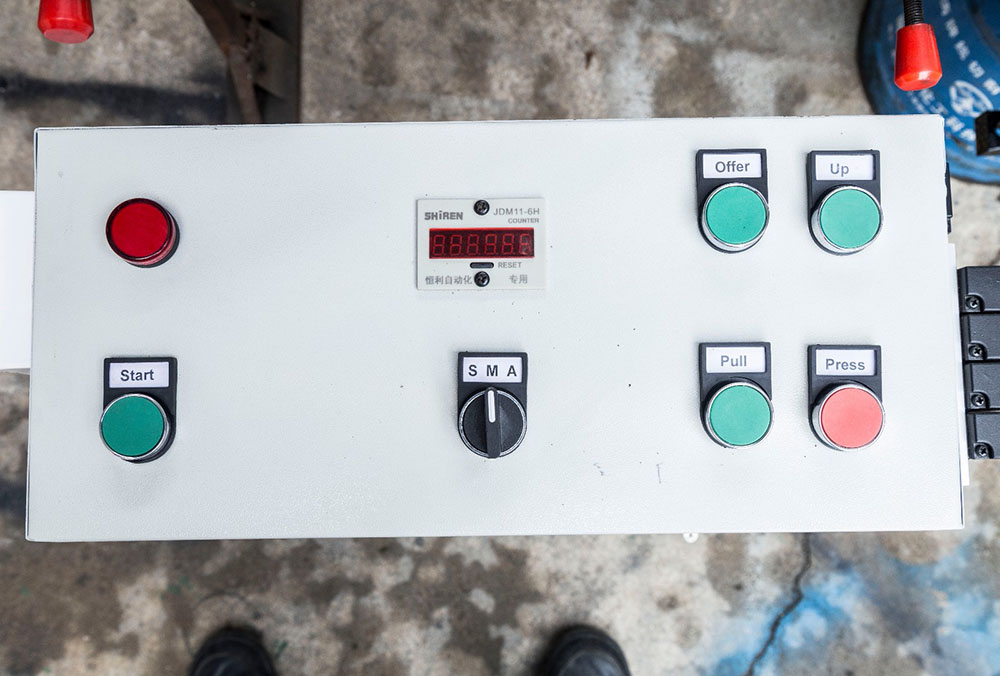

Operation panel

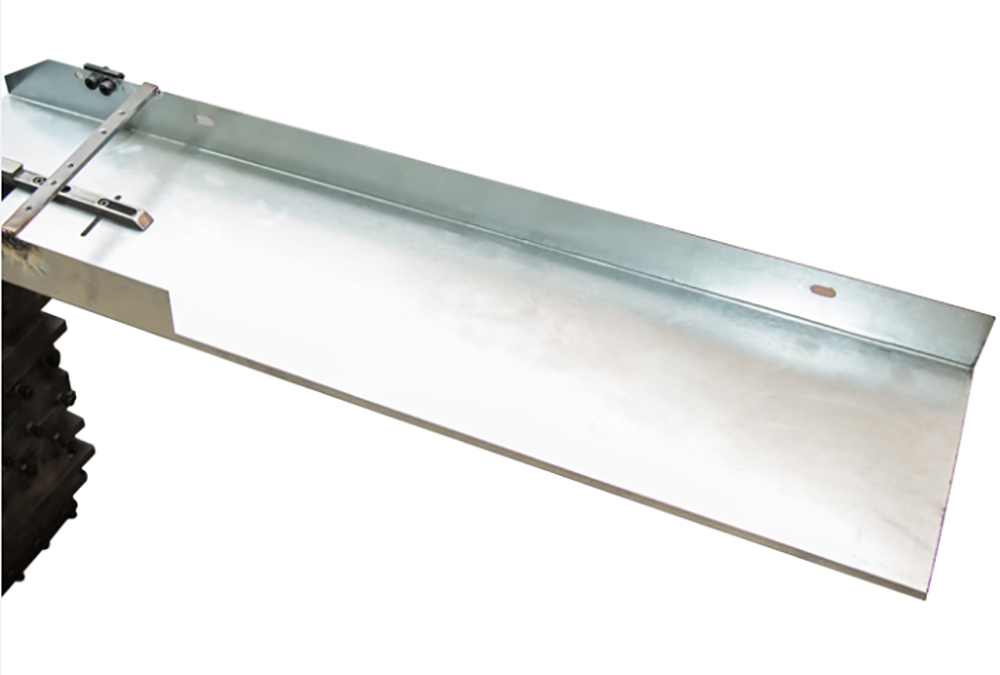

Material inlet: length: 900mm, could place around 400pcs of 2mm metal sheet.

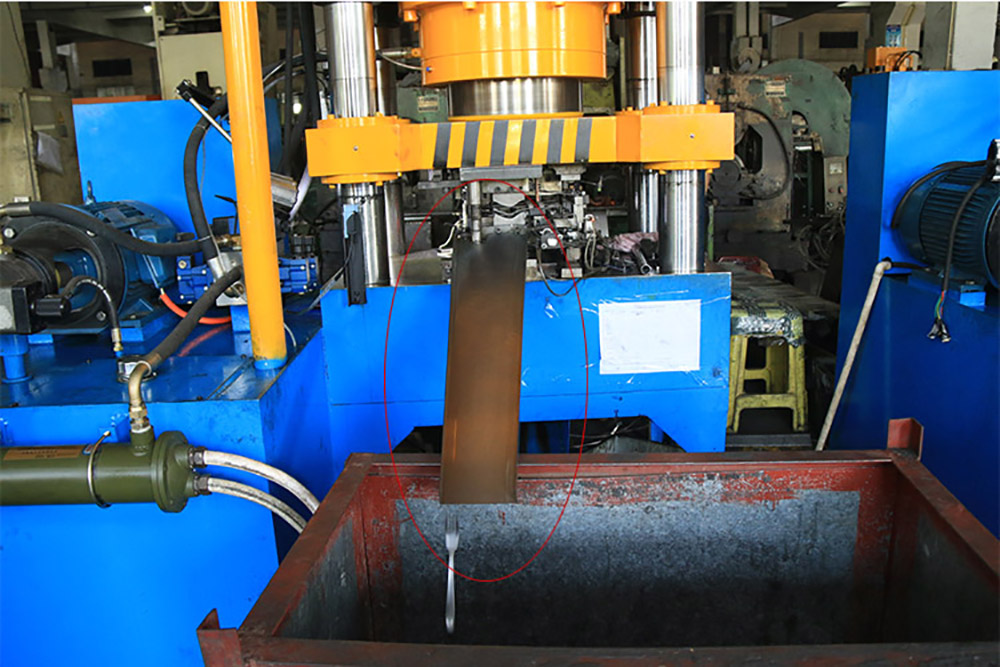

Material outlet:
Kinds 1, length 900mm, could place around 400pcs of 2mm metal sheet.
Kinds 2, the finished products directly drops into the basket.

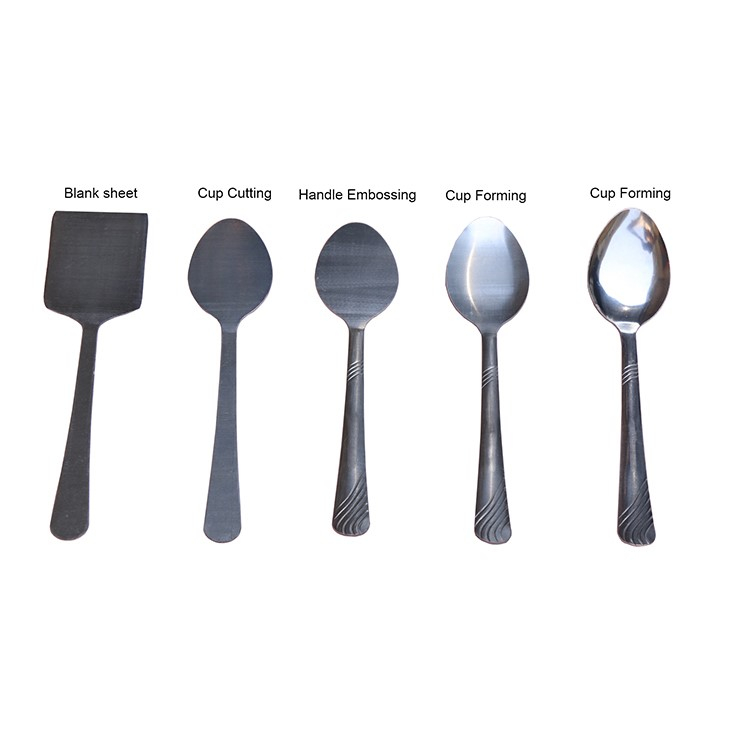

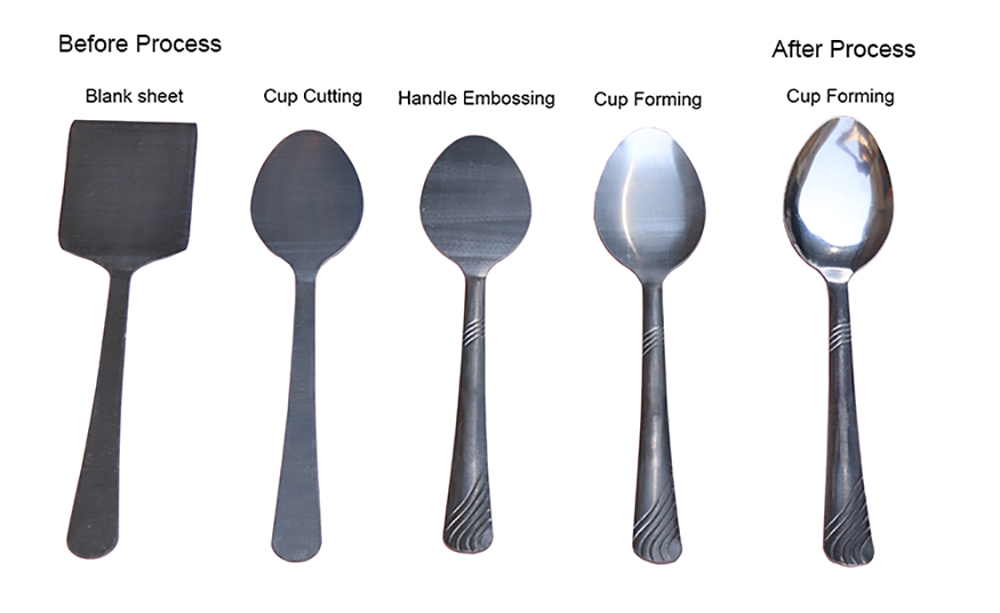

Before process & after process:
Specifications:
| Thickness of the product | ≤2mm |
| Length of the product | 100~220 mm |
| Output | 27~33 pcs/min |
| Dimension of worktable | L860 * W400 mm |
| Dimension of material inlet/outlet | W240 mm |
| Power | 220V, 20W |
Our advantage:
1. Two independent professional R&D teams, SSHL could help you solved any technical request regards tableware & kitchenware production.
2. Engineer overseas installation, training and lifelong online counselling both for machines and products.
3. Customizable model, color and language.
4. Turnkey project or full/semi automatic production line solution are available.
5. Not lowest price but most valuable machine&service, SSHL offer your 5-STAR quality with 3-STAR price.
6. Welcome to be our dealer all over the world, and we sincerely invite your team come to Jieyang to learn the technical, installation, adjusting, setting and training.
FAQ:
Q: How to select the suitable machines?
A: Please send an inquiry with below information:
1. Photo of the sample.
2. What's material, length, weight and thickness (min&max ) of the sample.
3. Production capacity, and your factory production situation.
With these information, our engineers could help you to do the process analysis and find a good production program for you.
Q: Are you factory or trading company?
A: We are factory+trading company, we have own factory to manufacturing machinery in Jieyang City for more than 10 years, and we also could help you to purchase the raw materials for tableware & kitchenware.etc.
Q: If I want to set up a factory, could you help?
A: Yes, our engineers could go to your factory to help you make a planlist for product positioning, product capacity, equipment purchase schedule, equipment layout design...etc.
Q: Trade terms?
A: EXW or FOB are acceptable.
Q: Terms of payment?
A: 30% T/T deposit, 70% balance payment before shipment.
Q: Delivery time?
A: 20~45 days depend on the order quantity.
Q: Warranty?
A：One year and lifelong technical support.
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
