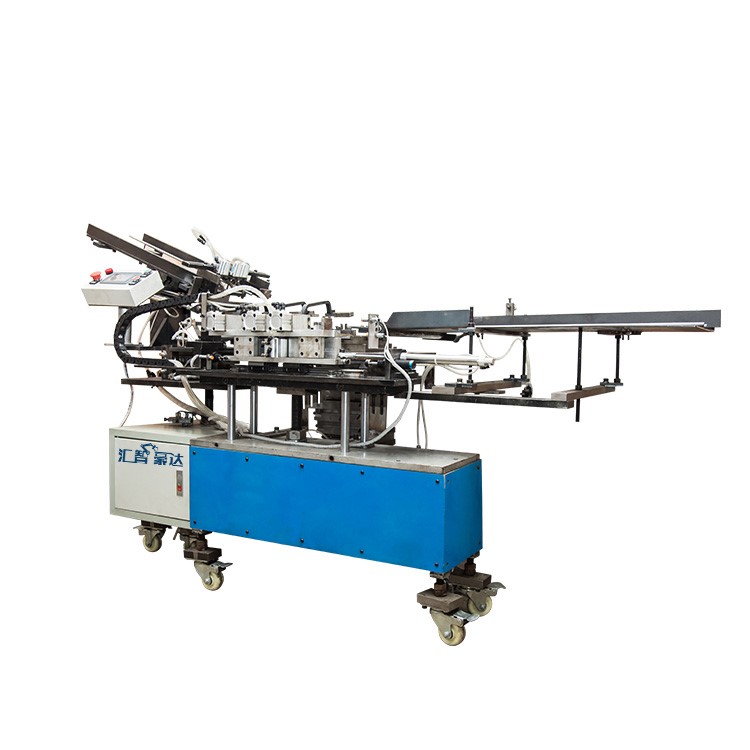

XB-202, Feeding System for Cutlery Fork Trimming
1. Pneumatic manipulator, could process all kinds of material, both of magnetic and non-magnetic are available.
2. Mostly used for non-magnetic cutlery, tableware or kitchenware manufacturing.
3. Save labor cost, one worker could operate 2~5 sets of machine at the same time, output 22~25 pieces of stainless steel fork per minute.
4. Improve market competitiveness, high-precision production, up to 99% succeed produce.
5. Easy operation, only need the worker to switch on/off the machine, loading and unloading the materials from feeder's inlet/outlet.
6. Safety production, no need the worker put hands in the framework of the hydraulic press or punch press machine, avoid production accident.
7. Low power consumption, 0.02kw/h.
Technical Specifications:
| Thickness of the product | 1~7mm |
| Length of the product | 100~220 mm |
| Output | 22~25 pieces per minute |
| Dimension of worktable | L480 * W240 mm |
| Dimension of material inlet/outlet | L900 * W240 mm |
| Power | 220V, 20W |

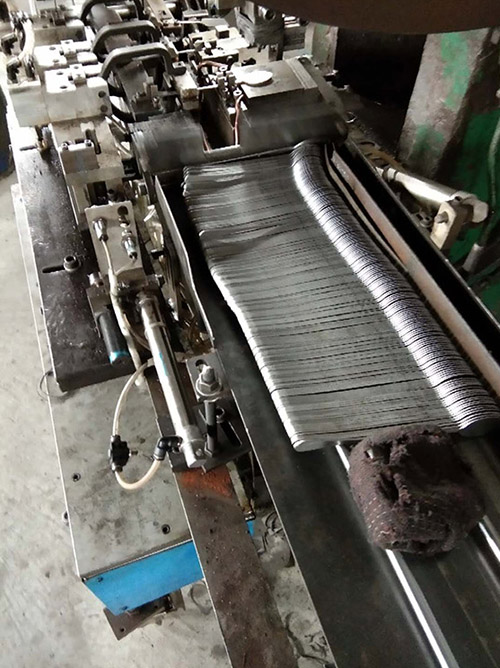

Material inlet:

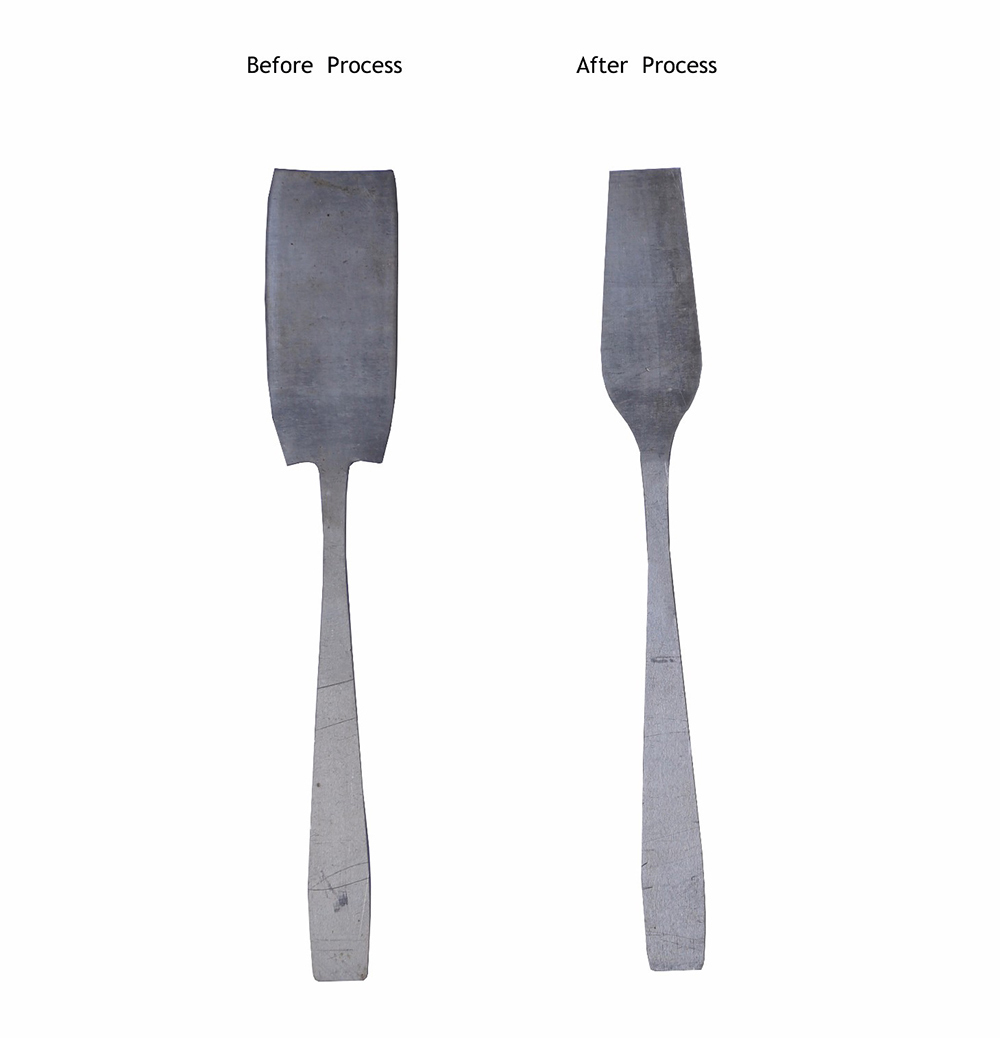

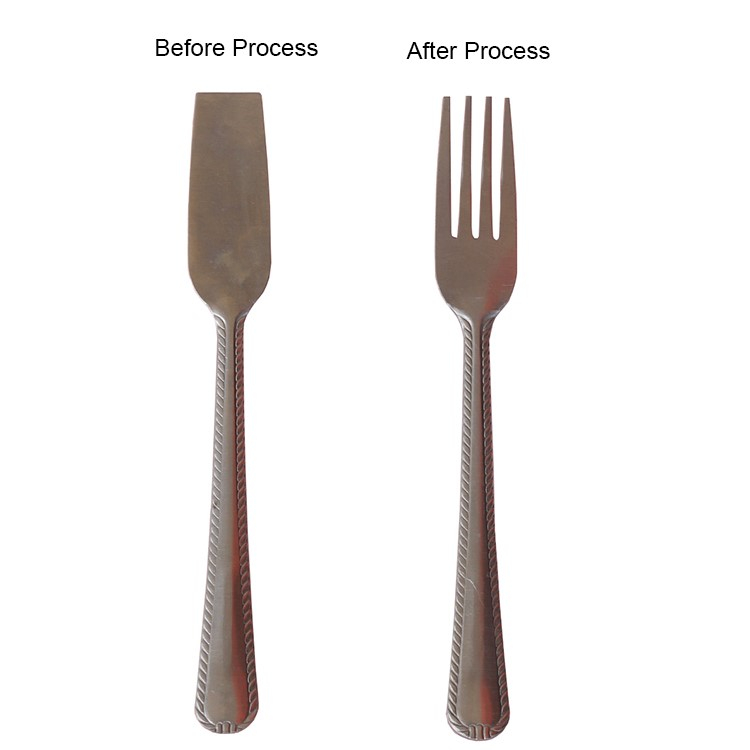

Before process & after process:

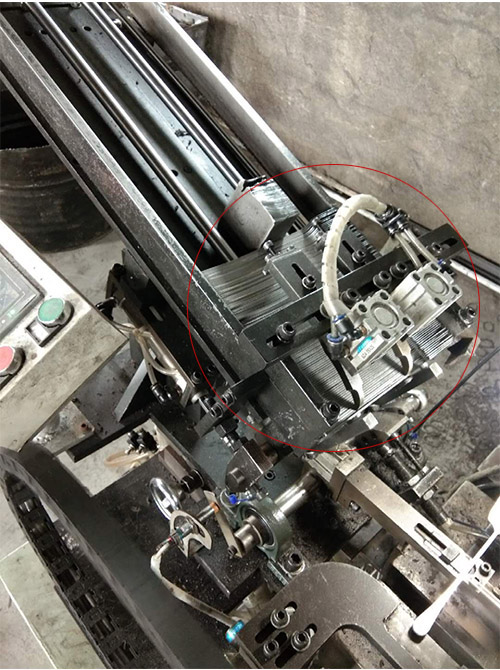

Material outlet:
For more information, please inquiry us with following information:
1. Photo or video of the sample.
2. What are material, length, weight and thickness (min & max) of the sample?
3. The capacity requirement and your factory production situation.
With above information, our engineers could help you to do the process analysis and find a good production solution for you.
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
