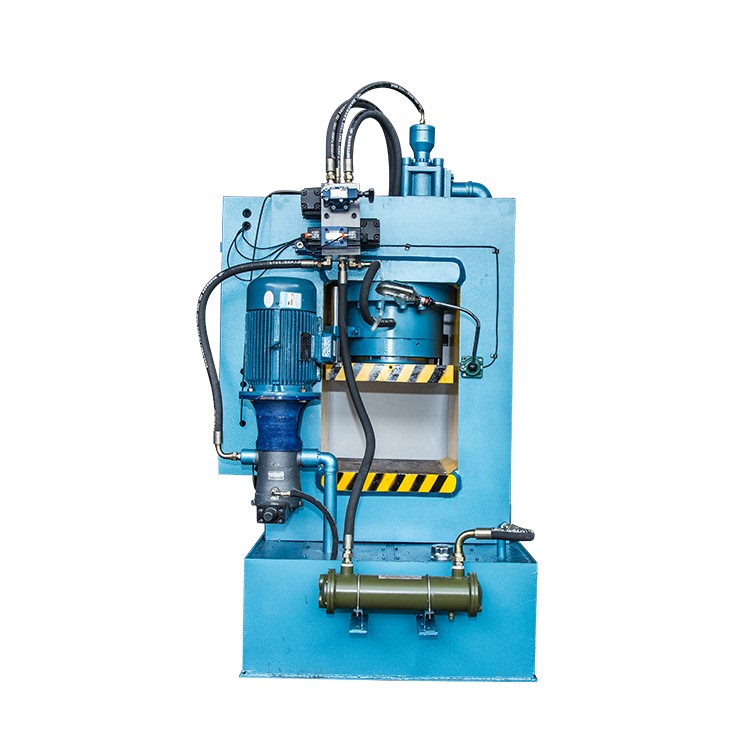

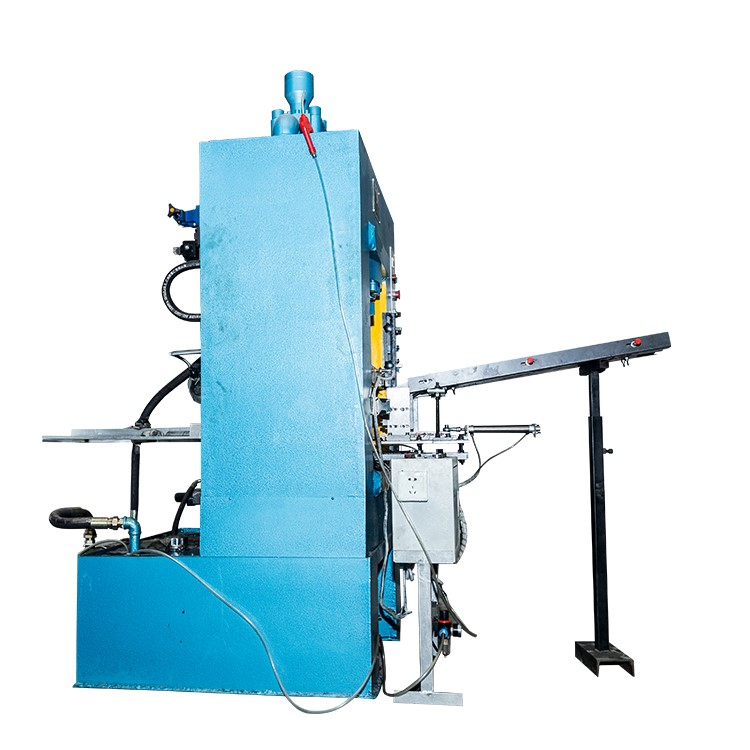

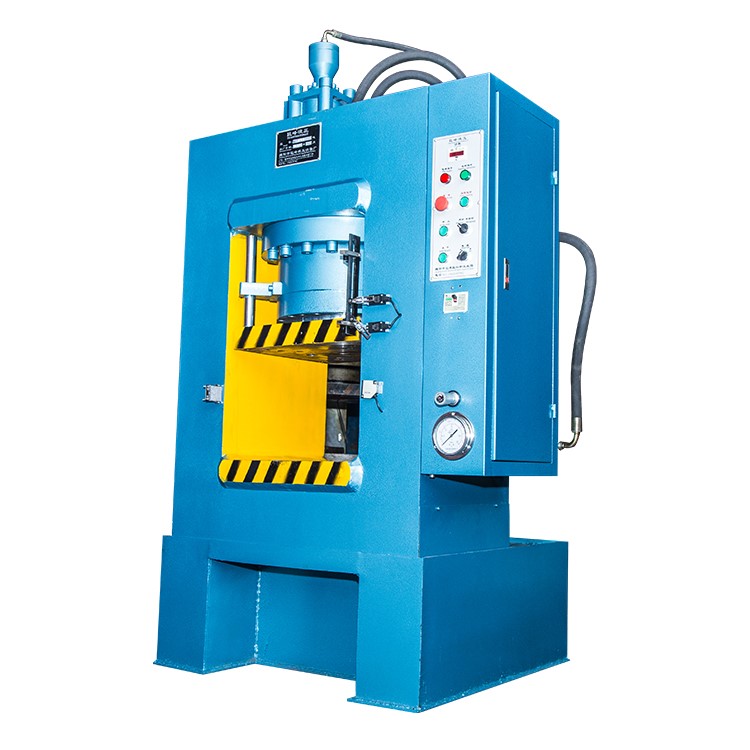

JF-100 Ton Hydraulic Press Machine
Uniform pressure,
High precision
Safe and reliable,
Pressure, stroke, speed can be adjusted
Easy operation.
Low oil consumption
Technical Parameters:
| Specification | Unit | JF-100 | |
| Nominal Pressure | KN | 800~1000 | |
| Maximum Working Pressure | MPa | 24 | |
| Maximum Stroke | mm | 160 | |
| Stroke(S.P.M) | Times/min | 40~50 | |
| Maximum Shut Height | mm | 370 | |
| Activity Speed of Stroke (Up&Down) | mm/s | 160 | |
| Worktable Dimension | F-B | mm | 500 |
| L-R | mm | 500 | |
| Machine's Dimension | F-B | mm | 1060 |
| L-R | mm | 1140 | |
| H | mm | 1980 | |
| Oil Pump Displacement | ml/rad | 25 | |
| Motor Power | KW | 5.5 | |
| Weight | Ton | 1.8 | |
| Thickness of Material | mm | ≥1.5 | |
We could provide total solutions, including machines, molds, production processing technology and automatic production line.
