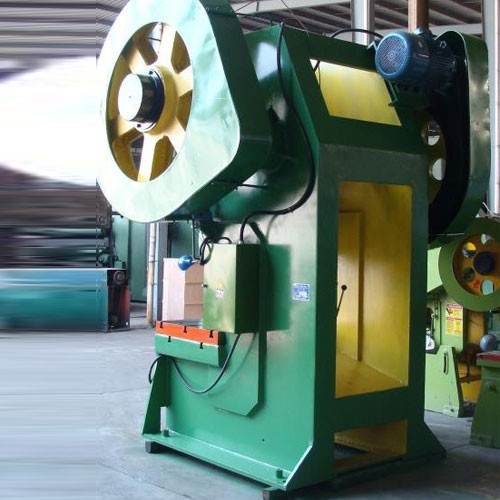

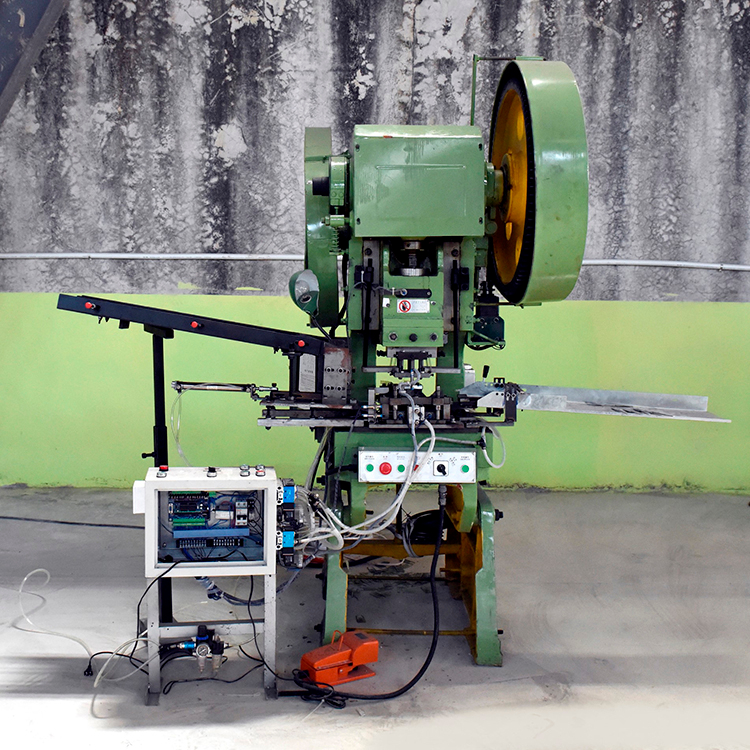

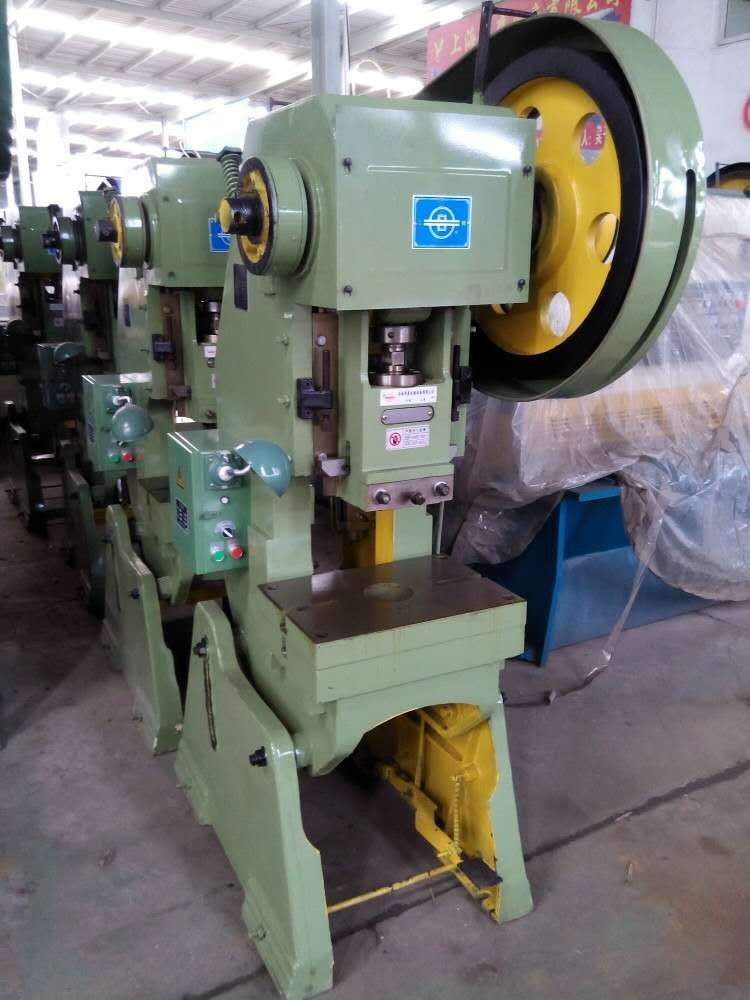

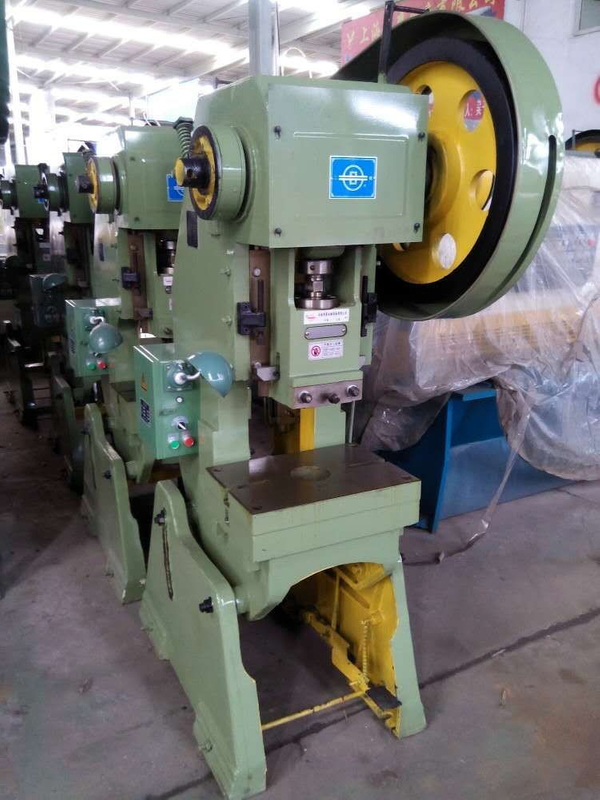

JB23-16 Ton Punch Press Machine
Features:
1. Wide body frame with gentle vibration could protect the die and machine, increase the using life.
2. Casting equipment, great rigidity, more stable accuracy.
3. Compact C frame structure ensure the convenient use and safe operation.
4. With three sides open working table, the operator could loading/unloading the die and operate the machine conveniently.
Technical Parameters:
| Specification | Unit | JB23-16 | |
| Nominal Pressure | kN | 160 | |
| Slide Stroke | mm | 55 | |
| Stroke(S.P.M) | Times/min | 125 | |
| Maximum Shut Height | mm | 220 | |
| Shut Height Adjustment | mm | 45 | |
| Distance from Slider Center to Frame | mm | 160 | |
| Worktable Dimension | F-B | mm | 300 |
| L-R | mm | 460 | |
| Dimension of worktable hole | F-B | mm | 130 |
| L-R | mm | 230 | |
| Diameter | mm | 160 | |
| Slide Underside Dimension | F-B | mm | 180 |
| L-R | mm | 200 | |
| Die Shank Hole Dimension | Diameter | mm | 40 |
| Depth | mm | 30 | |
| Verticcal Columns Distance | mm | 220 | |
| Distance from Worktable to Rail | mm | 330 | |
| Thickness of Worktable Plate | mm | 40 | |
| Maximum Tilting Angle | ° | 20 | |
| Motor Power | KW | 1.5-6 | |
| Machine's Dimension | F-B | mm | 1250 |
| L-R | mm | 900 | |
| H | mm | 2000 | |
| Weight | KG | 1055 | |
