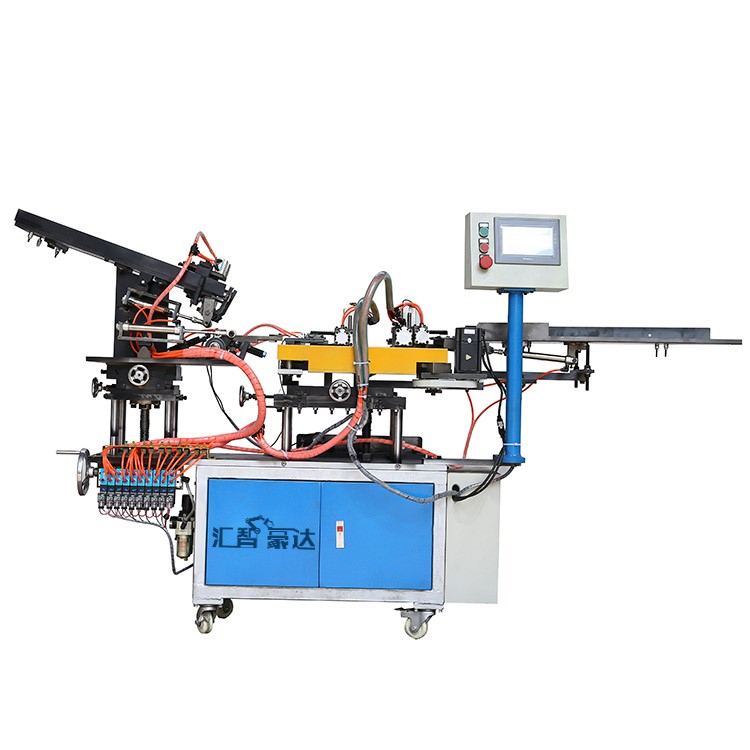

F-101, Servo Automatic Feeder For Cutlery Flatware Making
Features:
1. Servo automatic feeding, high-precision production, up to 99% succeed produce.

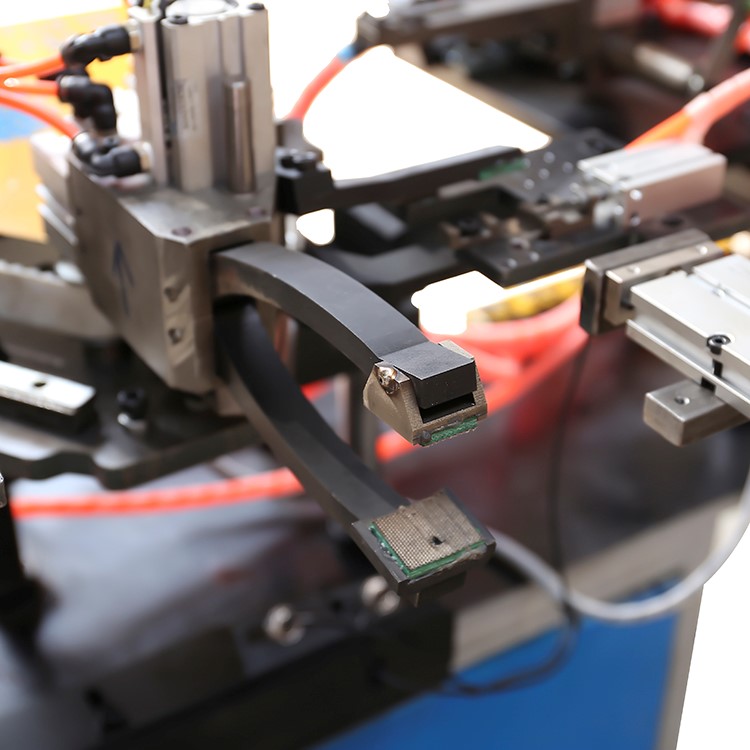

2. Mechanical clamp, could process all kinds of materials, both of magnetic and non-magnetic.
3. High output, one machine could process 27~30 pieces of cutlery flatware per minute.
4. High efficient production, one worker could operate 2~4 sets of machines at the same time.
5. Easy operation, only need the worker switch on/off the machine, loading and unloading the materials from feeder's inlet/outlet.
6. Safety production, no need the worker put hands into the framework of the hydraulic press or punch press machine, avoid production accident.
7. Low power consumption.
Images：
Feeder's inlet - Length: 700mm, could place around 300 pieces of 2mm workpiece.
Feeder's outlet - Length: 900mm, could place around 400 pieces of 2mm workpiece.
Technical Parameters:
Thickness of the product | 1~7 | mm |
Length of the product | 100~220 | mm |
Process speed | 27~30 | pcs/min |
Dimension of material inlet/outlet | L900*W240 | mm |
Power | 220V | 20W |

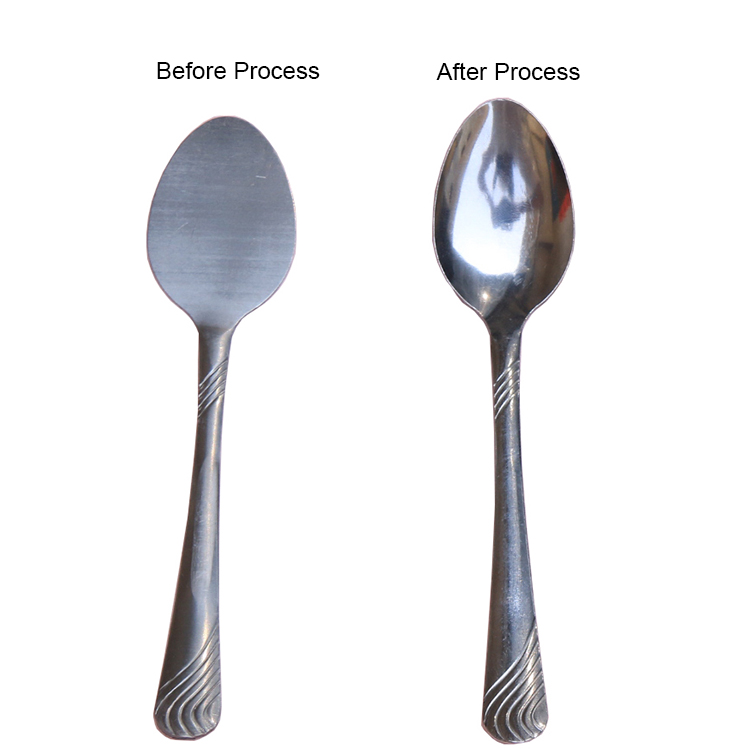

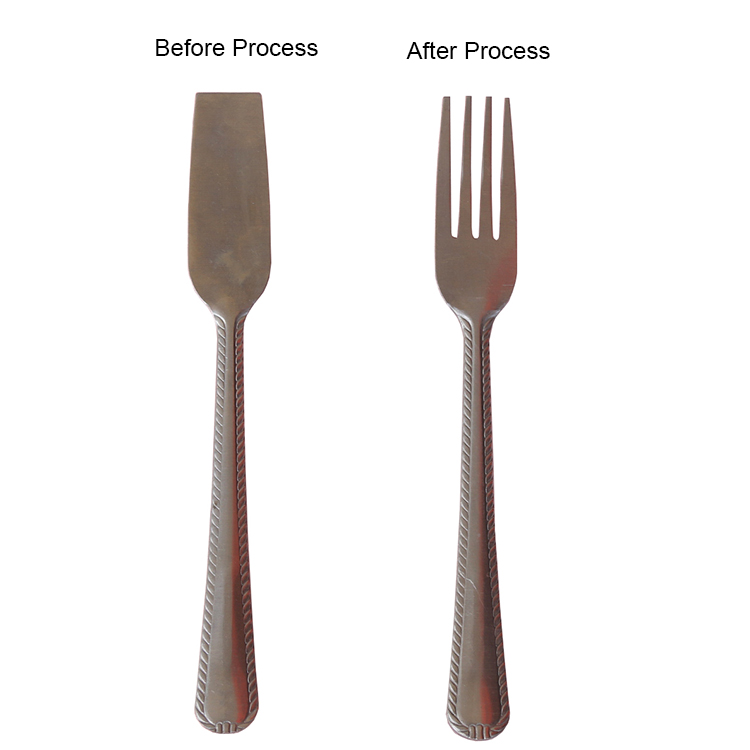

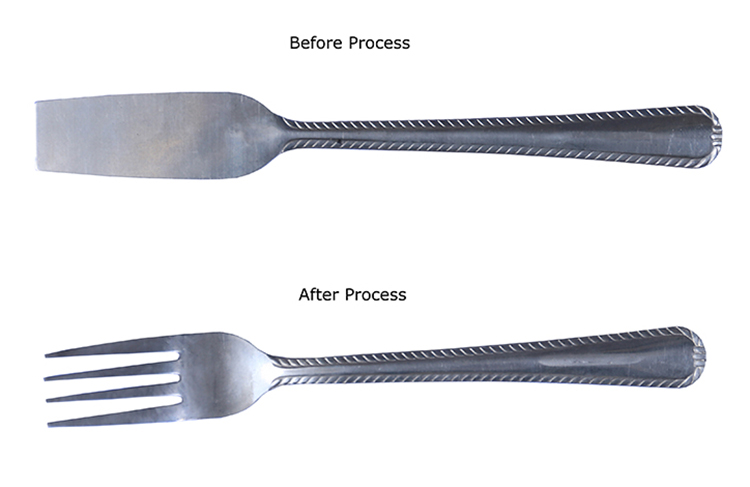

Before process and after process:
For more information, please inquiry us with following information:
1. Photo of the sample.
2. What's material, length, weight and thickness (min&max ) of the sample.
3. Production capacity, and your factory production situation.
With these information, our engineers could help you to do the process analysis and find a good production program for you.
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
