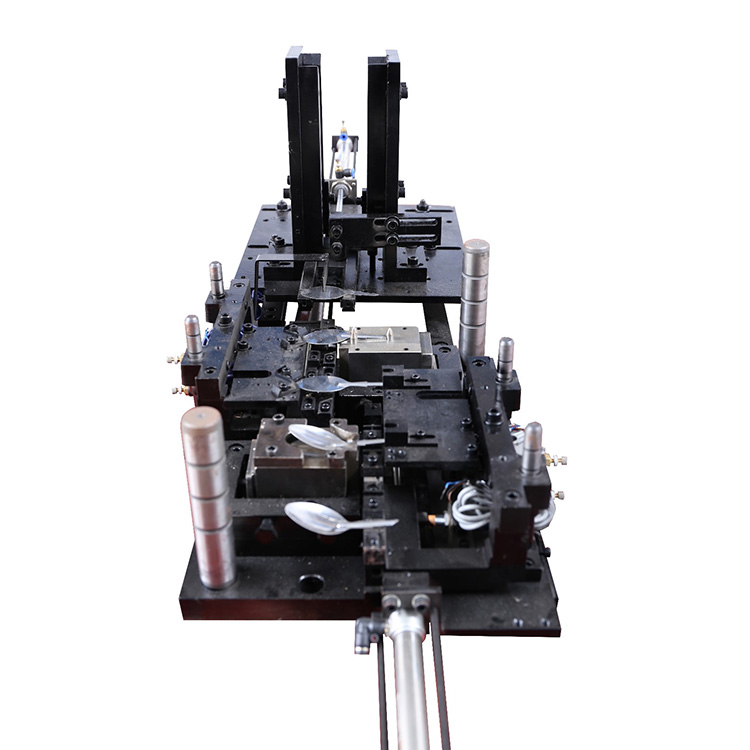

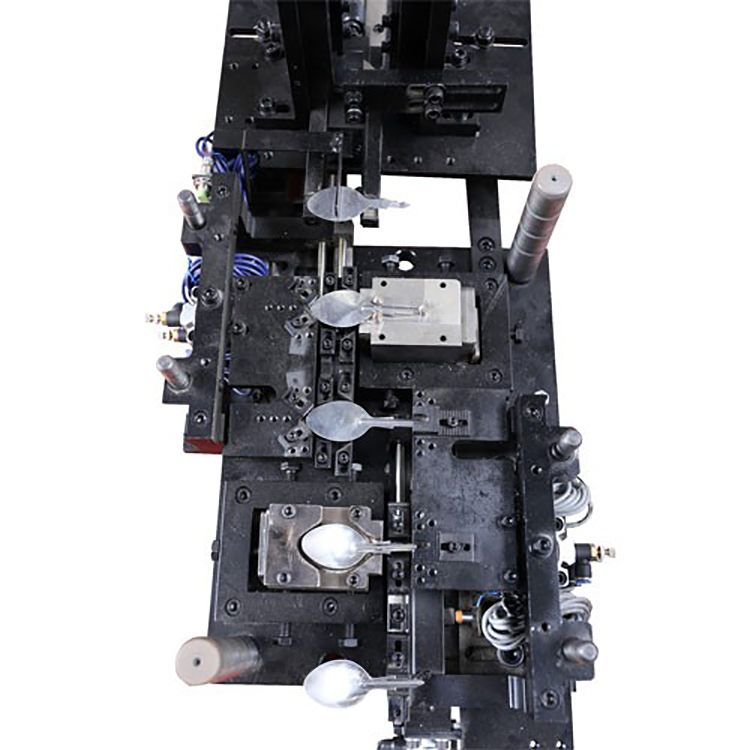

DGW-009 Auto Feeding System for Cutlery Making 2 in 1
Features:

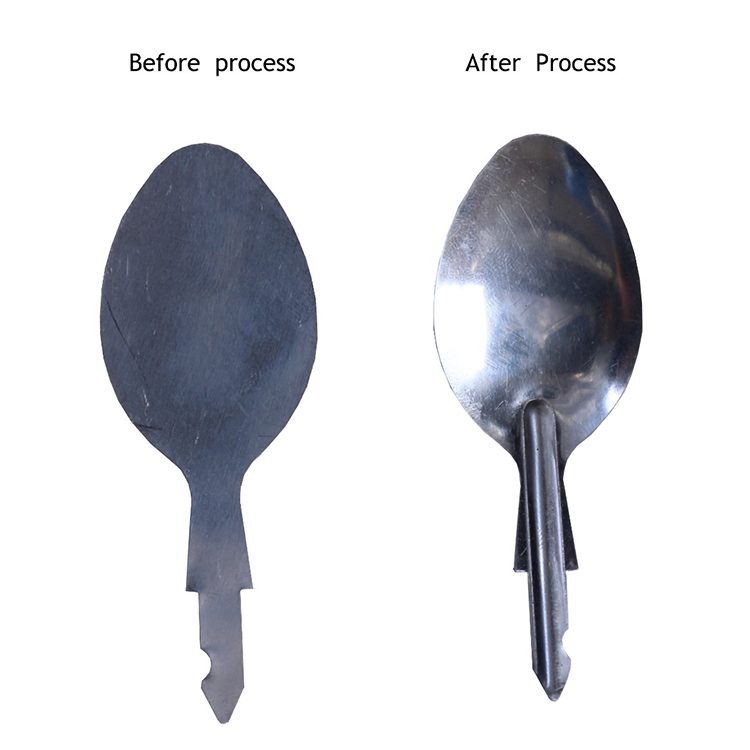

1. High output and efficient production, one automatic feeder could finish two steps of spoon process, include handle embossing and spoon cup forming.
2. Replace manual production, save labor cost, one worker could operate 2~4 sets of machine at the same time, one machine could process 38~42 pcs of spoon per minute.
3. Improve competitiveness, high-precision production, up to 99% succeed produce.
4. Easy operation and maintenance, only need the worker switch on/off the machine and loading/unloading the materials from the automatic feeder.
5. Safety production, no need the worker put hands into the frame of the hydraulic press or punch press machine, avoid production accident.
6. Low power consumption, 0.02kw/h.
Specifications:
Thickness of the product | ≤4 | mm |
Length of the product | 80~130 | mm |
Process speed | 38~42 | pcs/min |
Dimension of worktable | L400*W300 | mm |
Dimension of material inlet/outlet | L850*W165 | mm |
Power | 220V | 20W |
For more information, please inquiry us with following information:
1. Photo of the sample.
2. What's material, length, weight and thickness (min&max ) of the sample.
3. Production capacity, and your factory production situation.
With these information, our engineers could help you to do the process analysis and find a good production program for you.
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
