JF-300Ton Hydraulic Press Machine
Uniform pressure.
High precision.
Safe and reliable, equipped with infrared safety grating.
Pressure, stroke, speed can be adjusted.
Easy operation.
Low oil consumption
Technical Parameters:
| Specification | Unit | JF-300 | |
| Nominal Pressure | KN | 3000 | |
| Maximum Working Pressure | MPa | 24 | |
| Maximum Stroke | mm | 160 | |
| Stroke(S.P.M) | Times/min | 38~46 | |
| Maximum Shut Height | mm | 370 | |
| Activity Speed of Stroke (Up&Down) | mm/s | 150 | |
| Worktable Dimension | F-B | mm | 620 |
| L-R | mm | 680 | |
| Machine's Dimension | F-B | mm | 1400 |
| L-R | mm | 1350 | |
| H | mm | 2310 | |
| Oil Pump Displacement | ml/rad | 40 | |
| Motor Power | KW | 11 | |
| Weight | Ton | 4.2 | |
| Thickness of Material | mm | ≤3 | |

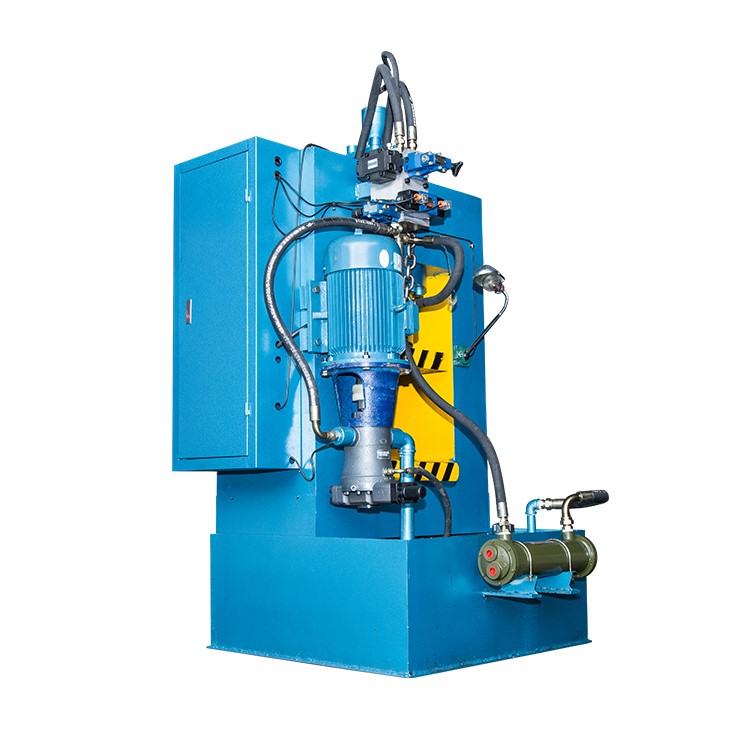

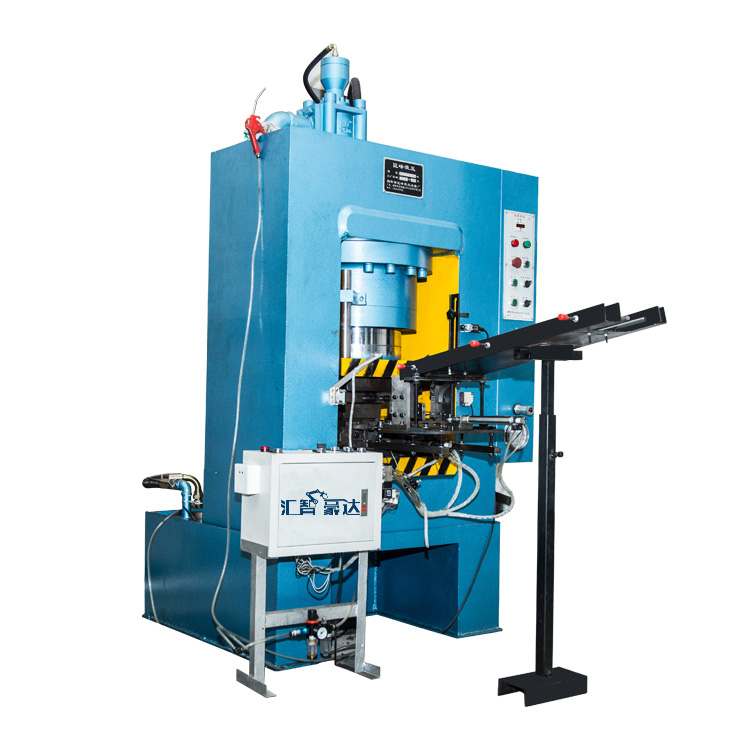

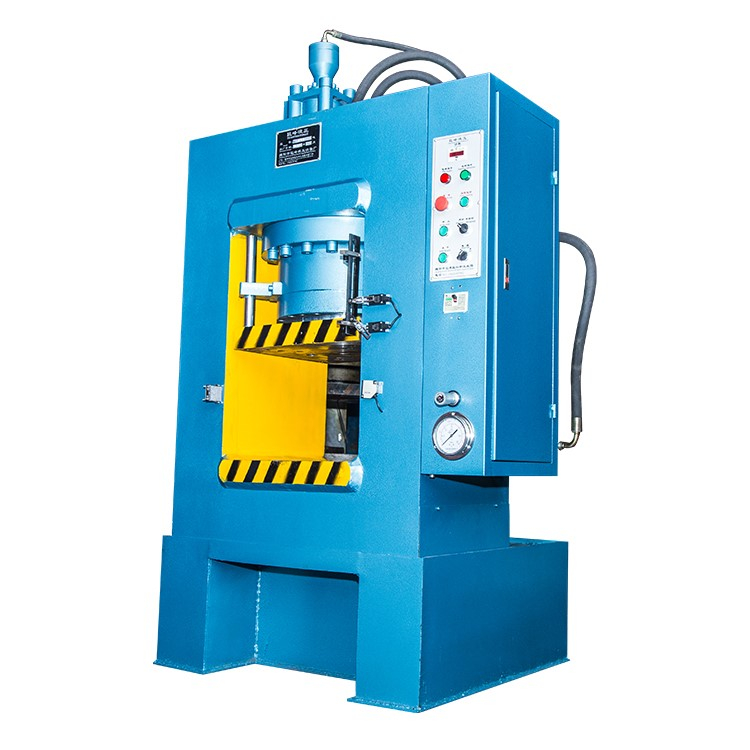

Images:
Please do not hesitate to email us, you could get all of the solutions about the machines, technology and automatic production line FREELY.
