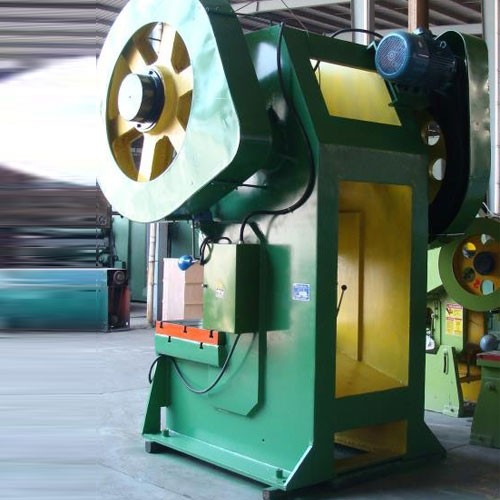

JB23-125 Ton Punch Press Machine
Features:
1. Wide body frame with gentle vibration could protect the die and machine, increase the using life.
2. Casting equipment, great rigidity, more stable accuracy.
3. Compact C frame structure ensure the convenient use and safe operation.
4. With three sides open working table, the operator could loading/unloading the die and operate the machine conveniently.
5. Customizable design, size, color & logo.
Technical specification:
Specification | Unit | JB23-125 | |
Nominal Pressure | kN | 1250 | |
Slide Stroke | mm | 130 | |
Stroke(S.P.M) | Times/min | 38 | |
Maximum Shut Height | mm | 480 | |
Shut Height Adjustment | mm | 100 | |
Distance from Slider Center to Frame | mm | 380 | |
Worktable Dimension | F-B | mm | 710 |
L-R | mm | 1080 | |
Dimension of worktable hole | F-B | mm | 380 |
L-R | mm | 560 | |
Diameter | mm | 500 | |
Slide Underside Dimension | F-B | mm | 370 |
L-R | mm | 430 | |
Die Shank Hole Dimension | Diameter | mm | 60 |
Depth | mm | 75 | |
Verticcal Columns Distance | mm | 530 | |
Distance from Worktable to Rail | mm | 680 | |
Thickness of Worktable Plate | mm | 100 | |
Maximum Tilting Angle | ° | 25 | |
Motor Power | KW | 11 | |
Machine's Dimension | F-B | mm | 2320 |
L-R | mm | 1735 | |
H | mm | 3110 | |
Weight | KG | 1000 |
