JB23-80 Ton Punch Press Machine
Features:
1. Wide body frame with gentle vibration could protect the die and machine, increase the using life.
2. Casting equipment, great rigidity, more stable accuracy.
3. Compact C frame structure ensure the convenient use and safe operation.
4. With three sides open working table, the operator could loading/unloading the die and operate the machine conveniently.
5. OEM/ODM customer's design, size, color & logo are acceptable.
Technical Specification:
| Specification | Unit | JB23-80 | |
| Nominal Pressure | kN | 800 | |
| Slide Stroke | mm | 100 | |
| Stroke(S.P.M) | Times/min | 40 | |
| Maximum Shut Height | mm | 400 | |
| Shut Height Adjustment | mm | 80 | |
| Distance from Slider Center to Frame | mm | 310 | |
| Worktable Dimension | F-B | mm | 570 |
| L-R | mm | 860 | |
| Dimension of worktable hole | F-B | mm | 310 |
| L-R | mm | 450 | |
| Diameter | mm | 400 | |
| Slide Underside Dimension | F-B | mm | 360 |
| L-R | mm | 400 | |
| Die Shank Hole Dimension | Diameter | mm | 50 |
| Depth | mm | 70 | |
| Verticcal Columns Distance | mm | 420 | |
| Distance from Worktable to Rail | mm | 520 | |
| Thickness of Worktable Plate | mm | 80 | |
| Maximum Tilting Angle | ° | 25 | |
| Motor Power | KW | 7.5 | |
| Machine's Dimension | F-B | mm | 1920 |
| L-R | mm | 1500 | |
| H | mm | 2650 | |
| Weight | KG | 5600 | |

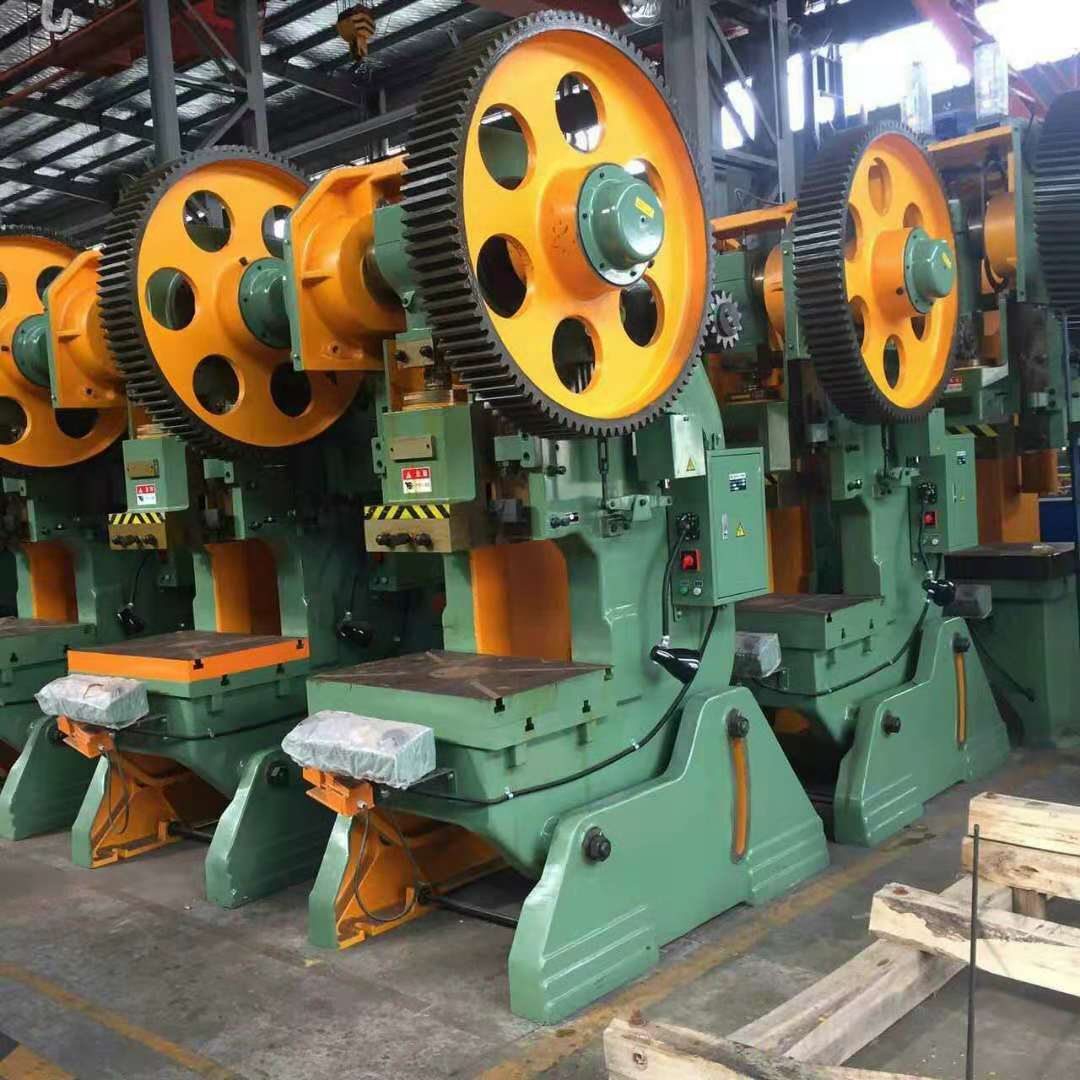

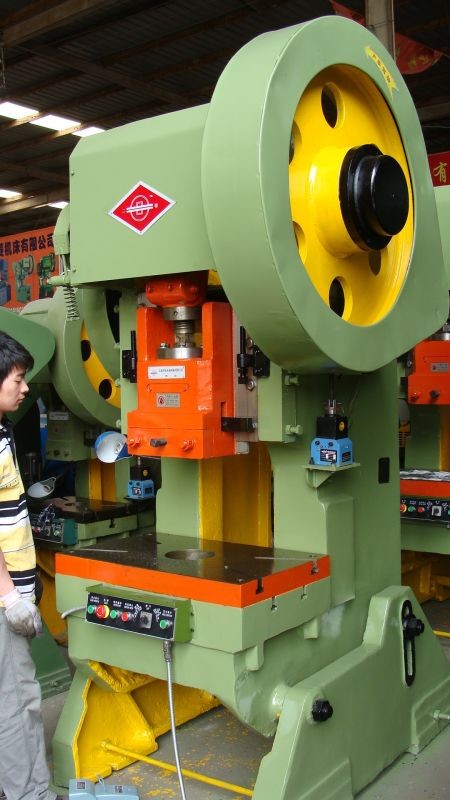

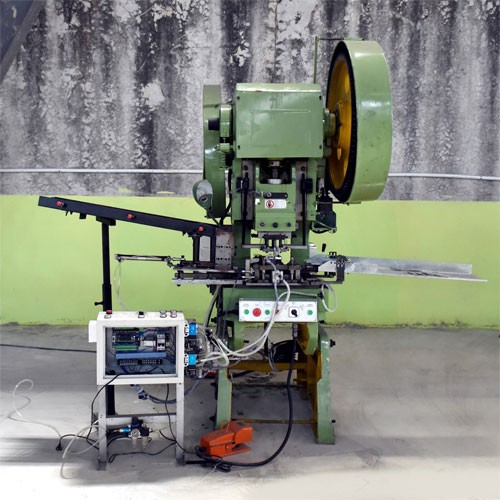

Image:
