Availability: | |
---|---|

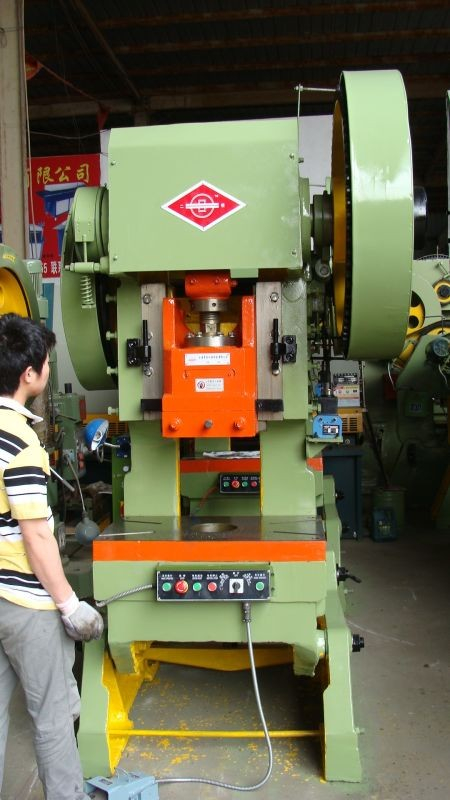

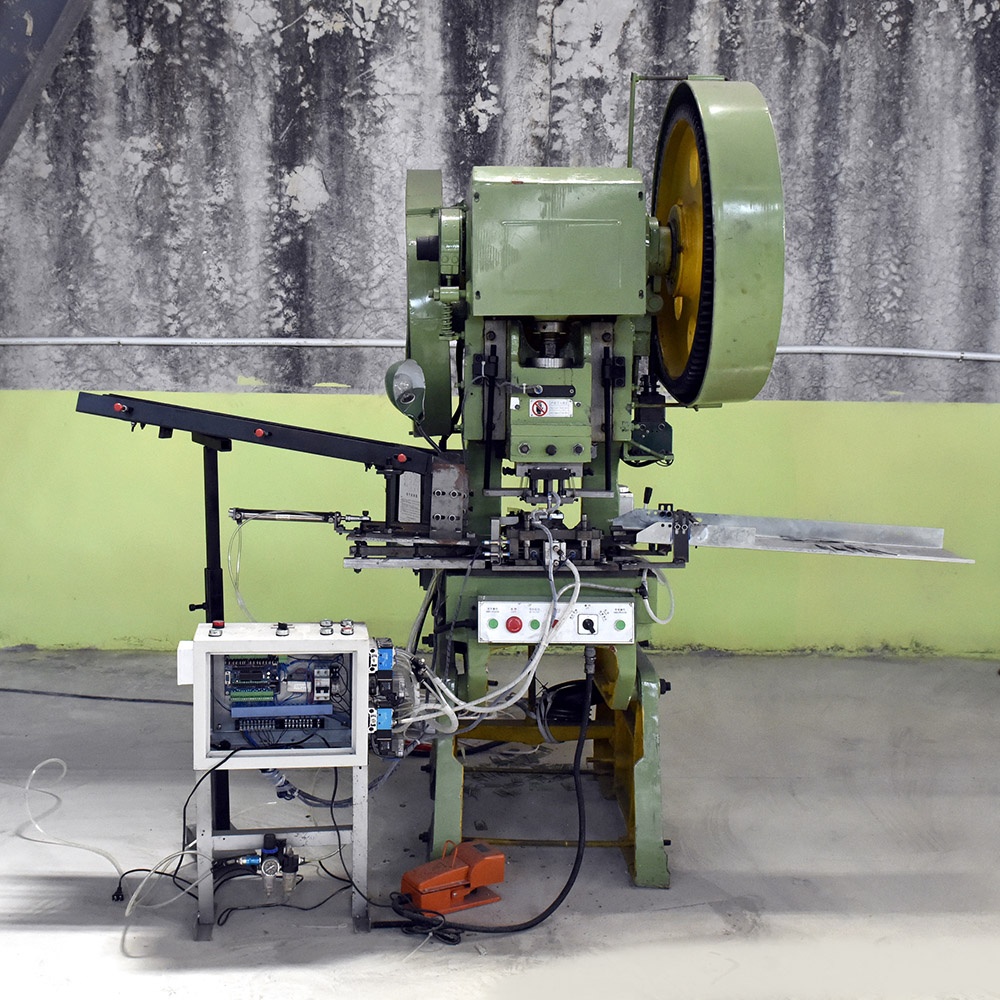

JB23-40Ton Punch Press Machine
Features:
1. Wide body frame with gental vibration could protect the die and machine, increase the using life.
2. Casting equipment, great rigidity, more stable accuracy.
3. Compact C frame structure ensure the convenient use and safe operation.
4. With three sides open working table, the operator could loading/unloading the die and operate the machine conveniently.
Technical Parameters:
Specification | Unit | JB23-40 | |
Nominal Pressure | kN | 400 | |
Slide Stroke | mm | 110 | |
Stroke(S.P.M) | Times/min | 54 | |
Maximum Shut Height | mm | 350 | |
Shut Height Adjustment | mm | 75 | |
Distance from Slider Center to Frame | mm | 205 | |
Worktable Dimension | F-B | mm | 400 |
L-R | mm | 600 | |
Dimension of worktable hole | F-B | mm | 190 |
L-R | mm | 260 | |
Diameter | mm | 210 | |
Slide Underside Dimension | F-B | mm | 210 |
L-R | mm | 220 | |
Die Shank Hole Dimension | Diameter | mm | 50 |
Depth | mm | 70 | |
Verticcal Columns Distance | mm | 260 | |
Distance from Worktable to Rail | mm | 230 | |
Thickness of Worktable Plate | mm | 65 | |
Maximum Tilting Angle | ° | 20 | |
Motor Power | KW | 4.0-4.0 | |
Machine's Dimension | F-B | mm | 1500 |
L-R | mm | 1150 | |
H | mm | 2470 | |
Weight | KG | 2600 |
