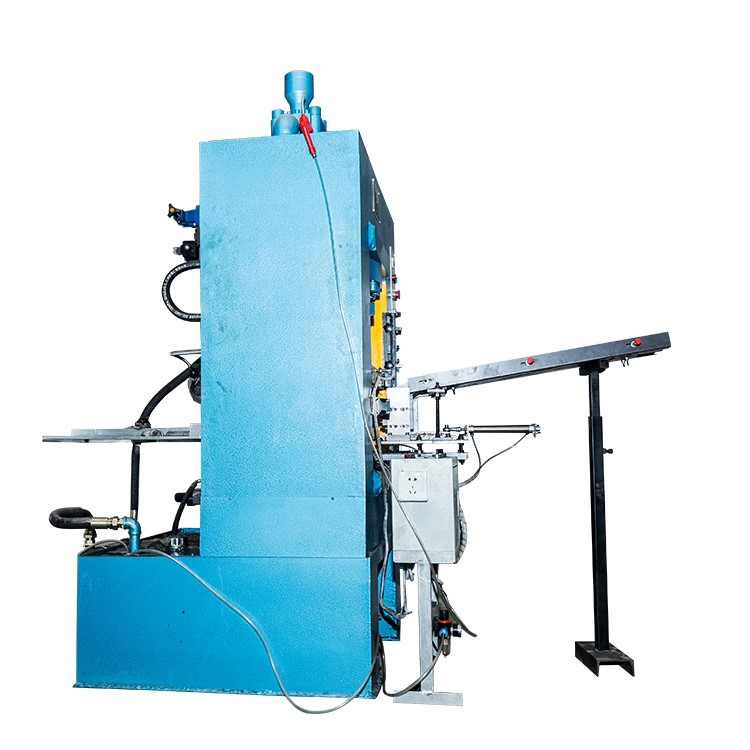

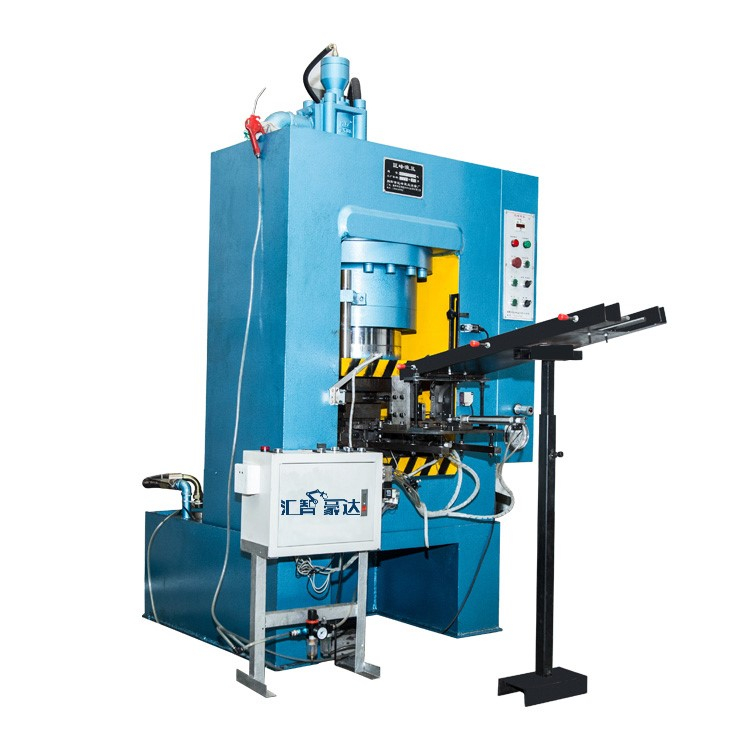

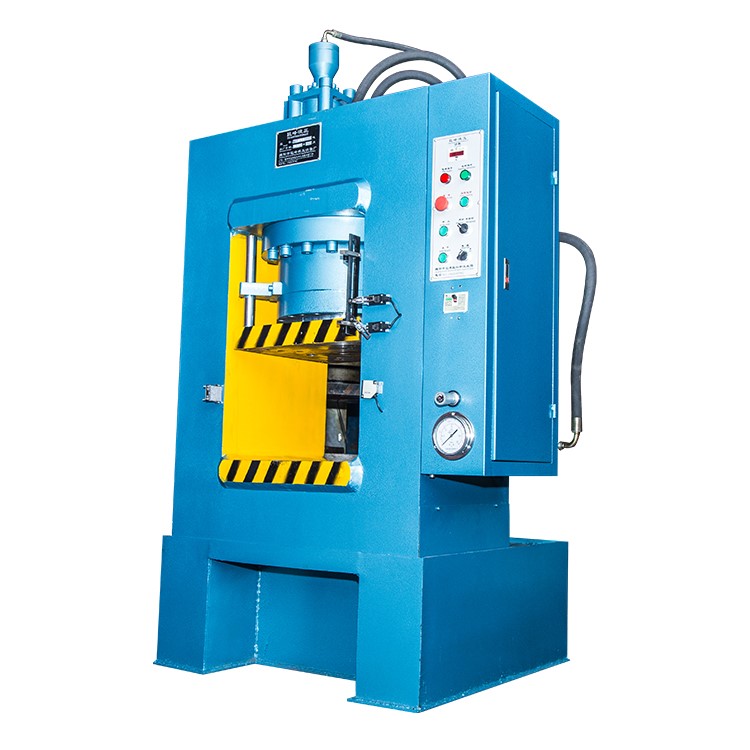

500Ton Hydraulic Press Machine
Uniform pressure.
High precision.
Safe and reliable, equipped with infrared safety grating.
Pressure, stroke, speed can be adjusted.
Stable and durable.
Easy operation.
Low oil consumption.
Technical Parameters:
Specification | Unit | JF-500 | |
Nominal Pressure | KN | 5000 | |
Maximum Working Pressure | MPa | 24 | |
Maximum Stroke | mm | 160 | |
Stroke(S.P.M) | Times/min | 38~45 | |
Maximum Shut Height | mm | 380 | |
Activity Speed of Stroke (Up&Down) | mm/s | 150 | |
Worktable Dimension | F-B | mm | 720 |
L-R | mm | 850 | |
Machine's Dimension | F-B | mm | 1530 |
L-R | mm | 1500 | |
H | mm | 2500 | |
Oil Pump Displacement | ml/rad | 60 | |
Motor Power | KW | 5.5 | |
Weight | Ton | 6.5 | |
Thickness of Material | mm | ≤5 | |
We could provide total solutions, including machines, molds, production processing technology and automatic production line, please feel free to contact us.
