Availability: | |
---|---|

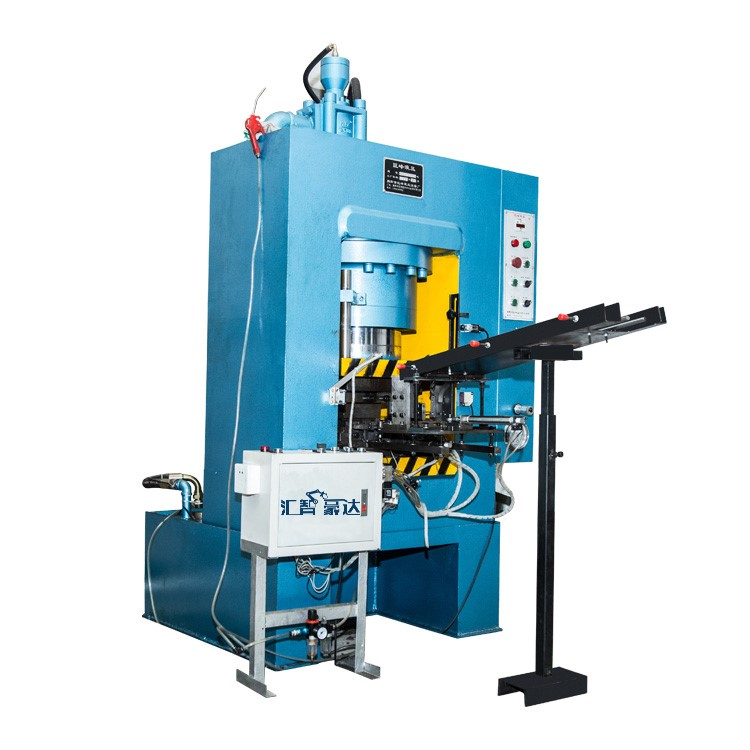

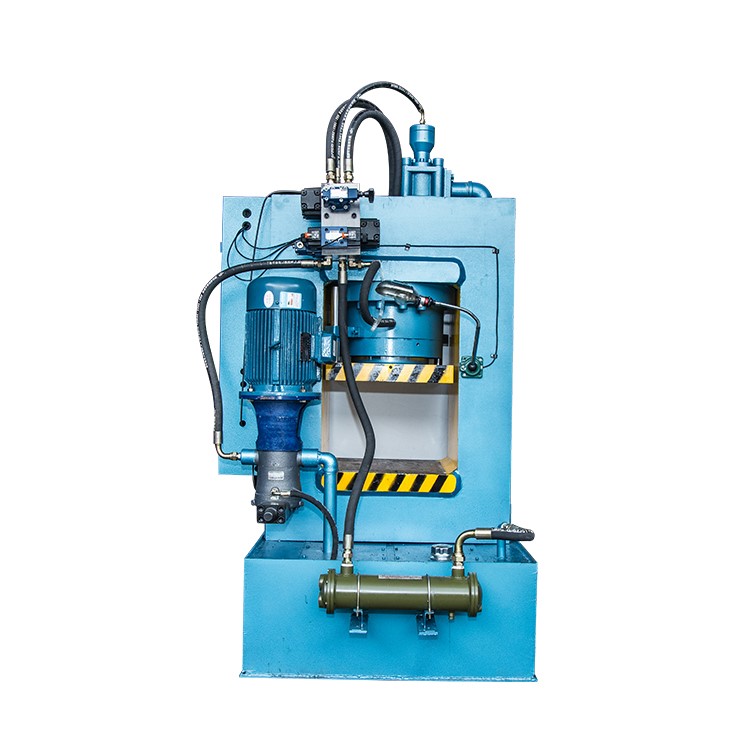

700Ton Hydraulic Press Machine
Features:
30%~70% energy-saving, high precision.
Steady and quiet. Safe and reliable.
Pressure , stroke, speed and all specs can be adjusted.
Easy to operate , easy to change mould / die.
Quick after-sale service.
Low oil temperature.
Technical Parameters:
Specification | Unit | JF-700 | |
Nominal Pressure | KN | 7000 | |
Maximum Working Pressure | MPa | 24 | |
Maximum Stroke | mm | 160 | |
Stroke(S.P.M) | Times/min | 38~45 | |
Maximum Shut Height | mm | 400 | |
Activity Speed of Stroke (Up&Down) | mm/s | 150 | |
Worktable Dimension | F-B | mm | 840 |
L-R | mm | 940 | |
Machine's Dimension | F-B | mm | 1560 |
L-R | mm | 1830 | |
H | mm | 2700 | |
Oil Pump Displacement | ml/rad | 80 | |
Motor Power | KW | 22 | |
Weight | Ton | 10 | |
Thickness of Material | mm | ≤8 |
Don't hesitate, just email us, you could get total solutions including machines, dies, production process technology and automatic production line.
