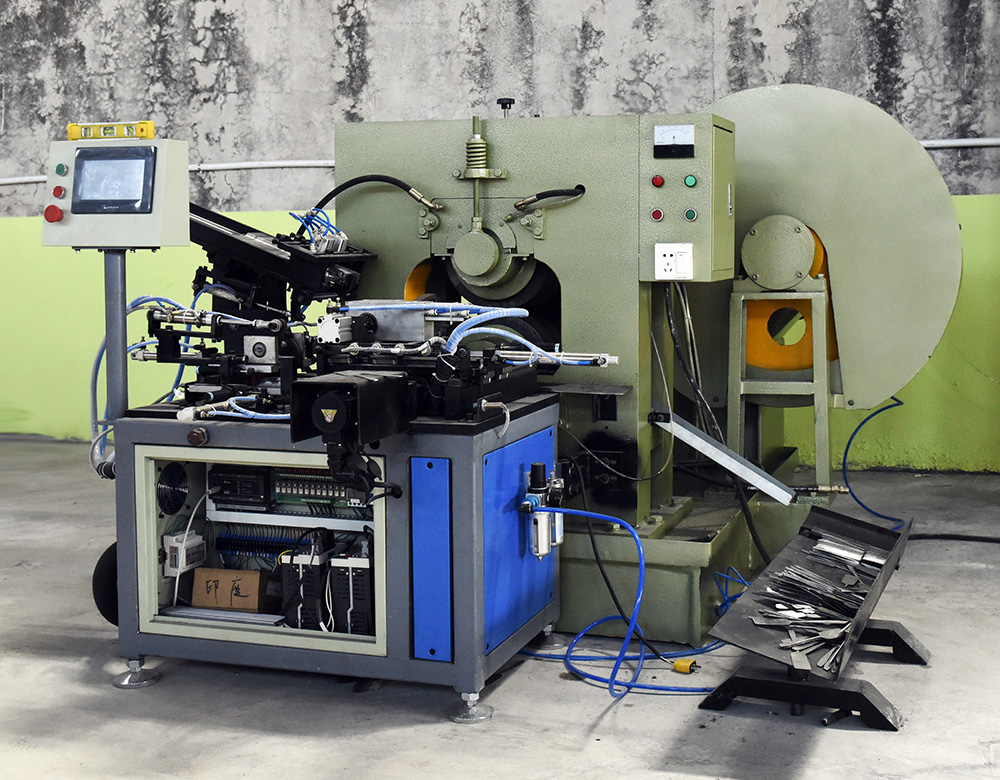

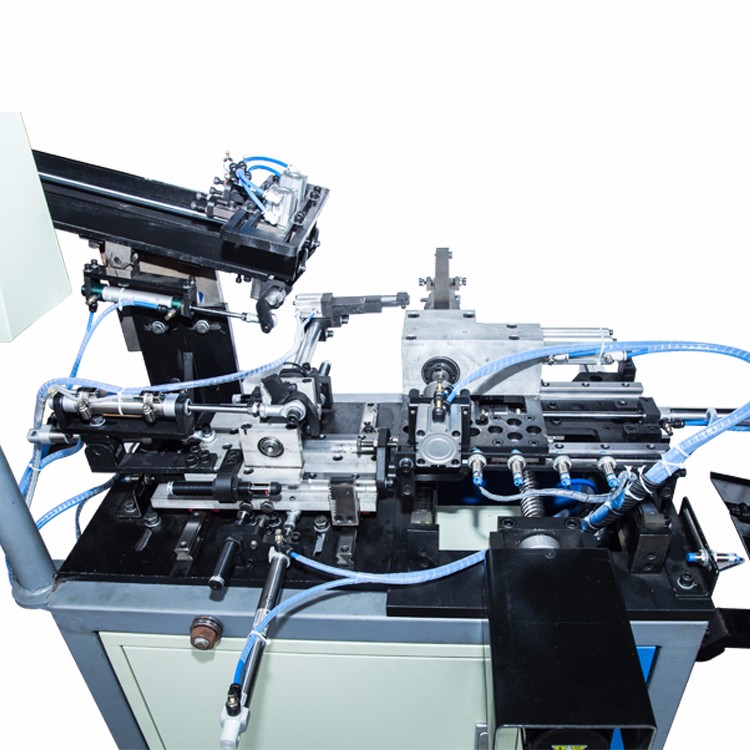

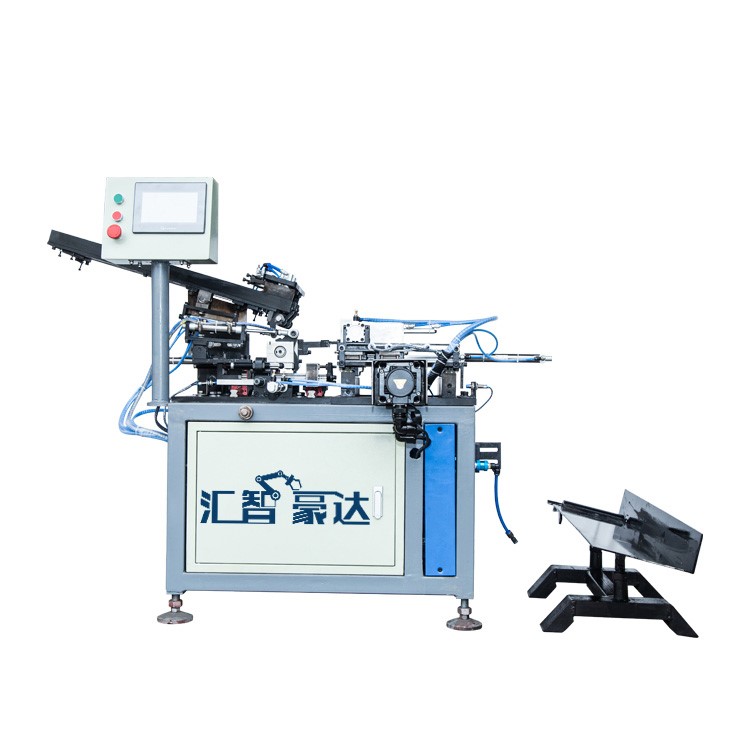

HY-101 Cutlery Making Machine Rolling Manipulator
Features:
High output, the manipulator could operating 65 times per minute.
High efficient, with this rolling manipulator, one worker could operate 2~4 sets of machine at the same time.
Safety production, only need the worker loading/unloading the workpieces from the manipulator's inlet/outlet.
Operator friendly, worker could operate the rolling manipulator after a short training.
Technical Specification:
| Thickness of product | 304#, 201# - 0.9~6mm | mm |
| 430#, 420#, 410# - 0.9~10mm | mm | |
| Process Speed | 65 | times per minute |
| Motor Power | 2.6 & 1.2 | kw |
| Material | 304#, 201#, 430#, 420#, 410#.etc | |
| Dimension | 1350*800*1300mm | mm |
| Gross Weight | 350 | kgs |
Images:
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
