Automatic Feeder For Cutlery Knife Trimming

Brand Huizhi Haoda
Product origin China
Delivery time 25~45 days
Supply capacity 1000 sets per month
This automatic feeder is used for 430#, 420#, 410# standard stainless steel knife edge trimming.
With this automatic feeder, you could save at least 50% labor cost, improve 50%~60% production capacity.
The working process is use the high magnetic rod to hold the blanking from material inlet and convey the blank sheet to the knife cup cutting station, after finished the knife cup cutting, the rod will convey it to the material outlet, then the knife edge trimming finished. With this cycling work process, the stainless steel knife could be produced automatically.

Availability:



Inquire Add to Basket

Automatic Feeder For Cutlery Knife Trimming Auto Feeding Machine Auto Feed Drill Press Knife Edge Cutting Machine Knife Trimming Machine Stainless Steel Knife Machine

Product Description

XB-103 Automatic Feeder For Cutlery Knife Trimming

The main function of the cutlery automatic feeder is replace manual production, save labor cost, improve stainless steel knife produce output and with near zero production accident.

Features:

1. High output, with this automatic feeder, one machine could process up to 40 pieces of stainless steel knife per minute.

2. High efficient, with this auto system, one skillful worker could operate 2~5 sets of press machine at the same time.

3. Safety production, no need workers put hands into the hydraulic press or punching press machine, avoid production accident.

4. Up to 99% succeed production, with this automatic, defective product could be decreased rapidly.

5. Easy operation, only need the operator switch on/off the machines and loading/unloading the materials from the feeder.

Technical Specifications:

Material Thickness:	＜4	mm
Length of Material:	180~240mm	mm
Process Speed:	34~40	min/piece
Dimension of worktable:	L310*W420	mm
Dimension of material inlet/outlet:	L900*W240	mm
Motor Power:	220v	20w

Inlet - Length: 900mm, could place around 400 pieces of 2 mm work pieces at the same time.

Automatic Feeder For Cutlery Knife Trimming

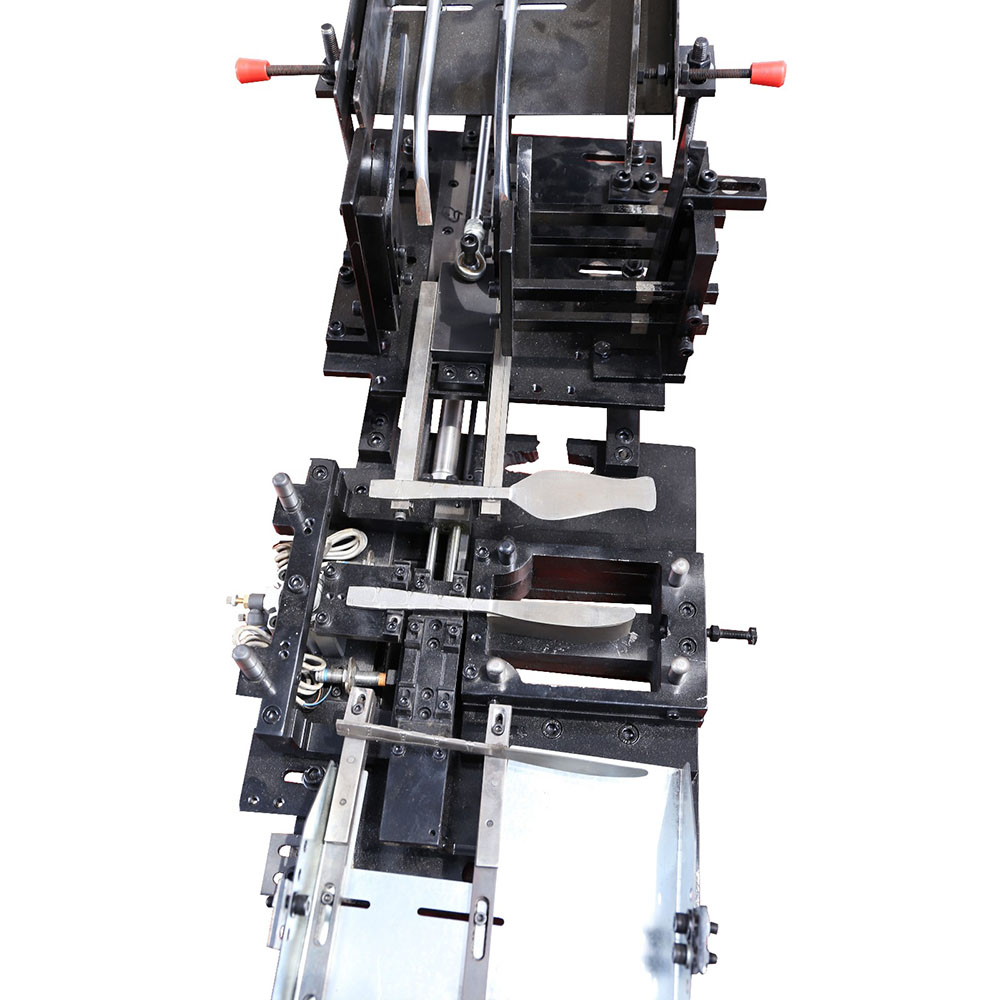

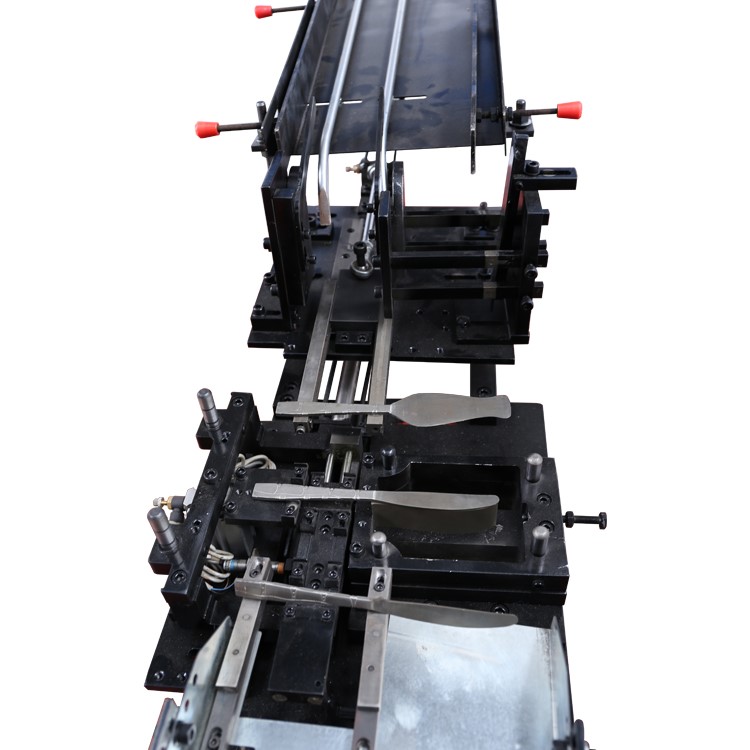

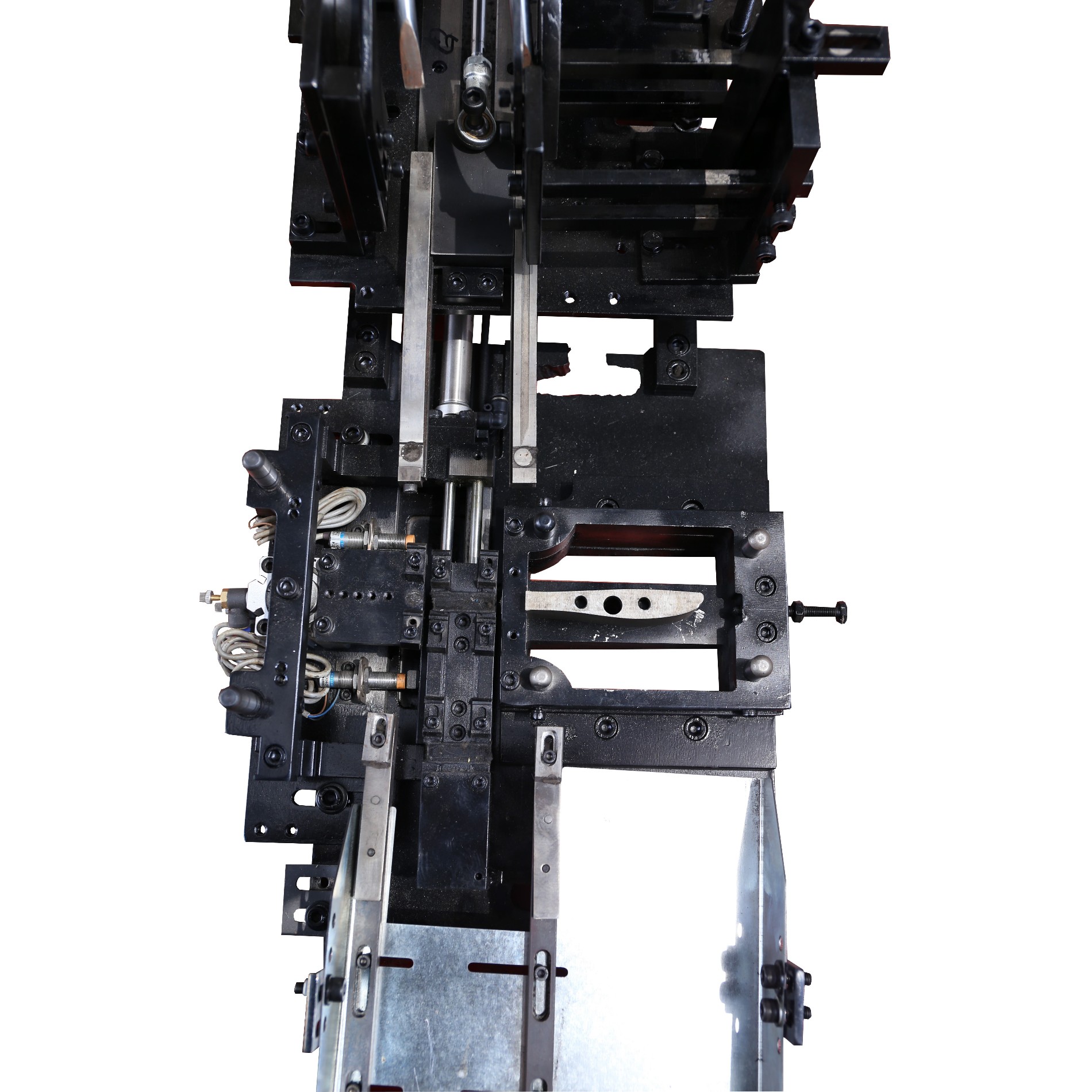

Material convey by the rod to the spoon edge cutting mould, and finished knife pushed to the outlet by feeder:

Automatic Feeder For Cutlery Knife Trimming

Our advantage:

1. Two independent professional R&D teams, SSHL could help you solved any technical request regards tableware & kitchenware production.

2. Engineer overseas installation, training and lifelong online counseling both for machines and products.

3. Customizable model, color and language.

4. Turnkey project or full/semi automatic production line solution are available.

5. Not lowest price but most valuable machine & service, SSHL offer your 5-STAR quality with 3-STAR price.

6. Welcome to be our dealer all over the world, and we sincerely invite your team come to Jieyang to learn the technical, installation, adjusting, setting and training.

Welcome to inquiry, you could get the automatic solution about your factory FREELY!
