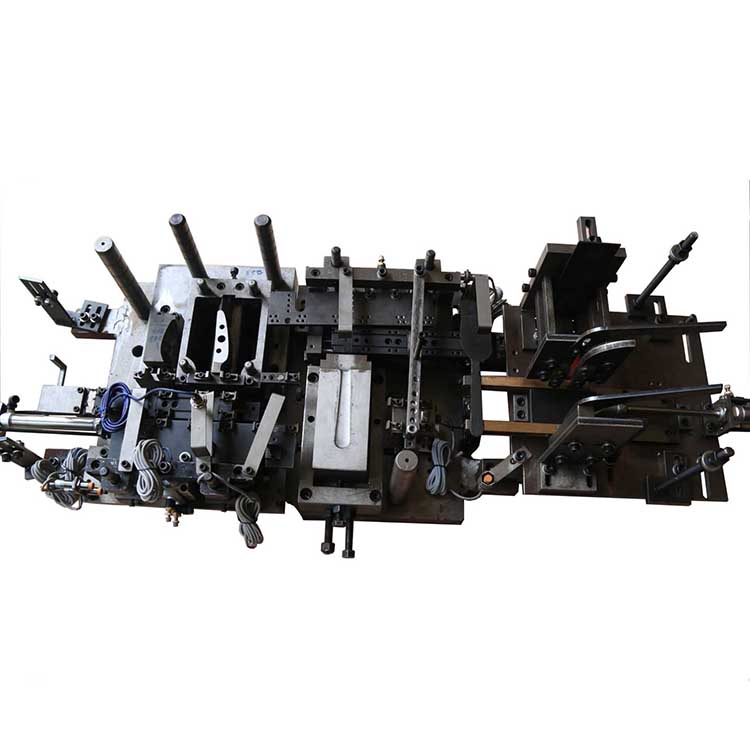

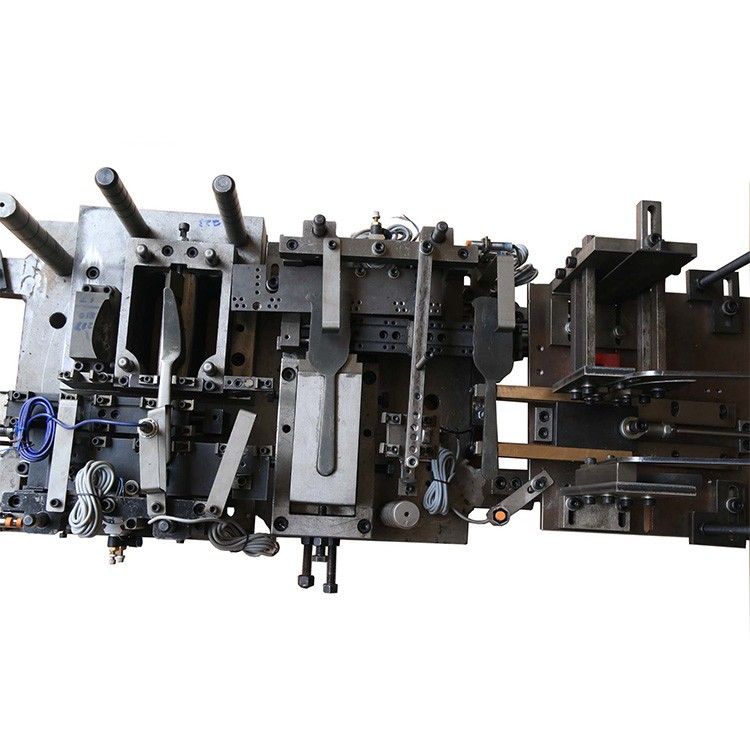

DGW-006 Feeding System for Cutlery Knife Making 3 in 1
Features:
1. High output and efficient production, one automatic feeder could finish all process of the stainless steel knife manufacturing, stainless steel sheet in, knife out.
2. Replace manual production, save labor cost, one worker could operate 2~4 sets of machine at the same time, one machine could process 33~38 pieces of knife per minute.
3. Improve competitiveness, high-precision production, up to 99% succeed produce.
4. Easy operation and maintenance, only need the worker switch on/off the machine and loading/unloading the materials from the automatic feeder.
5. Safety production, no need the worker put hands into the frame of the hydraulic press or punch press machine, avoid production accident.
6. Low power consumption, 0.02kw/h.

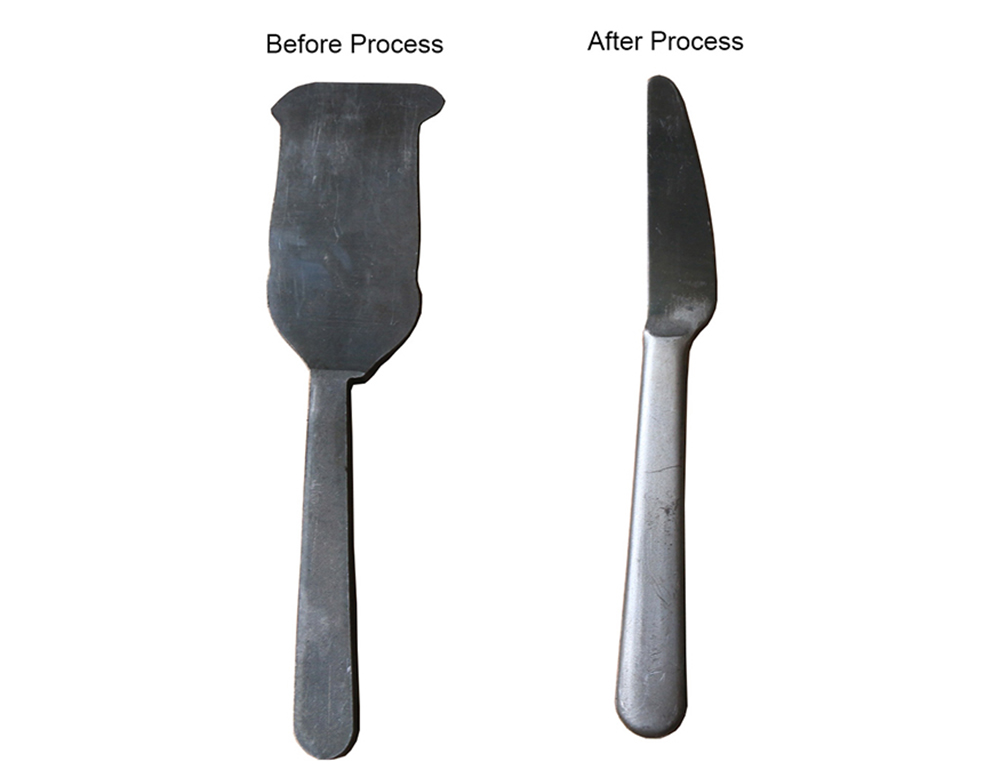

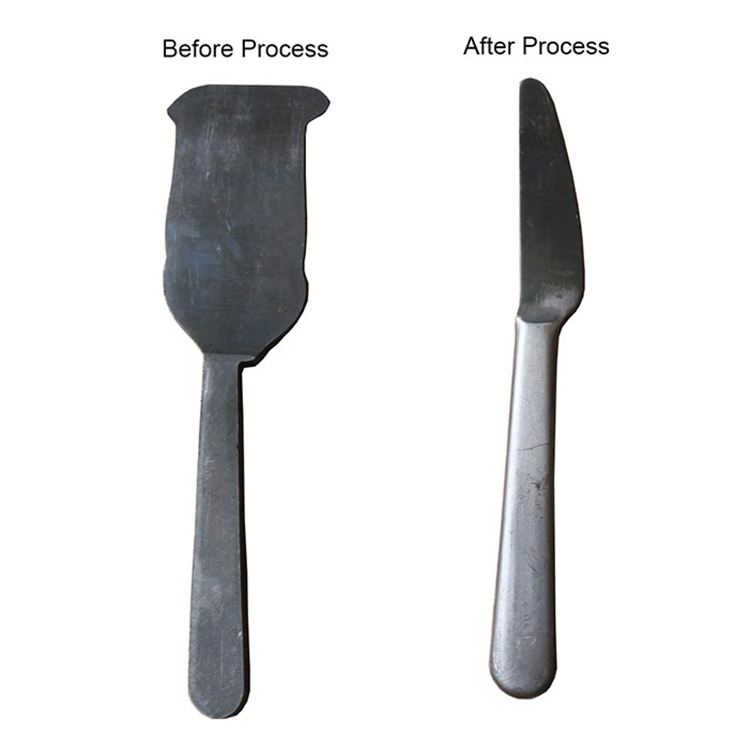

The feeding system work steps is use the high magnetic rod to hold the stainless steel sheet from the material inlet and convey the stainless steel sheet to do knife handle embossing, next knife edge cutting, final stamping letter, then the rod convey the finished knife to the outlet. Cycling work in this mode, the stainless steel knife could be produced automatically by this system.
Not only be used in cutlery, tableware & kitchenware, but also could be used in other hardware parts production.
Details show:

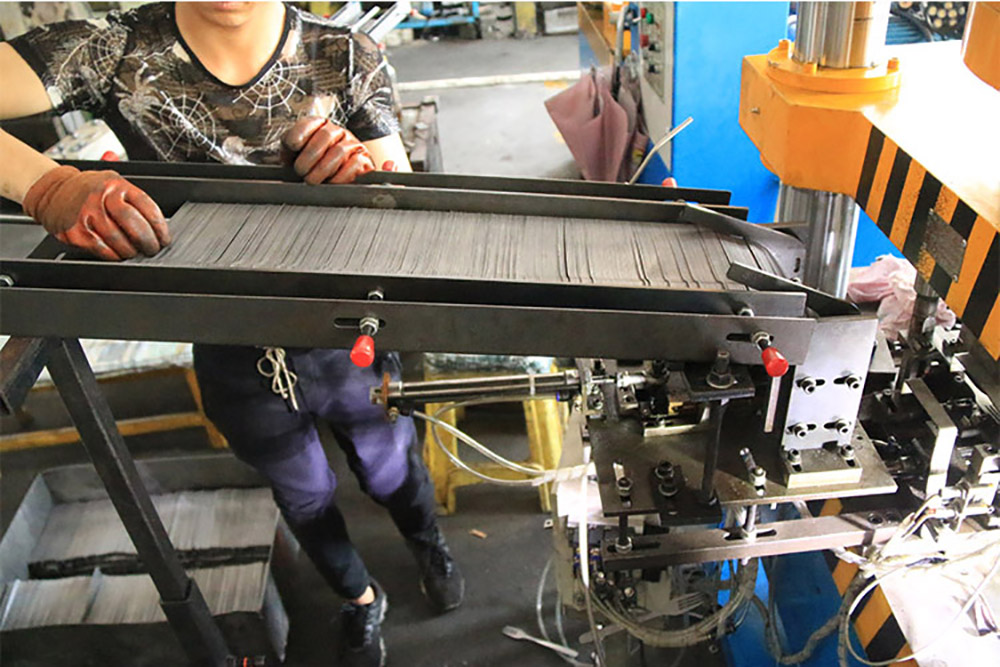

Inlet and outlet - length: 900mm, could place around 220 pieces of 4mm knife work pieces.
Specifications:
Thickness of the product | ≤4 | mm |
Length of the product | 100~220 | mm |
Process speed | 33~38 | pcs/min |
Dimension of worktable | L590*W400 | mm |
Dimension of material inlet/outlet | L900*W240 | mm |
Power | 220V | 20W |
Our advantages:
1. Two independent professional R&D teams, we could help you solved any technical request regards tableware & kitchenware production.
2. Engineer overseas installation, training and lifelong online counselling both for machines and products.
3. Customizable model, color and language.
4. Turnkey project or full/semi automatic production line solution are available.
5. Not lowest price but most valuable machine&service, we offer your 5-STAR quality with 3-STAR price.
6. Welcome to be our dealer all over the world, and we sincerely invite your team come to Jieyang to learn the technical, installation, adjusting, setting and training.
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
