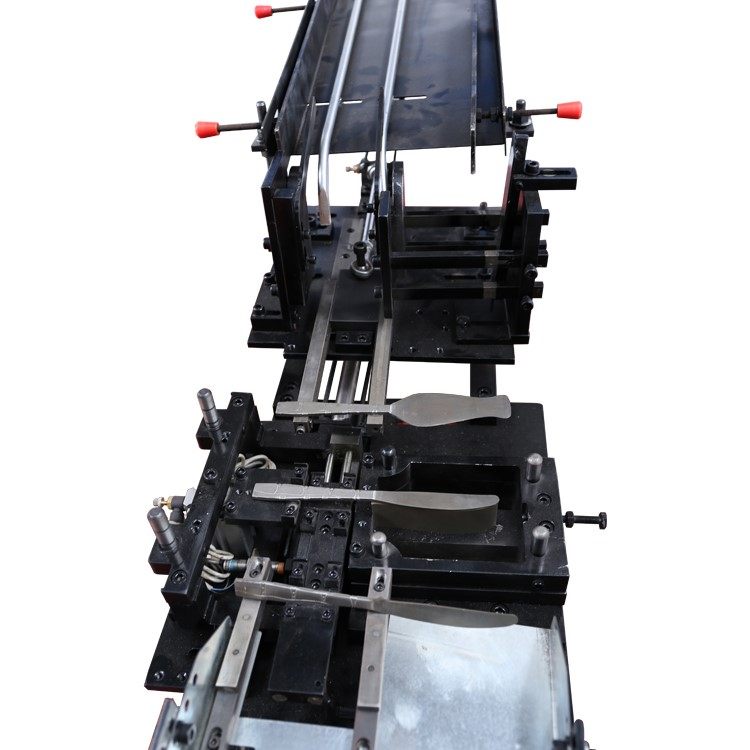

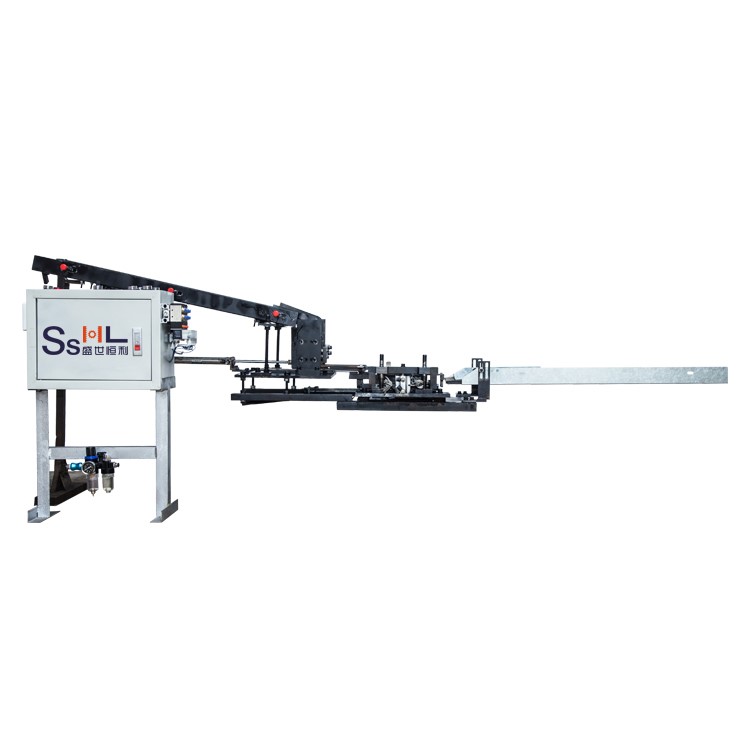

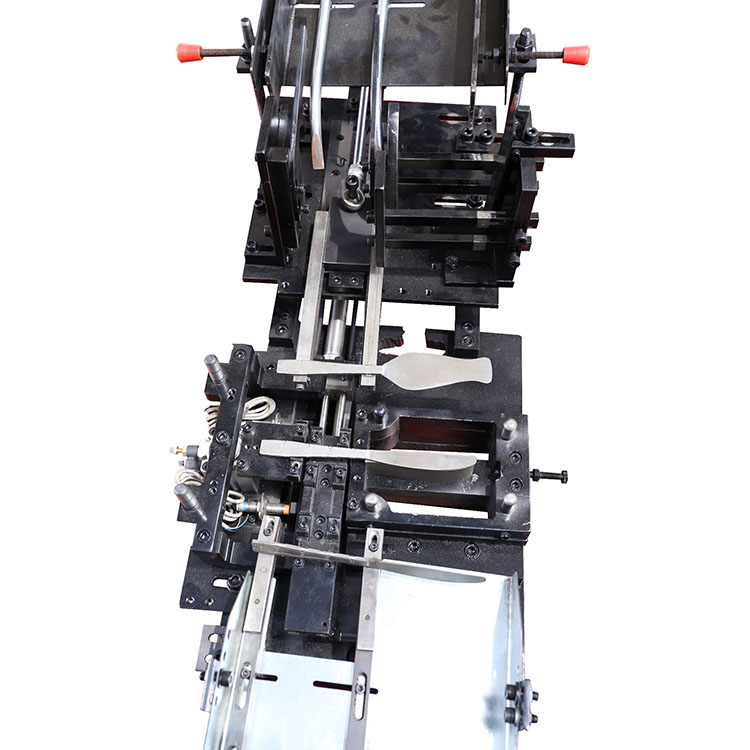

DGW-012 Automatic Feeding for Cutlery Knife Stamping 2 in 1
Features:

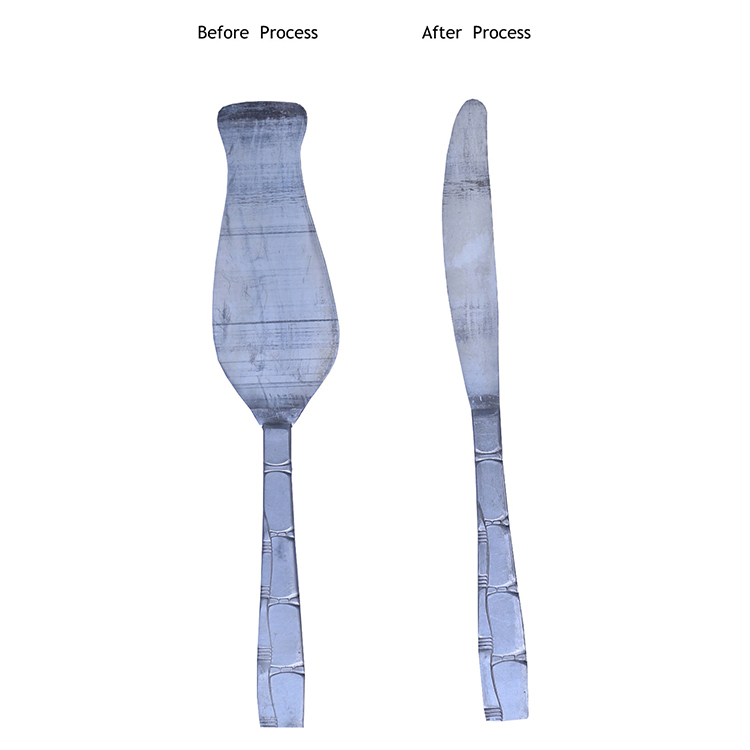

1. High output and efficient production, with this automatic feeder, one punch press machine could finished stainless steel knife edge cutting and stamping letter at one pressing.
2. Replace manual production, save labor cost, one worker could operate 2~4 sets of machine at the same time.
3. High output, one machine could process 35~40 pieces of knife per minute.
4. Improve competitiveness, high-precision production, up to 99% succeed produce.
5. Easy operation and maintenance, only need the worker switch on/off the machine and loading/unloading the materials from the automatic feeder.
6. Safety production, no need the worker put hands into the frame of the hydraulic press or punch press machine, avoid production accident.
7. Low power consumption, 0.02kw/h.
Specifications:
Thickness of the product | ≤4 | mm |
Length of the product | 180~230 | mm |
Process speed | 35~40 | pieces/min |
Dimension of worktable | L420*W285 | mm |
Dimension of material inlet/outlet | L900*W240 | mm |
Power | 220V | 20W |
Image show:

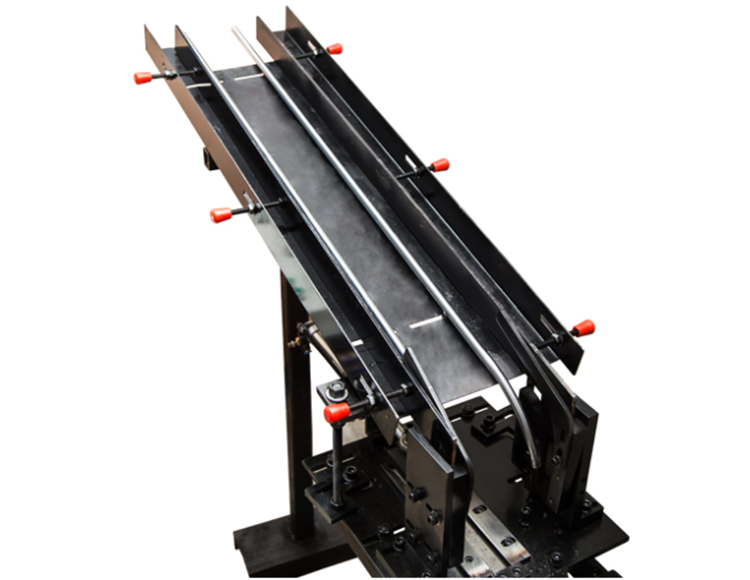

Inlet: Length - 900mm, could place around 400 pieces of work pieces.

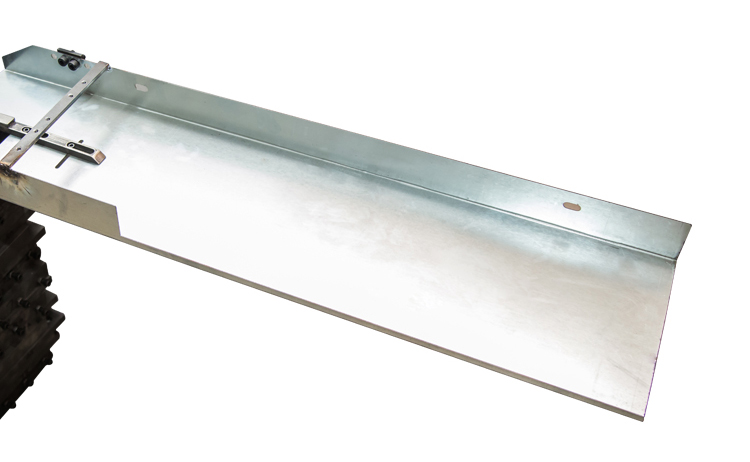

Outlet: Length - 900mm, could place around 400 pieces of work pieces.
For more information, please inquiry us with following information:
1. Photo of the sample.
2. What's material, length, weight and thickness (min&max ) of the sample.
3. Production capacity, and your factory production situation.
With above information, our engineers could help you to do the process analysis and find a good production program for you.
Don't hesitate, just email us, you could get the Plan of Automatic Production Line for your product or factory FREELY!
