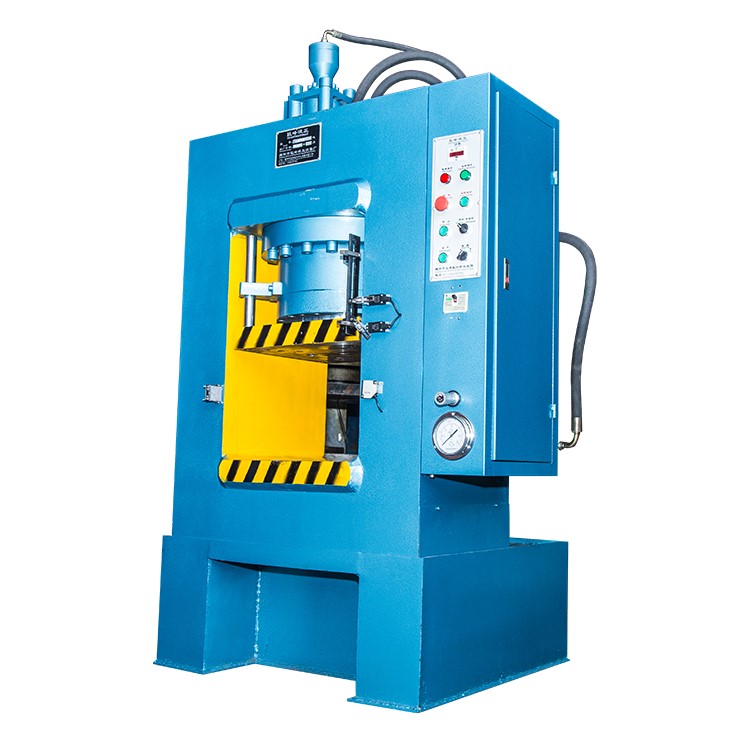

JF-200 Ton Hydraulic Press Machine
Uniform pressure.
High precision.
Safe and reliable, equipped with infrared safety grating.
Pressure, stroke, speed can be adjusted.
Easy operation.
Stable and durable.
Low oil consumption.
Technical Parameters:
Specification | Unit | JF-200 | |
Nominal Pressure | KN | 2000 | |
Maximum Working Pressure | MPa | 24 | |
Maximum Stroke | mm | 160 | |
Stroke(S.P.M) | Times/min | 40~48 | |
Maximum Shut Height | mm | 370 | |
Activity Speed of Stroke (Up&Down) | mm/s | 160 | |
Worktable Dimension | F-B | mm | 520 |
L-R | mm | 560 | |
Machine's Dimension | F-B | mm | 1280 |
L-R | mm | 1180 | |
H | mm | 2200 | |
Oil Pump Displacement | ml/rad | 30 | |
Motor Power | KW | 7.5 | |
Weight | Ton | 2.8 | |
Thickness of Material | mm | ≤2 |
Don't hesitate, just email us, you could get total solutions including machines, dies, production process technology and automatic production line.
