Choosing the right press machine for your operations can directly influence your manufacturing quality, speed, and profitability. Two popular choices, punch press machines and hydraulic presses, dominate the modern fabrication landscape. Each has unique strengths, limitations, and best-use scenarios. This comprehensive article explores the definitions, working principles, detailed comparisons, advantages, disadvantages, typical applications, and selection guidelines for both machines. After reading, you should confidently determine which machine best meets your production requirements.

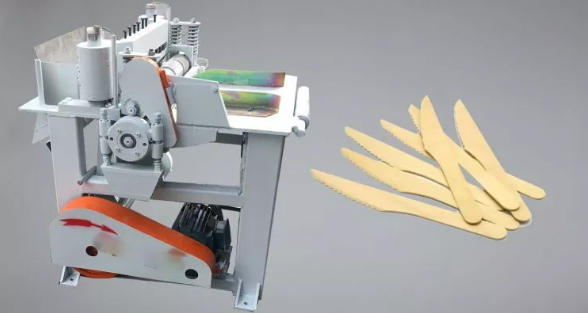

A punch press machine is a mechanical device designed to perform high-speed, repetitive stamping or punching operations. By storing kinetic energy in a flywheel and releasing it through a crankshaft, punch presses deliver rapid-impact force, perfect for tasks demanding high productivity and consistent accuracy. Traditionally, these machines use manual, semi-automatic, or, in modern versions, CNC (Computer Numerical Control) systems for complex, repeatable patterns.
- Frame: Provides the structural base and support.
- Flywheel and Motor: Generate and store mechanical energy.
- Crankshaft Mechanism: Converts rotary energy from the flywheel to linear movement.
- Ram: Delivers force onto the die and workpiece.
During operation, the punch descends quickly onto the material, shearing it in precise shapes or holes, supported by a die beneath. Mechanical punch presses are valued for their repeatability, massive output capability, and cost-effectiveness in large production runs.
- Extremely high production rates, capable of thousands of strokes per hour.
- High repeatability—critical for producing large quantities of identical parts.
- Lower energy costs for high-output operations.
- Straightforward mechanical maintenance compared to fluid systems.
- Compact footprint for many workshop settings.
- Blanking, piercing, and perforating sheet metal
- Making components for the automotive, electronics, and hardware industries
- Shaping and forming flat materials with regular geometry
- Producing parts such as brackets, connectors, panels, and housings

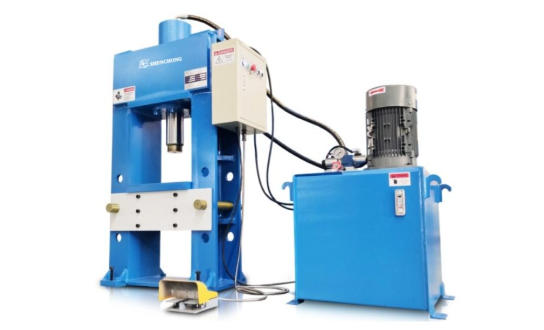

A hydraulic press uses Pascal's principle, applying force through hydraulically-actuated pistons filled with oil. Unlike the punch press, its pressing force is slow, smooth, and infinitely variable. Operators can adjust the exact pressure and speed during any point in the stroke, which is invaluable for complex forming, bending, drawing, and molding tasks.
- Hydraulic Cylinder: Houses the moving piston (ram).
- Pump and Reservoir: Store and move hydraulic fluid.
- Valves and Controls: Precisely adjust fluid flow, stroke speed, and applied pressure.
- Frame: Supports the load and press components.
The hydraulic press moves steadily, pressing the ram into the workpiece. The steady force is maintained through any position in the stroke, allowing for deep drawing or molding of tough or delicate materials.
- Fine adjustment of speed and pressing force.
- Ability to maintain constant tonnage at any stroke position.
- Minimal shock and vibration, leading to quieter operations.
- Versatile application range—from forming to compressing, bending, powder compacting, and laboratory testing.
- Superior for forming deep, complex, or multi-step parts.
- Deep drawing for cups, cans, or automotive panels
- Compression molding of plastics, ceramics, or composites
- Assembly of precision parts needing tightly controlled tolerances
- Forming thick, multi-layer, or high-strength materials
- Research and quality testing under controlled loads
- Punch Press: Utilizes inertial energy from a flywheel and crank-slider mechanism to create rapid, high-impact force. This transient force is ideal for cutting and blanking simple shapes.
- Hydraulic Press: Uses hydraulic oil pressure, developed by a pump, to move a piston at variable rates. The pressing force is steady and can be adjusted at any point throughout the stroke.
- Punch Press: Exceptionally fast, with fixed-speed cycles best suited to mass production of simple parts.
- Hydraulic Press: Slower, but features stepless, finely adjustable speeds appropriate for complex, multi-stage, or pressure-sensitive processes.
- Punch Press: Fixed stroke and limited force flexibility; mostly suited to repeated operations at the same settings.
- Hydraulic Press: Both stroke and force are fully adjustable, enabling accommodation of a wide variety of products and materials.
- Punch Press: Highly consistent for regular, repetitive shapes. Less suited to tasks requiring gradual deformation or variable force.
- Hydraulic Press: Excels in intricate jobs requiring sustained pressure or deep drawing, maintaining high precision across diverse applications.
- Punch Press: Mechanical wear is the main maintenance concern, especially in bearings and lubrication. Energy efficiency is excellent for continuous, high-speed use.
- Hydraulic Press: Maintenance focuses on the hydraulic system—regular fluid changes, seal inspections, and leak prevention. Higher energy use results from constant fluid circulation but modern energy-efficient systems are narrowing this gap.
- Punch Press: Best for high-volume, narrow-scope operations.
- Hydraulic Press: More versatile—handles a broader spectrum of tasks, including those needing gradual, controlled force.
| Feature | Punch Press | Hydraulic Press |
|---|---|---|
| Force Generation | Mechanical, inertial | Hydraulic fluid pressure |
| Typical Cycle Speed | Very fast | Slower, adjustable |
| Force/Stroke Control | Fixed | Fully variable |
| Noise Level | Louder | Quiet to moderate |
| Energy Efficiency | High (in mass production) | Moderate (improving with tech) |
| Maintenance | Mechanical focused | Hydraulic system focused |
| Ergonomics | Simple interface | More adjustable, often computerized |
| Automation | Mature, widely used | Advanced (with CNC and robotics) |
| Initial Cost | Lower | Typically higher |
| Flexibility | Lower | Higher |
| Die/Tooling Cost | Lower | Higher (for complex parts) |
| Typical Products | Flat, regularly shaped parts in high volume | Complex, deep-drawn, or high-strength parts |
Both machines have evolved with modern safety features, but each type presents unique hazards and protection strategies:
- Mechanical motion hazards—requires robust guarding and emergency stops
- Regular die alignment checks are important to avoid accidents
- Built-in clutch and brake systems add crucial safety layers
- Hydraulic fluid leaks or bursts—necessitate pressure sensors and regular inspections
- Can achieve very high forces; advanced control systems are needed for overload protection
- Quiet operation reduces operator fatigue and noise hazards
Modern presses often feature light curtains, interlocked doors, and automatic shutoff in fault conditions, enhancing workplace safety.
The financial calculus in choosing between these presses goes beyond initial purchase price. While punch presses cost less and consume less energy in repetitive jobs, hydraulic presses can deliver significant savings in lower waste, longer tool life, and reduced rework for complex jobs. Evaluate:
- Initial Investment: Punch presses are simpler and less costly.
- Operating Cost: Punch presses excel in mass runs; hydraulic presses in specialized, variable tasks.
- Maintenance: Punch presses require consistent mechanical attention; hydraulic presses need skilled technicians for fluid and system maintenance.
- Lifetime Value: If product lines change often or require different shapes and forces, hydraulic presses may pay off through flexibility.
- Punch Press: Stamping door panels, brackets, and mounting plates from thin sheet steel at high speed.
- Hydraulic Press: Deep-drawing body panels, forming structural components with high-strength steel, producing complex cross-sections.
- Punch Press: Mass production of connector plates, chassis brackets, and circuit housings.
- Hydraulic Press: Forming delicate electronic casings, creating intricate shapes, precision bending, and pressure-sensitive assemblies.
- Punch Press: Fast production of signage blanks, kitchenware, utensils.
- Hydraulic Press: Molding plastic parts, assembling multilayer or composite pieces, advanced prototyping.
Emerging press machine technologies blur traditional boundaries. Programmable servo presses and hybrid models combine the speed of mechanical drives with the flexibility of hydraulic systems. Real-time sensors monitor pressure, temperature, and tonnage, enabling predictive maintenance and quality assurance. Robotics and Industry 4.0 integration now feature in leading-edge equipment, further boosting productivity, part quality, and safety.

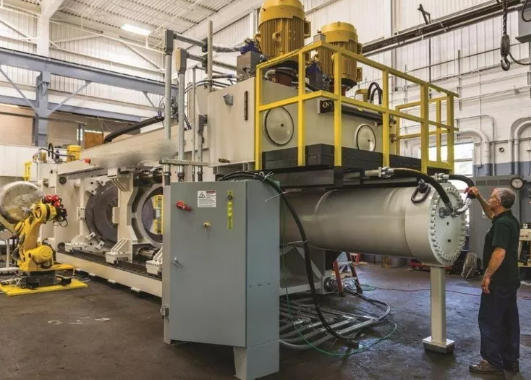

The decision between a punch press machine and a hydraulic press should consider:
- Production volume (high for punch press; variable for hydraulic)
- Complexity of product shapes (simple for punch press; complex for hydraulic)
- Material thickness and type (thin/consistent for punch; thick/varied for hydraulic)
- Need for flexibility or future expansion
- Budget and total cost of ownership
- Energy consumption patterns
Punch press machines deliver high efficiency for mass production of uniform, flat parts, making them the backbone of automotive and hardware industries. Hydraulic presses, with their superior adjustability, force control, and application range, have revolutionized metal forming and molded product manufacturing. Advances in machine controls and hybrid designs are narrowing the traditional gaps, offering new choices for manufacturers. The right selection rests on your operational goals, product demands, and investment outlook. Take the time to evaluate these factors as they directly impact production efficiency, safety, and profit margins.
Punch press machines use mechanical force for rapid, repetitive punching, while hydraulic presses utilize fluid pressure for smooth, adjustable pressing. Punch presses are best for mass-producing simple parts; hydraulic presses handle complex, thick, or deeply drawn pieces with precise control.
If producing simple parts in high volumes, punch presses offer greater efficiency and lower per-part cost. For varied, complex, or deep-formed products, hydraulic presses reduce rework and tooling changes, which can cut overall costs.
Both employ modern safety systems but punch presses focus on guarding fast-moving parts and mechanical failure, while hydraulic presses emphasize fluid handling, leak detection, and overload prevention.
Yes, many facilities combine both to cover a full product range—using punch presses for high-speed stamping and hydraulic presses for custom, thick, or complex jobs.
Modern servo and hybrid presses integrate mechanical speed with hydraulic adjustability, offering flexible solutions for diverse manufacturing needs.
