In the competitive world of metal fabrication, where precision, efficiency, and longevity dictate success, the 100-ton punch press stands as a powerhouse of industrial manufacturing. Built to exert massive force while maintaining tight precision, it serves as the backbone of many industries such as automotive, construction, aerospace, and appliance production.
A high-performance punch press not only shapes and cuts metal efficiently but also ensures robustness against wear, thereby reducing downtime and maximizing profitability.
This guide explores the mechanics, applications, design features, and innovations that make the 100-ton punch press an indispensable part of modern manufacturing. Whether you are setting up an automated production line or upgrading your metalworking equipment, this comprehensive overview will help you identify the most reliable and durable options available.

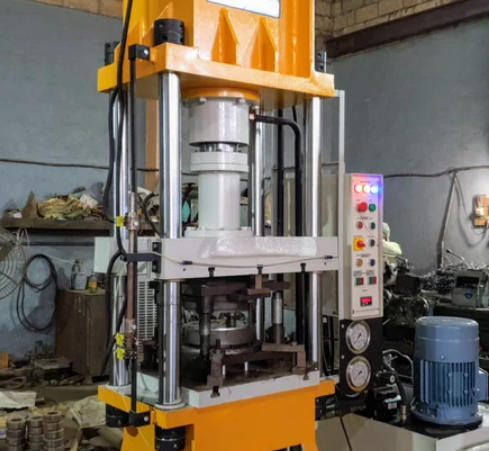

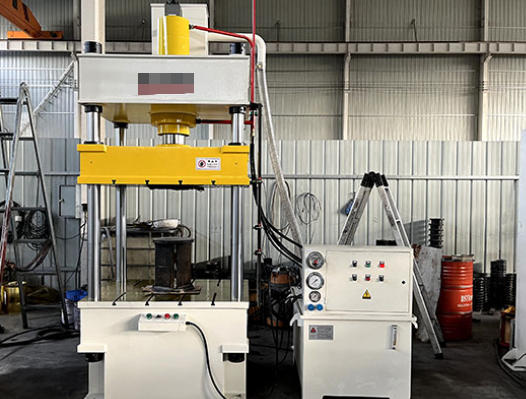

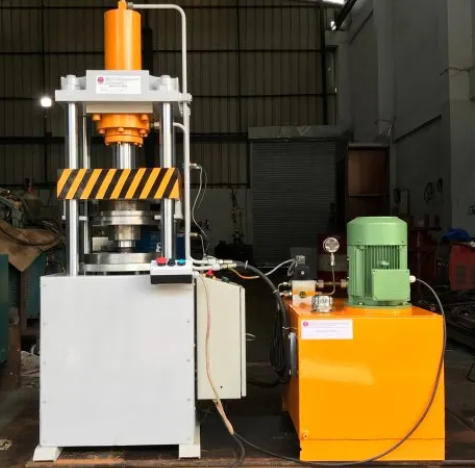

A 100-ton punch press is a forming machine capable of exerting up to 100 tons of pressure to shape, cut, emboss, or punch holes in sheet metal or other materials. Depending on the operational mechanism, it can be either mechanical, hydraulic, or servo-electric, each offering unique advantages for precision and throughput.
- The ram (or slide) moves vertically to press the punch into the die, cutting or forming the material between them.
- The frame, often made from cast or welded steel, ensures rigidity during high-load operations.
- Hydraulic systems use pressurized fluid to control the ram's motion smoothly, while mechanical systems rely on flywheel energy transmitted through a crankshaft.
The combination of these elements leads to clean, accurate cuts and formed parts that require minimal finishing.
A 100-ton punch press offers the perfect balance of force capacity, operational speed, and stability. For manufacturers who handle medium to thick sheet metals, it delivers enough pressure to execute complex forms while maintaining operational efficiency.
- High Precision: CNC controls and servo motors ensure repeatability with accuracy levels reaching ±0.02 mm.
- Extensive Material Compatibility: From mild steel to stainless steel, aluminum, and even titanium plates.
- Enhanced Productivity: Capable of continuous operation in automated lines with minimal setup changes.
- Long-Term Durability: Engineered components tolerate heavy loads and resist fatigue, ensuring long service life.
- Operational Safety: Integrated safety systems such as overload protection and dual-hand activation minimize risks.
- C-Frame Presses allow greater accessibility from three sides, ideal for smaller parts.
- H-Frame Presses provide superior rigidity and uniform pressure distribution suitable for larger dies or parts.
- The mechanical drive delivers rapid motion ideal for mass production.
- The hydraulic drive allows adjustable force, variable speed, and full-pressure control.
- The servo-electric drive combines precision and power efficiency with low noise output.
- Programmable controllers manage stroke length, pressure levels, and timing.
- Integration with robotic arms or sheet feeders enables continuous, unmanned processing.
When selecting a 100-ton punch press, several factors define its effectiveness and suitability for your tasks:
| Metric | Description |
|---|---|
| Pressing Force | 100 tons (equivalent to 90,718 kgf) |
| Stroke Length | Determines the movement distance of the ram |
| Throat Depth | Defines the maximum reach from the ram's center to the column |
| Table Dimensions | Affect die compatibility and workpiece size |
| Ram Speed | Measured in strokes per minute, typically between 40–120 |
| Motor Power Rating | Typically ranges between 7.5–15 kW depending on type |
| Control System | Manual, semi-automatic, or fully CNC-programmable |
| Safety Mechanisms | Emergency stops, interlocks, overload sensors |
The versatility of a 100-ton machine allows application across countless industries:
Used to punch holes and shapes into body panels, brackets, supports, and inner frames. It ensures consistent dimensions for safety-critical components.
Essential for forming lightweight yet strong aluminum sheets, supporting airplane components and structural assemblies that require fine tolerances.
The 100-ton press efficiently punches slots and holes in switchboards, distribution boxes, and busbars without metal deformation.
Plates, mounting brackets, and metal fittings for bridges, buildings, and heavy equipment are easily fabricated using a hydraulic punch press.
Door frames, decorative panels, and reinforcement components rely on consistent punching and bending accuracy achievable only with a 100-ton press.
| Feature | Hydraulic Press | Mechanical Press | CNC Servo Press |
|---|---|---|---|
| Force Control | Adjustable and consistent throughout the stroke | Peak force only at bottom of stroke | Precise, digitally controlled |
| Speed | Moderate | High | Adjustable |
| Maintenance | Requires fluid care | Low maintenance | Low but needs electronic calibration |
| Noise Level | Low | High | Very low |
| Best For | Thick or complex parts | High-speed mass production | Smart, flexible production setups |
Renowned for robust build quality and servo-mechanical innovations. Their 100-ton models are globally recognized for reliability and smooth operation.
Leading the CNC punch press industry, Amada integrates energy-efficient drives, precise tool changers, and advanced digital controls.
Known for precision forming presses with stress-relieved frames and exceptional repeatability in mass production.
Offers cost-effective hydraulic presses built to international standards, providing excellent control and automation compatibility for mid-size operations.
Delivers heavy mechanical presses capable of continuous, high-speed production with robust safety features and superior alignment technology.
Selecting the right model depends on the nature of your work, the scale of production, and budget considerations.
Here are five essential criteria:
Choose mechanical presses for repetitive, high-volume stamping; opt for hydraulic for variable or customized parts.
For stainless steel or thicker alloys, a hydraulic press with full-stroke force application provides cleaner cuts.
If tolerance control is critical (e.g., electronics or aerospace parts), go for CNC servo presses with positional feedback.
Consider models compatible with feeding systems, robotic arms, or intelligent monitoring for future scalability.
Assess not just purchase price but also operational efficiency, spare part availability, and service accessibility.
Efficient operation and long machine lifespan require disciplined care routines.
- Lubricate ram slides and bearings to minimize friction.
- Check hydraulic oil levels and inspect for leaks.
- Ensure sensors and safety circuits function properly.
- Verify stroke accuracy and inspect die alignment.
- Tighten all mounting bolts and structural fasteners.
- Evaluate clutch and motor wear if using mechanical press.
- Perform hydraulic oil replacement and system flushing.
- Recalibrate CNC sensors and software controls.
- Replace worn seals and gaskets in hydraulic systems.
With a machine that exerts 100 tons of force, strict safety protocols are paramount:
- Use guard systems and light curtains to prevent hand injuries.
- Employ emergency stop and lockout-tagout procedures.
- Ensure operator training on correct die setup and part loading.
- Always verify overload protection systems before starting a production shift.
Smart presses now include self-diagnostic safety systems that automatically halt operations in case of pressure anomaly or die misalignment.
The punch press industry continues to evolve with profound technological transformations:
- IoT Connectivity: Allows real-time remote machine monitoring, performance tracking, and predictive maintenance.
- AI-Based Die Protection: Detects irregular vibration or sound patterns that precede mechanical failure.
- Energy Efficiency: Servo-hydraulic hybrids cut power consumption by up to 40%.
- Smart Material Handling: Automation integrates seamlessly with robotic feeders, conveyors, and stacking units.
- Data-Driven Production Optimization: Machine learning algorithms optimize punch force and stroke speed for each job run.
The integration of Industry 4.0 concepts is revolutionizing metal forming, enabling agile manufacturing and reducing total production costs.
A Southeast Asian metal enclosure manufacturer upgraded from an aging mechanical system to a CNC-controlled hydraulic 100-ton press.
The outcomes were notable:
- Productivity Increase: Production cycle shortened by 25%.
- Defect Reduction: Material distortion decreased from 8% to 2%.
- Energy Savings: Consumption lowered by 30% due to servo regulation.
- Noise Reduction: Operational noise dropped below 70 dB, improving workshop conditions.
- ROI Achievement: Full investment recovery within 18 months through reduced scrap and higher throughput.
A 100-ton punch press serves as a pivotal machine for medium to heavy-duty metal forming operations, blending immense power with cutting-edge precision. Its versatility across numerous industries — automotive, construction, and electronics — proves its unmatched utility in modern fabrication lines.
Choosing the right model depends on specific production needs, automation goals, and desired accuracy. By focusing on durable design, proper maintenance, and adopting intelligent technologies, your punch press can deliver superior performance for decades.
In a landscape driven by smart manufacturing, investing in a robust and digitally-enabled 100-ton press means investing in productivity, quality, and long-term sustainability.
Most models can handle steel sheets up to 10–12 mm thick, though this depends on die design and press type. Aluminum or copper sheets up to 15 mm are also suitable.
Routine lubrication, timely die maintenance, and proper calibration of sensors significantly extend machine life while reducing unplanned downtime.
Not necessarily. For repetitive punching with consistent dies, mechanical control suffices. However, CNC control enhances flexibility for variable part designs.
Prices range from USD 25,000 to USD 90,000 depending on brand, automation level, and configuration (mechanical or servo-hydraulic). Installation and training may incur extra costs.
Yes. Modern presses offer network connectivity, production data export, and predictive maintenance interfaces compatible with smart factory solutions.
