Punch press tooling is a cornerstone in metalworking and manufacturing, enabling precise shaping, cutting, and forming of metal sheets. However, like any mechanical system, punch press tooling can encounter a variety of problems that disrupt production, reduce quality, and increase costs. Understanding these common issues and knowing how to address them is essential for maintaining efficient operations and extending tooling life.
This comprehensive article explores the typical problems with punch press tooling, their causes, and practical solutions. It also provides visual aids and videos to enhance understanding. Finally, a conclusion and a FAQ section with five key questions and answers will help you master punch press tooling maintenance and troubleshooting.

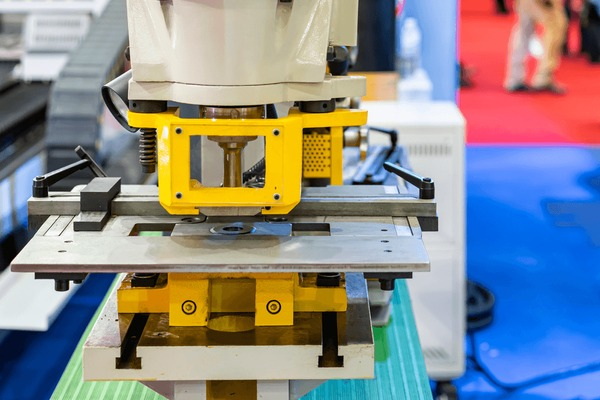

Misalignment is one of the most frequent and impactful problems in punch press tooling. It occurs when the punch and die are not properly aligned, leading to off-center holes, irregular shapes, and uneven stress distribution on the tooling. Causes include improper initial setup, wear on machine components such as ram and bushings, and lack of regular maintenance. Misalignment accelerates wear and can cause premature tooling failure.
How to Fix:
- Regularly calibrate and check alignment of the punch and die.
- Follow manufacturer setup guidelines meticulously.
- Use alignment tools during installation.
- Replace worn bushings and worn parts promptly.
- Conduct test punches on scrap material and adjust as needed.
Continuous punching generates friction and heat, causing punches and dies to wear down and dull over time. Worn tooling results in poor-quality cuts, increased burrs, and higher rejection rates. Factors accelerating wear include punching harder materials, insufficient lubrication, and environmental conditions like humidity.
How to Fix:
- Schedule regular inspections of tooling condition.
- Replace worn or damaged punches and dies promptly.
- Use appropriate tooling materials for the specific workpiece.
- Maintain proper lubrication to reduce friction.
- Control environmental factors where possible.
Punch breakage can halt production and cause costly repairs. Causes include press deflection, excessive force, poor tool steel selection, and misalignment. Loose coupling nuts or worn components can cause uneven forces leading to chipping.
How to Fix:
- Ensure the press frame and ram are well-maintained and minimize deflection.
- Use the correct tool steel and heat treatment for the application.
- Tighten coupling nuts and secure tooling properly.
- Avoid applying excessive force beyond material requirements.
- Repair minor damage with proper welding techniques and grinding.
Stripping refers to the punch failing to cleanly separate the punched material from the punch tip, causing distorted holes or material sticking. Causes include improper clearance, dull tooling, worn springs in the stripper assembly, misalignment, and inadequate lubrication.
How to Fix:
- Maintain proper punch-to-die clearance according to material thickness.
- Replace dull punches and dies.
- Inspect and replace worn stripper springs regularly.
- Keep tooling components clean and well-lubricated.
- Use tooling matched to material properties.
Punch jams occur when the punch gets stuck during operation, causing downtime and potential damage. Causes include material misalignment, tool wear, debris in the mechanism, and improper maintenance.
How to Fix:
- Inspect and align material properly before punching.
- Clean and lubricate punch press tooling and mechanisms regularly.
- Replace worn or damaged punches and dies.
- Train operators on proper machine use and maintenance.
- Remove foreign objects and debris from tooling areas.
Variations in hole size, shape, or burr formation reduce product quality and can cause assembly issues. Causes include misaligned dies, worn tooling, material deformation, and incorrect machine settings.
How to Fix:
- Align dies carefully and check alignment frequently.
- Replace tooling nearing end of life.
- Select materials less prone to deformation.
- Adjust machine parameters for optimal punching conditions.
Press deflection occurs when the ram or press frame bends or moves during punching, causing uneven cuts and increased tooling stress.
How to Fix:
- Maintain press components to ensure ram and bolster plate remain parallel.
- Avoid using older, poorly maintained presses for high-precision punching.
- Upgrade or replace presses with excessive deflection.
Burrs are unwanted raised edges or roughness around punched holes, which can affect assembly and product safety. Burr formation often results from dull tooling, incorrect clearance, or excessive punch speed.
How to Fix:
- Use sharp punches and dies.
- Adjust punch-to-die clearance to manufacturer recommendations.
- Control punch speed and stroke to reduce heat and deformation.
- Employ secondary deburring processes if necessary.
Corrosion can degrade punch press tooling, especially in humid or poorly maintained environments, leading to surface pitting and reduced lifespan.
How to Fix:
- Apply anti-rust coatings or lubricants regularly.
- Store tooling in dry, controlled environments.
- Clean tooling after use to remove moisture and contaminants.
- Use corrosion-resistant tool materials where applicable.
Noise and vibration during punching can indicate tooling imbalance, loose components, or worn machine parts. These issues can accelerate wear and cause operator discomfort.
How to Fix:
- Tighten all tooling and press components securely.
- Balance tooling assemblies properly.
- Inspect and replace worn bearings or bushings.
- Use vibration dampening mounts or pads if necessary.
Regular maintenance is key to preventing many of the problems above. Here is a maintenance checklist:
- Daily: Clean tooling surfaces, check lubrication, inspect for visible damage.
- Weekly: Inspect punch and die condition, check alignment, lubricate clutch and brake pins.
- Monthly: Apply anti-rust protection, verify machine parallelism, inspect hydraulic components.
- Quarterly: Disassemble and inspect bearings, bushings, shafts; clean and lubricate manipulator arms.
- Annually: Overhaul gears, belts, flywheels; inspect frame welds and bolts; recalibrate machine settings.
Additional maintenance tips:
- Maintain a detailed log of tooling usage and maintenance activities to predict replacement needs.
- Train operators and maintenance personnel regularly on best practices for punch press tooling.
- Use quality lubricants and cleaning agents recommended by tooling and press manufacturers.
- Monitor environmental conditions in the workshop to minimize corrosion and contamination risks.
Punch press tooling problems such as misalignment, tool wear, breakage, stripping failures, jams, burr formation, corrosion, and excessive noise can severely impact manufacturing efficiency and product quality. However, by understanding the root causes and implementing regular maintenance, proper setup, and timely repairs, these issues can be effectively managed or prevented. Consistent inspection, lubrication, and operator training are essential to keep punch press tooling in optimal condition, ensuring smooth production and extending tooling life.
Misalignment is often caused by improper setup, wear on machine components, and lack of maintenance. Fix it by regularly calibrating the punch and die, following setup guidelines, replacing worn parts, and conducting test punches to verify alignment.
Signs include increased burrs on punched parts, irregular hole shapes, reduced punching power, and visible damage or dullness on punches and dies. Regular inspections help identify wear early for timely replacement.
Check for material misalignment, clean and lubricate tooling, inspect for worn or damaged punches and dies, remove debris, and train operators on proper use. Preventive maintenance reduces jams significantly.
Maintain correct punch-to-die clearance, replace dull tooling, inspect and replace stripper springs, keep components clean and lubricated, and use tooling suitable for the material being punched.
Minor damage like small chips or cracks can often be repaired by welding and grinding using proper filler materials and techniques. Severe damage or excessive wear usually requires replacement to maintain quality.
