In modern metalworking industries, hydraulic press machines have become an indispensable tool for shaping, forming, and compressing materials with precision. Whether it is automotive components, aerospace parts, or large-scale industrial hardware, hydraulic presses deliver superior force and accuracy compared to mechanical presses. Selecting the right hydraulic press machine for metal forming requires technical knowledge, clear project requirements, and an understanding of investment returns.
This comprehensive guide explores everything you need to know before buying a hydraulic press machine, from different types and working principles to key selection factors, applications, and trusted global manufacturers.
A hydraulic press is a machine that uses a hydraulic cylinder to generate a compressive force based on Pascal's principle, which states that pressure applied to a confined fluid is transmitted equally in all directions. This mechanism allows hydraulic presses to deliver extremely high force with relatively compact designs compared to mechanical counterparts.
- Hydraulic Pump – Powers the system and delivers pressurized fluid.
- Cylinder and Piston – Generate force to compress or form metal.
- Frame – Provides structure, alignment, and stability.
- Control System – Regulates force, speed, and precision.
- Die and Tooling – Shape the workpiece into the desired form.
When hydraulic fluid is forced into the piston chamber, pressure builds up. Because fluid is incompressible, it transmits pressure evenly across the piston, which moves downward with tremendous force. This movement acts on the metal workpiece, pressing it into the die to create the required shape.
Different press types cater to varied applications and production requirements. Below are the most common hydraulic press machines for metal forming:

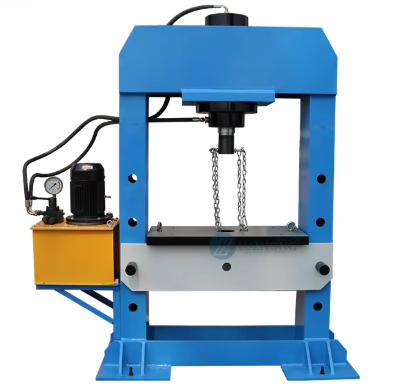

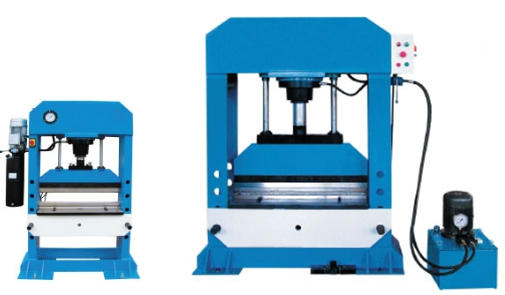

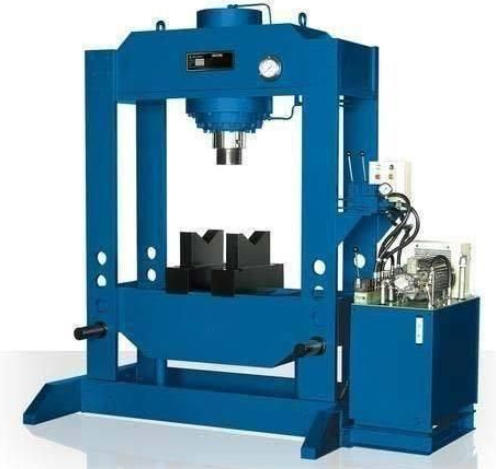

- Designed with a vertical H-shaped frame.
- Offers balanced force distribution.
- Suitable for assembly, bending, and heavy-duty shaping.
- Characterized by a simple C-shaped frame.
- Compact design, easier tool accessibility.
- Widely used in small to medium-scale operations.
- Uses four columns for stability and guiding.
- High-precision operation with large bed sizes.
- Commonly applied in deep drawing and molding processes.
- Side-loading design, ideal for extrusion and straightening.
- Often used in tube and shaft forming.
- Integrated with CNC and servo controls.
- Offers precision in pressure, stroke, and speed adjustment.
- Favored in industries requiring accuracy such as aerospace.
Hydraulic presses are incredibly versatile across multiple industries. Below are typical applications:
- Sheet Metal Forming – Producing complex curves for automotive panels.
- Punching and Blanking – Creating precise holes or shapes in sheet metal.
- Deep Drawing – Manufacturing cups, sinks, and containers.
- Metal Forging – Press-forging crankshafts, gears, and structural components.
- Assembly Operations – Press-fitting bearings, bushings, and mechanical parts.
- Powder Metallurgy – Compressing powdered metal into solid shapes under high pressure.
Compared to mechanical presses and other forming equipment, hydraulic presses provide numerous benefits:
- Higher Force Capacity – Capable of exerting tons of pressure in smaller frames.
- Adjustable Stroke and Pressure – Flexible settings allow for a variety of operations.
- Consistent Pressure Application – Ensures uniform product quality.
- Energy Efficiency – Uses power only during pressing stroke.
- Safety Features – Often equipped with overload protection.
- Cost-Effectiveness – Long lifespan and reduced maintenance costs.
Deciding on the best machine requires careful analysis of both production needs and technical specifications.
Evaluate the maximum force required for forming operations. For deep drawing or forging, a higher-tonnage press may be necessary.
The die size and workpiece dimensions must match the bed area of the press.
A longer stroke is ideal for deep forming operations, while faster cycle speeds improve productivity.
Choose between standard hydraulic systems or advanced servo-hydraulic systems based on precision requirements.
Modern presses feature CNC controls, sensors, and automatic feed systems for enhanced performance.
Ensure compliance with OSHA, CE, or ISO certifications to safeguard operators.
Consider ease of maintenance, spare parts availability, and manufacturer technical support.
Here are some globally recognized names in hydraulic press manufacturing:
- Schuler Group (Germany) – Specializes in high-end hydraulic and mechanical presses for automotive industries.
- Beckwood Press (USA) – Known for custom large-scale presses and aerospace-grade machines.
- Yeh Chiun Industrial (Taiwan) – Offers versatile hydraulic presses with strong export base.
- Hefei Metalforming Machine Tool (China) – Among the largest manufacturing bases for heavy-duty presses.
- Komatsu (Japan) – Produces advanced machinery integrating automation and energy efficiency.
When selecting a machine, one common decision is whether to purchase new or used equipment.
- New Machines
- Latest technology
- Full warranty and after-sales service
- Higher upfront cost
- Used Machines
- Lower cost investment
- Shorter lead times
- Risk of limited support and potential wear issues
Price depends on several factors:
- Machine tonnage and bed size
- Level of automation and controls
- Brand reputation and support services
- Customization requirements
Entry-level hydraulic presses may start at $10,000 - $50,000, while advanced CNC-controlled machines for heavy industry can exceed $500,000.
Return on investment comes from:
- Improved productivity
- Longer tool life due to consistent pressure
- Reduced product rejections
- Lower energy consumption
Companies can further maximize ROI by training operators properly and ensuring periodic maintenance.
- Always follow manufacturer's safety guidelines.
- Use proper personal protective equipment (PPE).
- Inspect hydraulic fluid for leaks and contamination.
- Regularly maintain filters, seals, and hoses.
- Calibrate pressure controls to prevent overloads.
Selecting the best hydraulic press machine for metal forming involves analyzing application requirements, machine specifications, and long-term investment value. From choosing the right tonnage and control system to understanding bed sizes and safety features, buyers must balance cost with performance. Leading global manufacturers provide both standard and customized solutions to meet diverse industrial needs. With proper selection and maintenance, hydraulic press machines can boost productivity, ensure consistent quality, and deliver an excellent return on investment for years to come.
A hydraulic press uses fluid pressure to generate force, offering flexibility in pressure and stroke, while a mechanical press relies on a crankshaft mechanism for fixed stroke and higher-speed operation.
The required tonnage depends on the material thickness, strength, and size of the part being formed. Most manufacturers provide tonnage calculation charts to assist in selection.
Hydraulic presses are widely used in automotive, aerospace, construction, appliance manufacturing, heavy machinery, and metal fabrication industries.
Yes, modern presses include advanced safety features such as overload protection, emergency stop switches, and light curtain sensors. Proper operator training further enhances safety.
With proper care and preventive maintenance, hydraulic press machines can last 15–25 years, depending on workload and operational conditions.
