Building an electric hydraulic press is an exciting and rewarding project for enthusiasts, engineers, and DIYers alike. This powerful machine uses hydraulic fluid pressure to generate immense force, enabling you to perform tasks such as metal forming, compression molding, and material testing with precision and efficiency. This comprehensive guide will walk you through the entire process of building your own electric hydraulic press, from understanding the key components to assembling the system, and finally testing and maintaining your machine. Along the way, you will find detailed explanations, helpful images, and video references to assist you in every step.

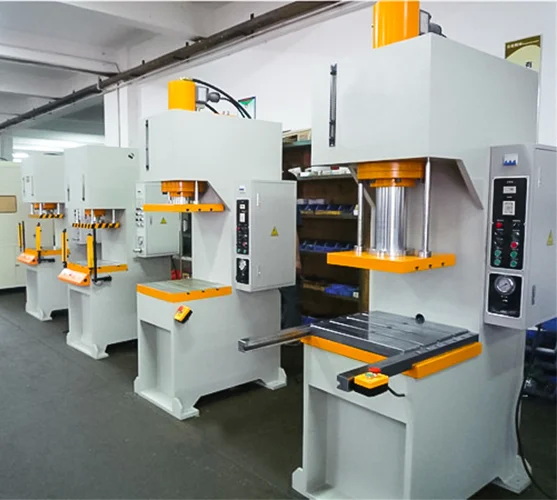

An electric hydraulic press combines the principles of hydraulics with electric power to deliver high force output in a controlled manner. Unlike manual or purely mechanical presses, the electric motor drives a hydraulic pump that pressurizes hydraulic fluid, which then moves a cylinder to apply force. This design offers advantages such as faster operation, adjustable pressure control, and greater force capacity.

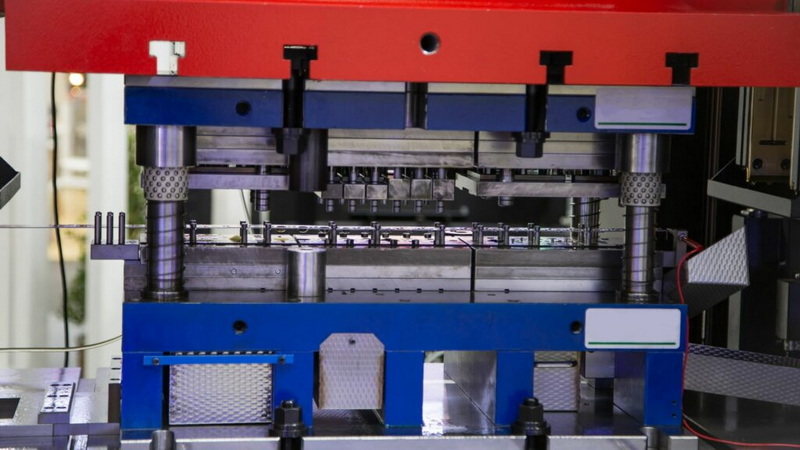

Electric hydraulic presses are widely used in industrial settings for metal forming, punching, bending, and compression molding. Building one yourself allows customization for specific tasks and can be a cost-effective alternative to commercial machines.
The versatility of an electric hydraulic press means it can be adapted for many applications, from simple pressing jobs like bearing installation to complex metal shaping. Understanding the fundamentals of hydraulics and electric motor operation is key to successfully building and operating your press.
Understanding the main parts of the press is crucial before starting the build:
- Frame: The structural backbone that supports all components and withstands the pressing forces. Usually made of steel channels or heavy-duty metal.
- Hydraulic Cylinder: Converts hydraulic fluid pressure into mechanical force. Can be single-acting or double-acting depending on whether the cylinder returns automatically.
- Hydraulic Pump: Driven by an electric motor, it pressurizes the hydraulic fluid.
- Hydraulic Fluid: Typically oil, it transmits force through the system.
- Control Valves: Regulate the flow and pressure of the hydraulic fluid to control the press operation.
- Pressure Gauge: Monitors system pressure for safety and precision.
- Hydraulic Lines and Fittings: Connect all hydraulic components securely.
- Electric Motor and Power Unit: Provides the mechanical energy to the pump.
- Safety Devices: Emergency stop buttons, guards, and pressure relief valves to ensure operator safety.
Each of these components must be carefully selected and integrated to ensure the press functions smoothly and safely. For example, the frame must be rigid enough to resist deformation under load, while the hydraulic pump and motor must be matched to provide adequate flow and pressure.
The frame is the foundation of your press and must be designed to handle the maximum force the press will exert without bending or twisting.
- Material Selection: Steel channel beams or square tubing are ideal due to their strength and ease of welding.
- Design Considerations: The frame typically consists of two vertical side frames connected by horizontal cross members at the top, middle, and bottom.
- Fabrication: Cut the steel channels to size and weld the pieces together to form the side frames. Then weld the cross members to connect the sides, creating a rigid rectangular structure.
- Mounting Points: Include reinforced mounting points for the hydraulic cylinder at the top and a solid base plate at the bottom to hold the workpiece.
A well-built frame ensures the press operates safely and accurately. Use a welding jig or clamps to keep components square during assembly.
The hydraulic cylinder converts fluid pressure into mechanical force to perform the pressing operation.
- Cylinder Selection: Choose a cylinder with a force rating appropriate for your needs (e.g., 20-ton or 50-ton).
- Mounting: Securely bolt or weld the cylinder to the top cross member of the frame. Ensure the cylinder's ram aligns vertically with the base plate.
- Alignment: Proper alignment prevents side loading, which can cause premature wear or damage.
- Return Mechanism: For single-acting cylinders, the ram returns by spring or gravity. Double-acting cylinders use hydraulic pressure for both extension and retraction, offering better control.
The hydraulic pump pressurizes the fluid, powered by an electric motor.
- Pump Type: Gear pumps are common for hydraulic presses due to their reliability and steady flow.
- Motor Selection: Match the motor voltage and horsepower to the pump's requirements.
- Mounting: Fix the pump and motor on a sturdy base near the press frame.
- Coupling: Connect the motor shaft to the pump shaft using a flexible coupling to reduce vibration.
- Power Supply: Ensure the motor is wired correctly with appropriate circuit protection.
Hydraulic hoses and control valves direct the flow of fluid to the cylinder.
- Hoses: Use high-pressure hydraulic hoses rated above your system's maximum pressure.
- Fittings: Use compatible fittings and tighten them securely to prevent leaks.
- Control Valves: Install directional control valves to manage cylinder movement (extend/retract).
- Pressure Relief Valve: Set to open at the system's maximum safe pressure to protect components.
- Reservoir: Include a hydraulic fluid reservoir with a filter to keep the fluid clean.
Safety features protect the operator and the machine.
- Pressure Gauge: Install near the control valve for real-time pressure monitoring.
- Emergency Stop: A large, easily accessible button to immediately cut power.
- Guards: Physical barriers around moving parts to prevent accidental contact.
- Pressure Relief Valve: Prevents overpressure situations that could cause damage or injury.
- Warning Labels: Clearly mark pinch points and operational hazards.
Before full operation, thorough testing is essential.
- Filling the System: Fill the reservoir with the recommended hydraulic oil.
- Bleeding Air: Slowly cycle the cylinder to remove trapped air, which can cause erratic movement.
- Pressure Testing: Gradually increase pressure while monitoring the gauge to ensure the system holds pressure without leaks.
- Load Testing: Test the press with a sample load to verify force and movement.
- Troubleshooting: Common issues include leaks, slow cylinder movement, or pump noise. Check seals, fittings, and fluid cleanliness.
Proper maintenance extends the life of your press.
- Daily Checks: Inspect for leaks, unusual noises, and fluid levels.
- Oil Changes: Replace hydraulic fluid every 2000-4000 hours or as recommended.
- Lubrication: Grease moving parts like guide rails and pins regularly.
- Calibration: Periodically calibrate pressure gauges and control valves.
- Electrical Inspection: Check wiring and connections for wear or damage.
- Professional Servicing: Schedule annual inspections by qualified technicians.
Building an electric hydraulic press is a challenging but fulfilling project that combines mechanical design, hydraulics, and electrical systems. By carefully selecting components, fabricating a sturdy frame, and assembling the hydraulic and electric systems with attention to detail and safety, you can create a powerful tool tailored to your needs. Regular testing and maintenance will ensure your press operates reliably for years to come.
This project not only provides a functional machine but also deepens your understanding of hydraulics and mechanical engineering principles. Whether for metalworking, pressing, or forming, your custom-built electric hydraulic press will be a valuable addition to your workshop.
Choose a cylinder rated for the maximum force you need. For general shop use, 20 to 50 tons is common. Ensure the pump and frame can handle the cylinder's pressure and stroke length.
Use high-quality hydraulic oil recommended by the cylinder and pump manufacturers, typically ISO VG 46 anti-wear oil. Avoid mixing different fluids and keep the oil clean to prevent damage.
Install safety guards, emergency stop switches, and pressure relief valves. Always wear personal protective equipment and perform regular maintenance and inspections.
Single-acting cylinders use hydraulic pressure to move in one direction and a spring or gravity to return. Double-acting cylinders use hydraulic pressure for both extending and retracting, offering more control.
Cycle the cylinder slowly several times with the reservoir cap open to allow trapped air to escape. Monitor the pressure gauge and fluid level during the process.
