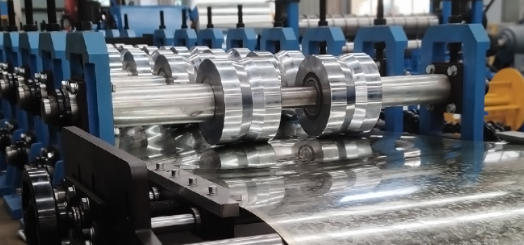

Metal rolling machines are central to modern manufacturing, used extensively in construction, infrastructure, automotive, energy, and a wide variety of industrial fields. Selecting the right equipment not only improves productivity but delivers precise results and consistent product quality over time. With an array of machine types and features available, buyers must carefully assess their specific requirements to invest wisely in reliable, efficient forming equipment.
A rolling machine bends metal sheets or plates into desired curved shapes—cylinders, arcs, cones, or custom profiles—by passing the material through moving rollers under controlled pressure. This process enables precision forming of steel, aluminum, copper, and other metals, making it invaluable for fabricating pipes, vessel shells, architectural features, and industrial components.
- The metal sheet is fed between rollers, which apply force and gradually deform the workpiece.
- Different machine configurations use 2, 3, or 4 rollers to achieve specific results and control over curvature and handling.
- The rolling operation may include pre-bending to minimize edge flatness and ensure high-quality curves throughout.
When evaluating rolling machines for metal forming, reviewing technical specifications is vital to making the right choice.
A reliable rolling machine must match or exceed the maximum thickness and width of plates intended for use, ideally with a safety margin for heavier jobs or future expansion. Always choose slightly above your heaviest use case; for example, a machine rated for 10 mm thick steel will provide optimal performance if your heaviest plate is 8 mm.
Roller diameter greatly influences the minimum achievable bend radius and the quality of formed edges. Larger rollers are preferred for tight bends and thick materials. Some machines use crowned lower rollers to combat deflection and ensure uniform bending across the plate, especially for long or robust sheets.
Rolling machines can be powered by hydraulic, electric, or hybrid drive systems. Hydraulic drives provide high torque for heavy-duty tasks, while electric and servo motors offer quieter operation and precise positioning. Hybrid systems blend power and fine control for versatile use.
Modern equipment may integrate CNC (Computer Numerical Control) panels, allowing operators to store job profiles, automate sequences, and adjust roller placement digitally. CNC upgrades vastly improve repeatability, error correction, and overall productivity for high-volume or complex production.
The frame is usually a welded steel structure or a cast iron bed. Welded frames resist twisting and vibration, while cast iron beds provide additional dampening. Both designs offer durability essential for intense, long-term service.
Advanced machines may include automatic systems to adjust roller crowning or additional supporting rollers, which prevent edge thinning and maintain uniform results.
| Specification | Typical Range / Feature |
|---|---|
| Max plate thickness | 1 mm – 100 mm |
| Max plate width | 500 mm – 6000 mm |
| Roller diameter | 100 mm – 800 mm |
| Rolling speed | 1 m/min – 8 m/min |
| Motor power | 5 kW – 100 kW |
| Minimum bend diameter | 150 mm – 1000 mm (varies by model) |
| Control system | Manual / CNC programmable |
| Deflection compensation | Crown roller / automatic adjustment |
| Frame type | Welded steel / cast iron |

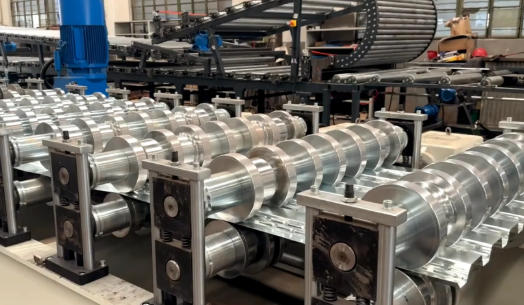

A rolling machine integrates several critical subassemblies:
- Rollers: Typically made from hardened steel or alloy, these are the heart of the machine. The two lower rollers are often fixed, while the upper or central roller adjusts to apply the bending force.
- Drive System: Comprises electric motors, hydraulic cylinders, gearboxes, and transmission elements to power roller rotation.
- Frame/Base: Built for durability and strength, supporting all moving components and withstanding major loads.
- Control Unit: Ranges from manual levers to touch-screen CNC consoles for automation.
- Supporting Rollers: Provide additional rigidity and accuracy, adjusting as needed for heavy or wide plates.
- Auxiliary Devices: Cone bending units, pre-bending supports, and safety mechanisms enhance machine usability.
Simple in design, these machines are ideal for thin metals and basic forming tasks. Their affordability comes with limited flexibility for complex shapes or heavy-duty use.
The industry standard for most applications, three-roll machines are versatile and reliable. They can be configured symmetrically or asymmetrically:
- Mechanical Symmetrical: The upper roller moves vertically between two fixed lower rollers; suitable for basic rolling but requires separate pre-bending for plate ends.
- Mechanical Asymmetrical: The upper roller provides drive, while the lower rollers clamp and mesh with gear drives, allowing pre-bending and rounding with greater convenience.
- Hydraulic Symmetrical: Upper roller movement is powered via hydraulic cylinders, delivering improved precision and handling ultra-long tanks or varied cross-sections.
Four-roll machines offer superior automation, accuracy, and flexibility. The material is gripped securely, and dual-side rolls allow continuous pre-bending and rolling in a single pass. This design is essential for high-throughput, high-precision manufacturing in automotive, shipbuilding, and energy sectors.
For bending beams, bars, angles, and custom profiles, section rolling machines utilize various roller configurations to create rings, curves, and complex geometries.
Industry-leading rolling machines feature CNC panels for programming bends, storing job profiles, and achieving consistent results with minimal manual intervention. Automated diagnostics and error correction speed up setup times and elevate overall efficiency.
Sensors and feedback mechanisms track deformation, roller position, and workpiece movement, enabling instant adjustments and greatly reducing the risk of error.
Servo-hydraulic drives combine the raw power of hydraulics with precision control offered by electric actuators. These systems enable adaptable production at both heavy-duty and delicate tasks.
Modern machines incorporate digital safety controls—light curtains, overload sensors, emergency stops, and lockout/tagout systems—to protect operators and facilitate safe maintenance.
- Three-roll machines excel in simplicity, require less maintenance, and work well for lower production volumes or small shops. Symmetrical types require separate devices for pre-bending, while asymmetrical and hydraulic models can integrate pre-bending more efficiently.
- Four-roll machines offer unmatched speed, accuracy, and automation. Their programmable control of roller positions facilitates complex shapes (cones, ovals, custom profiles) and better repeatability for large production runs.
1. Define Project Parameters: List all material types, thicknesses, widths, target profiles, and required output quantities for current and anticipated jobs.
2. Match Machine Type: For prototype work or varied shapes, three-roll machines may suffice. For intensive production or demanding tolerance, choose four-roll CNC models.
3. Assess Technical Specs: Verify roller diameter, drive power, rolling speed, bend diameter, control system, and frame build.
4. Request Demonstrations: Supply sample plates to potential vendors, and observe edge quality, finish, and machine efficiency during live rolling tests.
5. Scrutinize Controls: Ensure digital interfaces are user-friendly and suited to your staff's expertise.
6. Plan for Future Needs: Opt for scalable or upgradeable designs, allowing expansion as orders grow.
7. Calculate Total Cost of Ownership: Consider energy usage, maintenance intervals, ease of spare part replacement, and vendor reputation for technical support.
Routine maintenance extends a rolling machine's lifespan and reliability. Key practices include lubrication of bearings and guides, verifying roller alignment, inspection of hydraulic and electrical systems, cleaning debris, and maintaining safety shields.
Operator safety is paramount: comprehensive training on machine operation, pinch point awareness, emergency protocols, protective equipment, and adherence to lockout/tagout during servicing are essential.
| Issue | Typical Cause | Recommended Solution |
|---|---|---|
| Profile distortion | Misaligned rollers, pressure | Adjust roller settings, check feed |
| Material slippage | Loose feeder/tension | Tighten components, recalibrate |
| Inconsistent cut length | Faulty cutting system | Inspect, calibrate blade/shears |
| Excessive vibration | Loose frame, improper install | Reinforce, level machine |
Rolling machines bring value to numerous sectors:
- Construction: Curved steel beams, panels, and bridge elements
- Infrastructure: Pressure vessels, pipeline shells, wind tower segments
- Automotive: Frames, supports, exhaust pipes, body panel reinforcements
- Manufacturing and Energy: Silos, heat exchangers, ducts, and tanks
- Aerospace and Marine: Hull sections, curved assemblies, large formed profiles
Leading manufacturers supply rolling machines certified to international standards such as CE or ISO, guaranteeing safe and reliable function. Insist on thorough documentation, safety manuals, and training resources from your supplier. A machine passing live demonstration tests on your sample plates is optimal.
Some machines offer auxiliary cone rolling devices, allowing the fabrication of conical parts with unequal radii. Others support the production of elliptical or oval sections thanks to programmable roller movement.
Digital control systems enable high precision end pre-bending, shape correction, and repeatable bending processes for demanding geometries.
Investing in systematic operator training and maintenance schedules is crucial for consistent high-quality output. Modern machines with digital interfaces may benefit from tailored technical workshops and online support resources.

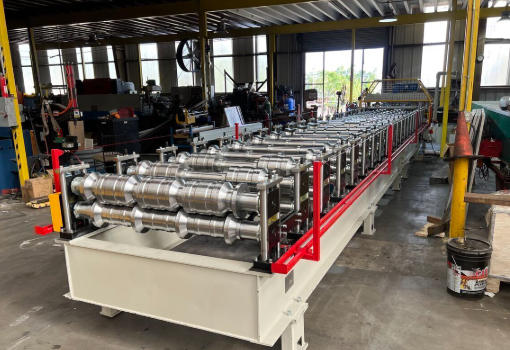

Efficiency improvements also come from program automation, rapid changeover features, energy-saving motor systems, and predictive maintenance enabled by machine sensors.
Choosing the best rolling machine for efficient metal forming is a pivotal decision for any manufacturing operation. By understanding technical parameters, machine types, advanced features, and total lifetime costs, buyers will ensure their investment delivers consistent product quality, operational flexibility, and competitive advantages. Consider current and future production needs, rigorously compare specs, and always select equipment backed by reputable support and certification. With the right rolling machine, manufacturers can expect superior results, optimized costs, and expanded capabilities for a wide range of industry applications.
Four-roll machines deliver top-level automation, accuracy, and reliability for handling both standard and thick materials, supporting pre-bending and continuous rolling in a single pass.
CNC machines offer programmable operations, error correction, repeatable precision, and minimal manual intervention, making them ideal for complex shapes and high-volume production.
Crucial factors include the metal type, maximum thickness and width, bend diameter, production quantity, and expected future requirements.
Regular maintenance, careful calibration, robust build quality, and access to responsive technical support ensure reliable machine operation.
Common issues include profile distortion, slippage, incorrect lengths, and vibration. Prevention requires proper installation, regular checks, skilled operation, and adherence to safety standards.
