In modern industrial production lines, selecting the right machinery is crucial for efficiency, cost-effectiveness, and product quality. Among the most commonly used machines in metalworking and manufacturing are rolling machines and hydraulic presses. Both have distinct operational mechanisms, advantages, and suitable applications. Understanding their differences, benefits, limitations, and ideal use cases can help manufacturers choose the one that best fits their production needs.
This comprehensive article explores the characteristics of rolling machines and hydraulic presses, compares their applications, and provides guidance on which might be better suited for different production scenarios.
A rolling machine, also known as a rolling mill, is a machine that reduces the thickness of metal sheets or changes the cross-sectional shape by passing the material between rotating rolls. The primary function is to deform metal through compressive forces exerted as the material moves through two or more rolls.
- Hot Rolling Machines: Used for metals at high temperature; often for large-scale shaping like steel sheets or beams.
- Cold Rolling Machines: Operate at or near room temperature, providing finer surface finish and tighter tolerances for thinner gauges.
- Flat Rolling Machines: Used to roll out flat sheets or strips.
- Profile Rolling Machines: Used to shape metal into specific cross-sections like angles, channels, or beams.
Rolling machines are widely used in the metal fabrication industry for producing sheets, plates, strips, and structural shapes. Industries include automotive, aerospace, construction, and appliance manufacturing.

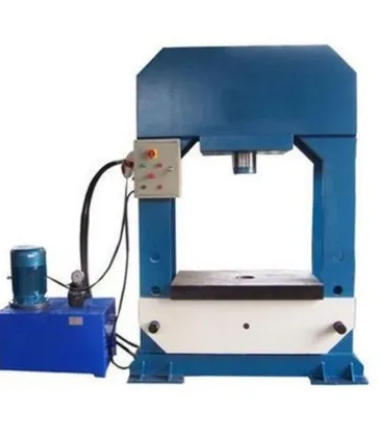

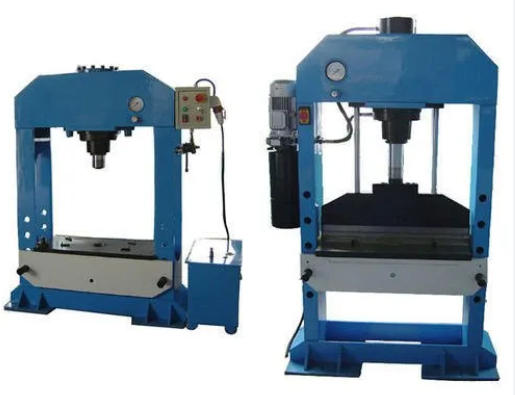

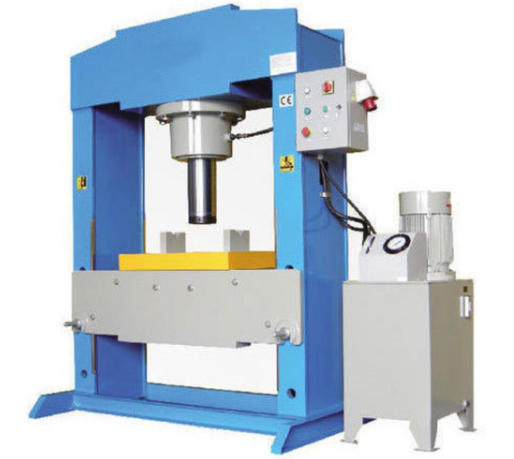

A hydraulic press uses hydraulic cylinders to generate compressive force. It operates on Pascal's principle, where fluid pressure is applied to a confined liquid to produce movement and force through mechanical components.
- C-Frame Press: Open-sided design for easy access.
- H-Frame Press: Offers high rigidity and large working area.
- Four-Column Press: Provides excellent stability for heavy-duty applications.
- Hydraulic Deep Drawing Press: Specifically for sheet metal forming.
Hydraulic presses are versatile and used in metal forming processes including pressing, molding, punching, forging, bending, and assembly of parts across automotive, electronics, appliance, aerospace, and heavy machinery sectors.
| Feature | Rolling Machine | Hydraulic Press |
|---|---|---|
| Operating Principle | Uses rotating rolls to deform metal by compression | Uses hydraulic cylinders to generate pressing force |
| Main Function | Thickness reduction or shaping of metal sheets | Component forming, blanking, molding, and assembly |
| Material Processing | Continuous or batch processing of metal sheets | Often batch, single-piece processing |
| Types of Deformation | Plastic deformation via rolling | Plastic deformation via pressing, bending, or forging |
| Precision & Finish | High precision for thickness, surface finish | High pressure for deep forming or complex shaping |
| Speed | Generally higher throughput for continuous processes | Typically slower cycle times due to press strokes |
| Flexibility | Limited to rolling processes, but multiple shapes | Highly flexible applications with varied tooling |
| Cost | Generally higher initial investment for rolling mills | Variable; smaller presses cost less, large ones cost more |
- High Throughput: Ideal for large-batch or continuous production of metal sheets and strips.
- Consistent Thickness: Maintains uniform thickness over long lengths of metal.
- Surface Finish Quality: Cold rolling especially produces excellent surface finishes.
- Energy Efficiency: Rolling is generally energy efficient for metal deformation.
- Versatility in Metal Shapes: Can produce various cross-sectional profiles.
- Versatility: Can perform a wide range of forming and assembly tasks.
- High Force Output: Capable of very high pressures for heavy-duty metal forming or compacting.
- Precision Control: Hydraulic pressure allows precise control over forming forces and speeds.
- Lower Initial Cost: Smaller presses are affordable for smaller production runs or prototyping.
- Compact Footprint: Requires less space in a production line compared to large rolling mills.
- High Setup Cost: Rolling mills can be expensive to purchase and set up.
- Limited to Sheet-Like Materials: Not suited for bulk forming or complex shapes.
- Less Flexibility: Rolling processes are specialized and less adaptable to other tasks.
- Requires Skilled Operation: Precision settings often require experienced operators.
- Slower Cycle Times: Pressing operations can be slower than rolling for large volumes.
- Maintenance Needs: Hydraulic systems require regular maintenance to avoid fluid leaks and contamination.
- Energy Consumption: Presses can consume more power per operation compared to rolling.
- Size Limitations: Very large presses can be costly and bulky.
The choice between a rolling machine and a hydraulic press depends on your specific production requirements, including material type, volume, shape complexity, precision needs, and budget constraints.
- You need to produce large volumes of metal sheets, strips, or profiles.
- Maintaining consistent thickness and surface finish quality is vital.
- Your products are relatively simple in shape but require high throughput.
- You have the factory space and budget for heavy machinery.
- Your production involves varied metal forming tasks like molding, bending, blanking, or forging.
- You need flexibility to handle different product shapes and sizes.
- You have smaller batch sizes or require precision force control.
- Space and upfront investment need to be minimized.
Rolling machines and hydraulic presses serve different but complementary roles in metalworking production lines. Rolling machines excel in high-volume sheet and profile production with consistent thickness and surface finish. Hydraulic presses offer greater flexibility with high precision force application for diverse metal forming tasks.
Choosing the better machine depends on your production goals: for continuous sheet production, a rolling machine is the optimal choice; for variable forming, bending, or assembly, a hydraulic press will be more suitable. Manufacturers should evaluate their product specifications, production volume, space, budget, and desired output quality to make an informed decision.
Industries such as automotive manufacturing, construction, aerospace, and appliance production benefit since these sectors require consistent metal sheets and structural profiles.
Yes, hydraulic presses are commonly used for cutting, punching, and blanking operations in sheet metal fabrication.
Absolutely. Many advanced production lines integrate rolling machines for initial shaping and hydraulic presses for final forming or assembly.
Rolling machines require mechanical maintenance primarily on rolls and drive systems, while hydraulic presses need regular hydraulic fluid checks and seal replacements.
Both machines necessitate operator training, use of safety guards, emergency stop mechanisms, and adherence to industry safety standards to prevent accidents.
