Choosing the right coil or reel handling equipment is one of the most significant decisions in optimizing factory operations, especially in automotive, construction, cable, and sheet metal manufacturing. Among the two core solutions—Uncoiler Machine and Reel Stacker—each brings a unique set of strengths to the table. Selecting the best one requires an understanding not just of their functions but also how they impact workflow, space management, safety, automation, and long-term cost efficiency. This comprehensive article provides detailed insights into both technologies to help you make the optimal choice.

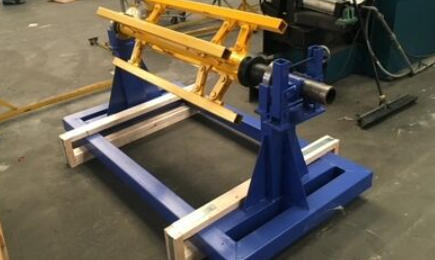

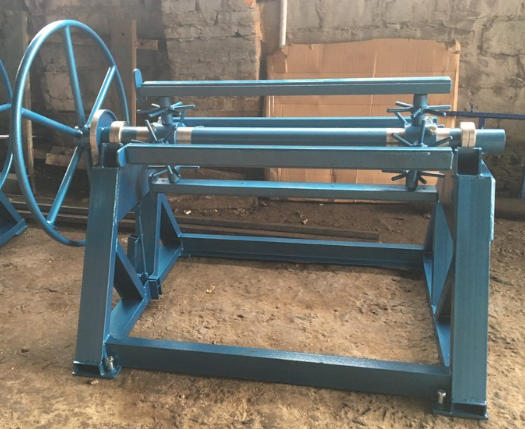

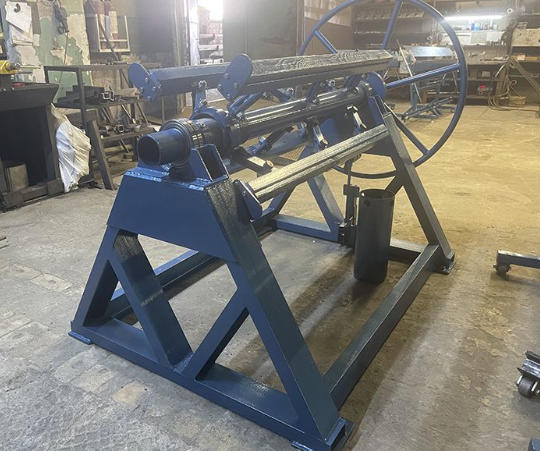

An Uncoiler Machine (sometimes called a decoiler) is a mechanical device engineered to hold, support, and unwind metallic or non-metallic coils, feeding material into subsequent processes like stamping, roll forming, cutting, or slitting. While traditional uncoilers started as gravity-operated or manually driven devices for lightweight coils, today's models employ electric motors, hydraulic expansion systems, servo drives, and advanced tension control for handling heavier coils in high-speed production environments.
- Manual/Gravity Uncoilers: Suited for light coils, lower-volume settings, and basic lines.
- Motorized Uncoilers: Use electric or pneumatic drives to rotate and feed larger coils at customizable speeds, improving accuracy and productivity.
- Hydraulic Uncoilers: Hydraulically driven expansion and rotation handle coils over 10 tons, offering stability and fast changeovers.
- Integrated Coil Handling Systems: Combine uncoiler, straightener, and feeder for compact, high-efficiency operation, minimizing floor space and maximizing throughput.
Uncoilers today offer far more than just coil unwinding. Innovations include:
- Hydraulic and Pneumatic Mandrels: Allow precise, tool-free adjustment for various coil dimensions and weights, supporting quick coil loading/unloading.
- Precision Tension Control: Variable frequency drives (VFDs), servo motors, and adaptive brake systems maintain steady tension, crucial for quality in sensitive materials.
- Safety Upgrades: Emergency stop switches, safety interlocks, light towers, and photo-eye sensors shield operators from coil movement risks and signal machine status.
- Smart Automation: Touchscreen HMIs, remote diagnostics, automated maintenance schedules, and advanced fault detection streamline both operation and upkeep.
- Industry 4.0 Features: IoT-enabled sensors and motor controllers enable integration with factory production management systems, supporting predictive maintenance and real-time production analytics.
- Customizable Configurations: Modular designs, extra-long mandrels, coil carts, and risers guarantee scalability for expanding production lines.
Uncoilers are foundational across sectors where precise material feeding underpins quality and efficiency. Their footprint is seen in:
- Automotive stamping and pressing
- Steel, aluminum, and specialty metal roll forming
- Cable, wire, and pipe production
- Metal roofing, construction, and HVAC component manufacturing
- Packaging and strip processing industries
A Reel Stacker is a heavy-duty storage and material handling device built to stack, transport, and organize large reels of wire, cable, textiles, paper, or metal in a production or warehouse setting. Unlike uncoilers, reel stackers do not feed material into manufacturing lines; instead, they function as logistic tools to optimize inventory layout, mobility, and access.
- Heavy Steel Construction: Designed to withstand repeated use and support thousands of pounds per reel, maximizing durability and safety.
- Stackability: Engineered for stable, high-density vertical storage, significantly reducing floor space requirements.
- Forklift and Pallet Jack Compatibility: Side or base-access fork slots make moving full stacks safe and straightforward.
- Adjustable Bases and Cores: Support reels of various diameters and construction types (metal, wooden, plastic).
- Ergonomic and Safety Mechanisms: Includes safety locks, mechanical stops, sturdy latches, and anti-tip feet to ensure operator and product protection during movement and storage.
Reel stackers are the workhorse where storage density, rapid retrieval, and safe handling are central operational goals. Key benefits include:
- Space Optimization: Vertical stacking can double or triple warehousing capacity over traditional horizontal storage.
- Reduced Manual Labor: Offers safe, mechanical handling of reels that may weigh hundreds or thousands of kilograms, minimizing employee strain and risk of injury.
- Workflow Efficiency: Enables quick storage and retrieval of different reels, supporting high-mix or just-in-time production operations.
- Versatility: Accommodates diverse reel types and sizes, suitable for both incoming raw materials and finished or semi-finished products.
- Enhanced Ergonomics: Operator fatigue is cut down by reducing the need for heavy lifting, and ergonomic controls further lessen repetitive motion injuries.
- Cable and wire manufacturing and logistics
- Paper mills and packaging plants
- Textile factories
- Metal coil warehousing and distribution centers
- Large-scale printing plants
| Feature | Uncoiler Machine | Reel Stacker |
|---|---|---|
| Main Function | Feeds coil material into production lines | Vertical storage/transportation of reels |
| Automation Level | High—remote operation, PLC, HMI, network integration | Low—manual or forklift-based |
| Suitable Coil Size | Up to 60,000 lbs, various thicknesses | Up to 5,000 lbs typical per unit; larger custom |
| Precision | Exact feed rate, tension, length/speed control | Not applicable (handles whole reels for storage) |
| Changeover Speed | Fast, especially dual-mandrel or automated loaders | Fast via forklift; not directly part of production |
| Safety | Advanced controls, E-stops, shields, sensors | Mechanical locks, anti-tip features, safe ergonomics |
| Space Efficiency | Moderate; depends on model/line configuration | Exceptional; vertical stacking maximizes density |
| Cost | High upfront, large ROI with throughput/quality | Lower, budget-friendly for storage/logistics |
| Industry 4.0 | Standard with smart options and analytics | Rare, unless integrated into WMS/ERP |
| Application Focus | Automated line integration and coil payout | Inventory management, warehouse mobility |
Modern uncoiler machines do much more than simply feed metal or material strips into a line—they are cornerstones of automated, connected manufacturing. Integration with PLC (Programmable Logic Controller) or HMI (Human-Machine Interface) ensures that:
- Production Speeds Match Downstream Processes: Material is always supplied at a consistent, programmable rate to avoid starvation or overfeeding.
- Error Reduction: Automated threading, loop control, and feedback sensors minimize the risk of improper feeding, jams, or machine damage.
- Remote Monitoring: Data analytics evaluate coil usage, wear, and fault patterns, triggering alerts for preventive maintenance and sharply reducing unplanned downtime.
- Flexible Production: Recipe systems in modern uncoilers allow manufacturers to switch between product types or materials with minimal setup time and operator training.
Integrating with wider plant automation yields immediate ROI by reducing labor costs, ensuring product consistency, and boosting the productivity of every line the uncoiler supports.
Safety is paramount where heavy coils rotate at speed. Modern uncoilers feature:
- Automatic Emergency Braking: Instantly halts the system when a jam, snag, or unsafe condition is detected.
- Light Curtain/Area Sensors: Keeps the machine stopped if an operator or foreign object enters the hazard zone.
- Lock-Out/Tag-Out Systems: Enable safe maintenance or coil replacement, isolating control power as required by international safety standards.
- Integrated Safety Clutches: Prevent overload damage to motors and mechanisms, shielding equipment and operators from catastrophic breakdowns.
Exceptional reel stacker design centers on:
- Stability and Load Protection: Anti-tip bases, wide stance, and engineered load paths keep reels secure, even at height.
- Operator-Friendly Ergonomics: Handles, levers, and hydraulic or electric lift systems are placed to minimize operator effort and prevent strain.
- Compliant Construction: Features such as non-slip surfaces, safety pins, and “fail-safe” locking mechanisms ensure ongoing reliability and reduce liability exposure.
By investing in safety-driven machines, factories foster safer workplaces and compliance with stringent occupational regulations globally.
The core decision: Where is efficiency or safety improvement most needed—feeding the production line, or storing and moving inventory? For raw material input and high-speed processing, the call is almost always for a modern uncoiler. For managing tens or hundreds of product or raw material reels, especially where storage density and rapid switching matter, reel stackers cannot be beaten.
Thin, pre-finished, or delicate coil materials demand precision tension control and gentle handling only available from advanced uncoiler systems. For robust, thick cable or non-mark-sensitive materials, cost savings from a high-density reel stacker system are considerable. Ultimately, material properties should guide your equipment investment to avoid costly product damage and unnecessary scrap.
Manufacturers who need to scale fast should seek modular, upgrade-friendly designs. The latest uncoilers accept plug-and-play sensors, drive upgrades, and digital integration kits, while high-end reel stackers can be adapted for unique reel types and automated for inclusion in robotic warehousing.
Often the choice comes down to the balance between initial investment and operational return. While uncoilers require higher upfront costs, they deliver rapid payback via labor savings, throughput gains, and scrap reduction. Reel stackers are cost-effective for inventory-focused workflows; their payback is measured in saved space, lower injury rates, and flexible inventory strategies.
Looking forward, the best equipment choices are those with open architectures, allowing future integration with plant digitalization, IoT, and automation pathways.
- Large Automotive Plant: Needs to feed several stamping lines with high-speed, mark-sensitive coils. Requires high-end, automated uncoilers with PLC integration and dual mandrels for rapid changeover.
- Cable Distribution Warehouse: Handles hundreds of heavy cable drums needing efficient storage and fast retrieval for shipping. Requires adjustable, high-capacity reel stackers and fork-access utilities.
- Metal Building Manufacturer: A mixed operation using both—uncoilers for continuous roll forming lines, and reel stackers to keep stock organized and accessible for shipping, inventory, and batch processing.
Uncoiler Machines and Reel Stackers serve two distinct but equally competitive roles in manufacturing and material handling. Advanced uncoilers transform production lines by automating and perfecting material feed, enabling faster speeds, greater accuracy, and higher quality outcomes—especially critical in Industry 4.0 smart factories. Reel stackers, on the other hand, dramatically increase warehouse efficiency, streamline logistics, and safeguard both product and personnel by providing space-saving, ergonomic storage and retrieval solutions.
The decision between them is not simply technical—it's about aligning equipment to the workflow, operational priorities, safety standards, and growth targets of your factory. In some cases, the most efficient facilities employ both systems, integrating the uncoiler at the heart of production and the reel stacker at the core of logistics. Assess your needs with a focus on present challenges and future opportunities, and select equipment that delivers tangible ROI, scalability, and a reliable path toward automation.
Answer: An uncoiler machine feeds coil material into industrial processing lines automatically and with precision, while a reel stacker is designed for the vertical storage and easy warehouse handling of cable, wire, or sheet reels.
Answer: Uncoiler machines excel in automated, high-speed production environments because their advanced tension controls, drive systems, and programmatic automation deliver continuous, high-precision material feeding.
Answer: Reel stackers prevent manual lifting of heavy reels, decreasing injury risk, and they permit high-density vertical storage, maximizing floor space use and improving warehouse organization.
Answer: Yes, modern uncoilers support IoT connectivity, machine networking, remote diagnostics, and programmable line integration, making them perfectly suited for Industry 4.0 environments.
Answer: Choose an uncoiler if production depends on precise, automated feeding of coil materials; select a reel stacker when your primary challenge is the high-efficient storage and safe movement of heavy reels. Both can often work together to maximize operational efficiency.
