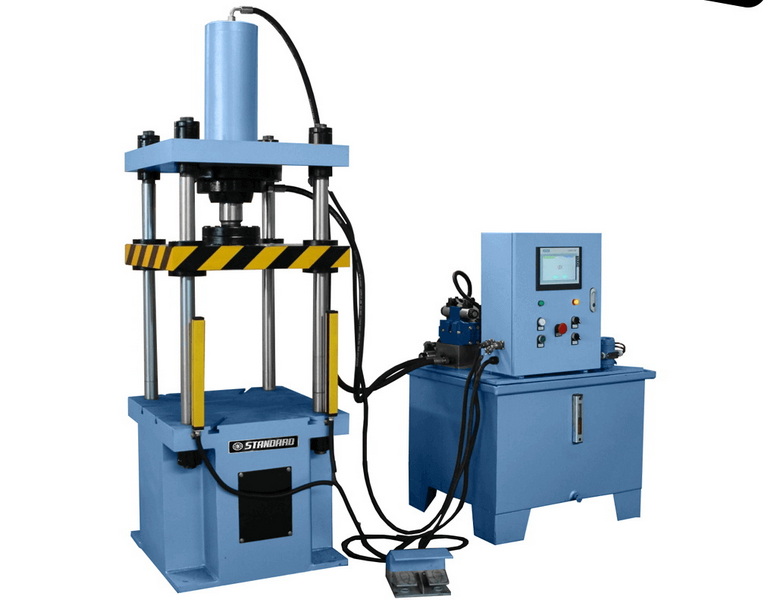

A hydraulic press is a powerful industrial machine designed to generate compressive force using hydraulic cylinders. The materials and components used in its construction are carefully selected to ensure strength, durability, and precision under high pressure. This article explores in detail what a hydraulic press is made of, its key components, materials used, and how these contribute to its operation and applications.
A hydraulic press operates on Pascal's principle, which states that pressure applied to a confined fluid is transmitted equally in all directions. This allows a small force applied on a smaller piston to be multiplied into a much larger force on a bigger piston, enabling the press to exert immense pressure for various manufacturing tasks.
- Frame and Platens: The frame is the main body of the press, providing support and rigidity. Platens are the flat surfaces that hold and press the workpiece.
- Hydraulic Cylinder: Contains the piston that moves under hydraulic pressure to apply force.
- Hydraulic Pump and Reservoir: The pump pressurizes the hydraulic fluid stored in the reservoir, driving the piston movement.
- Valves and Control System: Regulate fluid flow and pressure to ensure precise operation.
The combination of these components creates a system capable of delivering controlled, high-force pressing actions essential in many industrial processes.
The primary structural material of a hydraulic press is high-grade steel. Steel is chosen for several critical reasons:
- Strength: It withstands the immense compressive forces without bending or breaking.
- Durability: Resistant to wear and tear, ensuring a long operational lifespan.
- Stability: Maintains structural integrity under high temperatures and pressures common in pressing operations.
The frame, platens, and base are typically fabricated from thick steel plates or steel castings, welded or bolted together to form a robust structure capable of withstanding repeated heavy loads. The thickness and quality of steel used are crucial to prevent deformation or failure during high-pressure operations.
The hydraulic cylinder, which converts hydraulic pressure back into mechanical force, is made from high-strength steel alloys. This includes:
- Cylinder Barrel: Machined from hardened steel to resist wear and pressure.
- Piston and Rod: Made of steel with surface treatments like chrome plating to reduce friction and prevent corrosion.
- Seals and Gaskets: Made from durable rubber or synthetic materials to prevent fluid leaks and maintain pressure.
These materials ensure the cylinder can operate smoothly and reliably under extreme forces, maintaining a tight seal to prevent fluid loss and maintain system efficiency.
Hydraulic presses use specialized hydraulic fluids, usually mineral oils or synthetic oils, selected for:
- Thermal Stability: To perform consistently under varying temperatures.
- Lubrication: Reducing wear on moving parts.
- Resistance to Degradation: Maintaining performance over long periods under high pressure.
The fluid transmits force within the system and also aids in cooling and lubrication. The choice of fluid affects the press's efficiency, lifespan, and maintenance requirements.
- Hydraulic Pumps: Made from precision-engineered metals designed to withstand continuous operation and high pressures.
- Valves: Typically constructed from steel or brass alloys, these control the flow and direction of hydraulic fluid.
- Control Panels and Electronics: Housed in protective casings, made from metals or durable plastics, ensuring operator safety and reliable machine control.
These components are critical for regulating the press's operation, allowing precise control over pressure, speed, and force.
- Heat-Resistant Coatings: Applied to critical parts to protect against temperature-induced wear.
- Safety Guards and Emergency Stops: Made from steel and impact-resistant plastics to protect operators.
Safety materials and features are essential to prevent accidents and ensure the machine operates within safe parameters.
| Component | Material/Feature | Purpose/Benefit |
|---|---|---|
| Frame & Platens | High-grade steel | Provides strength, durability, and stability |
| Hydraulic Cylinder | Hardened steel alloys | Converts fluid pressure to mechanical force |
| Piston & Rod | Chrome-plated steel | Reduces friction and resists corrosion |
| Seals & Gaskets | Rubber or synthetic compounds | Prevents hydraulic fluid leaks |
| Hydraulic Fluid | Mineral or synthetic oil | Transmits pressure, lubricates, and cools |
| Pumps & Valves | Precision-engineered metals | Controls fluid flow and pressure |
| Control Systems | Metal/plastic housings | Ensures safe and precise operation |
| Safety Features | Steel/plastic | Protects operators and machine integrity |
The pump is the heart of the hydraulic system, converting mechanical energy into hydraulic energy by pressurizing the fluid. Pumps are usually gear, vane, or piston types, made from durable metals to withstand continuous operation. The pump's efficiency and durability directly impact the press's performance and reliability.
This component houses the piston and is responsible for applying the pressing force. The cylinder is a robust steel tube, with a piston rod that moves in and out, transferring force to the press platen. The cylinder must be precisely machined and treated to endure high pressure and avoid leakage.
Valves regulate the hydraulic fluid's flow and pressure, controlling the speed and force of the pressing action. They are precision-machined from metals to ensure reliability and smooth operation. Some presses use proportional or servo valves for more precise control.
The reservoir stores hydraulic fluid, allowing it to cool and separate from air bubbles. It is typically a steel tank integrated into the frame. Proper reservoir design ensures fluid cleanliness and temperature control, critical for system longevity.
These prevent leaks and maintain system pressure. They are made from high-quality rubber or synthetic materials designed to resist pressure and temperature variations. Regular inspection and replacement of seals are essential maintenance tasks.
- Strength and Rigidity: Steel frames prevent deformation, ensuring consistent pressing force.
- Wear Resistance: Hardened steel and coatings extend component life.
- Fluid Efficiency: Quality hydraulic oil ensures smooth power transmission and reduces wear.
- Safety and Reliability: Robust materials in safety components protect operators and equipment.
The synergy of these materials results in a machine capable of delivering precise, reliable, and powerful pressing operations over extended periods.
Hydraulic presses are widely used in industries such as:
- Metal forming and forging
- Automotive manufacturing
- Aerospace component fabrication
- Plastic and rubber molding
- Powder compacting
- Assembly and disassembly of mechanical parts
Their ability to generate precise, high forces with relatively compact size makes them indispensable in modern manufacturing. For example, in automotive production, hydraulic presses shape body panels and assemble components with high accuracy and repeatability.
The quality of materials used in hydraulic presses directly impacts their performance and longevity. Using substandard steel or hydraulic fluid can lead to premature wear, leaks, and operational failures. Manufacturers often adhere to strict standards and certifications to ensure material quality. For instance, steel used in frames often meets international standards such as ASTM or ISO to guarantee mechanical properties.
Regular maintenance, including checking hydraulic fluid levels, inspecting seals, and lubricating moving parts, helps preserve the materials' integrity. Proper care prevents corrosion, wear, and mechanical breakdowns, extending the press's service life. Scheduled inspections and replacement of worn components are critical to avoid costly downtime.
Recent advancements include the use of composite materials and advanced coatings that enhance strength while reducing weight. These innovations improve energy efficiency and operational safety. For example, some presses now incorporate carbon-fiber-reinforced polymers in non-load-bearing parts to reduce weight and improve ergonomics without compromising strength.
A hydraulic press is primarily made from high-grade steel for its frame and platens, combined with hardened steel alloys for hydraulic cylinders and pistons. The system relies on specialized hydraulic fluids and precision-engineered pumps, valves, and seals to function efficiently. These materials ensure the press can withstand extreme pressures, maintain durability, and provide precise control for a wide range of industrial applications. Understanding the materials and components of a hydraulic press is essential for appreciating its design, operation, and maintenance.
The frame is mainly made of high-grade steel due to its strength, durability, and ability to withstand high pressures without deformation.
Hydraulic presses typically use mineral-based or synthetic hydraulic oils that provide thermal stability, lubrication, and resistance to degradation under high pressure.
Seals and gaskets, made from durable rubber or synthetic materials, prevent hydraulic fluid leaks and maintain system pressure, ensuring efficient operation.
The hydraulic cylinder converts the hydraulic fluid pressure into mechanical force by moving the piston, which applies the pressing force to the workpiece.
Safety features include steel and impact-resistant plastic guards, emergency stop buttons, and pressure relief valves to protect operators and prevent machine damage.
