An OBI punch press is a fundamental machine tool widely used in the manufacturing and metalworking industries for shaping, cutting, and forming materials. The term OBI stands for Open Back Inclinable, which describes its distinctive frame design and operational flexibility. This type of punch press is especially valued for its versatility, accessibility, and efficiency in performing various punching and blanking operations.
In this comprehensive guide, we will explore what an OBI punch press is, its components, working principles, applications, advantages, maintenance tips, alternatives, and much more. Whether you are a manufacturing professional, an engineering student, or a curious enthusiast, this article will provide you with an in-depth understanding of this essential machine.

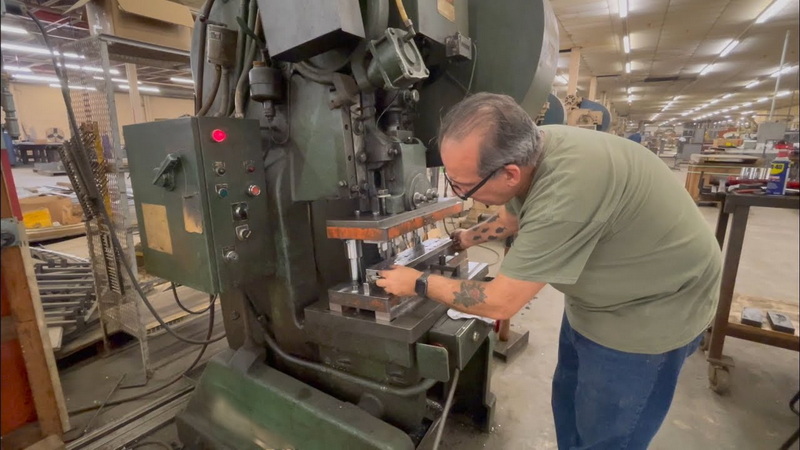

An OBI punch press is a mechanical press characterized by a gap frame (also known as a C-frame) that is open on three sides, allowing easy access to the die area. The frame can be inclined or tilted, which helps in the gravity-assisted removal of finished parts, making the production process more efficient.
Unlike traditional presses with a closed frame, the open back design of the OBI press enables operators to quickly change tools, load materials, and remove finished parts, reducing downtime and increasing productivity.
Understanding the anatomy of an OBI punch press helps in appreciating its functionality. Here are the main components:
The frame is the backbone of the press, typically made from cast iron or steel for strength and durability. The gap frame design means the press has an open back, allowing access to the die from three sides. This design is essential for handling larger or awkwardly shaped workpieces.
The ram is the moving part of the press that holds the punch. It moves vertically within guideways and applies force to the workpiece. The ram's stroke length and speed can be adjusted depending on the operation.
The driving mechanism usually consists of a motor connected to a crankshaft and flywheel. The motor powers the flywheel, which stores rotational energy. When the press cycle begins, the crankshaft converts this rotational energy into the vertical motion of the ram.
The clutch engages and disengages the power transmission from the flywheel to the crankshaft, allowing the operator to start or stop the ram's motion. The brake stops the ram at the end of each stroke, ensuring precise control.

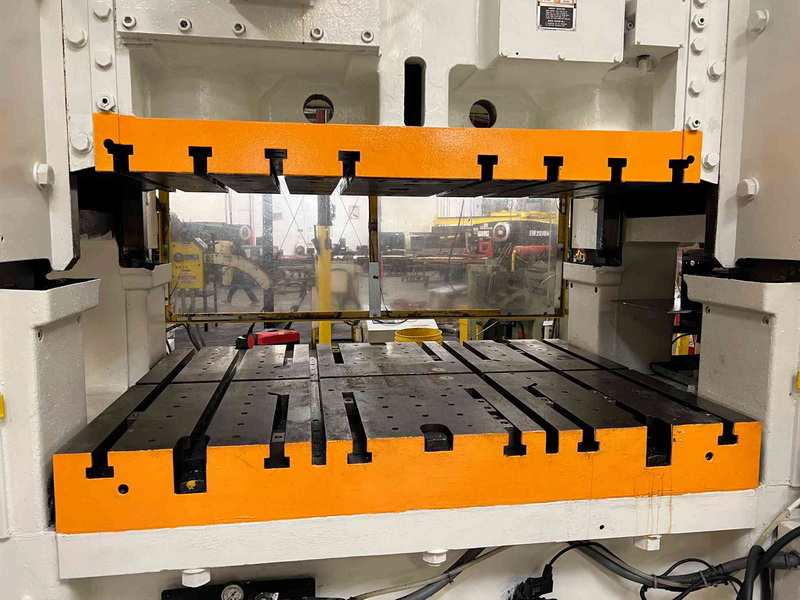

The punch is mounted on the ram, and the die is fixed on the bed or anvil of the press. When the ram descends, the punch presses the material against the die to cut or shape it.
Modern OBI presses come equipped with electronic control panels that allow operators to adjust parameters such as stroke length, speed, and force. Some advanced models include programmable logic controllers (PLCs) for automation and safety features.
The working principle of an OBI punch press is straightforward but effective. Here's a step-by-step overview:
1. Material Placement: The operator places the sheet metal or other workpiece on the die bed.
2. Ram Descent: The motor powers the flywheel, which drives the crankshaft, causing the ram to move downward.
3. Punching Action: The punch attached to the ram presses the material into the die, cutting or shaping it as required.
4. Material Removal: After the stroke, the ram retracts, and the finished part is removed. If the press is inclinable, gravity assists in ejecting the part.
5. Cycle Repeats: The process repeats for continuous production.
This simple yet powerful mechanism allows for high-speed punching and blanking operations with consistent accuracy.
OBI presses come in various configurations to suit different manufacturing needs:
The classic open back inclinable press, ideal for general-purpose punching, blanking, and forming.
Similar to the OBI but without the inclination feature. The frame remains vertical, making it suitable for operations where gravity removal is not necessary.
This variant lacks a bed and is designed to mount a horn for specialized forming operations. It can be equipped with a swing-away table or adjustable bed to function similarly to a gap frame press.
OBI punch presses are used in a wide range of industries and applications:
Used extensively for punching holes, blanking shapes, and bending sheet metal parts in automotive, aerospace, and appliance manufacturing.
Manufacturing thin metal diaphragms for mechanical seals, pressure transducers, and edge-welded bellows.
Cutting shapes from rolls of rubber, cardboard, leather, and similar materials.
Creating holes or shapes in rings, cylinders, and other tubular components.
The OBI punch press offers several benefits that make it a popular choice:
Able to perform multiple operations such as blanking, punching, bending, and shallow drawing.
The open back frame allows easy access to the die area, simplifying tool changes and material handling.
The ability to tilt the frame helps in automatic removal of finished parts, reducing manual labor and speeding up production.
Compared to other press types, OBI presses are generally more affordable and require less maintenance.
Quick cycle times and ease of automation enable high throughput in manufacturing processes.
Proper maintenance is crucial to maximize the lifespan and performance of your OBI punch press:
Keep the machine free from dust, metal shavings, and debris to prevent wear and operational issues.
Apply lubricants to moving parts as recommended by the manufacturer to reduce friction and wear.
Regularly check punches, dies, bearings, and guideways for wear or damage. Replace parts promptly to maintain quality and safety.
Ensure the ram, punch, and die are properly aligned to avoid uneven wear and poor-quality outputs.
Inspect wiring, switches, and control panels for damage or faults. Clean electrical components to prevent malfunction.
While OBI presses are versatile, other machines may be better suited for specific tasks:
A compact, lightweight press ideal for small-scale operations with quick tool changes and adjustable stroke lengths.
Highly automated and precise, suitable for punching complex shapes repetitively in sheet metal.
Used for deforming metal into shapes rather than cutting holes, ideal for deep drawing and complex forming.
Operating an OBI punch press requires strict adherence to safety protocols:
- Always use guards and safety shields around moving parts.
- Wear appropriate personal protective equipment such as gloves and safety glasses.
- Ensure emergency stop buttons are functional and accessible.
- Train operators thoroughly on machine operation and emergency procedures.
- Perform regular safety audits and maintenance checks.
The OBI punch press is a cornerstone machine in metalworking and manufacturing industries, prized for its open back design, inclinable frame, and operational flexibility. It offers a cost-effective solution for a wide range of punching, blanking, and forming tasks. With proper maintenance and safety practices, an OBI press can deliver reliable, high-quality production for years.
Whether you are producing precision diaphragms, cutting soft materials, or fabricating metal parts, the OBI punch press remains a versatile and efficient choice. Understanding its components, working principles, and applications will help you make the most of this powerful machine.
OBI presses come in various sizes, typically ranging from small 15-ton models to heavy-duty 200-ton machines, catering to diverse manufacturing needs.
Flywheel presses use a large flywheel to store energy for the punching stroke, suitable for high-speed operations. Back-geared presses use gears to increase torque and reduce speed, ideal for heavy-duty or slower applications.
Operators should use proper guarding, wear personal protective equipment, ensure emergency stops are functional, and maintain the machine regularly to prevent accidents.
Stroke length is adjusted via the controlling mechanism, often involving mechanical stops or electronic controls. Refer to the machine's manual for specific instructions.
The inclinable frame allows the press to tilt, enabling gravity-assisted removal of finished parts, which speeds up production and reduces manual handling.
