Choosing the right press machine is a key decision for manufacturers aiming to balance precision, production speed, and operational cost. Among various types, the 40 ton punch press and the hydraulic press stand out as essential tools in metal forming and fabrication industries. While both serve similar purposes—cutting, forming, or compressing materials—their mechanisms, performance characteristics, and ideal applications differ significantly.
This article takes a deep dive into their structural differences, advantages, and practical uses, helping industrial buyers and engineers decide which press suits their production strategy best.
A 40 ton punch press is a mechanical press designed for fast, repetitive punching tasks. The “40 ton” refers to the press's maximum capacity to exert 40 tons of force during a stroke. It is typically powered by a flywheel and crankshaft mechanism, which translates rotational energy into linear force.
The punch press operates through a relatively straightforward mechanical sequence:
1. A motor rotates the flywheel.
2. The flywheel stores energy and releases it through the clutch and crankshaft.
3. The crankshaft moves the ram up and down.
4. The punch tool attached to the ram strikes the material, pushing it through a die.
This design ensures a consistent, powerful, and rhythmic downward stroke—ideal for repetitive operations where uniformity and high output are critical.
- Delivers consistent tonnage per stroke.
- Operates at high speed for mass production.
- Offers excellent precision and die alignment.
- Limited flexibility, as stroke length is typically fixed.
- Requires regular lubrication of mechanical components.
The 40 ton punch press excels in manufacturing where efficiency and consistency are priorities:
- Sheet metal punching and blanking
- Electrical and electronic components
- Watch and jewelry parts
- Auto-body trim pieces
- Stamping for packaging and appliance industries
For instance, an automotive parts supplier may use a 40 ton press for stamping dashboard brackets or decorative trim pieces in high volume.

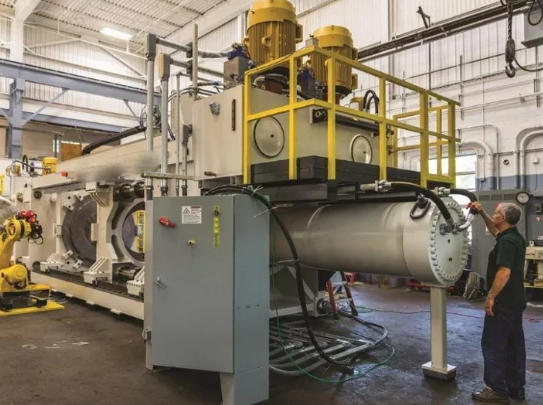

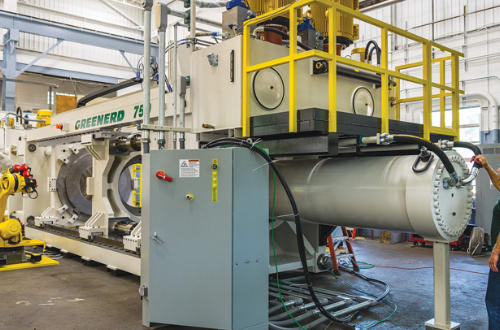

Unlike a mechanical punch press, a hydraulic press uses hydraulic pressure to generate force. It is operated through one or more hydraulic cylinders filled with pressurized oil. The force output depends on the fluid pressure and piston area, making it flexible and controllable for various forming operations.
The hydraulic press operates based on Pascal's Law, which states that a change in pressure applied to a confined fluid is transmitted equally in all directions. When the hydraulic pump pushes fluid into the cylinder, pressure builds up against the piston, forcing the ram downward onto the material.
- Force and stroke can be fully adjusted and controlled.
- Can maintain constant pressure at any position of the stroke.
- Produces smooth and quiet operation.
- Works effectively for deep forming, bending, and compressing.
- Requires correct fluid maintenance to ensure pressure consistency.
Hydraulic presses offer great flexibility across various industries:
- Automotive: Body panel forming, chassis component shaping
- Aerospace: High-strength metal forming and precision structural parts
- Packaging: Molding or compression processes for plastics and composites
- Construction: Fabricating beams, plates, and fittings
For manufacturers handling diverse materials or complex geometries, the hydraulic press provides unmatched versatility.
While both machines generate force, they differ in performance and purpose. Below is a comparison of their defining features:
| Feature | 40 Ton Punch Press | Hydraulic Press |
|---|---|---|
| Power Source | Mechanical (Flywheel & Crankshaft) | Hydraulic (Pump & Fluid Pressure) |
| Force Output | Fixed at 40 tons max | Variable and adjustable |
| Speed | Rapid, excellent for mass production | Slower but smoother and more controlled |
| Stroke Control | Fixed stroke | Fully adjustable stroke and dwell |
| Precision | High for repeated operations | Excellent for pressure-sensitive tasks |
| Noise Level | Louder operation | Quieter operation |
| Energy Use | More efficient in continuous work | Slightly higher due to hydraulic pumps |
| Best For | Stamping, punching, coining | Deep drawing, forming, compression molding |
The punch press is best suited for continuous, repetitive cycles where production efficiency is key. Conversely, a hydraulic press offers flexibility and control, ideal for shaping high-strength or thick materials.
1. Speed Efficiency:
Mechanical presses deliver strokes rapidly—ideal for high-volume production lines where each second counts.
2. High Precision:
The rigid mechanical design ensures repeatable accuracy across large production runs, making it ideal for small parts or complex holes.
3. Durability and Longevity:
With regular maintenance, these machines can last for decades under heavy industrial cycles.
4. Lower Initial Investment:
Compared with hydraulic presses, a punch press is typically more affordable to purchase and maintain.
5. Compact Structure:
Smaller size compared to hydraulic systems of equivalent tonnage, saving valuable shop floor space.
However, the mechanical limitations of fixed stroke length and set tonnage can restrict use when versatility or pressure modulation is required.
1. Adjustable Force and Stroke:
Operators can tailor the pressing force and depth to each specific material or shape.
2. Excellent Load Control:
Capable of maintaining uniform pressure throughout the cycle—crucial for processes like compression or deep drawing.
3. Quiet and Smooth Operation:
Reduced vibration preserves tool life and enhances operator safety.
4. Handling Larger, Thicker Materials:
Suitable for tough materials such as stainless steel, titanium, or thick aluminum sheets.
5. Multi-purpose Functionality:
One machine can perform multiple operations—forming, bending, punching, and straightening—making it a long-term versatile investment.
Despite its slower operation, the hydraulic press provides superior flexibility for specialty manufacturing needs where accuracy and control outweigh sheer speed.
The choice depends on operational priorities and production goals.
- You need high cycle rates for high-volume production.
- Materials are consistent in thickness and shape.
- Your tooling is designed for precise, shallow stamping or cutting.
- You want to minimize per-part costs in a mass production context.
- You frequently change product designs or materials.
- Forms require adjustable pressures or long dwell times.
- You work with thick metals or require deep forming.
- Noise and vibration reduction are operational priorities.
When flexibility, precision, and wide applications matter more than speed, the hydraulic press is a logical fit.
Cost goes beyond purchase price—operation and maintenance are equally critical to overall efficiency.
- Initial Cost:
Mechanical punch presses are less expensive initially due to their simpler design.
- Energy Efficiency:
Punch presses are more efficient for continuous high-speed work. Hydraulic presses consume more energy due to constant fluid circulation and pump activity.
- Maintenance Needs:
Hydraulic systems require regular monitoring of fluid quality, seals, and pumps, while punch presses focus on mechanical part lubrication and clutch adjustments.
- Tooling Costs:
Both require periodic die sharpening and replacement, but hydraulic presses generally experience longer tool life due to reduced vibration.
- Check the clutch and flywheel frequently.
- Keep all moving components lubricated.
- Ensure die alignment before full operation.
- Use mechanical guards and sensors to prevent accidents.
- Regularly inspect seals, hoses, and valves for leaks.
- Maintain hydraulic oil at proper levels and cleanliness.
- Never exceed rated pressure capacity.
- Employ pressure relief valves for safety assurance.
Both presses must follow OSHA or regional safety standards to prevent workplace accidents and ensure efficient operation.
Today's smart press systems integrate automation, sensors, and digital controls to achieve higher precision. CNC punch presses can automatically adjust tool positions, speed, and pressure. Meanwhile, servo-hydraulic presses combine servo motors with hydraulic mechanisms to optimize energy consumption and responsiveness.
Manufacturers can now monitor tonnage, pressure curves, and stroke accuracy in real time—ensuring consistency and predictive maintenance across production cycles. These innovations blur the line between traditional punch and hydraulic presses, creating hybrid models that bridge speed with flexibility.
The 40 ton punch press and hydraulic press serve overlapping yet distinct roles in modern manufacturing. The punch press is a speed specialist—fast, efficient, and built for repetitive high-output production. The hydraulic press, in contrast, emphasizes control and versatility, ideal for intricate forming or thick materials requiring adjustable force.
To choose correctly, balance your operational needs:
- For continuous stamping, the punch press remains the go-to solution.
- For controlled forming and flexibility, the hydraulic press is unmatched.
Understanding these mechanical and operational distinctions empowers manufacturers to optimize productivity, product quality, and overall manufacturing efficiency.
Punch presses are widely used in automotive, electrical, appliance, and electronics industries—where mass production of thin metal components requires precision and speed.
Yes. Hydraulic presses are commonly used in composite forming processes due to their precise force and temperature control capabilities.
With proper maintenance, lubrication, and alignment, a 40 ton mechanical punch press can operate efficiently for over 20 years.
Depending on the design and cylinder capacity, a standard hydraulic press can handle very thick metals or large workpieces, often far exceeding 40 tons of forming force.
Yes. Retrofitting older presses with CNC controls, servo motors, and sensors is a common practice that enhances precision, safety, and energy efficiency.
