Selecting the right metalworking equipment is a vital decision that directly affects productivity, cost-efficiency, and output precision in any manufacturing process. Among the many available machines, the 40 ton punch press has consistently proven to be a powerful, reliable, and flexible option for fabricating sheet metal components. Known for its capability to deliver consistent force and precise results, this machine is commonly used in industries such as automotive, electronics, HVAC, and household appliance production.
However, advancements in metal fabrication have introduced other competitive tools — like hydraulic presses, CNC turret presses, and laser cutting machines — each offering unique advantages. This article provides an in-depth comparison and guidance on how to choose between a 40 ton punch press and other modern metalworking tools to optimize both performance and return on investment.

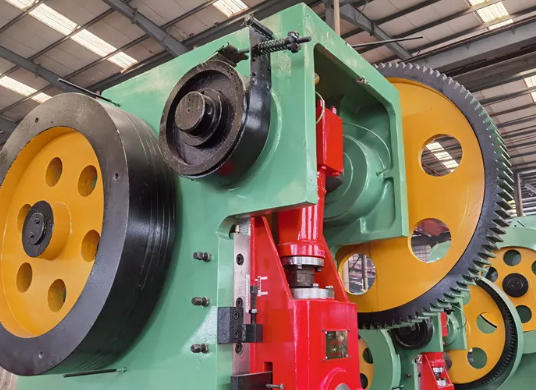

A 40 ton punch press operates by exerting a force of up to 40 tons on a metal sheet to create holes, slots, or specific shapes. It can be powered mechanically or hydraulically and comes in both semi-manual and CNC configurations. The machine's power and rigid frame structure allow for repetitive, high-speed punching with exceptional accuracy.
- Frame: The press structure that supports the machine's tonnage capacity and ensures deformation-free operation under stress.
- Ram or Slide: The moving component holding the punch tool, driven vertically to perform each stroke.
- Clutch and Brake System: Controls the ram's movement and ensures rapid stopping capability for safety and alignment.
- Die Set: Includes the upper and lower dies that define the shape or hole to be punched in the material.
- Control Interface: Modern presses feature programmable control systems for precision adjustment and efficiency monitoring.
- Lubrication and Cooling Systems: Essential for reducing wear, minimizing friction, and preventing overheating at high productivity levels.
The punch press applies force through the ram, which drives the punch into the sheet metal positioned on the die. The material in contact between the punch and die shears due to the applied tonnage, creating a clean hole or shape. The efficiency of this process depends on accurate die alignment, punch sharpness, and press stability.
For example, punching a 3 mm steel plate typically requires approximately 25–30 tons of force, meaning a 40 ton press provides ample capacity for moderate-duty operations while maintaining energy efficiency.
Mechanical punch presses, especially when equipped with digital control systems, can maintain tight dimensional tolerances over long production runs. This consistency is crucial for parts that must fit into precise assemblies, such as electrical housings or machine components.
The stroke rate of a 40 ton punch press can range from 100 to 300 strokes per minute depending on materials and die design. This allows for quick throughput, particularly in mass production setups.
Compared to high-end CNC cutters or laser systems, punch presses have lower capital costs and offer affordable tooling options. Maintenance and repair parts are also readily available and less expensive.

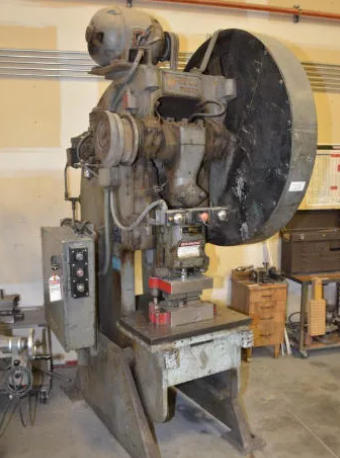

A well-maintained 40 ton punch press can function smoothly for decades. Many manufacturers use presses built 20 or even 30 years ago because of their sturdy build and straightforward mechanical design.
By interchanging die sets, one press can conduct various tasks including punching, embossing, blanking, coining, and even minor bending processes — all without switching machines.
While highly efficient, this machine also has several constraints.
- Material Thickness: It's best suited for sheet metals below 6 mm. Thicker sheets may require a higher tonnage or a hydraulic press for uniform pressure distribution.
- Complexity of Shapes: Intricate designs with curves or fine cutouts are better achieved with laser or waterjet machines.
- Noise and Vibration: The mechanical action during punching generates considerable vibration and noise, requiring isolation mounts or acoustic panels.
- Tooling Setup: Die changes and alignment can be time-consuming, particularly for short production batches or varied product designs.
Understanding these limitations helps determine whether direct punching fits your production requirements or if a hybrid process might yield better results.
| Feature | 40 Ton Punch Press | Hydraulic Press | CNC Turret Press | CNC Laser Cutter | Waterjet Cutter |
|---|---|---|---|---|---|
| Primary Function | Punching holes and forming metal | Deep drawing and forming | Automated multiple-tool punching | Thermal cutting | Cold cutting using high pressure |
| Force Capacity | Fixed at 40 tons | Variable (5–2000 tons) | Up to 50 tons | None (uses light beam) | None (uses water jet) |
| Material Range | Thin to medium sheet metals | Thick metals and composites | Thin to medium sheets | Variety of materials | Metals, ceramics, composites |
| Precision | ±0.05 mm | ±0.10 mm | ±0.03 mm | ±0.02 mm | ±0.03 mm |
| Setup Time | Moderate | Slow | Fast (auto-index) | Minimal | Minimal |
| Noise Levels | High | Low | Moderate | Low | Low |
| Maintenance Cost | Low | Moderate | Medium | High | High |
| Operation Speed | 100–300 strokes/min | 20–80 strokes/min | Fast, automated | Depends on cutting path | Slower |
| Application Areas | Repetitive production | Deep forming, structural parts | Variable punching patterns | Fine contour cutting | Sensitive or composite materials |
This comparison shows that while the 40 ton punch press dominates in speed and efficiency for repetitive production, laser and CNC presses win in versatility and precision for complex projects.
- Automotive: Brackets, reinforcement plates, pedal components, and chassis supports.
- Electrical: Switchgear enclosures, control panels, metal junction boxes, cover plates.
- Furniture: Steel and aluminum chair frames, panels, modular shelves.
- Aerospace and Transportation: Lightweight aluminum brackets and interior support panels.
- HVAC Systems: Air duct flanges, vent panels, and mounting hardware.
Due to its adaptability, the 40 ton punch press can serve both custom workshops handling small-batch production and factories engaged in continuous flow operations.
For continuous, moderate-volume production of standardized components, punch presses are ideal. Frequent design changes, however, may reduce their efficiency due to tooling adjustments.
Straight cuts, round holes, and geometric perforations suit a punch press perfectly. Curved designs with intricate features should use laser cutting for better aesthetics and dimensional control.
Skilled setup technicians ensure proper die alignment and even pressure distribution. Training on safety features such as dual-hand controls and overload detection is imperative.
Although smaller than hydraulic machines, a 40 ton punch press still demands stable floor mounting and a clean power supply for consistent torque generation.
When factoring machine cost, die fabrication, and production rates, punch presses offer the best return on investment for mid-scale manufacturers.
Use high-speed steel or carbide punches for longer tool life. Coating punches with titanium nitride (TiN) can further enhance hardness and reduce galling.
Maintain proper oil levels and replace worn clutch and brake parts early. Conduct daily inspection of dies for cracks or displaced alignments.

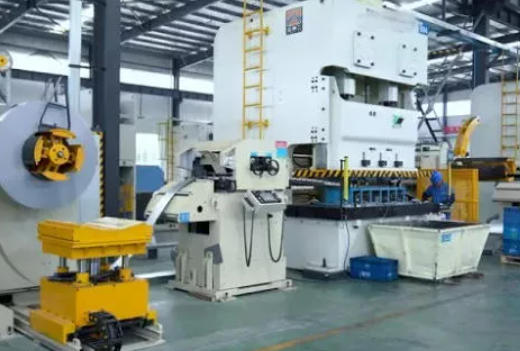

Pair the press with auto-feeders or robotic handling arms. This eliminates manual material loading and doubles throughput consistency.
Connect modern presses with IoT-based monitoring units to track stroke count, force stability, and tool wear prediction in real time.
Install energy recovery modules or variable frequency drives (VFDs) to cut down electricity consumption by up to 20%, especially in multi-shift operations.
There are specific production scenarios where alternatives are preferable:
- Complex Artistic Shapes: A CNC laser cutter or plasma system provides better flexibility with zero tooling requirements.
- Heavy Metal Bending or Drawing: Hydraulic presses deliver smoother force and deeper forming capability.
- Prototype and Small Batches: CNC laser or turret punch machines enable quick configuration without physical tooling investment.
- Heat-sensitive Materials: Waterjet cutting ensures no thermal distortion, preserving edge integrity.
Manufacturers often adopt a hybrid setup, combining a 40 ton punch press with a turret or laser cutter to achieve peak cost efficiency and flexibility.
As factories embrace automation and digitalization, new generations of punch presses have evolved to match.
Key technological trends include:
- CNC Servo Drive Systems: Offering variable stroke lengths and optimized motion control for diverse materials.
- Integrated Vision Systems: Cameras inspect every punched part, immediately eliminating inaccuracies.
- Cloud-based Data Analytics: Allows remote monitoring, predictive maintenance, and energy optimization.
- Collaborative Automation: Cobots (collaborative robots) handle material transfer around the punch press with minimal human supervision.
These innovations push the 40 ton punch press beyond being a traditional mechanical machine to a digital-ready smart manufacturing tool.
The 40 ton punch press continues to be a cornerstone in metal fabrication workshops worldwide. Its blend of high precision, cost-effectiveness, and long service life makes it an exceptional asset for manufacturers focused on repetitive sheet metal production. While laser, CNC, and hydraulic technologies have expanded the range of metalworking possibilities, the punch press remains unmatched for straightforward large-volume punching, forming, and coining operations.
For optimal results, many advanced facilities now integrate punch presses within digitally monitored, automated environments — combining traditional reliability with future-ready technology. Choosing the right tool ultimately depends on balancing material types, product complexity, production scale, and overall business goals.
It represents the press's capacity to exert a force of up to 40 tons during punching. This rating helps determine the maximum sheet thickness and hole size the machine can handle safely.
Typically, it can process mild steel sheets up to 6 mm thick or aluminum up to 8 mm, depending on die design and hole diameter.
With daily lubrication and periodic die sharpening, a well-maintained machine can operate continuously for years, requiring only clutch or bearing replacements every few thousand hours of use.
Yes. Modern presses can be integrated with CNC controllers, robotic feeders, and IoT-based systems to monitor performance and automate repetitive operations.
Essential safety provisions include dual-hand actuation, light curtains, overload protection, and emergency stop switches. Operators must also receive machine-specific safety training.
