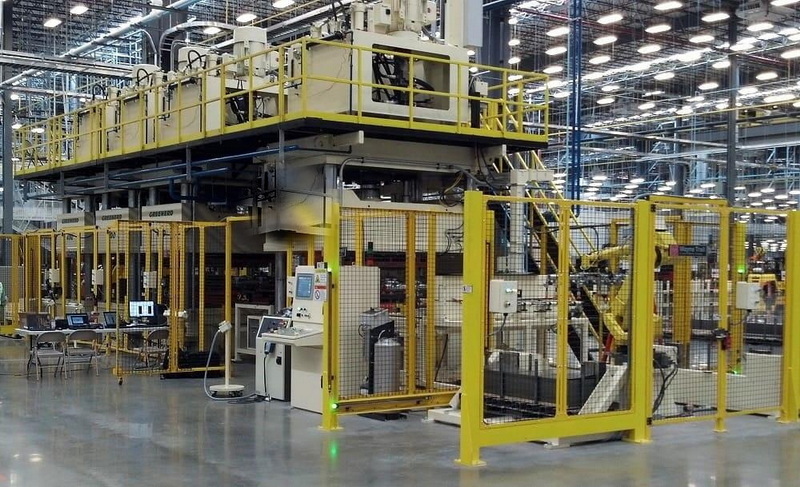

A hydraulic press machine is a powerful industrial tool that uses hydraulic fluid pressure to generate a large compressive force. It is widely used in metal forming, molding, punching, and other manufacturing processes. This article provides a comprehensive explanation of how hydraulic press machines work, their components, principles, types, applications, maintenance, safety, and troubleshooting. The article also includes visual aids and videos to enhance understanding.
A hydraulic press is a machine that uses the principle of fluid mechanics to multiply force. It consists of two cylinders filled with hydraulic fluid, usually oil. When a small force is applied to a piston in the smaller cylinder, it creates pressure that is transmitted through the fluid to a larger piston, generating a much greater force. This force is used to compress, shape, or mold materials.
Hydraulic presses are favored over mechanical presses for their ability to provide consistent pressure, precise control, and the capability to produce very high forces without requiring large amounts of input energy. Their applications span from small-scale laboratory presses to massive industrial machines used in automotive and aerospace manufacturing.
A typical hydraulic press machine consists of the following parts:
- Hydraulic Pump: Converts mechanical energy into hydraulic energy by pumping hydraulic fluid.
- Hydraulic Cylinders: Contain pistons that convert hydraulic energy back into mechanical force.
- Pistons and Rams: The pistons move within the cylinders, and the ram applies the compressive force to the workpiece.
- Hydraulic Fluid: Usually oil, it transmits pressure within the system.
- Control Valves: Regulate the flow and direction of the hydraulic fluid.
- Reservoir: Stores hydraulic fluid and helps in cooling and de-aerating it.
- Relief Valve: Protects the system by releasing excess pressure.
- Frame and Platens: The structure that holds the workpiece and withstands the applied forces.
Each component plays a crucial role in ensuring the hydraulic press operates efficiently and safely.
Understanding the operation of a hydraulic press involves looking at the sequence of events from the moment the operator initiates the process to the completion of the pressing operation.
1. Force Application: The operator applies a small force on the smaller piston or activates the hydraulic pump, which is often powered by an electric motor.
2. Pressure Generation: The hydraulic pump pushes oil into the smaller cylinder, creating pressure.
3. Force Transmission: The pressure is transmitted through the hydraulic fluid to the larger cylinder.
4. Force Multiplication: The larger piston, having a bigger surface area, exerts a multiplied force.
5. Workpiece Compression: The ram attached to the larger piston presses down on the material placed between the platens.
6. Pressure Regulation: The relief valve ensures that pressure does not exceed safe limits.
7. Return Stroke: After the operation, the fluid is released or redirected, allowing the piston to retract.
- Start: The operator places the workpiece on the lower platen.
- Activation: The control valve is engaged, directing hydraulic fluid into the smaller cylinder.
- Pressing: The fluid pressure increases, pushing the larger piston downward.
- Compression: The ram compresses the workpiece, performing the required operation such as molding or shaping.
- Completion: Once the desired pressure or displacement is reached, the control valve is switched to release pressure.
- Retraction: The piston returns to its original position, ready for the next cycle.
This cycle can be manual, semi-automatic, or fully automatic depending on the press design.
Hydraulic presses come in various configurations suited to different industrial needs:
This type features four vertical columns that provide excellent stability and uniform force distribution. It is commonly used for heavy-duty pressing, molding, and forming applications.
Characterized by an H-shaped frame, this press is robust and capable of handling high tonnage. It is widely used in forging and deep drawing processes.
Compact and accessible, the C-frame press is ideal for smaller operations where space is limited. It offers easy access to the workpiece but may have limitations on the maximum force it can apply.
Specialized for bending metal sheets, the press brake uses a hydraulic system to apply force on a punch and die setup, allowing precise bending angles and repeatability.
This press applies force in a straight line and is commonly used in forging, molding, and assembly operations where direct compression is required.
Hydraulic presses are versatile and used across many industries:
- Metal Forming and Forging: Shaping metal parts by applying high pressure to heated or cold metals.
- Punching and Blanking: Cutting shapes out of sheet metal.
- Molding Plastics and Rubber: Compressing materials into molds to form products.
- Deep Drawing of Sheet Metals: Creating complex shapes by stretching metal sheets.
- Assembly and Disassembly: Press fitting or removing tight components.
- Powder Compacting: Forming powders into solid shapes for manufacturing.
- Geological Sample Preparation: Compressing samples for testing.
Hydraulic presses enable high precision and repeatability, making them essential in automotive, aerospace, electronics, and construction industries.
Proper maintenance is vital to ensure the longevity and performance of hydraulic presses.
- Daily Inspections: Check for leaks, unusual noises, and proper fluid levels.
- Lubrication: Keep moving parts lubricated to reduce wear.
- Fluid Changes: Replace hydraulic oil periodically to maintain fluid quality.
- Seal and Hose Checks: Inspect and replace worn seals and hoses to prevent leaks.
- Filter Cleaning: Clean or replace filters to avoid contamination.
- Calibration: Regularly calibrate the press to maintain accuracy.
- Record Keeping: Maintain detailed logs of maintenance activities.
Operating hydraulic presses involves risks that must be managed carefully.
- Personal Protective Equipment (PPE): Always wear safety glasses, gloves, and protective clothing.
- Safety Devices: Never bypass guards, emergency stops, or light curtains.
- Lockout/Tagout Procedures: Follow strict protocols during maintenance to prevent accidental startup.
- Training: Ensure operators are trained in machine use and emergency procedures.
- Hydraulic Fluid Handling: Avoid skin contact and clean spills immediately.
- Work Area: Keep the area clean and free of obstructions.
Adhering to these safety measures protects operators and equipment.
| Problem | Possible Cause | Solution |
|---|---|---|
| Oil leaking from piston seal | Overfilled reservoir or worn piston packing | Drain excess oil or replace packing |
| Press not holding pressure | Contaminated check ball or worn pump parts | Clean/replace check balls, pump parts |
| Slow cylinder movement | Low fluid level, clogged filters, faulty valve | Refill fluid, clean filters, repair valve |
| Unusual noises or vibrations | Loose components, air in fluid | Tighten parts, purge air from system |
| Overheating | Low fluid, dirty filters, faulty cooling | Maintain fluid levels, clean filters, repair cooling system |
Understanding these issues and their remedies helps maintain smooth operation and reduces downtime.
Hydraulic press machines are indispensable tools in modern manufacturing, leveraging Pascal's principle to multiply force efficiently. Their design allows for precise control, high force output, and versatility across many applications. Proper maintenance and adherence to safety protocols ensure long-lasting performance and operator safety. Understanding how hydraulic presses work, their components, and common issues helps users maximize their productivity and machine lifespan.
Hydraulic presses continue to evolve with advances in automation and control systems, making them even more efficient and adaptable to complex manufacturing needs. Whether for shaping metals, molding plastics, or assembling components, hydraulic presses remain a cornerstone of industrial production.
The hydraulic press operates based on Pascal's Law, which states that pressure applied to a confined fluid is transmitted equally in all directions, allowing a small force on a small piston to be multiplied into a large force on a bigger piston.
Key components include the hydraulic pump, cylinders with pistons, hydraulic fluid, control valves, reservoir, relief valve, and the press frame with platens.
Safety is ensured by wearing proper PPE, regular maintenance, not bypassing safety devices, following operational protocols, and training operators thoroughly.
Common issues include oil leaks, pressure loss, slow cylinder movement, noises, and overheating. These can be fixed by inspecting and replacing worn parts, maintaining fluid levels, cleaning filters, and repairing cooling systems.
Hydraulic fluid should be changed regularly according to the manufacturer's recommendations, which depend on usage and environmental conditions, to maintain efficiency and prevent damage.
