The punch press stands as a core machine in metalworking automation, providing speed, precision, and versatility for manufacturing everything from cutlery to automotive components. As an OEM specializing in automatic feeding systems, automatic polishing lines, hydraulic presses, stamping machines, and servo feeding systems, selecting the right punch press is vital for optimizing your output and maintaining quality standards.
This comprehensive article will help you understand how to choose the right punch press for your production line, incorporating detailed explanations, technical insights, and addressing common industry questions to ensure you make an informed investment.
A punch press is a machine used in metal fabrication for cutting, shaping, or forming materials—most often sheet metal—using a die and punching tool. The machine's ram, driven by mechanical, hydraulic, or servo mechanisms, delivers controlled force to precisely make holes or complex shapes efficiently.
- Mass production of cutlery, kitchenware, automotive components, and electronic housings.
- Suitable for simple hole punching or multi-stage metal forming and perforation.
- Integration with automated feeding, polishing, and stamping systems supports industrial-scale efficiency.
To choose the perfect punch press for your production line, you must understand the types and how each operates.

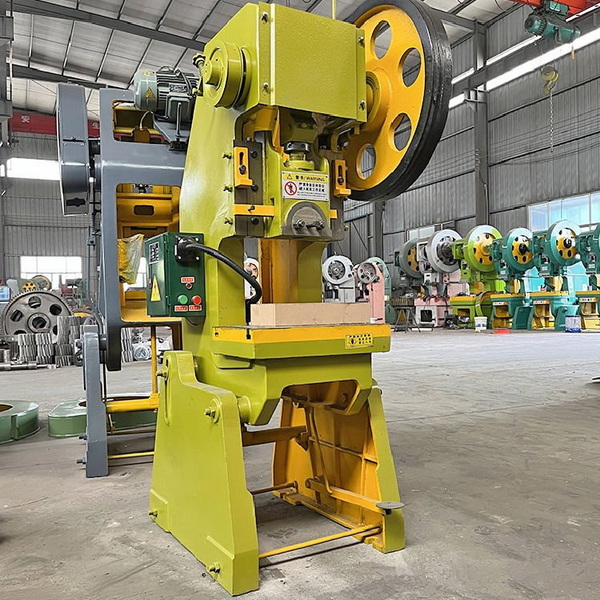

Mechanical punch presses transform rotary motion from an electric motor via a flywheel, crank, and gears into a pressing stroke. They are widely adopted for fast, repetitive tasks on thin to medium thickness materials.
- Advantages: High-speed operation, consistent output, durability.
- Limitations: Less flexible for variable stroke lengths or heavy, thick materials.
Suggested Visual: An exploded diagram showing the flywheel, crankshaft, ram, and die components.
Hydraulic presses use fluid pressure to move the ram. This method allows for gradual application of force and better control over stroke speed, particularly beneficial when processing thicker or harder materials where precision is critical.
- Advantages: Adjustable force, longer stroke lengths, better safety via smooth motions.
- Limitations: Slower cycle times than mechanical presses, requires hydraulic system maintenance.
Servo-driven presses employ servo motors instead of traditional electric motors or hydraulics. This tech improves precision control over ram movement, stroke length, and speed, enabling complex forming and customized punch profiles.
- Advantages: High accuracy, speed and force adjustment, energy efficiency, cleaner operation than hydraulics.
- Limitations: Higher initial cost and system complexity; requires skilled operators.
Computer Numerical Control (CNC) punch presses automate punching based on programmed designs. They enable the rapid production of complex multitool and multistroke parts, reducing operator intervention and increasing repeatability.
- Advantages: Exceptional flexibility, high precision, minimal labor, fast changeovers.
- Limitations: Significant upfront investment, requires programming and maintenance expertise.
Suggested Visual: Side-by-side comparison chart of mechanical, hydraulic, servo-driven, and CNC punch presses detailing speed, flexibility, and typical applications.
When choosing a punch press, these factors should be carefully evaluated:
- Different materials (e.g., steel, stainless steel, aluminum, copper, plastic) behave differently under pressure.
- High-strength alloys and treated surfaces may require special tooling or more force.
- Sheet thickness drastically affects tonnage requirements.
The force needed is calculated by:
- Force (tonnage) = Material Shear Strength × Thickness × Perimeter of part to be punched
Always choose a press where this force is below 80% of its rated capacity to avoid premature wear or damage.
- For simple, high-volume parts, mechanical punching is cost-effective and fast.
- For complex shapes requiring multiple stages or changing tooling, CNC or servo-driven presses are preferable.
Modern production lines benefit tremendously from automation:
- Automatic Feeding Systems: To load raw materials steadily, reduce manual labor, and increase safety.
- Automatic Polishing Lines: For downstream finishing operations, integrated with punch presses for seamless workflow.
Integration should be a key consideration if your production will scale or require consistency enhancements.
- High tolerance parts require machines with precise stroke control, positioning feedback, and intelligent error detection.
- Safety features such as light curtains, automatic halts, and protective guarding are essential to protect operators.
- Machine size and weight must fit your available factory floor plan.
- Consider accessibility for maintenance and material handling equipment.
- Established brands tend to offer better durability, support, and availability of spare parts.
- Factor in total cost of ownership — including energy consumption, maintenance, tooling costs, and service contract fees.
Automation maximizes productivity and lowers labor costs:
Feeding systems range from simple mechanical feeders to sophisticated NC feeders that control material flow accurately based on sensor data.
Benefits include improved part consistency, reduced waste, and easier quality control.
Suggested Video: Demonstration of an NC automatic feeder working with a CNC punch press, showcasing synchronized material feeding and punching.
Some production lines combine punching, polishing, inspection, and packaging into an integrated automatic system. This enhances process flow, reduces defects, and minimizes manual handling.
- What materials and thickness will you work with?
- What types of parts will you produce?
- What production volumes do you expect?
- Calculate tonnage needs carefully.
- Identify required cycle speeds to meet demand.
- Consider automatic feeding, polishing, or robotic part handling.
- Anticipate future production upgrades.
- Select models that fit your part complexity and changeover frequency.
- Compare stroke control and tooling options.
- Investigate warranty, service contracts, parts inventory, and training options.
- Estimate running costs including electricity and maintenance.
- Overestimating or Underestimating Press Capacity: Leading to safety risks or wasted investment.
- Ignoring Material Compatibility: Tooling may wear quickly or fail with unsuitable materials.
- Neglecting Automation Potential: Losing productivity and scalability.
- Skipping Service and Support Checks: Leading to costly downtimes.
- Choosing Based Only on Price: Cheaper machines can result in higher long-term costs.
Selecting the right punch press is crucial for achieving superior product quality, operational efficiency, and scalability in your production line. Mechanical presses fulfill high-speed mass production for simple shapes, while hydraulic and servo-driven presses provide versatility for thicker materials and precision tasks. CNC punch presses enable automation and flexibility indispensable for modern manufacturing.
A well-chosen punch press integrated with automated feeding and polishing lines transforms your production process, reduces labor costs, improves consistency, and ensures long-term competitiveness. Always base your choice on thorough application analysis, considering force requirements, material types, desired automation level, and after-sales service.
A CNC punch press offers high precision and automation, enabling complex multitool jobs with minimal operator intervention, increasing efficiency and consistency.
Multiply the material thickness by the shear strength and the total perimeter of the part to be punched. Select a press with a rating above 125% of this calculated force to ensure reliability.
Yes, depending on tooling and force control, punch presses can work with steel, stainless steel, aluminum, copper, and some plastics, though tooling adjustments may be required.
Automation like automatic feeders and polishing lines enhances production speed, reduces manual labor, improves safety, and supports consistent product quality, all critical for competitive manufacturing.
Regular lubrication, inspection of mechanical and hydraulic components, timely replacement of tooling, and calibration of control systems are necessary to keep the machine running smoothly.
