Choosing the right punch press for your production line is crucial for ensuring consistent part quality, operational efficiency, and cost control. Among the most commonly discussed models in the industry is the 40-ton punch press — a versatile, mid-range machine often debated for its suitability across both small and large-scale manufacturing environments.
This article explores the capabilities, performance advantages, limitations, and practical deployment scenarios of a 40-ton punch press. Whether you run a small fabrication workshop or a high-volume industrial plant, understanding how this machine fits into your operation helps ensure maximum productivity and ROI.

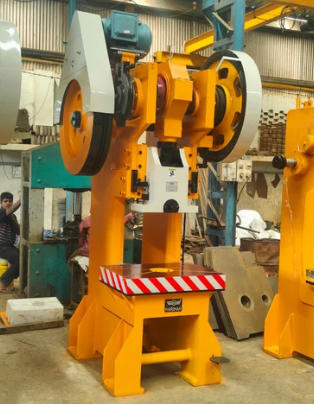

A punch press is a mechanical or hydraulic machine that exerts force through a die to cut, shape, or form sheet metal. The tonnage, in this case, 40 tons, represents the maximum pressure the press can apply during a single stroke.
The mechanism is straightforward yet powerful. The machine drives the punch into a metal sheet positioned over a shaped die. The press uses mechanical leverage, hydraulic pressure, or servo-controlled motion to deliver continuous precision forming.
The 40-ton capacity means the machine can handle a wide spectrum of operations from light metal blanking to moderate forming tasks.
- Frame: Provides rigid support to absorb and distribute pressing forces.
- Ram (Slide): Transfers force from the drive mechanism to the punch.
- Bolster Plate: Acts as a stable base holding the die assembly.
- Flywheel/Crankshaft or Hydraulic Cylinder: Powers the ram's motion.
- Control Panel: Manages stroke speed, safety parameters, and automation sequences.
Although specifications vary by manufacturer, a typical 40-ton punch press features these approximate figures:
| Specification | Typical Range |
|---|---|
| Rated Capacity | 40 tons (≈ 360 kN) |
| Stroke Length | 60–120 mm |
| Shut Height | 250–400 mm |
| Bolster Area | 400 x 600 mm |
| Motor Power | 5–10 kW |
| Operational Speed | 40–100 strokes per minute |
| Machine Weight | 2–5 tons |
| Control Type | Manual, semi-automatic, or CNC |
| Lubrication System | Centralized or automatic oil circuit |
Such capacity makes it efficient for medium-duty stamping, blanking, and forming applications where precision and repeatability are key.
The 40-ton press accommodates different materials — aluminum, copper, stainless steel, and mild steel — giving manufacturers flexibility in production scheduling.
Compared to massive industrial presses, the 40-ton model occupies a smaller footprint. It easily fits into workshops where floor space is limited while leaving room for peripheral automation equipment.
A medium-tonnage press consumes significantly less energy than heavy-duty presses. With modern inverter or servo systems, the power draw adjusts dynamically to operational demand.
Shorter setup time allows fast transition between production batches, minimizing downtime and improving equipment utilization.
The 40-ton range offers a practical entry point for upgrading from manual presses. It's affordable, easy to maintain, and scalable as production needs increase.
For smaller fabricators, the 40-ton punch press strikes the ideal balance between affordability, flexibility, and capacity. It provides industrial-grade results without the financial or space burden of larger machines.
- Creating appliance brackets and metal fittings
- Producing electrical contact frames and housings
- Forming sheet metal enclosures
- Punching labels, tags, and clamps
- Low installation cost and simple foundation requirements
- Easy die design for shorter production runs
- Adaptable for manual or semi-automatic feeding systems
- Enhances part uniformity and reduces human error
This machine effectively enables small enterprises to transition from low-volume manual fabrication to repeatable and scalable automated production.
In large industrial facilities, a 40-ton punch press serves as a flexible complement to heavier machinery. It efficiently handles secondary operations or produces small, lightweight parts in mass quantities.
- Stamping terminals, washers, fasteners, and clips
- Trimming or fine-blanking small subcomponents
- Running as part of connected press lines under robotic feeding
- Fabricating precision electronic and automotive components
- High precision at lower cost: Its consistent output supports parts that demand tight dimensional control.

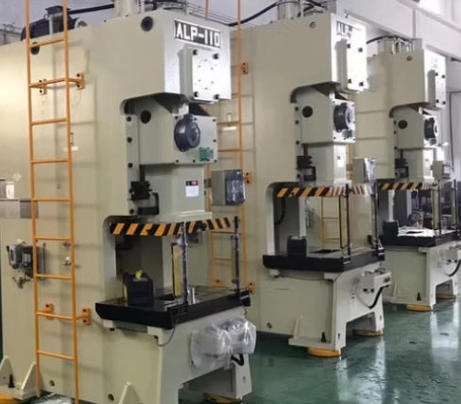

- Distributed production: Easier to maintain several 40-ton units than a single giant press for parallel processing.
- Faster ROI: Due to its moderate initial investment and low downtime.
When used strategically, multiple 40-ton presses can deliver significant total output with impressive production flexibility.
The 40-ton punch press can typically handle materials between 0.5–8 mm thick. The choice of die and press combination determines achievable tolerance levels and product finish.
- Aluminum (0.5–5 mm): Ideal for lightweight components.
- Mild Steel (1–6 mm): General-purpose stamping material.
- Brass (0.5–4 mm): Common in electrical component production.
- Stainless Steel (0.5–3 mm): Requires high-strength tooling.
- Blanking Dies: For precise shape cutting.
- Compound Dies: Combine multiple cutting/forming stages.
- Progressive Dies: Sequentially perform complex steps across each press stroke.
- Forming Dies: For creating bends, flanges, or embossing.
Proper die alignment and maintenance directly influence machine longevity and output quality.
| Feature | 20 Ton Press | 40 Ton Press | 80 Ton Press |
|---|---|---|---|
| Force Capacity | Light-duty | Medium-duty | Heavy-duty |
| Material Thickness | Up to 4 mm | Up to 8 mm | Up to 12 mm |
| Ideal Users | Prototyping workshops | SMEs, OEM suppliers | Automotive, appliance plants |
| Operation Speed | Very high | Moderate to high | Moderate |
| Energy Demand | Low | Medium | High |
| Investment Cost | Low | Moderate | High |
The 40-ton model sits comfortably in the center, capable of managing diverse production requirements without excessive overhead.

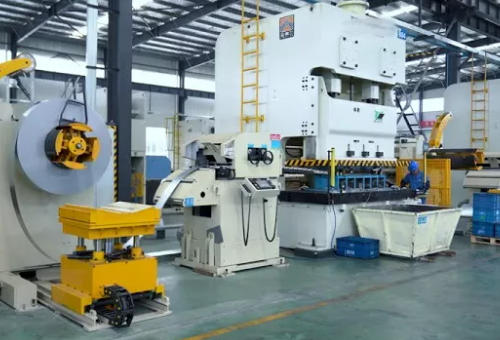

Automation has revolutionized punching operations. Today's 40-ton punch presses can integrate with servo feeders, robotic manipulators, and CNC control panels.
- Consistent Feed Accuracy: Automated coil feeders ensure steady material flow.
- Real-Time Monitoring: Sensors capture stroke counts, temperature, and tonnage signals.
- Reduced Human Error: Automated die changes and programmed die protection prevent tool damage.
- Seamless Networking: PLC and IoT capabilities connect the press to centralized MES systems.
Fully automated production lines utilizing 40-ton presses can operate continuously with minimal supervision, achieving high precision and cost efficiency.
Regular maintenance ensures the press continues to perform safely over years of heavy use.
- Inspect lubrication system and ensure bearings are properly greased.
- Check die alignment and ram parallelism to prevent uneven wear.
- Monitor electrical circuits and limit switches.
- Calibrate safety light curtains and emergency stops routinely.
- Dual-hand control switches
- Mechanical overload protection
- Guard barriers and area scanners
- Automatic clutch and brake interlocks
A quality-built 40-ton press can easily exceed 15–20 years of service life when maintained under regular preventive routines and operated within its rated capacity.
Consider a factory that produces 10,000 stainless steel brackets per day, each requiring a 30-ton pressing force.
Using a 40-ton punch press operating at 80 strokes per minute:
80 strokes/min×60 min/hour=4800 parts/hour
Even at 80% operational efficiency, it can output roughly 3,800–4,000 parts per hour, allowing the target to be surpassed within a standard shift. This shows how a single 40-ton press can achieve industrial-scale throughput when efficiently set up.
Manufacturers are increasingly emphasizing sustainability. The mid-range 40-ton press supports eco-friendly production in several ways:
- Reduced power draw: Servo systems adjust energy use dynamically.
- Lower noise and vibration: Improves operator comfort and reduces workplace fatigue.
- Minimal hydraulic oil requirements: Especially in servo and mechanical models.
- Material utilization: Precision forming minimizes scrap ratios.
Transitioning to newer-generation 40-ton presses often lowers total energy consumption by 15–25%, promoting greener manufacturing.
Operating a 40-ton punch press requires basic technical skills reinforced with hands-on training.
- Machine startup and shutdown sequences
- Safe die loading and alignment procedures
- Calibration and force monitoring
- Error detection and emergency response
Many companies now integrate digital qualification modules or AR-based training systems that simulate press controls, helping shorten learning curves for operators and maintenance personnel alike.
With global demand for mid-tonnage equipment growing, trends indicate that medium-duty mechanical presses remain dominant in sheet metal fabrication.
Key Market Observations:
- Asia-Pacific region leads manufacturing and export of 40-ton units due to cost-effective production.
- European manufacturers emphasize precision, automation integration, and compliance with CE standards.
- North American markets prioritize servo technology and smart diagnostics to enhance uptime.
The 40-ton segment continues to gain traction in industries like automotive, electrical appliances, furniture fittings, and packaging.
Moving forward, next-generation 40-ton presses will integrate smart monitoring and adaptive control systems. Predictive maintenance capabilities will leverage data analytics to minimize unplanned downtime.
- Adaptive servo control adjusting tonnage dynamically
- Remote diagnostics and cloud connectivity
- Integrated force sensors for die protection
- AI-based optimization of power consumption
These advancements turn the traditional punch press into a smart, networked production tool capable of aligning with digital factory ecosystems.
A 40-ton punch press successfully bridges the gap between small-scale production flexibility and industrial performance. It produces accurate, high-quality metal parts across diverse materials and industries with manageable cost, footprint, and power requirements.
For small enterprises, it opens the door to mechanized precision manufacturing without overspending. For large facilities, it serves as a cost-effective modular asset within automated press lines. When maintained and operated correctly, a 40-ton press delivers long-term reliability, energy efficiency, and operational adaptability, making it one of the most balanced machinery investments in sheet metal fabrication.
A 40-ton press can handle aluminum, brass, copper, mild steel, and thin stainless steel sheets up to roughly 8 mm, depending on die design and shear strength.
Mechanical presses excel in high-speed blanking, while hydraulic models provide consistent pressure control for complex forming. Choose based on production type and material needs.
Typical power consumption ranges between 5–10 kW. Servo-controlled units reduce idle energy use and enhance operational efficiency.
Use the formula:
Tonnage= Length of cut×Material thickness×Shear strength/2000
With preventive maintenance, a 40-ton press can deliver up to 20 years of continuous service, depending on workload intensity and operating environment.
