A die punch press is a fundamental machine tool widely used in metalworking and manufacturing industries to shape, cut, or form materials by applying a powerful, controlled force through a punch and die set. This article explores the die punch press in depth, covering its components, working principles, types, applications, maintenance, and troubleshooting. Visual aids like images and videos are integrated throughout to enhance understanding. By the end, you will have a comprehensive grasp of what a die punch press is, how it operates, and why it is essential in modern manufacturing.

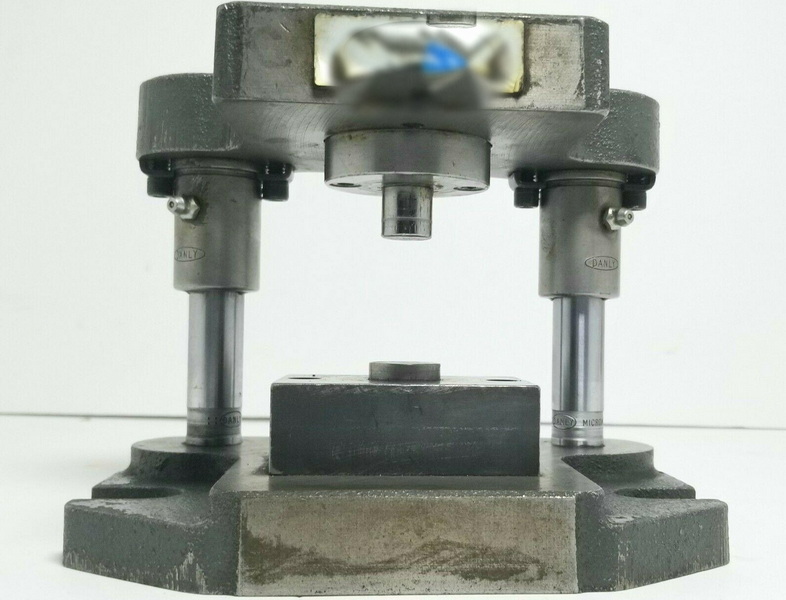

A die punch press is a machine designed to punch holes, cut shapes, or form materials by pressing a punch into a die against a workpiece, usually sheet metal or other flat materials. The die, fixed on the machine bed, provides the shape and support, while the punch, attached to the ram, moves downward to deform or cut the material precisely according to the die's design. This process is widely used in metal fabrication, automotive, electronics, packaging, and many other industries.
The term "die punch press" often refers to the punch press machine equipped with a die set, which is the tooling that shapes or cuts the material. The die punch press can vary in size from small manual machines to large industrial hydraulic or mechanical presses capable of exerting hundreds of tons of force.
Understanding the main parts of a die punch press helps clarify how the machine functions:
- Frame: The sturdy structure that supports the entire machine. It can be a ‘C' frame or a bridge (portal) frame, designed to withstand the forces during punching.
- Ram: The moving component that drives the punch downward into the material. It is powered by mechanical, hydraulic, or pneumatic means.
- Punch: The tool attached to the ram that presses into the material to cut or shape it.
- Die: The counterpart to the punch, fixed on the bed or bolster plate, shaping or cutting the material from below.
- Bolster Plate: A thick plate mounted on the bed to hold the die securely in place.
- Flywheel (in mechanical presses): Stores rotational energy to provide consistent force during punching.
- Clutch and Brake: Control the engagement and stopping of the ram movement for precision and safety.
- Control System: Modern presses often include CNC or PLC controls to automate and precisely control the punching process.
The working principle of a die punch press involves the following steps:
1. Placement: The workpiece, typically a sheet metal, is placed on the die, which holds the shape to be formed or cut.
2. Ram Movement: The ram, with the punch attached, moves downward powered by a motor or hydraulic system.
3. Punching: The punch presses the material into the die, cutting or shaping it according to the die's profile.
4. Material Separation: The punched-out slug or part is pushed through the die opening and separated from the remaining sheet.
5. Ram Retraction: The ram retracts to its starting position, allowing the operator or automated system to remove or advance the workpiece for the next punch.
This process can be repeated rapidly for high-volume production, especially when automated with CNC controls.
Die punch presses come in various types based on their drive mechanism, frame design, and automation level:
- Mechanical Punch Press: Uses a motor-driven flywheel and clutch system to power the ram. Known for high speed and precision, suitable for medium to high production volumes.
- Hydraulic Punch Press: Uses hydraulic cylinders to drive the ram, providing consistent force throughout the stroke. Ideal for thicker materials and heavier-duty applications.
- Pneumatic Punch Press: Uses compressed air to power the ram, typically for lighter-duty or smaller-scale operations.
- C-Frame Press: Features a ‘C' shaped frame allowing easy access to the work area, commonly used for smaller parts.
- Bridge or Portal Frame Press: Has a full-frame design providing higher rigidity and less deflection, suitable for larger or more complex dies.
- Turret Punch Press: Equipped with multiple tools arranged on a rotating turret, allowing quick tool changes and complex punching operations.
Die punch presses are versatile machines used in many industries:
- Metalworking: Punching holes, cutting shapes, and forming parts from sheet metal.
- Automotive: Manufacturing brackets, panels, reinforcements, and other vehicle components.
- Electronics: Producing connectors, covers, and small metal parts.
- Packaging: Creating custom shapes and perforations in cardboard, plastics, and paperboard.
- Clothing and Textiles: Cutting patterns and forming shapes for garments and accessories.
- Construction: Fabricating brackets, supports, and reinforcements for buildings.
- Furniture: Making hinges, frames, and brackets.
- High Precision and Repeatability: Ensures consistent quality in mass production.
- Speed and Efficiency: Rapid punching cycles increase productivity.
- Versatility: Can handle various materials and shapes with different die sets.
- Economic Operation: Optimized power use and reduced labor costs.
- Automation Capability: CNC controls enable complex operations and reduce manual intervention.
- Safety Features: Modern presses include safety guards, brakes, and control systems to protect operators.
Proper maintenance extends the life of the die punch press and tooling:
- Regular Cleaning: Remove debris such as metal slugs and lubricant buildup.
- Lubrication: Keep moving parts and die surfaces well-lubricated.
- Inspection: Check for wear, cracks, or damage on punches and dies.
- Alignment Checks: Ensure punch and die are correctly aligned to prevent chipping or breaking.
- Sharpening: Keep cutting edges sharp to reduce force and wear.
- Tightening Fasteners: Secure all screws, nuts, and dowels.
Common problems include punch breakage, misalignment, stripping failure, and material sticking to punches. Solutions involve adjusting clearances, realigning tooling, and replacing worn parts.
Operating a die punch press requires strict adherence to safety protocols:
- Operators must be trained and authorized.
- Use die stop blocks when adjusting tooling.
- Keep hands clear of pinch points; use tools to handle parts.
- Ensure all guards are in place before operation.
- Turn off the machine when unattended.
- Use two-hand controls or light curtains on manual machines.
Modern die punch presses increasingly integrate automation and digital controls to enhance efficiency and precision. CNC (Computer Numerical Control) punch presses allow for programmable operations, enabling complex patterns and multi-step processes without manual intervention. These machines can automatically change tools, position the workpiece accurately, and adjust punching force based on material type and thickness.
Advanced sensors monitor the machine's condition, detecting tool wear and misalignment early to reduce downtime. Some presses also incorporate servo-electric drives, which offer energy savings and quieter operation compared to traditional mechanical or hydraulic systems.
Die punch presses contribute to sustainable manufacturing by minimizing material waste through precise cutting and forming. Efficient use of raw materials reduces scrap, and automation lowers energy consumption per part produced. Additionally, the ability to rapidly produce complex parts supports lean manufacturing principles, reducing inventory and lead times.
From an economic perspective, investing in a die punch press can significantly lower labor costs and increase production capacity. The versatility of these machines allows manufacturers to respond quickly to market demands and customize products without extensive retooling.
A die punch press is an indispensable machine in the manufacturing world, enabling precise and efficient shaping and cutting of materials. From its robust frame and powerful ram to the intricate punch and die tooling, every component plays a vital role in producing high-quality parts. Whether mechanical, hydraulic, or CNC-controlled, die punch presses continue to evolve, meeting the demands of modern industries with speed, accuracy, and safety. Proper maintenance and operation ensure longevity and optimal performance, making the die punch press a cornerstone of industrial fabrication.
A die punch press can work with a wide range of materials including various metals (steel, aluminum, copper), plastics, cardboard, and textiles, depending on the tooling and press capacity.
Die clearance depends on the material thickness and type. Generally, it is calculated as a percentage of the material thickness to ensure clean cuts without excessive wear on the punch and die.
Mechanical presses use a flywheel and clutch system for fast, repetitive punching with consistent speed, while hydraulic presses use fluid pressure for greater force control and are better for thicker or tougher materials.
Maintenance frequency depends on usage but generally includes daily cleaning and lubrication, weekly inspection of tooling, and periodic sharpening or replacement of punches and dies.
Look for safety guards, emergency stop buttons, two-hand control systems, light curtains, and proper braking mechanisms to ensure operator safety.
