In the manufacturing and industrial world, presses are foundational to shaping, forming, and assembling components across a wide variety of applications. Two core technologies—hydraulic press machines and pneumatic presses—have evolved over decades as the backbone of modern factory automation, metalworking, and component assembly. While their external appearances may be similar, these machines operate on fundamentally different principles, each offering unique advantages and limitations. Understanding their differences in design, operation, force generation, and application is essential for factories, workshops, and procurement managers to optimize output and workflow.
A hydraulic press machine utilizes the physics of incompressible fluids to generate powerful, smooth, and adjustable pressing forces. Based on Pascal's law, which establishes that pressure exerted anywhere in a confined liquid is transmitted equally in all directions, hydraulic presses amplify force through a system of linked cylinders. These machines are capable of producing tremendous power with precise control, making them invaluable for operations demanding strength, accuracy, and consistency.
Hydraulic presses operate using oil or other hydraulic fluid to transmit pressure. The system consists of two main cylinders—a smaller plunger and a larger ram. When force is applied to the plunger, pressure is transferred through the hydraulic fluid to the ram, multiplying the original input force. The ram then transfers this force directly to the workpiece.
Components and flow:
- Hydraulic cylinder (ram and plunger)
- Hydraulic pump
- Fluid reservoir
- Control and safety valves
- Sturdy press frame
The incompressibility of the oil allows for precise fine-tuning of pressure and movement, enabling variable force application depending on operational requirements. Hydraulic presses can hold the ram in position indefinitely—a feature especially useful for delicate forming and deep drawing.
Hydraulic presses find widespread use in sectors where extreme power and accuracy are required:
- Metal shaping: deep drawing, forging, stamping, extrusion
- Automotive manufacturing: body panel stamping, bearing/bushing insertion
- Plastics and composites: molding, layering, trimming
- Industrial assembly: broaching, swaging, riveting large components
- Aerospace and railway: fabrication of structural elements
- Heavy machinery component production
Their flexibility, power, and adaptability have made hydraulic presses indispensable for tasks beyond the capabilities of pneumatic technology.
A pneumatic press relies on the pressure generated from compressed air to drive its ram—a simpler and typically lighter-duty approach compared to hydraulics. These systems use atmospheric air, compressed within a reservoir, released in controlled bursts to actuate a piston and apply force to the target workpiece.
The pneumatic press system includes:
- Air compressor for generating and storing compressed air
- Pneumatic cylinders
- Pistons
- Control valves and pressure regulators
- Sturdy, but often lighter, press frame
Compressed air is supplied to the cylinder, where it pushes a piston, converting potential energy into kinetic force. Pneumatic motion is naturally quick, typically producing less force than hydraulic presses, but excelling in speed and ease of operation.
Unlike hydraulic systems, pneumatic presses may not maintain force indefinitely, tend to operate in fast, repeatable strokes, and are often well-suited to assembly-line conditions.
Pneumatic presses are ideal for:
- Assembly of small components in electronics, medical, and consumer goods
- Riveting and staking
- Light punching, marking, labeling
- Crimping wires or connectors
- Delicate forming, bending, and swaging of soft or thin materials
- High-speed automation processes
Their efficiency, low operating costs, and ease of maintenance make pneumatic presses a staple for manufacturing environments where high throughput is prioritized over force.

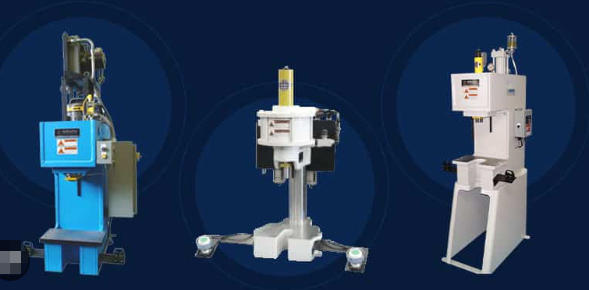

The choice between the two types depends on process demands. Below are the main differences:
| Feature | Hydraulic Press | Pneumatic Press |
|---|---|---|
| Force Output | Very high (up to 50 tons+) | Lower (typically 150–5,000 lbs) |
| Pressure Medium | Hydraulic fluid (oil) | Compressed air |
| Control | Precise & highly adjustable | Simple, limited force control |
| Speed | Slower, variable | Faster, repetitive, instant action |
| Maintenance | Higher (fluid leaks, seals) | Lower, simpler, less risk |
| Noise Level | Lower, dampened | Higher, compressor & exhaust |
| Safety | Complex (fluid/electric risks) | Safer, simple failure modes |
| Cost | Higher capital and operating | Lower acquisition/energy cost |
| Application Scope | Heavy-duty, precision tasks | Light-duty, mass production |
| Lifespan | Long for tough jobs | Longer for lighter tasks |
Hydraulic presses are built for durability and strength, often featuring:
- Heavy steel frames for supporting high forces
- Large-diameter hydraulic cylinders with precision-milled pistons
- High-capacity hydraulic pumps (motor-driven)
- Oil filtration systems for fluid cleanliness and system longevity
- Advanced valve control systems (manual or programmable for multi-step operations)
- Integrated safety systems (emergency stops, overload sensors, and protective shields)
Pneumatic presses, while structurally robust, focus on efficiency:
- Rigid but generally lighter frames
- Pneumatic cylinders and pistons designed for rapid cycling
- Air compressors optimized for continuous duty or variable on/off use
- Pressure regulators, filters, and lubricators for air quality
- Fast-acting solenoid or mechanical valves
- Simple control systems (often suited for direct integration with PLC automation)
Hydraulic presses excel at delivering full force at any point in the stroke and can precisely control ram movement. Operators can modulate force, dwell time, and speed for each cycle, vital for complex forming and intricate assembly processes. Pneumatic presses, while rapid, typically deliver maximum force only at full stroke, and the adjustment range is not as granular.
Pneumatic presses are designed for rapid cycling—a function crucial for production lines performing repeated, identical operations. Hydraulic presses operate slower due to fluid movement, viscosity, and pressure stabilization but compensate with smoother action and ability to apply consistent force over longer cycles.
Hydraulic presses require regular maintenance, including:
- Monitoring fluid levels and replacing oil
- Checking seals, hoses, and pumps for leaks
- Cleaning filters
- Inspecting frame integrity
Pneumatic presses have lower maintenance demands:
- Occasional compressor servicing
- Cleaning or replacing air filters
- Regular inspection of cylinders, seals, and valves
The absence of hydraulic fluid and simplified moving parts make pneumatic presses less susceptible to breakdown and easier to manage in high-throughput environments.
Pneumatic presses win in hazardous environments. As they use air, they are better for explosive, flammable, or dusty workspaces and pose minimal environmental risks. Hydraulic systems, involving oils and high-voltage supply, require more safety precautions and can be less ideal in sensitive settings.
Both types benefit from robust safety protocols—emergency stops, shielded press areas, routine inspections—and operators must always follow training and factory guidelines.
Hybrid systems, known as hydropneumatic presses, combine both models by using air-over-oil mechanisms. These systems start with rapid pneumatic movement and switch to hydraulic pressure for the final power stroke. Benefits include:
- Quicker cycle times
- Enhanced force capability for finishing operations
- Economy and safety advantages from compressed air systems
- Lower maintenance compared to fully hydraulic systems
Such presses are considered a best-of-both-worlds solution for factories seeking speed and power.
Choosing between hydraulic and pneumatic involves consideration of several factors:
- Material Type: Tough metals or thick composites require hydraulic presses. Thin, soft materials suit pneumatic presses.
- Force Requirements: High pressure-stamping, forming, or assembly needs hydraulic force. High-speed, light work aligns with pneumatic options.
- Production Throughput: Pneumatic ideal for fast, repetitive cycles. Hydraulic best for jobs where accuracy and force matter most.
- Maintenance Resources: Pneumatic presses are easier to service and maintain. Hydraulic presses demand more skilled oversight.
- Safety/Environment: Pneumatic presses tolerate hazardous environments better due to their lack of volatile fluid. Hydraulic presses need secure containment and more oversight in risky settings.
- Hydraulic Press Cost: Higher upfront investment due to complexity, materials, and size. Operating costs include electricity (pumps), oil, and parts replacement. Justified when frequent high-force jobs are required.
- Pneumatic Press Cost: Lower acquisition, modest running expenses for electricity (compressor) and minimal parts servicing. Economical for volume manufacturing with lighter duties.
- Energy Consumption: Hydraulic presses consume more energy. Pneumatic systems, using on-demand air compressors, are less intensive—though energy use rises with increased force requirements.
Digitalization and automation have impacted both press systems:
- Hydraulic Press Developments: Integrated controllers enable programmable force profiles and multi-stage cycles. Sensors monitor oil quality and wear, improving preventive maintenance.
- Pneumatic Press Advancements: Improved air management, smarter PLC integration, and energy recovery systems increase speed and reduce operational costs.
- Sustainability Focus: Manufacturers now select presses based not just on performance, but also energy profile, safety, and environmental footprint.
- Automotive Factories: Hydraulic presses shape structural panels, frames, and hard components. Pneumatic presses handle repetitive fastener insertion, small stamping, and assembly.
- Consumer Electronics: Pneumatic presses excel for repetitive staking, crimping, rapid PCB assembly. Hydraulic presses form aluminum casings for durable, precise form factors.
- Construction Material Fabrication: Hydraulic systems compress, shape, and mold reinforced structural parts. Pneumatic presses manage labeling, small fixture assembly, or sealing.
- Medical Devices: Pneumatic presses assemble, mark, and package devices, benefitting from precision and cleanliness. Hydraulic presses form device housings and handles.

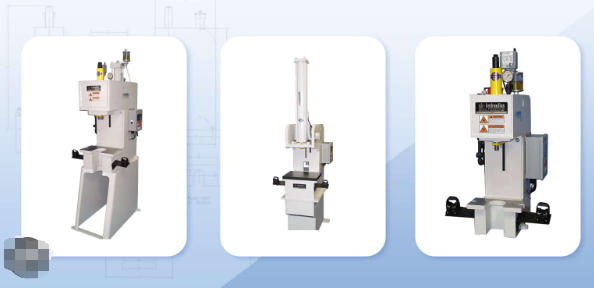

Safety should always be prioritized, regardless of press type. Key measures include:
- Routine inspection for leaks, wear, and damage
- Strict adherence to manufacturer guidelines
- Use of personal protective equipment, especially hearing protection
- Installation of emergency stop and overload prevention systems
- Adequate operator training
- Secure workspace arrangement, including shields and barriers
With technological innovation and a shift toward Industry 4.0, the boundaries between hydraulic and pneumatic presses are increasingly blurred. Hybrid solutions—once rare—are now common, blending force, speed, programmability, and safety. As global manufacturing pursues greater productivity, energy conservation, and adaptive automation, the relevance of informed press selection grows ever more critical for competitive industrial operation.
Hydraulic press machines and pneumatic presses each hold an essential place in the world of industrial manufacturing, offering distinct strengths and performance profiles. Hydraulic presses are the clear choice for tough, heavy-duty operations needing immense, precisely controlled force—making them indispensable for automotive, aerospace, and structural engineering sectors. Pneumatic presses shine in fast, repetitive production, assembly line environments, and tasks where speed and minimal maintenance define efficiency.
Hybrid presses further enable versatile solutions as needs evolve. When selecting a press, factor in material, complexity, throughput, operating environment, and total cost of ownership. Making the right choice ensures not only production success but also worker safety and long-term equipment reliability.
A hydraulic press includes the press frame, hydraulic pump, cylinders, pistons, hydraulic fluid reservoir, control valves, and often an electronic control panel. Together, these create, control, and apply pressurized force to the work material.
Pneumatic presses typically consume less energy than hydraulic presses due to air compression requirements being lower than hydraulic pump operation. However, for jobs requiring extreme force, hydraulic presses may be more efficient overall due to the ability to accomplish heavy tasks in fewer cycles.
No—pneumatic presses are limited in their maximum force capacity (usually under 5,000 lbs), while hydraulic presses can achieve tens of tons, essential for heavy metal forming and deep stamping.
Both systems can be highly durable with regular maintenance. Pneumatic presses generally enjoy longer service life in lighter-duty and clean environments, while hydraulic presses are built for heavy-duty use but require more frequent maintenance.
Yes, hydropneumatic presses (air-over-oil) combine the rapid motion of pneumatic systems with the power and control of hydraulics, offering versatile solutions where both speed and force are needed.
