In today's manufacturing landscape, automation and precision are central to achieving consistent quality and scalable production. Uncoiler machines—also known as decoilers—are among the first and most critical machines in a metal processing line. Their function may seem simple: unwinding a coil for feeding into further processes like leveling, cutting, or stamping. However, this initial step directly influences the accuracy, speed, and cost-efficiency of the entire production flow.
As industries from automotive to construction increasingly adopt automated systems, uncoiler machines have become indispensable tools for improving overall operational performance. This article explores the reasons behind their growing importance, detailing how they enhance efficiency, precision, and cost control, while also shedding light on their structure, features, applications, and future trends.

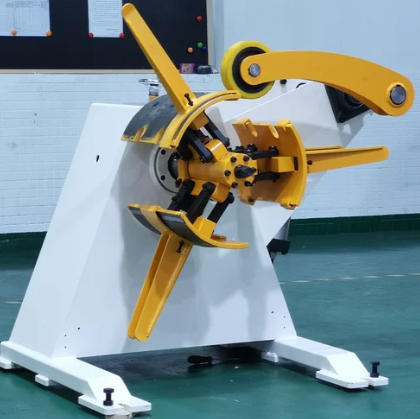

An uncoiler machine is a mechanical device used to unwind and feed coils of materials—typically metals such as steel, aluminum, or copper—into downstream production equipment. It eliminates the need for manual handling of heavy coils, ensures steady material tension, and prevents deformation during feeding.
- Mandrel: Expands to secure the coil's inner diameter.
- Braking System: Maintains controlled rotation and halts the coil when needed.
- Drive Motor: Powers rotation, synchronizing with feeder speed.
- Base Frame and Support Arms: Provide stability for heavy coils.
- Hydraulic Lifting Device: Simplifies coil installation and height adjustment.
- Control System (PLC or HMI): Manages rotation, speed, and synchronization with other machinery.
Advanced uncoiler systems integrate additional features like tension control sensors, automatic lubrication, and hydraulic decoiling to ensure smooth and efficient operations in automated lines.
Every second counts in high-volume production environments. Efficiency is achieved not merely by speed but by minimizing disruptions, inconsistencies, and downtime. Uncoiler machines enhance efficiency through the following aspects:
An uncoiler machine continuously supplies material to subsequent machinery without interruptions. When paired with a double-head uncoiler, coil changing occurs seamlessly—one coil feeds production while the next is prepared.
Integration with servo or PLC systems allows perfect synchronization between uncoiler, feeder, and press line. This automation eliminates manual adjustments and reduces human error.
Hydraulic coil loading arms allow operators to position and secure new coils within seconds. The system automatically centers and expands to fit the coil, significantly cutting downtime.
Maintaining consistent tension ensures materials are fed evenly, preventing tearing, sagging, or overlap. Automatic tension adjustment further optimizes line performance.
Compact, floor-mounted designs save valuable factory space. Some models offer vertical decoiling for systems with limited horizontal room.
Enhanced efficiency leads to shorter production cycles, higher throughput, and better utilization of manpower—essential qualities in competitive markets.
Precision at the uncoiling stage ensures stable, uniform feeding to downstream processes. Deviations here can cause misalignment in stamping dies, poor cuts, and material waste. Modern uncoilers employ advanced control systems to mitigate these risks.
- Closed-Loop Feedback Systems: Real-time monitoring adjusts motor speed to ensure constant coil unwinding speed.
- Hydraulic Expansion Mandrels: Grip coils evenly, minimizing vibration and lateral movement.
- Laser Alignment Sensors: Ensure the coil edge stays perfectly aligned to the feed line.
- Advanced Servo Drive Systems: Offer micro-level control of rotation and tension.
In industries where parts must meet tight tolerances—such as aerospace or automotive body panels—precision is critical. Uncoilers maintain consistent tension and tight feed accuracy, reducing scrap and ensuring high-quality outputs.
While an uncoiler machine requires upfront investment, the long-term savings in labor, material, and maintenance costs easily justify the purchase. Cost-effectiveness emerges from improvement in three main areas:
1. Reduced Labor Costs: Automated coil handling allows a single operator to manage multiple lines.
2. Less Waste: Controlled feeding prevents scratches, bends, and tension-related distortions that lead to rework.
3. Extended Equipment Life: Smooth coil delivery reduces wear and tear on downstream presses, feeders, and cutters.
4. Lower Downtime Costs: Quick coil changeovers and automated synchronization reduce unproductive intervals.
| Parameter | Manual Operation | Automated Uncoiler System |
|---|---|---|
| Operator Requirement | 2–3 workers | 1 operator |
| Material Handling | Manual, inconsistent | Automated, steady |
| Tension Accuracy | Low | High (sensor-based) |
| Machine Downtime | Frequent | Minimal |
| Overall Profit Margin | Moderate | High |
The long-term gains are clear—manufacturers who integrate uncoiler machines typically see productivity improvements of 30–50% within the first year.
Used in small workshops and low-volume production, manual uncoilers require human control for tension and rotation. They are cost-effective but lack automation.
Equipped with a motor-driven mandrel, this model automatically adjusts coil speed, making it suitable for medium-duty production. It ensures smoother feeding than manual units.
Features two mandrels that work alternately, allowing continuous operations during coil replacement. This model is ideal for mass production environments.
Heavy-duty uncoilers powered by hydraulic systems for coil lifting, expansion, and rotation. They can handle large coils up to several tons with precision.
Integrates decoiling and leveling in one compact unit, eliminating the need for separate straighteners. It's a space-efficient solution for high-speed lines.
Modern uncoiler machines are designed with smart features that enhance functionality and operator safety.
- Automatic Braking System: Stops coil rotation upon line interruption.
- Variable Speed Drive: Adjusts rotation to match downstream consumption.
- Digital Tension Controller: Prevents slack or over-pull.
- Heavy-Duty Frame: Ensures vibration-free performance.
- PLC and Touchscreen Control: Simplifies setup and monitoring.
- Optional Coil Carriage: Enables fast, safe coil loading.
Systems can also be customized with optional coil peeler arms, limit sensors, and visual indicator alarms.
Uncoiler machines are used in almost every industry that involves coil-fed processes:
- Automotive: Body panels, brackets, exhaust systems.
- Electrical & Electronics: Motor laminations, enclosures, cable trays.
- Appliances: Washer and refrigerator parts.
- Construction: Steel framing, wall panels, roofing sheets.
- Aerospace: Precision metal panels and interior structures.
- Metal Stamping and Cutting Lines: Essential for punching, pressing, and forming operations.
By delivering steady, uniform material flow, they form the foundation of high-precision manufacturing lines.
Proper care ensures long service life and minimizes downtime.
- Inspect bolts, bearings, and expansion mechanisms regularly.
- Lubricate according to manufacturer recommendations.
- Clean rollers and sensors to maintain alignment accuracy.
- Check braking system performance to avoid accidents.
- Monitor hydraulic oil levels and replace periodically.
- Always stop the machine before manual adjustments.
- Use protective gear when handling metal coils.
- Keep emergency stop buttons easily accessible.
- Follow lockout/tagout procedures during maintenance.
Uncoilers handle massive coil weights and high-speed rotation, making safety features and daily vigilance essential.
With Industry 4.0 transforming manufacturing, uncoiler machines are evolving to interface with smart systems.
- Data Synchronization: Real-time monitoring through networked PLCs.
- Predictive Maintenance: Sensors detect wear or imbalance before failure occurs.
- Remote Diagnostics: Enables technicians to troubleshoot remotely.
- Full-Line Automation: Uncoiler communicates directly with feeder, straightener, and press for maximum synchronization.
This connectivity ensures not only better control but also continuous quality assurance and performance tracking.
Investing in an uncoiler machine brings measurable advantages that extend beyond coil handling. It enables seamless integration, precise feeding, and significant cost reductions, enhancing both operational reliability and final product quality. Whether in small workshops or automated press lines, uncoilers act as vital components for stable, scalable, and safe industrial operations.
By choosing the right model—manual, motorized, or hydraulic—manufacturers position themselves for long-term productivity, quality consistency, and competitive strength in global markets.
Most uncoilers handle steel, stainless steel, aluminum, copper, and brass coils, depending on structural strength and drive capacity. Custom coatings or soft materials may require specialized tension systems.
An uncoiler unwinds the coil, while a straightener flattens curved material. Combined units achieve both tasks in one setup for higher efficiency.
Modern models include emergency stops, overload protection, fixed guard panels, coil limit sensors, and hydraulic safety locks. Some systems include torque sensors to prevent coil runaway.
Yes. Hydraulic expansion mandrels adjust for various coil diameters. Optional coil cars further enhance adaptability by lifting and aligning different coil dimensions automatically.
Through servo control and PLC communication, uncoilers synchronize seamlessly with feeders, punch presses, or slitting lines, maintaining consistent material flow across systems.
