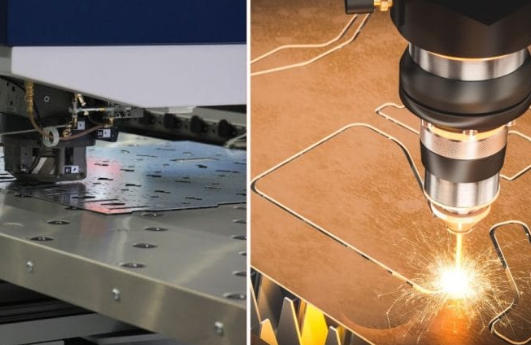

● 100 Ton Punch Press vs Laser Cutting: Technical Comparison
● Strengths of the 100 Ton Punch Press
>> Faster Cycle Times for Large Runs
>> Cost Efficiency After Setup
● Limitations of the Punch Press
>> Ultimate Accuracy and Design Freedom
>> Low Waste and High Efficiency
● Cost and Time Efficiency Analysis
● Machine Maintenance Requirements
● Environmental and Safety Considerations
● Future Trends: Combining Both Technologies
● FAQs
>> 1. What materials can a 100 Ton Punch Press process?
>> 2. Can laser cutting handle all metal types?
>> 3. Does laser cutting require post-treatment?
>> 4. How do I calculate the operational cost per part?
>> 5. Which technology integrates better with automation?
Manufacturing industries today face constant pressure to balance accuracy, speed, and cost in metal fabrication. Among the most widely used technologies are the 100 Ton Punch Press and the Laser Cutting machine. Both play essential roles in shaping and cutting metals, yet they serve very different production needs. Choosing the right technology can greatly determine your manufacturing efficiency and return on investment.
This comprehensive guide takes a deep dive into the working principles, advantages, disadvantages, and best-use scenarios of each process. It will help you identify which metal fabrication method best aligns with your production goals.

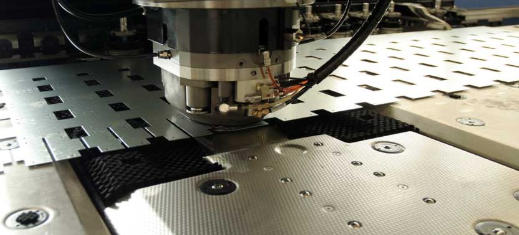

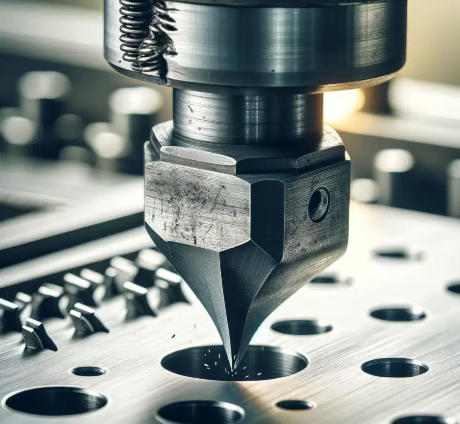

A 100 Ton Punch Press is a mechanical or hydraulic press capable of exerting 100 tons of force to punch holes, form edges, or shape sheet metal. It operates through a punch-and-die mechanism, where the punch descends with immense pressure onto the die, deforming or cutting the material in a single stroke.
- Frame and bolster plate for structural support
- Punch and die set for material shaping
- Motor and crankshaft to drive motion
- Hydraulic or pneumatic control system for pressure application
- Control panel and safety guards
Punch presses may be manually operated, semi-automatic, or fully computerized with CNC (Computer Numerical Control) systems. CNC punch presses enable automated tool changes, precise repeatability, and rapid part production.
- Enclosures for electrical panels
- Automotive body components
- Industrial shelving and racks
- HVAC system housings
- Agricultural machinery parts
The 100 Ton Punch Press is a backbone in mass metal manufacturing because it delivers repeatable results at high speed and low per-piece cost.
Laser Cutting is a non-contact thermal process. A high-energy laser beam is focused onto the material surface, melting or vaporizing it along programmed cut lines. A combination of precision optics and computer-controlled motion ensures exact positioning and cutting accuracy.
- Laser generator (CO₂, fiber, or YAG laser)
- Focusing lens and mirror system
- CNC control interface
- Gas supply for cutting assistance (oxygen, nitrogen, air)
- Cooling units and dust extraction system
Laser cutting technology has advanced rapidly in recent years with the introduction of fiber laser systems, known for faster cutting speeds and lower energy consumption compared to traditional CO₂ lasers.
- Aerospace precision parts
- Stainless steel kitchenware
- Architectural metal panels and decorative elements
- Engraved signage and nameplates
- Electronic device casing fabrication
Modern workshops use laser cutting for its versatility and capability to handle both thin and thick sheets with minimal setup changes.
| Feature | 100 Ton Punch Press | Laser Cutting |
|---|---|---|
| Cutting Principle | Mechanical deformation using punch and die | Thermal cutting using focused laser beam |
| Material Types | Best for metals like steel, iron, and aluminum | Works with metals, glass, plastics, and composites |
| Best Used For | High-volume, simple part production | Low-to-medium volume, complex designs |
| Precision Level | Moderate | Extremely high |
| Setup Time | Requires tooling setup | CAD programming only |
| Per-Unit Cost | Lower in high-volume runs | Higher but flexible for small runs |
| Maintenance Needs | Tool sharpening and press calibration | Optic cleaning, gas system maintenance |
| Noise Level | High noise during operation | Low noise, cleaner environment |
| Surface Finish | May need deburring | Smooth, ready-to-use finish |
| Flexibility | Limited to pre-made dies | Unlimited design possibility through software |
This comparison highlights a simple truth: punch presses deliver speed and cost efficiency in standardized production while laser cutting leads in precision and creative freedom.
Once tooling is set, a punch press can produce parts in seconds. This efficiency is unmatched for mass production environments that demand thousands of identical components.
While the initial tooling cost is significant, the per-piece production cost is extremely low for high-volume jobs. This makes it a preferred choice for stable, ongoing designs.
The heavy frame and mechanical design make a punch press highly durable. Many presses remain operational for decades with proper maintenance, providing long-term economic benefits.
Beyond cutting, punch presses can also emboss, form louvers, and mark metals, adding functions beyond just material removal.
- Requires significant setup time for new tooling
- Limited for small batches or frequent design changes
- Noisy and vibration-heavy during operation
- Edges often need additional polishing or deburring
Despite these challenges, the punch press remains one of the most dependable tools for heavy-duty metal shaping.
Laser cutters excel at fine details, curved patterns, or internal geometry cuts that a punch press cannot achieve. Designers can easily create new shapes without expensive dies.
Laser nesting software arranges patterns to maximize material use, reducing scrap. This directly saves material costs and improves sustainability.
Since no tooling is required, engineers can quickly upload digital designs and cut samples within minutes. It accelerates product development and customization cycles.
The laser's precise thermal cut produces burr-free edges, saving time on finishing operations like sanding or grinding.
- Slower than mechanical punching for thick plates
- Energy-intensive due to laser power and gas usage
- Higher maintenance costs for optics and filters
- May cause thermal distortion on thick metals if not controlled
While laser cutting provides extraordinary flexibility, it's not always ideal for bulk fabrication of simple repetitive parts.
A commercial air conditioning equipment factory produces 15,000 metal enclosures a month, each requiring hundreds of identical holes. The 100 Ton Punch Press allowed them to standardize production, reduce cycle time, and maintain consistent shape quality without costly rework.
An architectural metal design firm creates customized facades and intricate wall panels. With laser cutting, they achieve detailed perforations and patterns impossible with traditional punching, enhancing both aesthetics and precision.
These examples show how industry type and project complexity determine which method delivers higher value.
For a factory making thousands of units monthly, the punch press outperforms in overall speed and amortized tooling cost. However, when design flexibility and customization are top priorities, laser cutting prevails.
In practical use, many factories employ a hybrid approach—punching first for core shapes, then performing laser finishing to refine edges and ensure accuracy.
Keeping a 100 Ton Punch Press in top condition involves:
- Regular alignment checks for dies
- Lubrication of mechanical parts
- Periodic replacement of worn punches and dies
- Inspection of the hydraulic system for leaks
Laser cutting maintenance includes:
- Lens cleaning and alignment verification
- Cooling system maintenance
- Exhaust filter replacement
- Software calibration and firmware updates
Both technologies can last over 15 years with proper maintenance, offering similar long-term reliability.
Punch presses generate noise and vibrations, requiring soundproofing and stable foundations. Worn dies can produce metal scrap, which increases waste.
Laser cutters, while quieter, emit fumes from melted materials. Operators must install ventilation and observe strict laser safety protocols to prevent eye damage.
Environmentally, fiber laser cutting is regarded as cleaner and more energy-efficient than older CO₂ systems, helping manufacturers achieve greener production standards.
The future of sheet metal fabrication lies in integration. Hybrid machines combining punching and laser cutting functions are becoming popular. These allow manufacturers to complete multiple processes in one station—cutting, forming, engraving, and marking—without manual transfer between machines.
Automation and AI-based optimization are also transforming both methods. Predictive maintenance, robotic material handling, and real-time process monitoring are now standard in advanced factories.
By balancing the speed of punching with the precision of laser cutting, companies can achieve higher throughput, superior finish quality, and broader design possibilities.
Selecting between a 100 Ton Punch Press and a Laser Cutting system depends on your production demands, design flexibility needs, and cost structure. The punch press remains the top choice for mass production where consistency, durability, and low per-unit cost matter most. Its robust power makes it ideal for thick metal sheets and simple designs.
Laser cutting, however, offers unmatched flexibility, cleaner results, and freedom from tooling constraints. For short runs, intricate geometries, and precision-oriented industries, it sets the benchmark for modern manufacturing.
In many facilities, combining both technologies delivers the highest efficiency—punching for basic shapes and laser cutting for precision finishing. Whether you are upgrading factory equipment or setting up a new production line, understanding these processes ensures smarter investment and faster returns in today's competitive manufacturing landscape.
It handles metals like carbon steel, aluminum, copper, brass, and stainless steel up to about 10 mm thick, depending on die and machine design.
Yes, but parameters like beam strength and gas type must be adjusted. Stainless steel, mild steel, and aluminum are the most common for laser cutting applications.
Generally not. Laser-cut parts come out smooth and ready for assembly or welding with minimal finishing required.
Consider energy consumption, tool maintenance, and labor. For punching, tooling amortization matters most. For lasers, focus on energy and gas costs.
Laser cutting integrates easily with robotic loaders and smart nesting software, while punch presses require more mechanical automation setup but still adapt well to robotic production lines.
