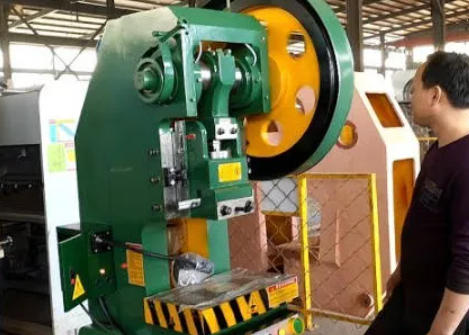

In the ever-evolving landscape of industrial manufacturing, efficiency, precision, and repeatability define success. Factories and fabrication workshops rely heavily on consistent machinery to achieve large-scale production without compromising quality. Among these machines, the 100 ton punch press has proven to be one of the most crucial assets in high-volume metal forming, punching, and stamping operations.
A 100 ton punch press combines enormous power output with smart control systems, allowing manufacturers to execute complex punching processes with speed and accuracy. Its versatility across different industries makes it an excellent long-term investment for companies that value productivity and precision.

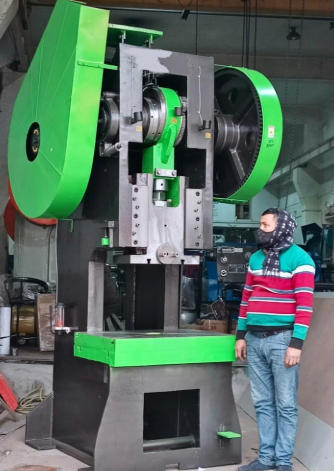

A 100 ton punch press is a high-capacity industrial press engineered to deliver a punching force of 100 tons to cut or shape metal sheets through mold and die systems. It works by driving a punch tool into material against a die, creating an exact shape or hole in the sheet.
Depending on the power mechanism, there are three main types of punch presses—mechanical, hydraulic, and servo-electric—each designed for specific speed and control requirements. A 100 ton press is powerful enough to handle a wide range of materials, from light aluminum sheets to thick stainless steel plates.
With the ability to perform repetitive operations with minimal error, the 100 ton punch press has become a standard piece of equipment across small workshops, medium production lines, and large-scale plants.
The performance and longevity of a punch press depend on its mechanical integrity. The following components contribute to its functionality and durability.
This is the machine's backbone. Typically made from high-strength cast steel or iron, the frame supports the entire structure and resists flexing under high pressure, ensuring dimensional accuracy in every punch.
The ram is the moving part that delivers the pressing force. Its precision alignment with the die guarantees consistent results. Hydraulic and servo presses allow smoother ram motions for delicate or multi-stage work.
The bed supports the lower die and provides a stable surface for impact absorption. The bolster plate can be removed or customized depending on the type of production work.
In mechanical models, a clutch and flywheel system converts constant rotary motion into controlled linear force—delivering rapid and repetitive striking cycles.
In hydraulic presses, power is generated via hydraulic cylinders. Adjustable pressure settings provide flexibility in handling various materials without overloading the machine.
Modern presses utilize programmable logic controls (PLC) and touchscreens, allowing operators to set stroke limits, punching frequency, and real-time force adjustments with digital precision.

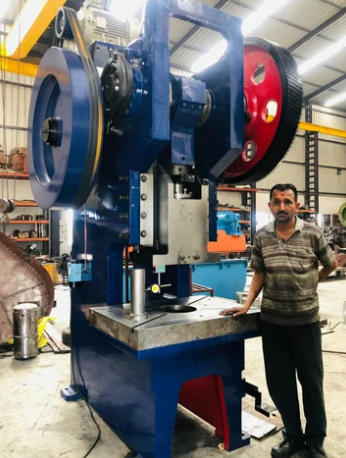

The 100 ton punch press can complete hundreds of cycles per hour, significantly increasing throughput compared to manual or semi-automatic punching systems.
Each stroke of the press is consistent, ensuring uniform hole sizes and clean edges even after thousands of operations, minimizing waste and rework.
One machine can handle multiple tasks such as embossing, blanking, bending, and coining simply by changing the die setup.
Servo-electric presses and newer hydraulic designs optimize energy use, delivering power only when required and dramatically reducing operating costs.
When integrated with automatic feeding systems or robotic arms, a 100 ton press can operate continuously with little human intervention, maintaining precision under mass production conditions.
The versatility of a 100 ton punch press makes it indispensable across many manufacturing sectors:
- Automotive manufacturing – Producing frames, reinforcements, and mounting components with structural integrity.
- Aerospace engineering – Shaping lightweight alloy parts for aircraft bodies and engine compartments.
- Electrical and electronics – Punching holes and slots for control panels, transformer boxes, and switchboards.
- Furniture production – Forming metal parts used in tables, shelving systems, and structural brackets.
- Construction and infrastructure – Cutting and forming connectors, beams, and assemblies used in structural steelwork.
- Appliance and HVAC systems – Creating enclosures, fan guards, and duct components.
Every industry that uses metal parts benefits from the accuracy and consistency offered by a 100 ton punch press.
The buying process involves evaluating critical operational needs and matching them to machine specifications.
The toughness and gauge of your materials determine whether you need hydraulic precision or the speed of mechanical motion.
These control the depth and travel of the punch. Selecting the correct stroke range prevents over-punching and tool damage.
Larger tables allow processing of bigger sheets and setups for multi-die operations, improving efficiency in large-volume production.
Quick-change die systems significantly reduce downtime when switching production runs. Advanced presses feature tool memory settings for different product types.
For high-volume operations, combining the press with coil feeders, servo rollers, and stacking systems can turn manual processes into fully-automated production lines.
Quiet and energy-efficient press systems not only improve workplace comfort but also meet modern environmental standards.
Operators should check for unusual sounds, oil leaks, die misalignment, and loose bolts before each operation. Routine mechanical checks prevent long-term mechanical failures.
Continuous lubrication is essential to reduce friction in moving components. Automated oil pumps simplify this task.
Dies are precision instruments. Regular inspection, polishing, and storage in controlled environments help prolong tool life.
Safety mechanisms such as two-hand operation control, photoelectric sensors, and emergency stops protect workers. Proper operator training is mandatory before use.
A structured plan that includes hydraulic fluid replacement, electrical testing, and software calibration ensures continued machine performance over years of operation.
This system allows variable speed control and energy regeneration during stroke return, providing finer control and significant energy savings.
3D CAD/CAM compatibility allows design data to be directly imported to the machine system, automating tool paths for custom parts.
Real-time diagnostics and production tracking can be displayed remotely. Maintenance alerts are generated automatically to minimize downtime.
Machines can adjust force output dynamically based on material density and thickness, resulting in greater precision and less tool wear.
Modern production lines employ automatic feeding mechanisms coupled with sorting robots, creating a fully unattended production flow.
Manufacturing industries are increasingly focused on energy-efficient solutions. The 100 ton punch press aligns with these goals by incorporating eco-friendly design principles:
- Servo drives lower electricity usage by up to 30 percent compared to older systems.
- Hydraulic fluid management reduces contamination and waste.
- Noise reduction systems minimize pollution at the workplace.
- Long service life reduces equipment turnover, supporting sustainable manufacturing cycles.
By minimizing both environmental footprint and energy costs, the machine promotes environmentally responsible production.
The efficient operation of a 100 ton press demands skilled operators. Modern manufacturers often conduct in-house training covering topics like:
- Machine setup and calibration
- Die selection and assembly
- Reading process data from touchscreen controls
- Understanding safety and emergency protocols
- Troubleshooting and preventive maintenance
Continuous training ensures that personnel can fully exploit the machine's features while maintaining high safety standards.
In the next decade, the role of artificial intelligence and automation in punch press systems will expand dramatically. AI-assisted systems will be able to:
- Predict ideal punching parameters from historical data.
- Auto-correct die tilt or misalignment.
- Analyze production performance and suggest efficiency improvements.
- Integrate seamlessly with robotic arms for smart assembly lines.
Manufacturers who embrace these technologies today will remain competitive in tomorrow's global market.
The 100 ton punch press stands as an engineering marvel that embodies strength, speed, and precision. Its contribution to industrial efficiency is irreplaceable, helping manufacturers meet tight deadlines while maintaining consistent output quality.
By integrating modern control systems, automation compatibility, and thoughtful design innovations, the 100 ton punch press continues to elevate metal fabrication standards worldwide. For companies running large-scale or customized production, this machine ensures superior accuracy, reduced waste, and improved profitability.
When properly operated and maintained, it becomes not just a machine but a long-term production partner driving success in an increasingly competitive manufacturing world.
The press can work on materials such as stainless steel, mild steel, aluminum, brass, and copper. It can also punch special materials like coated steels and laminates with high precision.
Routine checks should be done daily, with comprehensive maintenance every three to six months. Fluid systems and dies should be inspected more frequently under intense production schedules.
Mechanical presses are faster but less adaptive under variable loads. Hydraulic presses provide smoother, more controlled punching, making them better for thicker materials or precision work.
Yes. Through integration with coil feeders, CNC controls, and robotic arms, the machine can operate as part of a fully automated production system.
Operators must wear protective gear, use two-hand controls, and keep the work zone clear of obstructions. Regular safety audits ensure machines comply with operational standards.
