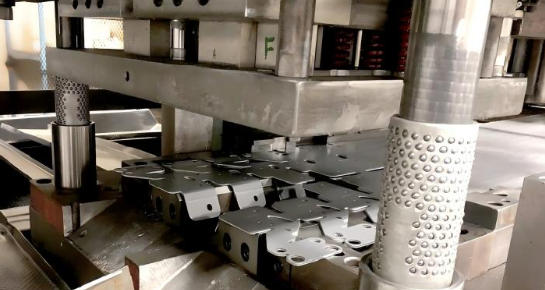

A 100-ton punch press is a powerhouse in metal fabrication, capable of shaping, cutting, and forming various metals with extreme precision and pressure. However, with great force comes significant wear and tear — making preventive maintenance not just a suggestion, but a production necessity. To ensure maximum efficiency and safety, manufacturers must establish detailed maintenance routines, rely on data-driven diagnostics, and enforce standardized operational practices.
This article provides comprehensive strategies and maintenance protocols designed to extend the lifespan of a 100-ton punch press while maintaining consistent output quality and energy efficiency.
The 100-ton punch press operates under continuous mechanical stress. Every stroke generates heat, vibration, and friction among critical components such as bearings, sliders, and the clutch-brake assembly. If routine inspections are neglected, even minor inconsistencies can quickly escalate into system-wide inefficiencies.
The goal of regular maintenance is to:
- Maintain production continuity without unexpected breakdowns.
- Minimize repair costs by addressing small faults promptly.
- Extend component longevity and preserve machine value.
- Ensure operator safety through predictable equipment behavior.
By adopting these goals, companies not only protect their investment but also enhance their overall manufacturing competitiveness.
Maintaining a 100-ton punch press efficiently means understanding its anatomy. Each component contributes to overall precision and load balance.
The machine frame endures repetitive force over long periods. Operators should examine the frame for visible cracks, paint blisters, or deformation. Keeping the bolster plate flat and corrosion-free ensures stable die seating and prevents misalignment during stamping operations.
The ram applies the downward punch force, guided by slides that must remain precisely aligned. Over time, improper lubrication or mechanical strain can create uneven wear. Adjust ram gibs and guide slots according to manufacturer tolerances and verify smooth motion through manual tests.
Hydraulic fluid levels and pneumatic air pressure influence stroke power and speed. Regularly inspect hydraulic filters, hoses, and seals. An oil analysis test can detect early signs of contamination or oxidation that may weaken output consistency.
The clutch-brake assembly manages forward stroke control and emergency stops. Frequent testing of brake timing and counterbalance air pressure ensures stability during high-speed runs. Any delays in engagement or noise during operation call for immediate maintenance.
Modern 100-ton presses are equipped with PLCs, overload sensors, and limit switches. Weekly calibration and electrical connection inspections are vital to prevent control malfunction or accidental press activation.
Create a consistent daily checklist for operators to follow before each production shift:
- Remove all dust, metal chips, and oil residue around the work table.
- Inspect lubrication system operation and fill tanks as necessary.
- Check hydraulic oil levels and verify that pressure gauges show normal readings.
- Confirm die alignment and safety lock pin engagement.
- Conduct a test stroke and listen for irregular vibrations or impact sounds.
These quick actions take less than 15 minutes but drastically reduce the likelihood of unplanned stoppages.
Operators or maintenance technicians should allocate time each week to deeper inspections:
- Lubricate adjustable gibs and gears.
- Tighten loose bolts and connections.
- Examine clutch and brake air pressures for irregularities.
- Test foot pedal and two-hand control systems for response accuracy.
- Clean filters and vents to enhance cooling performance.
Monthly inspections focus on internal diagnostics and large-component evaluations:
- Drain and inspect hydraulic reservoirs for sludge or metal particles.
- Measure parallelism between the ram and bolster using precision tools.
- Check structural fasteners and anchor bolts beneath the machine.
- Review the press alignment report and adjust if misalignment exceeds 0.02 mm.
- Test the motor amperage draw to identify mechanical binding.
A properly executed monthly maintenance session can prevent several thousand dollars in future repairs.
Lubrication keeps moving parts from wearing prematurely.
- Automatic Lubrication: Most modern presses are equipped with automated lubrication systems with timer-based cycles. Verify proper lubrication by checking line pressure indicators.
- Lubricant Quality: Use manufacturer-recommended oils. Avoid mixing brands, as additives may chemically react and degrade lubrication performance.
- Inspection Schedule: Inspect all lubrication points every 8 to 12 hours of operation and adjust volumes to match production intensity.
- Environmental Control: Maintain a clean surrounding environment — airborne dust can pollute oil lines and cause abrasion.
Good lubrication directly correlates to smooth press performance, energy efficiency, and lower operational temperatures.

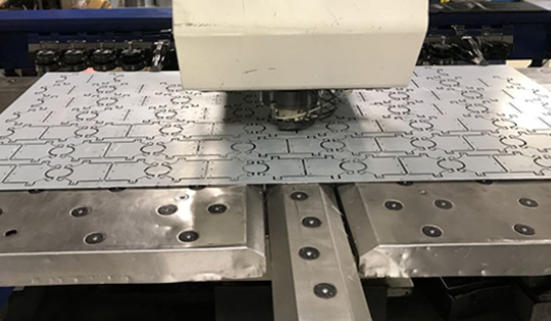

Tooling care is as vital as machine upkeep. Even a clean, perfectly tuned press will underperform with damaged dies.
- Regularly sharpen punch and die edges to maintain cutting precision.
- Always clean residues and apply anti-corrosion coating when not in use.
- Store dies in protective racks to prevent collision or deformation.
- Align dies carefully before engaging the press; uneven contact can distort the ram.
A strict die inspection schedule helps maintain consistent part quality and prevents overload on press components.
A press that is not perfectly level or aligned will distribute tonnage unevenly. Over time, this causes twisting in the frame and uneven wear across drive components.
- Place a machinist's spirit level across the bed corners during initial installation.
- Adjust leveling bolts and shims until uniform readings appear.
- Re-examine level every 6 months or after major relocation.
- Document all alignment adjustments for traceability.
Ensuring alignment stability results in lower vibration, reduced noise, and better part repeatability.
Digitalization has transformed maintenance practices for heavy presses.
Factories can now integrate Industrial IoT (IIoT) sensors and diagnostic dashboards to monitor equipment health remotely.
- Tonnage Monitoring: Tracks overload conditions to prevent structural fatigue.
- Temperature Sensors: Detect overheating in bearings and hydraulic components.
- Vibration Analysis: Identifies imbalance or wear patterns in rotating assemblies.
- Usage Analytics: Records stroke counts and downtime reports for performance reviews.
With these tools, maintenance becomes predictive rather than reactive, saving significant time and cost.
Human oversight remains one of the most critical variables influencing machine condition.
Proper training programs should include:
- Equipment start-up and shutdown procedure reviews.
- Daily inspection item checklists.
- Recognition of early failure symptoms (e.g., hydraulic whine or uneven strokes).
- Reinforcement of lockout/tagout (LOTO) protocols before any service.
Operators should also be equipped with adequate personal protective equipment (PPE) such as ear protection, gloves, and safety glasses. Company management must schedule periodic safety drills to simulate emergency press stoppage procedures.
Operators and technicians must remain alert to frequent pitfalls:
1. Ignoring Unusual Sounds: A grinding noise often signals bearing or gear wear.
2. Incorrect Oil Replacement Intervals: Extending oil replacement beyond manufacturer recommendations can cause severe contamination.
3. Improper Tool Setup: Misaligned dies or excessive tightening can stress the press frame.
4. Over-Lubrication: Adding oil excessively increases residue buildup and may damage sensors.
5. Neglecting Documentation: Always log date, technician, and maintenance details after every session.
Avoiding these simple mistakes significantly reduces mechanical strain and unexpected failures.
Predictive maintenance uses real-time data analytics to forecast mechanical wear.
Through vibration sensors, thermal cameras, and oil particle analyzers, technicians can anticipate failures before they cause downtime.
Advantages include:
- Reduced energy waste due to smoother operation.
- Early detection of bearing or hydraulic wear.
- Extended maintenance intervals for non-critical components.
- Increased operator confidence and safety.
As Industry 4.0 adoption grows, predictive technologies will soon become standard features in heavy press maintenance programs.
Maintaining your punch press efficiently also involves minimizing environmental impact.
Routine maintenance supports eco-efficiency in several ways:
- Clean machines operate at lower amperage, consuming less power.
- Fresh hydraulic oils generate less heat and extend motor life.
- Controlled air leaks reduce compressor workload, saving energy costs.
- Preventing leaks and spills helps maintain compliance with environmental standards.
Energy-efficient operation not only reduces costs but also reflects your company's sustainability commitment — an important factor in global manufacturing competitiveness.
A Computerized Maintenance Management System (CMMS) keeps maintenance data centralized.
With a CMMS, you can automatically schedule inspections, record downtime events, and track spare parts inventories.
Benefits include:
- Quicker identification of recurring failure patterns.
- Automated alerts when inspection dates approach.
- Digital storage of lubrication charts, drawings, and manuals.
- Streamlined reporting for audits or ISO certifications.
Implementing digital tools strengthens accountability and keeps every technician aligned with best practices.
Maintaining a 100-ton punch press for maximum efficiency is an ongoing investment in production reliability and safety. From daily checks and lubrication schedules to advanced predictive diagnostics, every action contributes to performance stability and reduced operating costs. When properly maintained, your press not only delivers high precision and speed but also ensures long-term profitability. Building a strong maintenance culture is the key to achieving sustainable, efficient, and safe production.
A quarterly full inspection is ideal. This examination should include frame alignment, clutch system performance, and electrical safety checks.
Follow OEM guidelines, typically recommending heavy-duty machine oils or high-temperature lithium greases for gear and ram lubrication points.
Use precision measuring tools such as dial indicators or laser alignment systems to detect parallelism variation between the ram and bolster.
Indicators include unusual noises, elevated temperatures, slower strokes, or visible fluid leakage near cylinders or valves.
By continuously analyzing vibration, pressure, and temperature data, predictive systems detect early deterioration, allowing timely intervention before breakdowns occur.
