Selecting the ideal 100-ton punch press for your workshop is one of the most important investments you can make in metal fabrication. The right press will boost productivity, ensure consistency, and extend equipment lifespan through precision design and superior performance. But with dozens of models on the market — mechanical, hydraulic, and servo-electric — choosing the right one can be challenging.
This comprehensive guide will help you understand what a punch press does, how it works, and what critical factors you should evaluate before making your purchase. We'll also explore applications across industries, cost references, and maintenance best practices to ensure your press delivers maximum output for years to come.

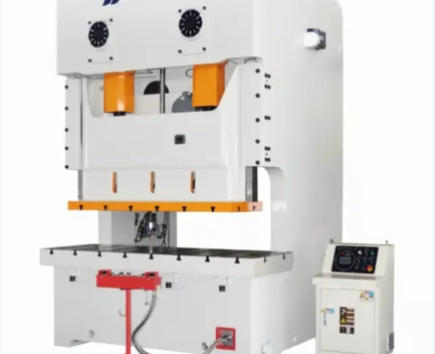

A 100-ton punch press is a powerful metalworking machine designed to shape, cut, or form sheet metal by applying up to 100 tons of pressure. The power generated enables manufacturers to perform metal stamping, blanking, punching, and embossing operations with precision.
Unlike smaller units, its 100-ton force capacity makes it suitable for medium to heavy-duty applications, where strong materials such as stainless steel or carbon steel are used. These presses are indispensable in fields like automotive, aerospace, construction, and electrical equipment manufacturing.
Every punch press operates on the same mechanical principle — a ram forces the punch down into the material against a fixed die. With each press stroke, material is cut, formed, or shaped to the desired pattern.
Basic steps of operation:
1. Die Installation: Operator sets up the punch and die tooling on the press bed.
2. Material Feeding: Sheet metal is manually positioned or automatically fed through a conveyor system.
3. Punch Cycle: The ram moves downward under power (mechanical, hydraulic, or servo-electric), pressing the punch into the material.
4. Material Ejection: The formed workpiece is ejected and removed for finishing or assembly.
5. Return Stroke: The ram retracts, ready for the next cycle.
The repetition speed, stroke depth, and tonnage vary depending on machine design and specific application.
The 100-ton rating represents a balance between strength and flexibility — powerful enough for demanding operations but small enough for workshop floors. There are several reasons workshops prefer this tonnage:
- Adaptability: Handles a variety of materials and thicknesses without excessive power consumption.
- Precision Engineering: Minimizes deformation and maintains consistent tolerances.
- Efficiency: Ideal for both short-run prototyping and large-scale manufacturing.
- Durability: Built from forged steel structures with robust guide mechanisms.
- Return on Investment: Offers years of reliable use with moderate maintenance demands.
Whether used for sheet metal punching, bending, or progressive die stamping, a 100-ton punch press can serve as the backbone of your workshop's production line.

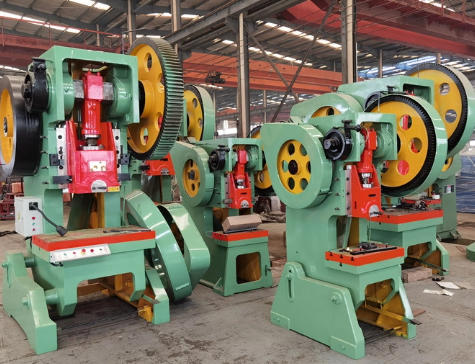

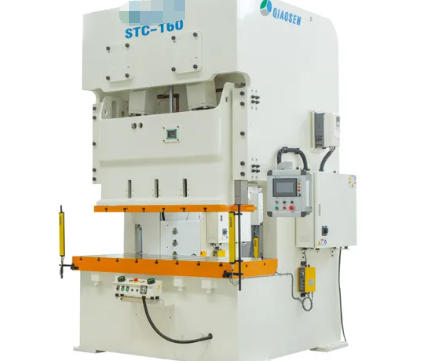

Mechanical presses are characterized by a flywheel mechanism that delivers fast and repetitive strokes. They are widely used for blanking, stamping, and coining operations that demand quick cycles.
Advantages:
- Higher operating speed
- Lower energy cost per stroke
- Compact construction
Limitations:
- Limited stroke control
- Abrupt force impact can cause stress on tooling
Hydraulic presses use fluid pressure to generate force, allowing for precise control over pressure and stroke length. They are perfect for deep drawing, forming, and heavy material punching.
Advantages:
- Consistent pressure throughout the stroke
- Safer and quieter operation
- Adjustable tonnage for delicate materials
Limitations:
- Slower cycle time than mechanical presses
- Requires regular hydraulic maintenance
This modern solution uses servo motors and ball screws for movement, providing high accuracy and efficiency. It's perfect for clean energy-driven workshops or those embracing digital automation.
Advantages:
- Reduced power consumption
- Lower noise and vibration
- Precise motion control ideal for CNC programs
Limitations:
- Higher initial cost
- Requires skilled personnel for setup and software control
Evaluate the maximum sheet thickness and type of metal you'll be processing. A 100-ton press handles sheets from 0.5 mm up to 8 mm depending on metal hardness. This ensures your press operates efficiently without overloading the system.
Ensure that the machine bed and throat depth can accommodate your largest dies. Flexibility in die changing systems, such as T-slotted tables and quick-clamp systems, enables faster tooling changes and higher productivity.
Modern punch presses come with advanced CNC controls for programming multiple punching patterns, stroke adjustments, and real-time diagnostics. If your operation involves frequent design changes or automated production, CNC control is essential.
Look for rigid monobloc or welded steel frames designed to minimize deflection and vibration. This is crucial for maintaining hole accuracy and consistent part quality.
Energy-efficient drives and regenerative braking systems can reduce operational costs. Servo-electric models often achieve power savings of up to 50% compared to traditional presses.
If you plan to scale up, consider presses that support:
- Auto-feeding systems
- Robotic arm unloading
- Intelligent tool recognition
- Remote monitoring through IoT software
This level of automation can significantly reduce labor costs and improve quality control.
- Multi-Tool Turret System: Switches between different punch shapes rapidly.
- Programmable Stroke Depth: Optimized punching for different metal thicknesses.
- Lubrication Management: Automatic oiling ensures smoother performance and reduces mechanical wear.
- LED Work Lighting and Laser Alignment: Helps in accurate material positioning.
- Noise-Reduction Design: Ideal for workshops in noise-controlled environments.
A 100-ton punch press offers versatility across multiple manufacturing sectors:
- Automotive Manufacturing: Produces bracket mounts, frames, and chassis components.
- Electrical Industry: Cuts panels for control boxes and switchboards.
- Construction Sector: Fabricates fastening plates, joints, and metal beams.
- Aerospace: Used for lightweight alloy punching with tight tolerances.
- Furniture & Appliance Production: Creates structural frames for cabinets and metal enclosures.
- Agriculture Machinery: Punches gears, supports, and connecting plates.
This diversity demonstrates how a single investment can serve multiple production departments or business divisions.
| Feature | Mechanical Press | Hydraulic Press |
|---|---|---|
| Drive System | Crankshaft & flywheel | Hydraulic piston system |
| Force Curve | Variable | Constant |
| Speed | High (up to 150 strokes/min) | Moderate (30–70 strokes/min) |
| Precision | Moderate | High |
| Energy Use | Efficient during high-speed operations | Efficient in varied load applications |
| Maintenance | Low cost, fewer components | More components but smoother operation |
| Best Use Case | Thin sheets, mass stamping | Deep drawing, thick material punching |
Before installation, evaluate the workshop layout, electrical connections, and foundation stability. A typical floor setup includes:
- Base Foundation: Minimum of 500–600 mm reinforced concrete slab.
- Clearance: At least 2 meters around the press for safe operation.
- Electrical Supply: 380V three-phase (customizable per region).
- Compressed Air: Required for pneumatic components in CNC systems.
- Lighting and Accessibility: Ensure sufficient lighting and clear ingress for raw materials.
Proper infrastructure prevents vibration damage, enhances operator safety, and ensures optimal machine lifespan.
Regular maintenance guarantees stable performance. Below are essential checkpoints:
- Daily: Clean die area, check oil pressure, and remove metal scraps.
- Weekly: Inspect electrical connections, lubricate moving parts.
- Monthly: Calibrate stroke alignment and check ram positioning.
- Quarterly: Replace hydraulic oil and inspect seals for leaks.
- Annually: Conduct a full mechanical inspection and replace worn bearings and bushings.
Adhering to this schedule prevents sudden downtime and increases productivity output.
- Inconsistent Punch Depth: Check for uneven hydraulic pressure or worn servo calibration.
- Excessive Noise or Vibration: Inspect the frame bolts and flywheel assembly.
- Oil Leakage: Replace damaged seals and check filtration systems.
- Misaligned Punch: Realign the ram or replace damaged guides.
- Slow Response Time: Verify oil level, pump condition, or servo encoder connections.
By detecting early warning signs, you protect your equipment investment and minimize repair costs.
Investing in a 100-ton punch press involves several cost factors:
- Machine Price:
- Mechanical: $10,000 – $25,000
- Hydraulic: $18,000 – $35,000
- Servo-Electric: $30,000 – $55,000
- Tooling & Die Costs: $2,000 – $10,000 per setup depending on design complexity
- Automation Accessories: Around 15–20% of total machine cost
- Installation & Training: $1,000 – $3,000
- Annual Maintenance: 2–4% of purchase price
While initial investment may appear high, consistent output and low scrap rates quickly offset costs. The correct selection ensures maximum productivity and profits over 10–15 years of service.
Selecting the perfect 100-ton punch press for your workshop requires balancing power, speed, precision, and cost. Before purchasing, assess your material type, production targets, and future expansion needs. Consider opting for CNC-controlled or servo-electric systems if you aim for long-term automation and higher accuracy.
Investing in a reliable press is not simply buying machinery — it's securing your workshop's productivity and future growth. With proper setup, preventive maintenance, and quality tooling, a 100-ton press can serve efficiently for decades, producing high-quality components across many industries.
It works well with steel, aluminum, brass, copper, and stainless steel sheets. Material thickness typically ranges between 0.5 mm to 8 mm.
With proper maintenance, a punch press can easily last 10 to 20 years, depending on usage frequency and working environment.
Yes. Many presses are compatible with forming dies that perform simple bends, embossing, or perforation tasks beyond punching.
Absolutely. Operators should understand machine safety, die setup, and CNC programming before starting production to ensure efficiency and safety.
Choose a hydraulic or servo-electric model, maintain proper lubrication, and install rubber anti-vibration pads beneath the base.
