In modern manufacturing, the ability to shape, cut, and form metals efficiently is essential for a range of industries, from automotive to appliance production. Two flagship technologies stand out in this field: the 100-ton punch press and the 100-ton hydraulic press. While each machine boasts high force capacity, their operational principles, application suitability, cost profiles, and flexibility vary greatly. Selecting the right machine can significantly impact productivity, cost efficiency, and product quality for manufacturers worldwide.
This comprehensive guide compares 100-ton punch press and hydraulic press machines in detail, exploring their mechanics, benefits, drawbacks, ideal use cases, and providing insights into which choice might be best for various industrial scenarios.
A 100-ton punch press is a high-power mechanical device designed primarily for punching, cutting, and forming metal sheets by forcing a tool or die through the material using significant force. These presses are generally driven by mechanical systems such as a crank, flywheel, or servo motors.
Punch presses use mechanical energy, developed and stored in a flywheel, to create fast and repetitive force cycles. The energy is transferred to the workpiece very rapidly, allowing for high-speed operation and excellent repeatability. 100-ton punch presses are extensively used in electrical enclosure fabrication, automotive bodywork (e.g., car doors, chassis), large-scale production of precision sheet metal parts, and manufacturing appliance shells and supports.
- High speed: Essential for mass production.
- Exceptional precision: Consistent punching and cutting accuracy over large production runs.
- Moderate to high force: Sufficient for most sheet metal operations.
- Compact footprint: Suitable for workshops with limited space.
- Automation-ready: Can be integrated into automated production lines.
- Fixed force settings: Less flexibility for varying materials or job requirements.
- Mechanical wear: Components like clutches and flywheels require regular maintenance.
- Less suitable for deep forming or large material deformation.

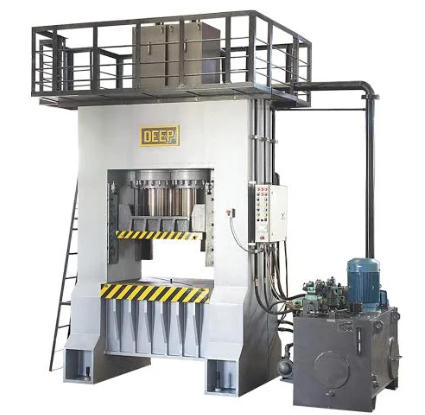

A 100-ton hydraulic press operates on Pascal's principle, generating force via pressurized hydraulic fluid that moves a piston. The resulting force is applied slowly and evenly to the workpiece, making hydraulic presses highly versatile and controllable.
Hydraulic presses produce consistent, adjustable pressure across the entire stroke and can be tailored to different applications by varying pressure and speed. They are widely used in metal forming and deep drawing, compression molding of plastics and composites, powder compacting and forging, bending, embossing, and assembling parts requiring variable force.
- Variable force and speed: Adjustable to suit different materials and processes.
- Smooth, controlled pressure: Reduces risk of cracks and maintains workpiece integrity.
- High versatility: Can handle various forming, shaping, and compression operations.
- Safety: Built-in overload protection and emergency safeguards.
- Slower cycle times: Hydraulic operation is inherently slower than mechanical methods.
- Higher initial investment: More complex hydraulic systems increase up-front costs.
- Maintenance requirements: Needs regular fluid checks and leak monitoring.

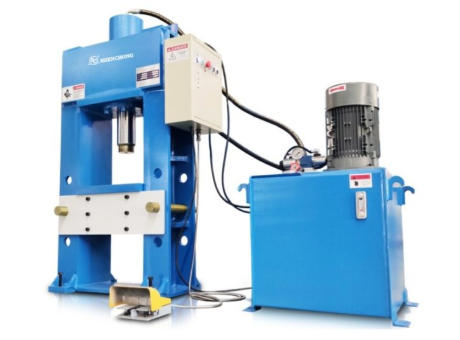

A typical modern 100-ton hydraulic press may feature:
- Maximum pressure force: Approx. 981 kN (100 tons).
- Maximum pressure rating: Up to 258 bar.
- Piston stroke: Around 300-380 mm.
- Operating speeds: Approaching speed around 7-8 mm/s, working speed around 2-3 mm/s, and return speed near 9 mm/s.
- Motor power: Approximately 2.2 to 4 kW.
- Working width in frame: Ranges from 1100 mm to as wide as 1500 mm or more.
- Weight: Typically ranges from about 970 kg to 2300 kg depending on design and features.
- Features might include adjustable working tables, joystick control, pressure regulation, multiple operating speeds, and overload protection for safety.
- The piston and cylinder diameters allow for stability and force control, with piston rods often being 90 mm in diameter.
| Feature | 100 Ton Punch Press | 100 Ton Hydraulic Press |
|---|---|---|
| Force Generation | Mechanical (crank/flywheel/servo motor) | Hydraulic fluid & piston |
| Speed | Very fast; high cycle rate | Slower, stepless speed control |
| Force Control | Fixed, less adjustable | Precise, fully adjustable |
| Application Focus | Cutting, punching, blanking | Forming, molding, drawing, deep forming |
| Precision | High for cutting, repeated jobs | High for shaping, controlled deformation |
| Maintenance | Mechanical wear (gears, flywheels, clutch) | Fluid & seals (hydraulics) |
| Cycle Time | Short (suits high-volume production) | Longer, but safer for delicate parts |
| Versatility | Good, limited to certain tasks | Excellent, supports many operations |
| Safety Features | Basic, depend on guards | Advanced, overload protection |
| Initial Cost | Typically lower | Higher due to complex hydraulics |
Advantages
- High-speed operation: Excellent for mass-producing identical parts.
- Superior precision and repeatability for punching/cutting tasks.
- Lower upfront costs for basic models.
- Automation-ready, easily fits in automated production lines.
Disadvantages
- Limited force adjustability, not suited for operations requiring variable pressure.
- More mechanical wear and moving parts: higher chances of breakdowns and frequent maintenance.
- Not ideal for forming, deep drawing, or heavy-duty embossing.
Advantages
- Flexibility in force and speed adjustments for various materials and thicknesses.
- Capable of handling a wider range of applications: forming, molding, stamping, drawing.
- Built-in safety/overload protection reduces risk of damage and injury.
- Fewer moving parts results in less overall mechanical wear.
Disadvantages
- Slower operation, potentially reducing throughput in high-volume scenarios.
- Higher initial investment and ongoing maintenance (hydraulic fluid leaks, seals, contamination).
- Requires skilled operators for maximum efficiency and safety.
- High-volume production (e.g., automotive stamping).
- Sheet metal cutting and hole punching with rigid patterns.
- Electrical cabinet and appliance fabrication where repeatability is critical.
- Operations where fixed force and cycle speed suffice.
- Precision forming, deep drawing, and embossing of large/niche components.
- Bending and forming thick metals or composites with controlled pressure.
- Molded or composite part production for aerospace and heavy machinery.
- Applications requiring force adjustability and process flexibility.
- Punch presses generally cost less upfront but require more frequent maintenance due to part wear and vibration.
- Hydraulic presses tend to have a higher purchase price but may offer longer service life and reduced mechanical upkeep if properly maintained.
- Energy consumption varies: hydraulic presses can be more energy-efficient in forming/varying-force jobs, while punch presses are more efficient in repetitive, high-throughput scenarios.
Punch presses demand operators skilled in timing, die setup, and basic mechanical maintenance. Safety guards and emergency stops are essential due to the speed and force delivered.
Hydraulic presses require knowledge of pressure control, hydraulic systems, and leak detection. They are inherently safer due to overload protection and slower, steadier operation.
Choosing the “better” press depends on several core factors:
- Type of Work: For high-speed, mass-production punching, a mechanical punch press excels. For deep drawing, bending, or tasks requiring variable pressure, hydraulic presses are ideal.
- Material & Thickness: Hydraulic presses accommodate thicker or more delicate materials due to their adjustable force; punch presses are perfect for thin sheet metals.
- Production Volume: Punch presses outpace hydraulic presses in cycle times, crucial for automotive or appliance manufacturers with large, uniform batches.
- Safety & Maintenance: Hydraulic presses offer advanced safety, but require attentive fluid maintenance, while punch presses are more prone to wear needing regular mechanical checkups.
- Budget: Consider both the upfront investment and long-term ownership costs, as well as needed skills for operators.
Both 100-ton punch presses and hydraulic presses occupy vital roles in industrial manufacturing. The punch press shines in high-speed, repeatable punching and cutting tasks, especially for moderate thickness metals and high-volume production. Hydraulic presses, on the other hand, offer unmatched flexibility, precise force control, and the capability to handle a wide variety of heavy-duty forming, bending, and drawing jobs.
Manufacturers should base their choice on the specific application, production volume, safety requirements, budgetary constraints, and desired flexibility. Investing time in analyzing these factors, along with an understanding of ongoing maintenance needs, ensures the most efficient and profitable use of either press technology.
The primary difference lies in how force is generated and applied. Punch presses use mechanical methods such as cranks and flywheels for fast, repetitive operations, making them ideal for cutting and punching sheet metals. Hydraulic presses rely on fluid pressure, offering smooth, adjustable force and versatility for forming, molding, and heavy-duty applications.
Punch presses are generally more cost-effective for high-volume, repetitive production due to their high speed and lower energy usage per cycle. However, hydraulic presses may offer savings in specialized or flexible jobs despite a higher upfront cost.
While hydraulic presses can punch and cut, they operate at slower speeds than dedicated punch presses. They are better suited for jobs where variable force or forming is required rather than pure speed and high-volume cutting.
Punch presses require regular mechanical checks and timely replacement of moving parts such as clutches and gears. Hydraulic presses need routine fluid checks, seal inspections, and preventative measures against leaks but generally encounter less mechanical wear.
Hydraulic presses typically include advanced safety features like overload protection and controlled pressure application, reducing the risk of operator injury. Punch presses rely more on mechanical safety guards and require vigilant operational procedures due to their rapid cycles.
