A 100 ton punch press is a cornerstone of modern metal fabrication, empowering manufacturers to achieve precision, speed, and cost efficiency. Whether producing automotive components, appliance housings, or electronic frames, this industrial machine transforms flat metal sheets into high-quality parts with exceptional consistency.
This article delves into the working principles, advantages, and industrial applications of a 100 ton punch press — and how it can transform your production process into a more automated, scalable, and profitable operation.

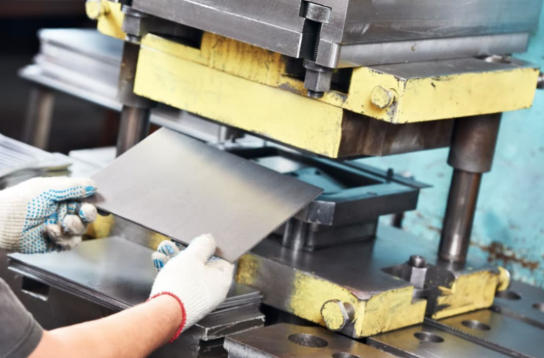

A 100 ton punch press is designed to exert up to 100 tons of pressure to cut, punch, or form metal sheets. This immense force allows it to handle medium to heavy-duty materials, such as carbon steel, stainless steel, and aluminum alloys.
Depending on configuration, punch presses may operate mechanically, hydraulically, or via servo drive systems:
- Mechanical presses rely on a flywheel and crankshaft for consistent force and fast production cycles.
- Hydraulic presses deliver variable pressure with high flexibility, ideal for deep drawing or precision forming.
- Servo presses integrate digital control for precise stroke adjustment and energy efficiency.
Key parts of a punch press include:
- Frame: Provides structural stability to sustain high tonnage pressure.
- Ram/Slide: Moves vertically to press the punch into the die.
- Die Set: Contains the tooling that shapes or cuts material.
- Clutch and Brake: Control power transmission and safety.
- Control System: Manages pressure, stroke, and automated feeding.
These elements work together to ensure precision and reproducibility across production runs.
The machine's high tonnage allows it to perform multiple operations—such as blanking, piercing, embossing, and forming—at impressive speeds. Manufacturers can produce hundreds of identical components per hour while maintaining dimensional accuracy.
Pairing a 100 ton punch press with an automatic feeder or robotic arm reduces manual intervention, minimizes downtime, and lowers labor costs. In high-volume production, such automation can reduce per-unit cost by up to 30%.
CNC and servo-controlled systems ensure close tolerances (±0.01 mm) across thousands of cycles, essential for industries requiring precision parts.
With the right tooling setup, a single press can create parts for various sectors—from electrical enclosures and kitchen appliances to automotive panels and hardware accessories.
Modern press machines are built with reinforced steel frames and dynamic balancing systems, reducing vibration and extending operational lifespan even under continuous loading conditions.

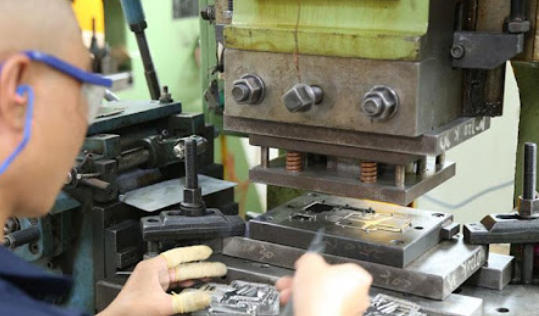

Integrating an automatic decoiler and feeder system enables continuous sheet feeding, minimizing interruptions between cycles. Smart sensors track material thickness, positioning, and alignment for error-free processing.
Quick-change die systems and modular tooling compatibility help operators switch production setups in minutes, significantly improving machine uptime.
Modern 100 ton presses feature IoT-enabled control panels for predictive maintenance. Parameters like ram speed, lubrication levels, and load distribution are monitored in real-time, preventing breakdowns and optimizing operational efficiency.
1. Automotive Manufacturing: Produces brackets, mounting plates, and internal frame parts with consistent accuracy.
2. Appliance Fabrication: Forms panels and structural components used in washing machines, ovens, and refrigerators.
3. Electrical Enclosures: Punching operations create ventilation holes and connector ports for control cabinets and switchgear housings.
4. Construction Hardware: Manufactures components like hinges, channels, and reinforcement clips.
5. Aerospace and Defense: Delivers precision cutting for lightweight but strong parts in restricted material tolerances.
| Parameter | 100 Ton Punch Press | 200 Ton Punch Press |
|---|---|---|
| Press Capacity | 100 tons | 200 tons |
| Material Thickness | Up to 6 mm steel | Up to 12 mm steel |
| Applications | General fabrication and small to medium parts | Heavy structural components |
| Cost | Lower equipment and power cost | Higher acquisition and operational cost |
| Production Focus | Efficiency and precision | Heavy-duty forming and large parts |
The 100 ton model offers a balance of speed, accuracy, and affordability, making it ideal for most mid-scale manufacturers.
- Type of Material: Ensure it matches the tensile strength and thickness capabilities.
- Production Volume: High-frequency applications benefit from servo or mechanical drives.
- Automation Compatibility: Opt for a system supporting robotic integration.
- Precision Requirements: For tight tolerances, consider CNC-controlled or servo-driven units.
- After-Sales Support: Maintenance, parts availability, and software updates matter for long-term ROI.
Regular maintenance ensures optimal performance and reduces downtime. Follow these essential steps:
- Lubricate bearings, gears, and guide rails weekly.
- Check pressure settings and safety clutch function daily.
- Clean die sets and remove debris after each production cycle.
- Inspect hydraulic and electrical systems monthly.
- Calibrate sensors and replace worn parts promptly.
Preventive maintenance schedules can reduce repair costs by up to 40%.
Operating a 100 ton punch press demands strict adherence to safety protocols to prevent accidents:
- Train operators on emergency stop procedures and lockout/tagout systems.
- Use safety guards and light curtains around the press area to detect intrusion.
- Perform regular audits on safety interlocks and mechanical brakes.
- Require personal protective equipment (PPE) including gloves, eye protection, and hearing protection.
- Maintain a clean and organized working environment to prevent slips and equipment damage.
Ensuring robust safety not only protects workers but also preserves equipment longevity and operational efficiency.
The next generation of 100 ton presses integrates AI-driven control, energy recovery systems, and remote diagnostics. With smart manufacturing trends, these machines will become central to Industry 4.0 facilities focusing on lean production and sustainable efficiency.
Cloud-based data systems will allow remote monitoring, while hybrid drive presses combine mechanical speed with hydraulic flexibility—further optimizing power consumption and part quality.
A 100 ton punch press is more than just a heavy-duty machine—it's a production accelerator. By combining strength, precision, and automation, it empowers manufacturers to scale operations, reduce costs, and ensure consistent product quality. From automotive and consumer goods to construction hardware, this versatile press remains a critical investment for companies pursuing long-term growth and productivity.
Investing in advanced control systems, quality tooling, and preventive maintenance will help maximize the potential of your 100 ton punch press and keep your production line at world-class efficiency.
These presses can handle a wide range of metals, including carbon steel, stainless steel, aluminum, copper, and brass, depending on sheet thickness and die configuration.
Yes. Servo and CNC-controlled models are ideal for both large-scale and short-run operations due to quick tool changes and programmable stroke precision.
With proper maintenance, these machines can operate efficiently for more than 15–20 years in continuous industrial use.
Absolutely. Most modern presses come with automation-ready interfaces that connect to robotic arms or feeding lines for fully automated production.
Typically, around 3 to 4 square meters, although setup space depends on auxiliary equipment like feeders and unloading conveyors.
