In the metal fabrication industry, choosing the right punching system can significantly influence production efficiency, precision, and cost structure. From small workshops that rely on manual machines to large plants equipped with industrial-grade 100 ton punch presses, understanding the operational distinctions between these systems is vital for informed investment decisions.
Punch presses are essential to sheet metal operations, enabling precise cutting, shaping, and forming of metals through controlled force. However, the level of automation, power output, and productivity varies dramatically between manual and heavy-duty 100 ton systems. This article explores their mechanics, applications, cost implications, and performance distinctions, helping manufacturers and engineers select the ideal equipment for their production environment.
A punch press is a machine that shapes or cuts metal sheets by forcing a punch through the workpiece into a die. It is one of the most fundamental tools in metalworking, employed across industries like automotive, construction, aerospace, and electronics manufacturing.
The essence of a punch press operation is the transformation of mechanical or hydraulic energy into compressive force that cleanly shears material along a defined geometry. Depending on the specific technology used, punch presses can operate manually or automatically through CNC-driven cycles.
Punch presses are generally divided into several main categories:
- Manual punch press
- Hydraulic punch press
- Mechanical punch press
- Servo-electric punch press
- CNC turret punch press
- Heavy-duty high-tonnage punch systems
Of these, this article focuses on the two extremes of the spectrum — manual punch presses and 100 ton punch presses — showcasing the transformation from labor-driven precision to automated industrial power.

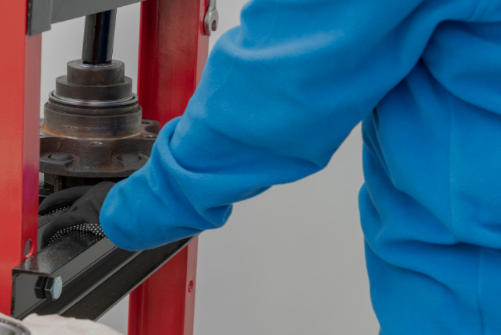

A manual punch press uses human force, transmitted through a lever, screw, or foot pedal, to create the pressing motion. It is a simple mechanical system without motors, hydraulics, or electrical controls. This simplicity makes it reliable, affordable, and easy to maintain.
Typically composed of a frame, ram, die plate, lever arm, and handle, the manual press operates by manually aligning the material and applying downward pressure to complete the punching cycle.
- Small, bench-mounted frame design
- Force output under 5 tons (usually 1–3 tons)
- Swappable punch and die sets for diverse shapes
- Compact and portable—ideal for workshops or field use
- Minimal maintenance with mechanical simplicity
Manual punch presses excel in precision for light sheet metal and prototype work. However, their productivity depends entirely on the operator's rhythm and stamina. While excellent for custom or small-scale jobs, they become inefficient for long production runs.
- Low purchase and operating cost
- Highly portable and user-friendly
- Suitable for repair, maintenance, and custom fabrication
- Precise control for delicate materials and parts
- No reliance on power supply—ideal for remote sites
- Limited punching force and speed
- Requires physical effort
- Not suitable for thick or hard metals
- Slower throughput and inconsistency between operators
- Prototype production or short-run fabrication
- Laboratory or R&D environments
- Maintenance and workshop activities
- Educational purposes in metalworking programs

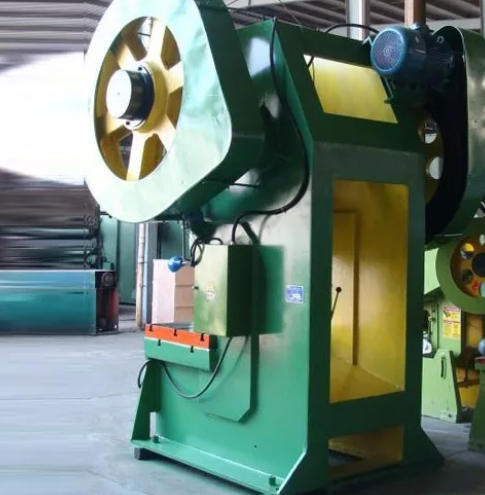

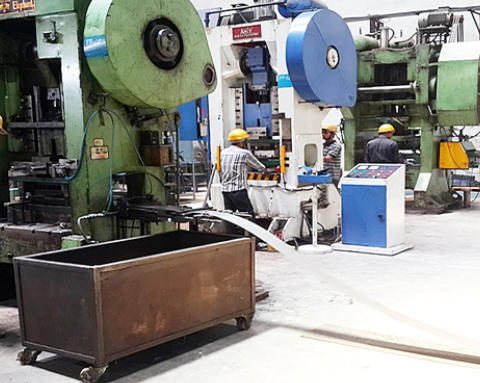

A 100 ton punch press represents industrial-scale power. With a maximum punching capacity of 100 tons, it can effortlessly handle heavy-gauge steel, aluminum, or alloys. These machines generally rely on hydraulic or mechanical actuation, converting electrical energy into precise pressing force.
Instead of being manually driven, these systems utilize programmable controls, such as PLCs or CNC units, to automate positioning, pressure, and cycle time. The operator typically sets parameters digitally, ensuring consistent output and tight tolerances.
- Large cast or welded frame for rigidity
- Hydraulic or servo-mechanical actuation system
- CNC controller or programmable interface for automation
- Safety devices including light curtains, two-hand controls, and emergency shutdowns
- Automatic feeding and alignment units for continuous production
- Punching capacity: up to 100 tons or more
- Bed size: over 400mm depth for large parts
- Automated or semi-automatic workpiece handling
- Die sets for complex, multi-hole, or shaped patterns
- Compatible with CAD-generated part programs
- Extremely high production output
- Capable of punching heavy materials (up to 12mm thickness)
- Maintains consistent precision and repeatability
- Reduces manual handling, increasing operator safety
- Integrates with digital manufacturing systems
- Much higher initial investment
- Greater energy consumption
- Requires specialized technicians for operation and maintenance
- Significant footprint and infrastructural needs
- Automotive part manufacturing
- Aerospace and defense industries
- Building and construction equipment fabrication
- Large-scale panel and enclosure production
- OEM-level production lines
| Feature | Manual Punch Press | 100 Ton Punch Press |
|---|---|---|
| Power Source | Manual labor | Hydraulic or mechanical motor |
| Force Output | 1–5 tons | Up to 100 tons |
| Automation | None | Fully or semi-automated (CNC, PLC) |
| Precision | Operator-dependent | High repeatability and CNC accuracy |
| Production Volume | Low-volume or custom | High-volume, continuous |
| Cost | Low purchase and maintenance cost | High capital and operational cost |
| Setup Complexity | Simple and quick | Complex, requires calibration |
| Material Capacity | Thin sheets (1–3 mm) | Thick sheets (up to 12 mm) |
| Skill Requirement | Basic manual training | Advanced technical knowledge |
| Footprint | Small, portable | Large, fixed installation |
This table highlights the significant leap from manual precision craftsmanship to digitally controlled productivity that defines 100 ton punch presses.
Manual systems might produce a few dozen parts per hour, depending on complexity. A 100 ton CNC press can punch hundreds or thousands of identical parts with uniform quality in the same time frame, thanks to automation and multi-station tooling.
Manual presses operate at relatively low forces, posing fewer severe hazards, though fatigue and repetitive injuries remain possible. In contrast, 100 ton systems can be dangerous if not properly safeguarded. Therefore, safety automation—light sensors, protection barriers, and two-hand activation—is essential.
Manual presses can operate for decades with minimal care—mostly lubrication and basic inspection. However, 100 ton systems require scheduled overhauls, hydraulic oil management, and part replacements to maintain accuracy and prevent downtime.
For small enterprises, manual punching remains cost-effective, providing flexibility for short runs. For large-scale manufacturing, high-tonnage presses dramatically boost efficiency, offsetting their cost through economies of scale, reduced errors, and labor savings.
The advancement of CNC technology, servo motors, and smart sensors has redefined punch press performance. Modern 100 ton systems integrate real-time feedback and predictive maintenance software, minimizing downtime. These innovations allow operators to monitor tool wear, force application, and material deformation in real time.
Conversely, manual systems retain their niche advantage — simplicity, low cost, and immediate tactile feedback — making them valuable tools in workshops where craftsmanship and adaptability are essential.
The environmental impact of modern machinery cannot be overlooked. Manual punch presses consume no electricity, making them inherently eco-friendly though limited in power. 100 ton presses consume more energy but can incorporate regenerative hydraulic systems and programmable efficiency modes to reduce waste.
Sustainable materials like recycled steel and aluminum further enhance the value of automated systems by transforming high-speed fabrication into a low-waste process.
When selecting a punching system, manufacturers should evaluate:
- Production volume: Is the goal low-volume prototyping or mass production?
- Material specifications: What metal types and thicknesses are required?
- Precision needs: Are tolerances critical for the end-use application?
- Budget: Is capital investment outweighed by long-term productivity gains?
- Workforce capability: Are trained technicians available for advanced systems?
- Space and utilities: Is the facility equipped to handle large machinery power demands?
In essence, manual press systems are ideal for versatility and simplicity, while the 100 ton press represents industrial scalability and automation power.
Understanding the essential differences between manual and 100 ton punch press systems equips manufacturers to optimize their production strategies. Manual systems provide simplicity, affordability, and craftsmanship suited for short runs and workshop tasks. Meanwhile, 100 ton presses embody the efficiency, precision, and scale required by modern industrial operations.
The decision to invest in one or the other revolves around production goals, budget, technical skill level, and long-term business growth strategy. A balanced manufacturing setup may even include both systems, leveraging the flexibility of manual operation alongside the productivity of high-tonnage automation.
Manual presses require little more than periodic cleaning and lubrication. In contrast, 100 ton systems need hydraulic oil changes, alignment calibrations, and sensor inspections to ensure reliable operation.
For light materials and small parts, yes—but consistency depends heavily on the operator. Industrial precision and repeatability are only achievable with CNC-controlled 100 ton systems.
Industries like automotive manufacturing, aerospace fabrication, shipbuilding, and heavy machinery production rely on 100 ton punch presses for large-scale, high-strength material processing.
Manual presses are usually more economical for small factories or custom job shops because they require less maintenance, smaller space, and minimal operator training.
Automation integrates servo-driven control, digital calibration, and feedback sensors that manage every stroke of the machine. This ensures uniform force distribution, precise hole positioning, and minimized material wastage.
