In the modern era of high-efficiency manufacturing, the demand for stable, high-speed material feeding equipment is stronger than ever. Among the critical components that drive large-scale production lines, uncoiler machines—also known as decoilers—stand out for their ability to ensure continuous, tension-controlled material supply. Whether you are manufacturing automotive body panels, construction beams, electronic components, or packaged materials, the right uncoiler system can dramatically improve your operational efficiency and product quality.
This comprehensive guide explores the best uncoiler machines for large-scale production lines, including their features, types, advantages, automation capabilities, and selection guidelines. It also provides insights into the latest Industry 4.0 trends impacting coil handling systems and practical maintenance advice to maximize long-term performance.

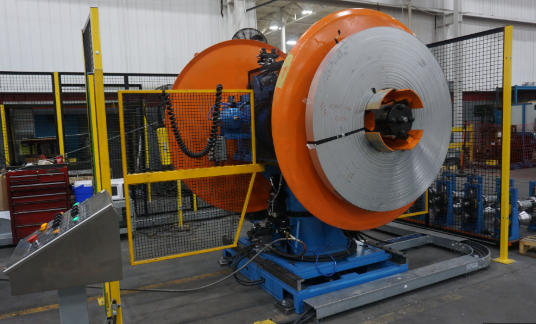

An uncoiler machine is designed to hold and unwind metal coils or other roll materials during continuous manufacturing processes. It ensures that the feed into subsequent machinery such as straighteners, feeders, or roll formers occurs without interruption.
- Material support: The machine holds coils weighing several tons and unwinds them safely.
- Tension control: Applies precise pull-back or braking tension to prevent material slack.
- Speed synchronization: Ensures consistent material flow aligned with the next stage.
- Automation integration: Links with sensors and PLC systems for intelligent control.
Without an uncoiler, operators would face frequent material stops, manual interventions, and poor linear feeding—all of which hinder production stability.
Uncoiler machines vary widely based on their drive system, load capacity, and automation design. Below are the most common types used across different manufacturing environments.
These basic machines are ideal for small-scale plants and thin-gauge materials. They rely on manual expansion and braking systems, making them cost-effective but limited in precision.
Motorized uncoilers use AC or DC motors to drive the coil rotation. They automatically adjust the speed according to feed-line sensors, ensuring a continuous and consistent supply.

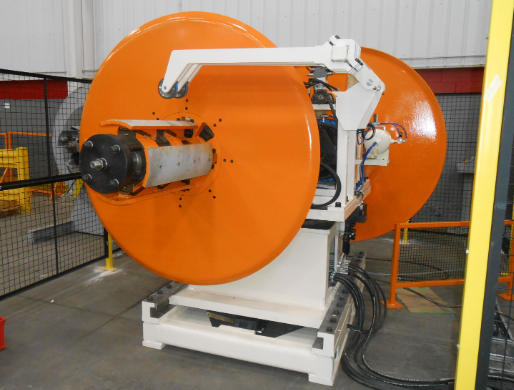

Hydraulic-driven models dominate large factories where coil weights exceed several tons. They include hydraulic expansion mandrels, coil loading cars, and pneumatic braking mechanisms. Their rugged construction makes them suitable for steel, aluminum, or copper processing.

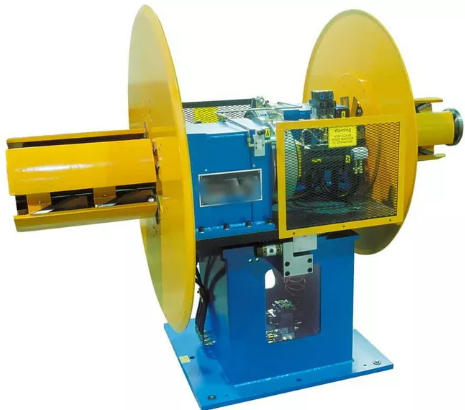

Designed for nonstop production, double-head uncoilers allow one coil to be changed while the other is operating. This structure boosts production efficiency in automotive body stamping or roofing sheet production lines.
Servo-type uncoilers are the most advanced today. They use intelligent sensors and feedback systems to control coil tension in real time, ideal for high-speed precision applications like electronics stamping or micro-alloy processing.
An industrial uncoiler integrates several mechanical, electrical, and hydraulic systems that ensure flawless coil management:
- Mandrel: Expands and contracts to grip the coil's inner diameter.
- Brake System: Controls rotational motion, ensuring stable tension.
- Drive Motor or Hydraulic Cylinder: Powers coil rotation during feeding.
- Coil Car: Lifts and positions heavy coils accurately onto the mandrel.
- Support Arms and Rollers: Maintain alignment during uncoiling.
- Control Panel: Provides speed, torque, and expansion control through touch screens or PLCs.
These components work synergistically to guarantee smooth feeding and safety in challenging industrial settings.
Automated uncoilers reduce idle time between material changes, enabling continuous operation.
Stable tension minimizes deformation, scratches, or waviness in coils, preserving sheet integrity.
Modern hydraulic or servo systems reduce manual lifting, lowering risks of accidents.
Servo-driven units consume less energy due to intelligent torque and speed regulation, promoting sustainable production.
Compact double-head or cantilever structures optimize floor space, crucial in crowded factory layouts.
When selecting an uncoiler system, engineers must evaluate multiple operational and material factors.
Heavy-duty applications require machines capable of supporting up to 30 tons or more, while general-purpose lines may only need 5–10 tons of capacity.
Ensure the mandrel expansion range matches your coil's inner bore size. Adjustable hydraulic systems accommodate diverse coil types.
The uncoiler's maximum speed should align with downstream equipment—such as roll formers or slitting lines—to avoid slack or stretching.
Servo and PLC-based controls are ideal for modern automated lines, reducing operator intervention and coordinating multiple equipment units.
Select globally recognized brands offering easy maintenance, local service availability, and standardized spare parts to minimize downtime.
Feeds high-strength steel and aluminum coils into press lines to form components like fenders, frames, and door panels.
Used in roofing sheet production, wall cladding lines, and steel reinforcement manufacturing.
Handles thin copper or aluminum strips for transformers, motors, and circuit boards.
Supplies coiled sheets to form washing machine drums, air conditioner panels, or cabinets.
Supports continuous sheet feeding for producing cans, lids, and containers with high shape accuracy.
Pioneer in automatic coil feeding systems with smart servo controls and precision alignment technology.
Offers a full range of hydraulic and servo-controlled uncoilers suitable for stamping, roll forming, and slitting applications. Known for robust design and cost efficiency.
Specializes in heavy-duty coil handling solutions with intelligent synchronization for high-speed presses.
Integrates leveling, decoiling, and measuring into cohesive systems with “just-in-time” coil adjustment functions.
Provides modular uncoiler solutions with custom design flexibility for metal roofing and solar mounting component production.
| Feature | Motorized Uncoiler | Hydraulic Uncoiler | Servo Uncoiler |
|---|---|---|---|
| Load Capacity | 3–10 tons | 10–30 tons | 10–25 tons |
| Tension Control | Basic mechanical | Hydraulic & pneumatic | Intelligent servo feedback |
| Speed Adjustment | Limited | Medium | Fully automatic |
| Coil Bore Range | Manual | Hydraulic automatic | Programmable digital |
| Automation Level | Low | Medium | High |
| Ideal Use | Standard production | Heavy industrial | High-speed precision |
Efficient operation and long equipment life depend heavily on routine care and preventive action.
- Conduct lubrication of mandrels and bearings weekly.
- Inspect electrical wiring and sensor functionality monthly.
- Verify hydraulic oil levels and pressure gauges regularly.
- Clean coil contact surfaces to prevent contamination.
- Replace worn rollers or belts promptly to avoid slippage.
- Always secure coils before uncoiling to prevent sudden rotation.
- Keep safety guards and limit switches operational.
- Train operators in emergency stop procedures.
- Use coil cars for heavy coil loading to avoid forklift-related risks.
Following a structured maintenance routine ensures uninterrupted production stability and worker safety.
As factories evolve toward digital transformation, uncoilers are becoming intelligent systems capable of real-time monitoring and predictive control.
- IoT Connectivity: Links machines through cloud-based platforms for performance analytics.
- PLC Integration: Automated coordination between coil handling, straightening, and feeding.
- Auto Coil Identification: RFID systems log coil parameters automatically.
- Predictive Maintenance: Sensors detect bearing wear or hydraulic leaks before failure.
These innovations not only minimize downtime but also enhance data transparency and energy efficiency across the manufacturing cycle.
Investing in premium uncoiler machines may appear expensive upfront, but the return over long-term production is significant.
- Manual systems: $2,000 – $5,000
- Motorized systems: $6,000 – $15,000
- Hydraulic units: $18,000 – $45,000
- Servo-controlled models: $35,000 – $60,000+
- Shorter changeover time increases throughput by 20–30%.
- Reduced scrap waste cuts raw material costs.
- Lower maintenance frequency saves operational expenses.
- Enhanced product consistency reduces quality control rejections.
For mass-production environments, servo-hydraulic uncoilers offer the best balance of cost, speed, and durability.
Even top-tier equipment faces operational challenges. Understanding potential problems ensures smoother production.
*Cause:* Incorrect loading or mandrel imbalance.
*Solution:* Use laser alignment systems or adjustable coil cars.
*Cause:* Poor speed matching between uncoiler and feeder.
*Solution:* Install feedback sensors or line synchronizers.
*Cause:* Worn seals or overpressure.
*Solution:* Regular inspection and prompt replacement of gaskets.
*Cause:* Worn bearings or misaligned shafts.
*Solution:* Regular maintenance, balance testing, and lubrication.
*Cause:* Damaged sensors or overload.
*Solution:* Use surge protectors and periodic electrical testing.
Proactive troubleshooting extends machinery life and maintains steady production output.
Uncoiler machines form the backbone of every high-performance production line, enabling stable coil handling, precise tension control, and seamless material flow. From low-volume manufacturing to high-speed mass production, modern uncoilers—especially hydraulic and servo-controlled models—offer improved efficiency, reduced labor needs, and superior product quality.
When integrated with Industry 4.0 automation, these machines evolve beyond simple feeding equipment into intelligent production assets capable of self-monitoring and data-driven optimization. By choosing the right uncoiler based on your coil type, space constraints, and automation level, you can ensure your production line operates at its full potential—day after day, year after year.
They serve the same purpose, though the terminology differs geographically. “Decoiler” is popular in Europe, while “uncoiler” is commonly used in North America.
Yes, but they are typically over-specified for lighter coils. For thin materials, a motorized or servo uncoiler provides adequate performance at a lower cost.
Utilize a double-head uncoiler or install a preloading coil car. This allows operators to prepare the next coil without stopping production.
Lubricating moving parts, checking tension settings, cleaning coil contact surfaces, and verifying safety limit switches are the most essential steps.
Absolutely. Manufacturers offer custom mandrel sizes, hydraulic systems, automation features, and safety devices tailored to different applications, such as vehicle body panels or high-speed wire processing.
