Setting up a punch press correctly is essential for ensuring precise metalworking, operational safety, and machine longevity. Whether you are a beginner or an experienced operator, this comprehensive guide will walk you through every step of the punch press setup process, including safety precautions, installation of tooling, machine adjustments, and operation tips. Visual aids such as images and videos are recommended throughout to enhance understanding, and a detailed FAQ section is included at the end to address common concerns.
Before diving into the setup, it's important to understand the key components of a punch press and how it works:
- Frame: The robust structure that supports the entire machine and withstands the forces during operation.
- Ram: The moving part that holds and drives the punch downward.
- Punch: The tool that cuts or shapes the metal.
- Die: The complementary tool fixed below the workpiece that shapes or cuts the metal in conjunction with the punch.
- Bolster Plate: The flat plate that secures the die.
- Drive Mechanism: Converts motor power into ram motion, which can be mechanical (with clutch and flywheel) or hydraulic.
- Control System: Allows the operator to manage the machine's operation.
The punch press works by pressing the punch into the material placed on the die, cutting or forming the metal into the desired shape. After the punch stroke, the ram retracts, and the workpiece is ejected or moved for the next operation.
Understanding these components and their functions is crucial for proper setup and maintenance. Different types of punch presses, such as mechanical, hydraulic, and servo-driven, may have variations in setup procedures, but the fundamental principles remain consistent.
Safety is paramount when working with punch presses due to the high forces and moving parts involved. Before any setup:
- Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves (only when not operating the press directly), and ear protection.
- Ensure the work area is clean, well-lit, and free of obstructions.
- Familiarize yourself with the machine's safety guards, emergency stops, and controls.
- Never bypass safety guards or devices.
- Use proper training before setup and operation.
- Keep fire extinguishers and first-aid kits accessible.
- Establish clear communication protocols if multiple operators are involved.
A safe environment reduces the risk of accidents and improves operational efficiency.
When receiving a new punch press or relocating an existing one:
- Carefully unpack the punch press and inspect for any damage.
- Assemble components such as the stand, table, and guards according to the manufacturer's instructions.
- Tighten all bolts and screws securely to ensure machine stability.
- Level the machine using a spirit level to avoid uneven wear or inaccurate punching.
- Check for any shipping locks or transport bolts that need removal before operation.
Proper assembly and leveling are foundational to machine accuracy and longevity.
Electrical setup must be done with care:
- Connect the machine to a power source matching the voltage and amperage specifications.
- Use a grounded three-prong plug for safety.
- Ensure all electrical connections comply with local codes and manufacturer guidelines.
- Verify that emergency stop circuits and safety interlocks are wired correctly.
- Test the control panel functions before starting full operation.
If unsure, consult a licensed electrician to ensure compliance and safety.

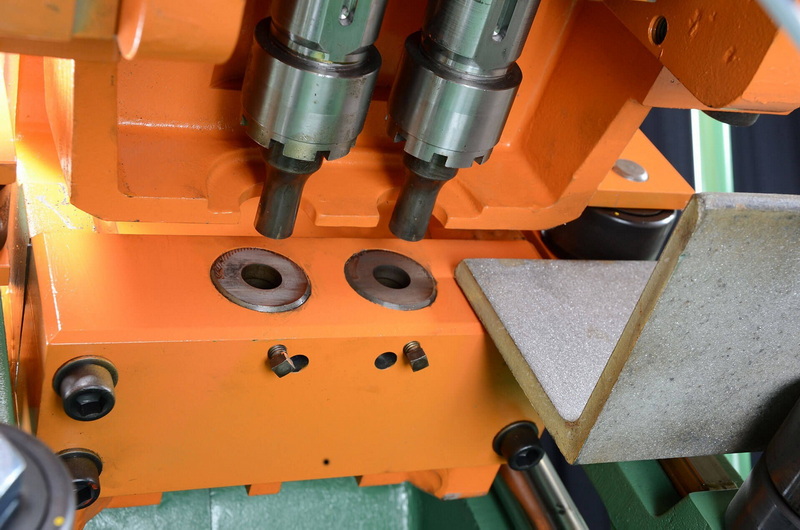

Selecting and installing the correct tooling is critical:
- Select the appropriate punch and die based on the material thickness and desired hole or shape.
- Align the punch with the die carefully to prevent damage and ensure accuracy.
- Screw the punch driver onto the punch, aligning the keys on both parts.
- Insert the punch and stripper into the punch holder assembly, ensuring the stripper lock plate is closed and secured.
- Adjust the punch length and stripper lead according to tooling specifications.
- Use a dial indicator or feeler gauge to check punch-to-die clearance.
- Ensure the die is securely fastened to the bolster plate, and the bolster plate is properly mounted on the machine bed.
Proper tooling installation prevents premature wear and ensures clean, accurate cuts.
Fine-tuning the ram's movement is essential for consistent punching quality:
- Manually cycle the ram to bottom dead center (BDC) to check clearance.
- Use adjustment screws to set the ram height so that the punch plunges correctly into the die without excessive force.
- A common trick is to place a thin plastic or nylon shim (around 0.006 inches thick) between punch and die to set the correct clearance.
- Lock the adjustment screws once the correct position is achieved.
- Adjust the ram stroke length to match the thickness of the material and tooling requirements.
- Confirm the ram returns fully to top dead center (TDC) to avoid tooling damage.
Accurate ram adjustment minimizes tooling damage and ensures part consistency.
Proper material handling and positioning are vital:
- Adjust the height and angle of the worktable to accommodate the size and thickness of the material.
- Use clamps or magnets to securely hold the metal sheet flat on the table.
- Align the sheet with back gauges, stops, or guides for precise punching locations.
- For repetitive operations, set up automated feeding systems or programmable back gauges.
- Mark the workpiece with layout lines if manual positioning is required.
- Ensure the worktable is clean and free of burrs or debris that could affect material flatness.
Accurate positioning reduces scrap and improves production efficiency.
Lubrication is key to smooth operation and tool longevity:
- Lubricate moving parts such as the ram, punch, and die according to manufacturer recommendations.
- Use appropriate lubricants sprayed or applied to reduce wear and ensure smooth operation.
- Check oil levels in hydraulic systems and top up if necessary.
- Clean the machine surfaces and remove any metal shavings or dust.
- Inspect belts, chains, and pulleys for wear and tension.
Regular lubrication reduces friction, prevents overheating, and extends machine life.
Before full-scale production:
- Start the machine in inch or single-stroke mode.
- Observe the punch operation carefully, checking for correct punch depth, alignment, and clean cuts.
- Adjust speed, pressure, or tooling as necessary.
- Ensure the finished parts meet quality standards before proceeding with full production.
- Monitor for unusual noises, vibrations, or excessive wear.
- Test the emergency stop and safety interlocks to confirm proper operation.
Test runs help detect setup errors early and prevent costly mistakes.
Ongoing safety vigilance is necessary:
- Keep hands and tools away from the punch area during operation.
- Use feeding aids or special tools to handle small parts.
- Never operate the machine without safety guards in place.
- Use foot controls carefully, ensuring only one operator controls the pedal to avoid accidental activation.
- Stop the machine immediately if abnormal noises or malfunctions occur.
- Conduct regular safety audits and operator training.
- Keep a log of maintenance and any incidents for continuous improvement.
Safe operation protects personnel and equipment alike.
- Adjust the press speed to match the material type and thickness; harder materials may require slower speeds.
- Use tonnage calculators or manufacturer charts to set the correct force to avoid tool damage.
- Monitor press tonnage during operation to detect abnormal loads.
- For complex or repetitive jobs, program back gauges to position the material automatically.
- CNC punch presses allow precise control over punch location, stroke, and speed.
- Regularly calibrate CNC systems to maintain accuracy.
- Inspect punches and dies for wear, cracks, or deformation.
- Replace tooling promptly to maintain part quality.
- Use hardened tooling for abrasive or high-volume applications.
- Ensure proper ventilation and dust extraction in the work area.
- Use ergonomic workstations to reduce operator fatigue.
- Implement noise reduction measures where necessary.
Setting up a punch press involves careful preparation, correct installation of tooling, precise adjustments, and strict adherence to safety protocols. By following these detailed steps, operators can ensure efficient, accurate, and safe punching operations. Regular maintenance and inspection further enhance machine performance and longevity. Always prioritize safety and proper training to minimize risks and maximize productivity.
With the right setup and operational discipline, a punch press becomes a powerful tool in metal fabrication, capable of delivering consistent, high-quality results for a wide range of applications.
Operators should wear safety glasses, ear protection, and gloves when handling materials (not during machine operation). Proper PPE prevents injuries from flying debris, noise, and sharp edges.
Align the punch and die by matching keys on the punch driver and punch, then carefully slide the punch into the punch holder. Use a thin plastic shim to set clearance and adjust ram height to bottom dead center.
Check electrical connections, ensure punch and die are installed properly, verify ram stroke and alignment, and inspect for worn tooling. Refer to troubleshooting guides for sensor or signal issues.
Lubricate moving parts regularly as per manufacturer instructions, typically before starting operation and after extended use. Proper lubrication reduces wear and prevents machine damage.
No, safety guards are mandatory to protect operators from moving parts and debris. Removing or bypassing guards is dangerous and prohibited.
